Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the catalytic converter hanger insulators from the catalytic converter.
  3. Remove the catalytic converter hanger bolts.
  4. Remove the catalytic converter hanger.

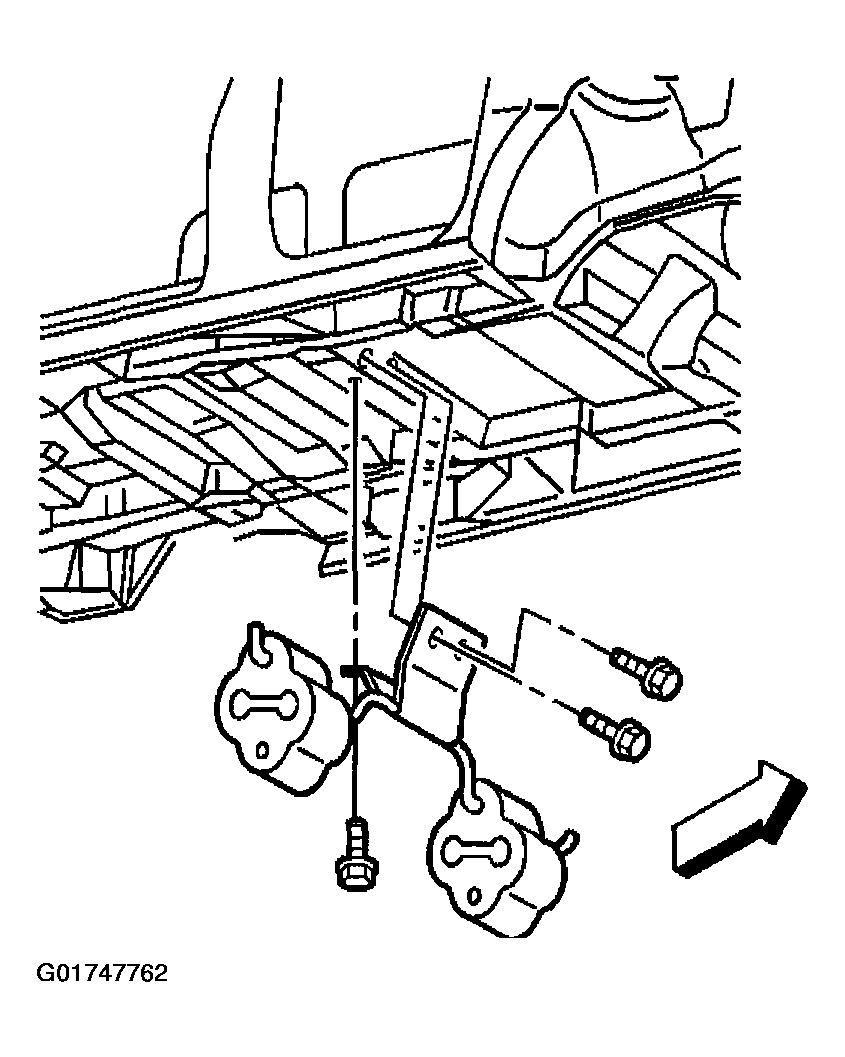

    Fig 1: Removing Catalytic Converter Hanger & Bolts
    G01747762Courtesy of GENERAL MOTORS CORP.
