Class 2

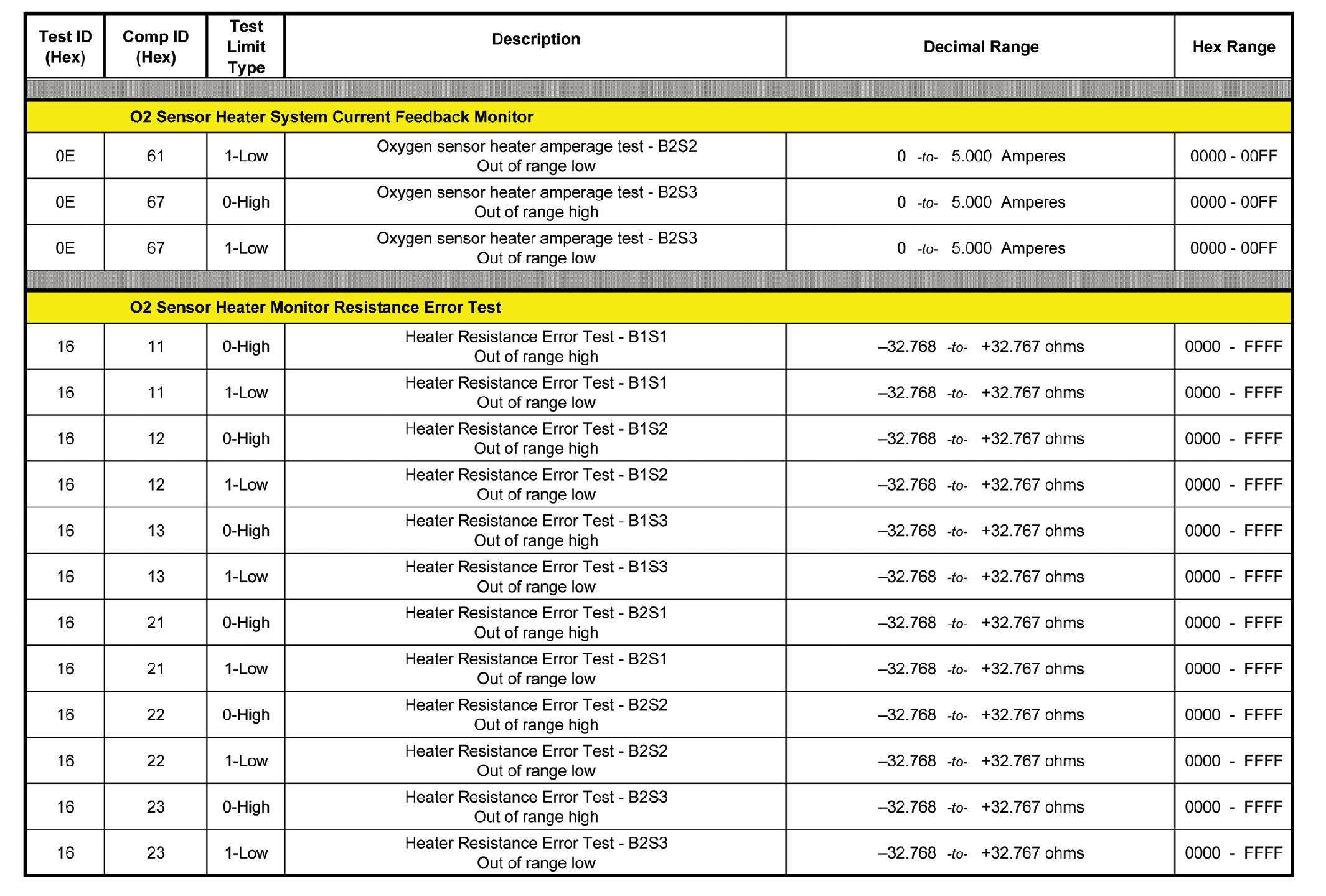

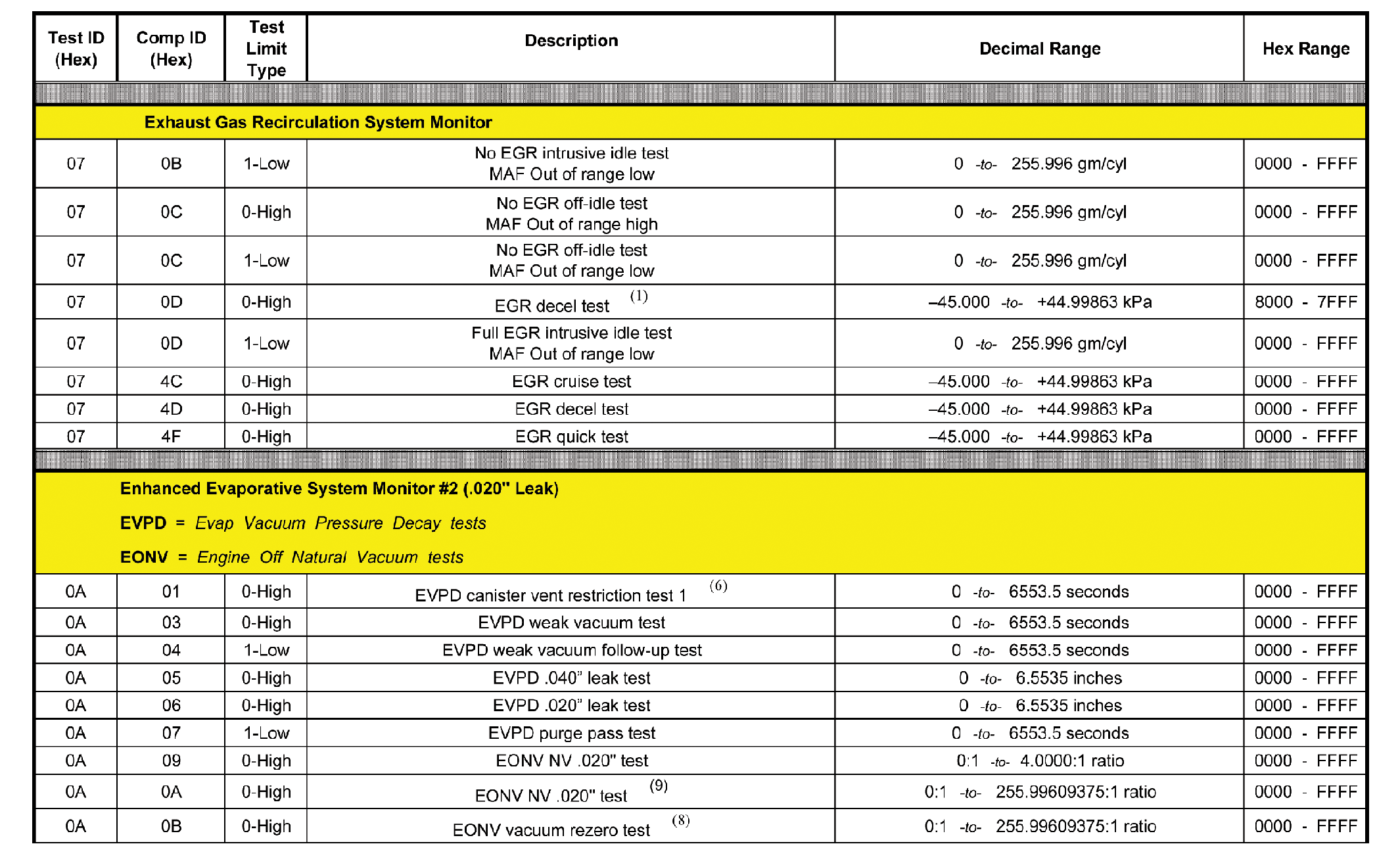

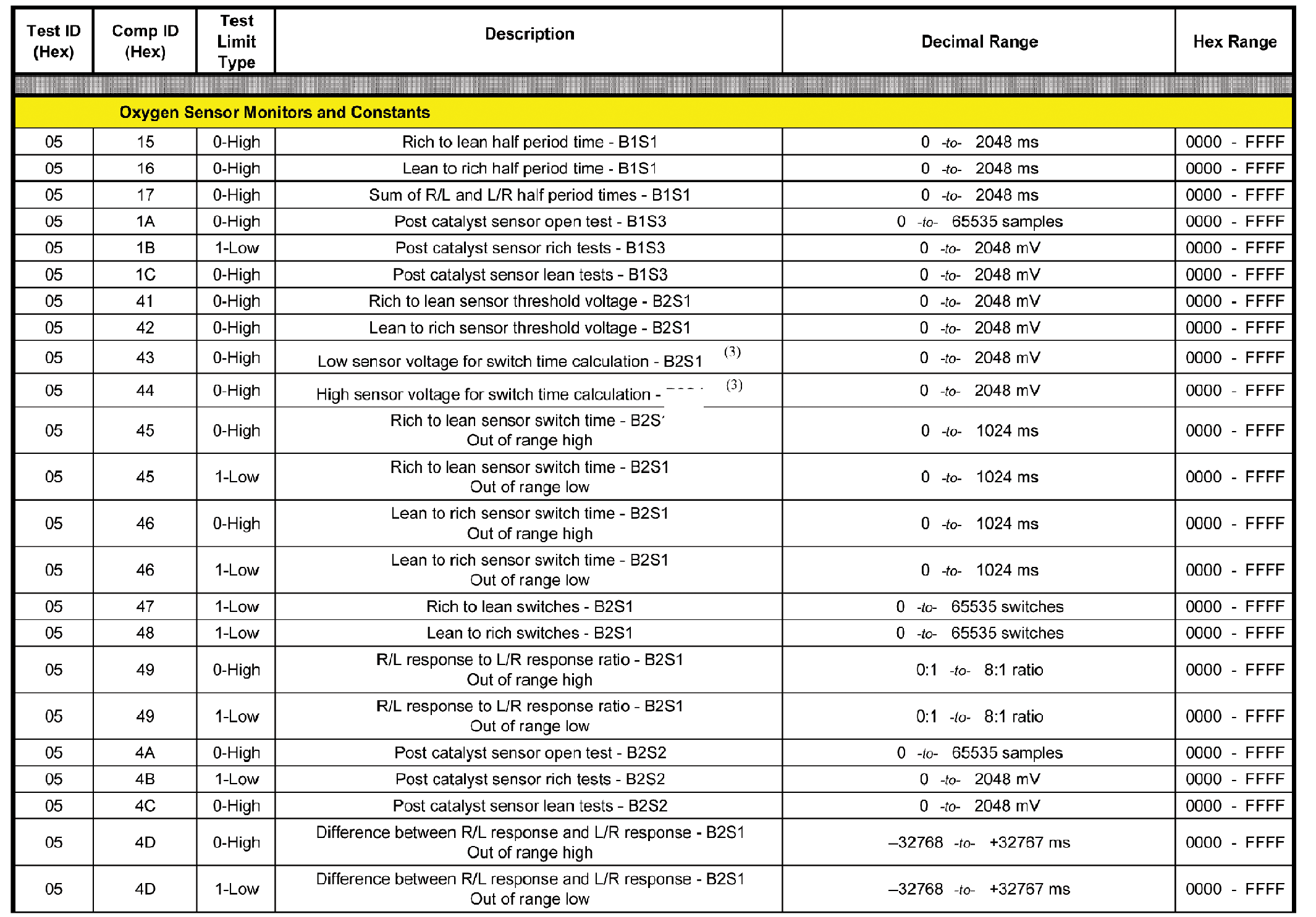

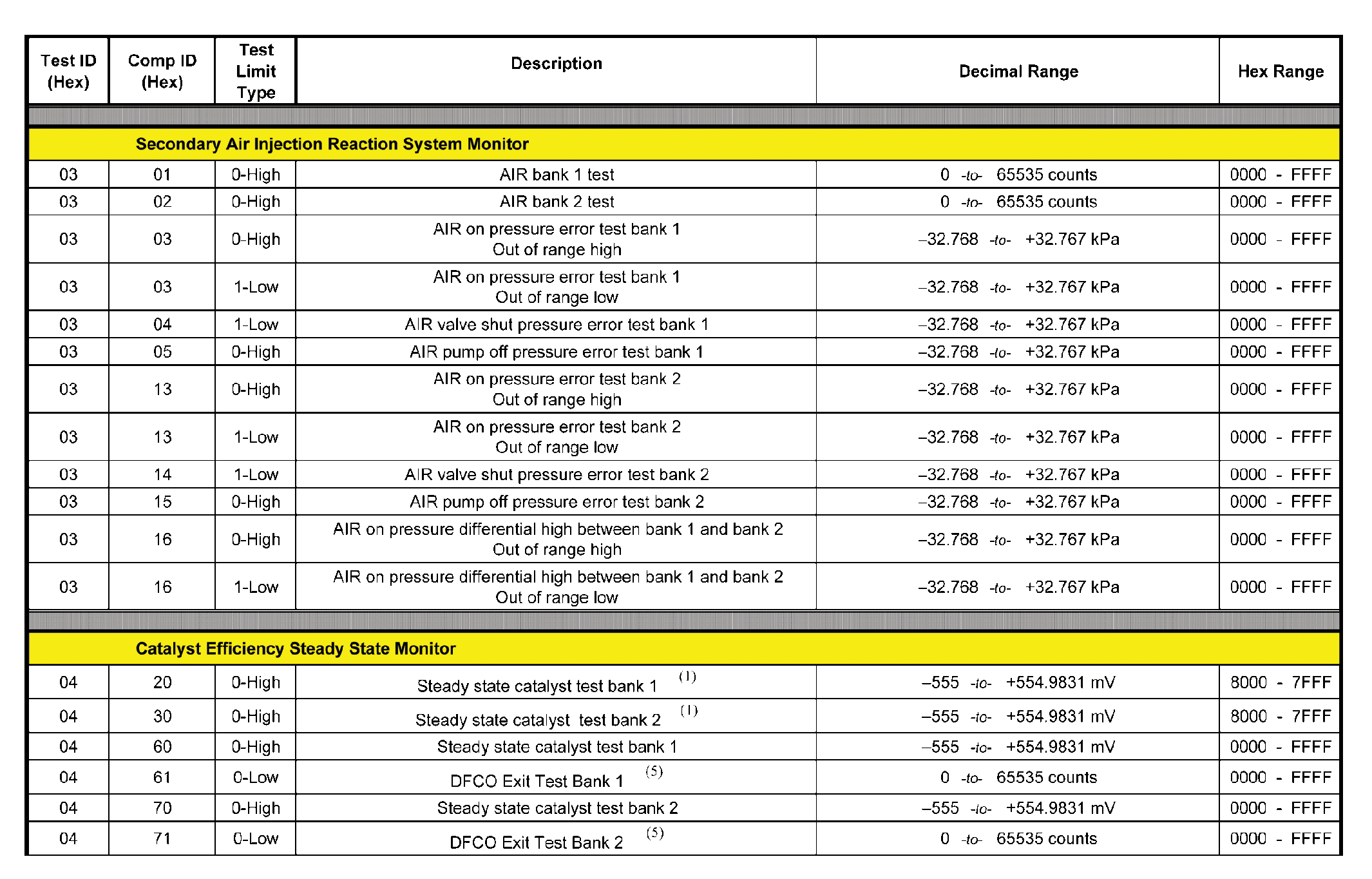

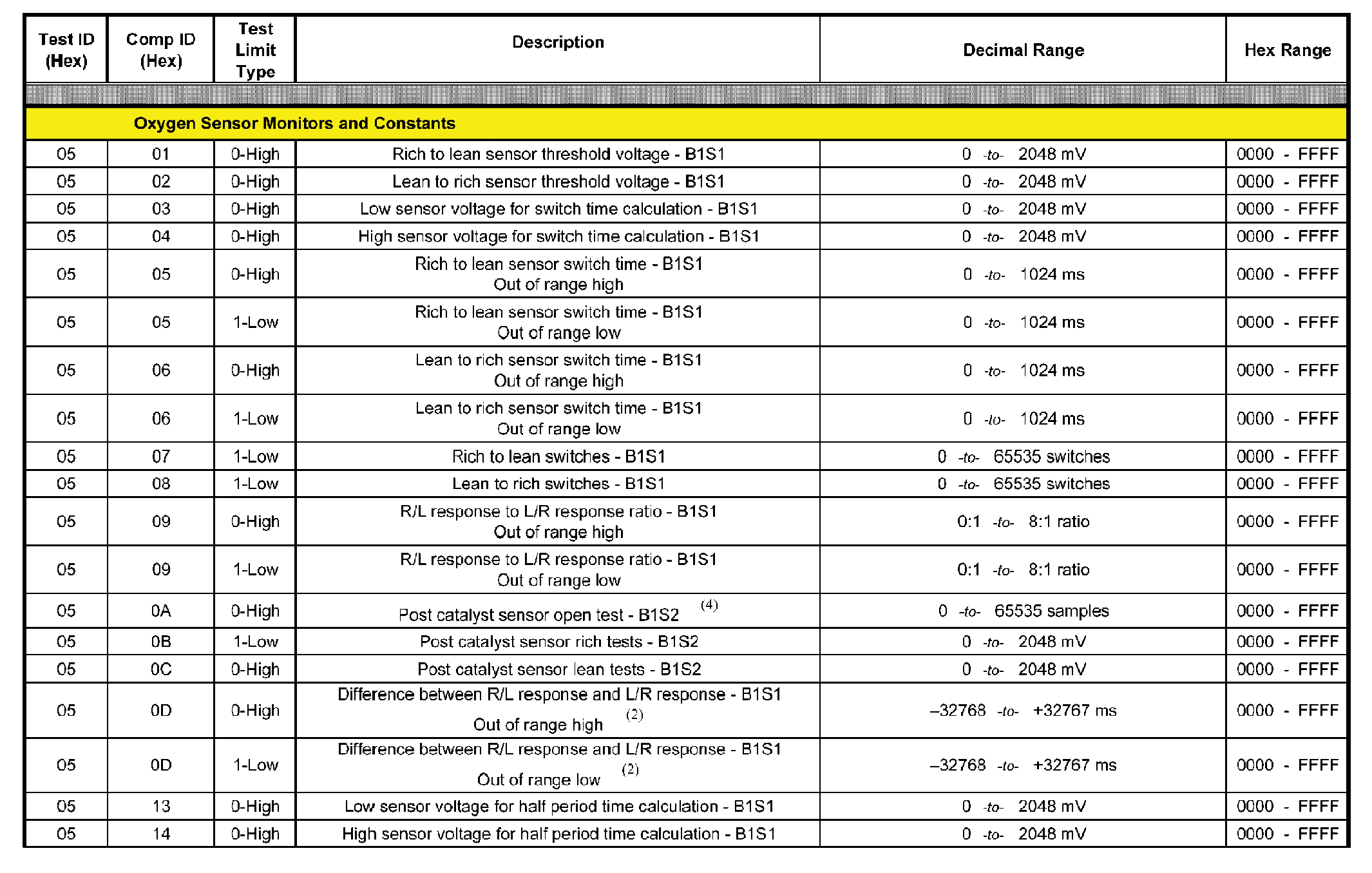

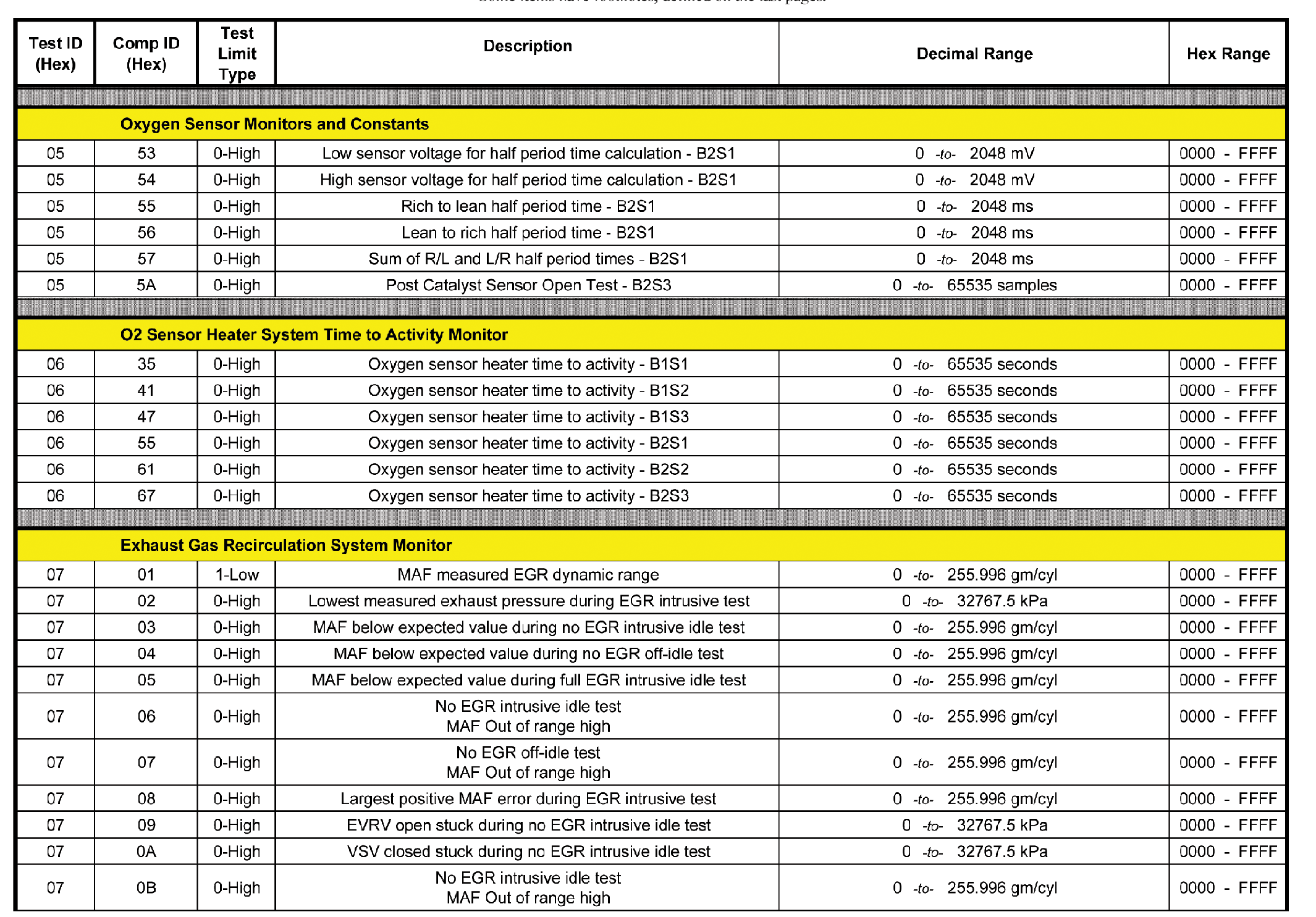

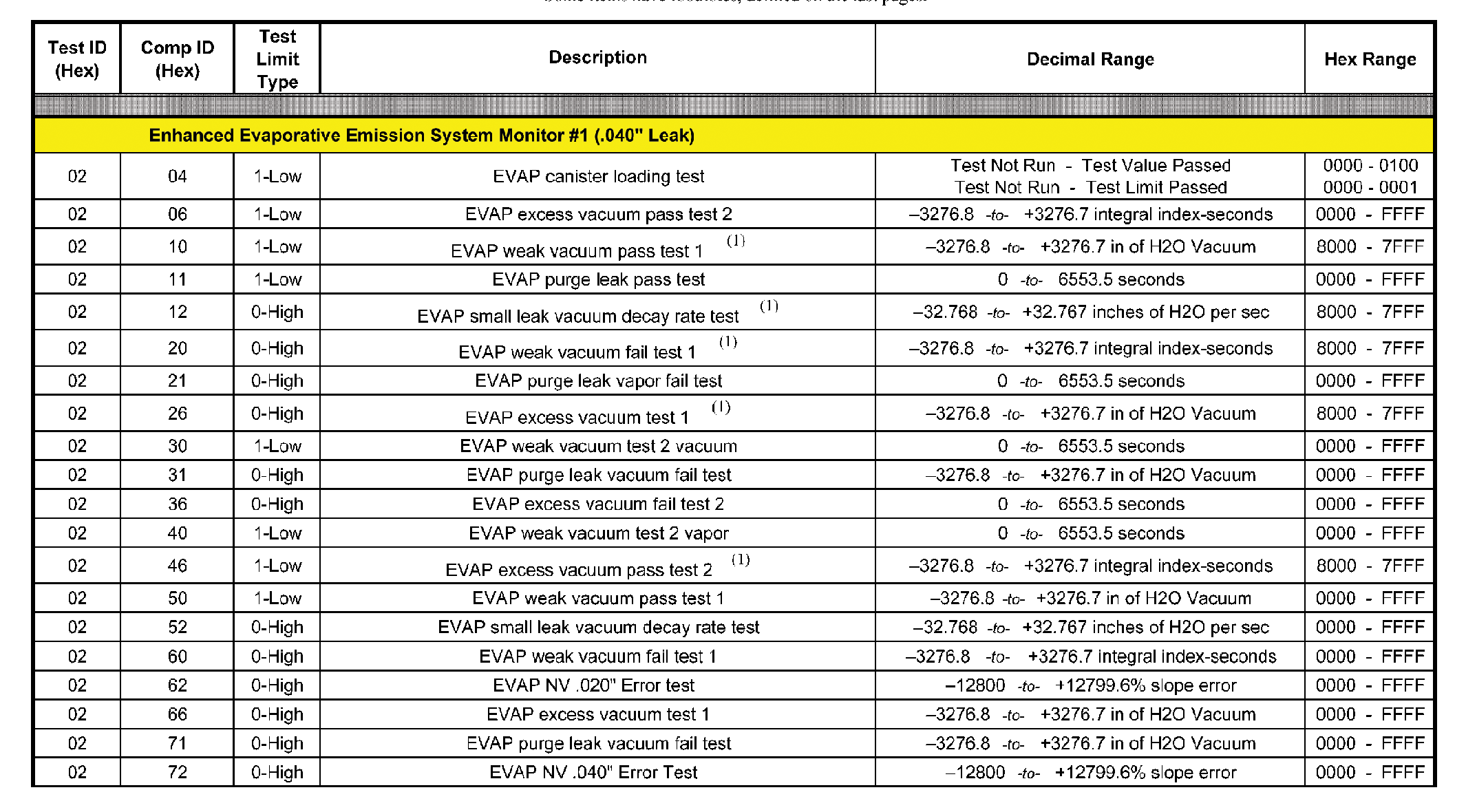

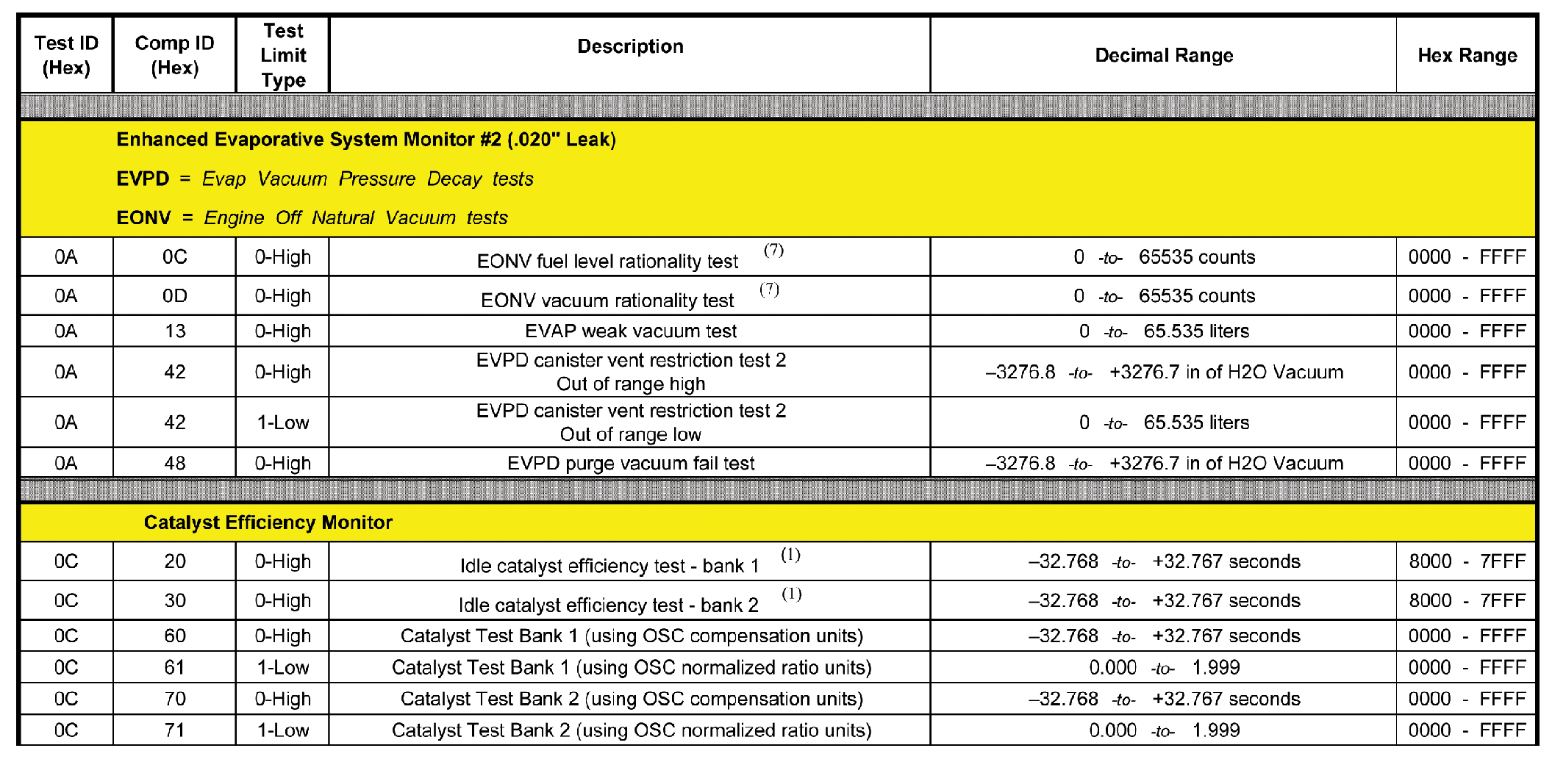

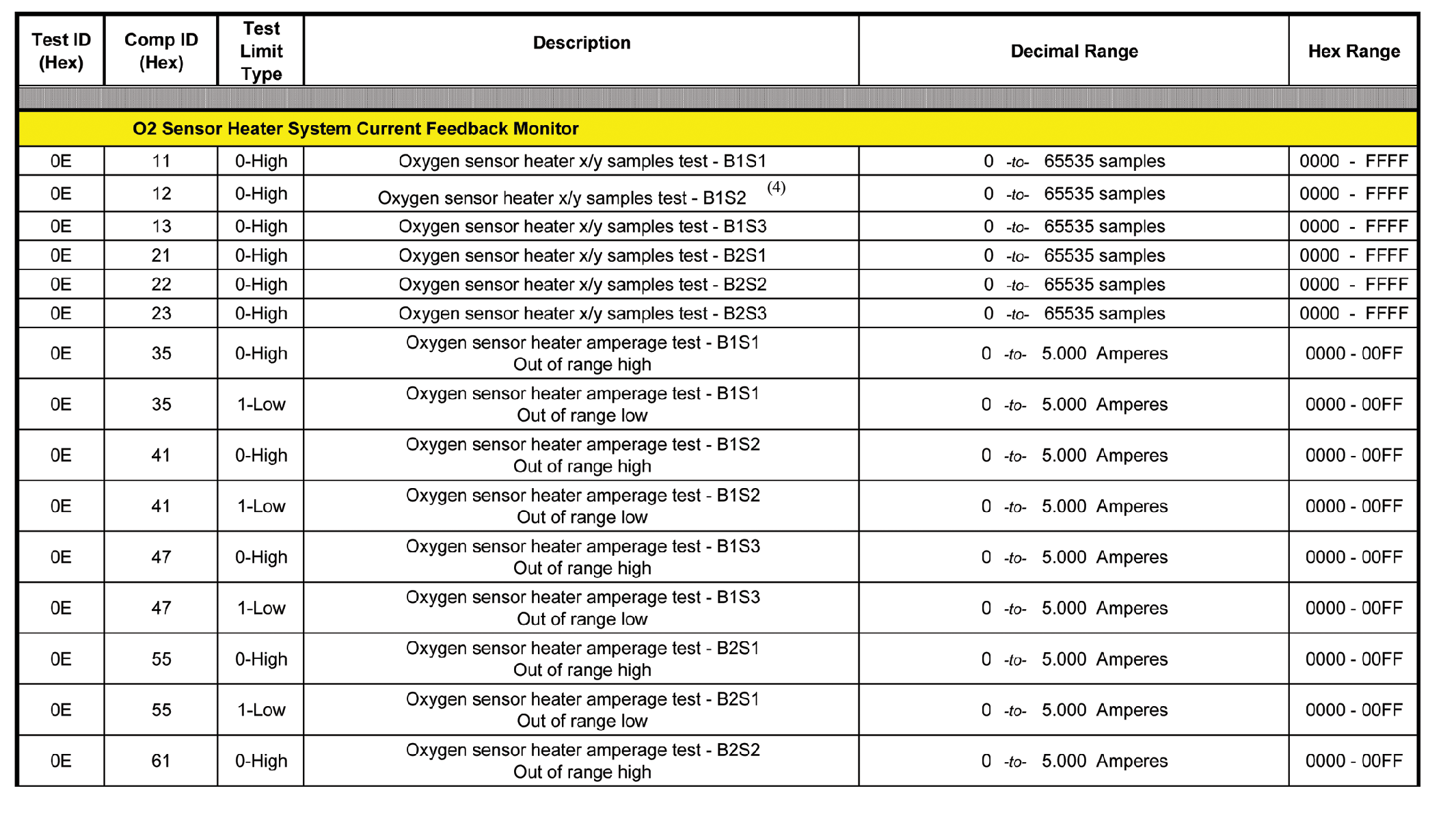

Fig 1: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (1 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (2 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (3 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (4 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (5 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (6 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (7 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (8 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Mode $06 Data Definitions Using J1859/Class 2 Diagnostic Data Link (9 Of 9)

Courtesy of GENERAL MOTORS CORP.

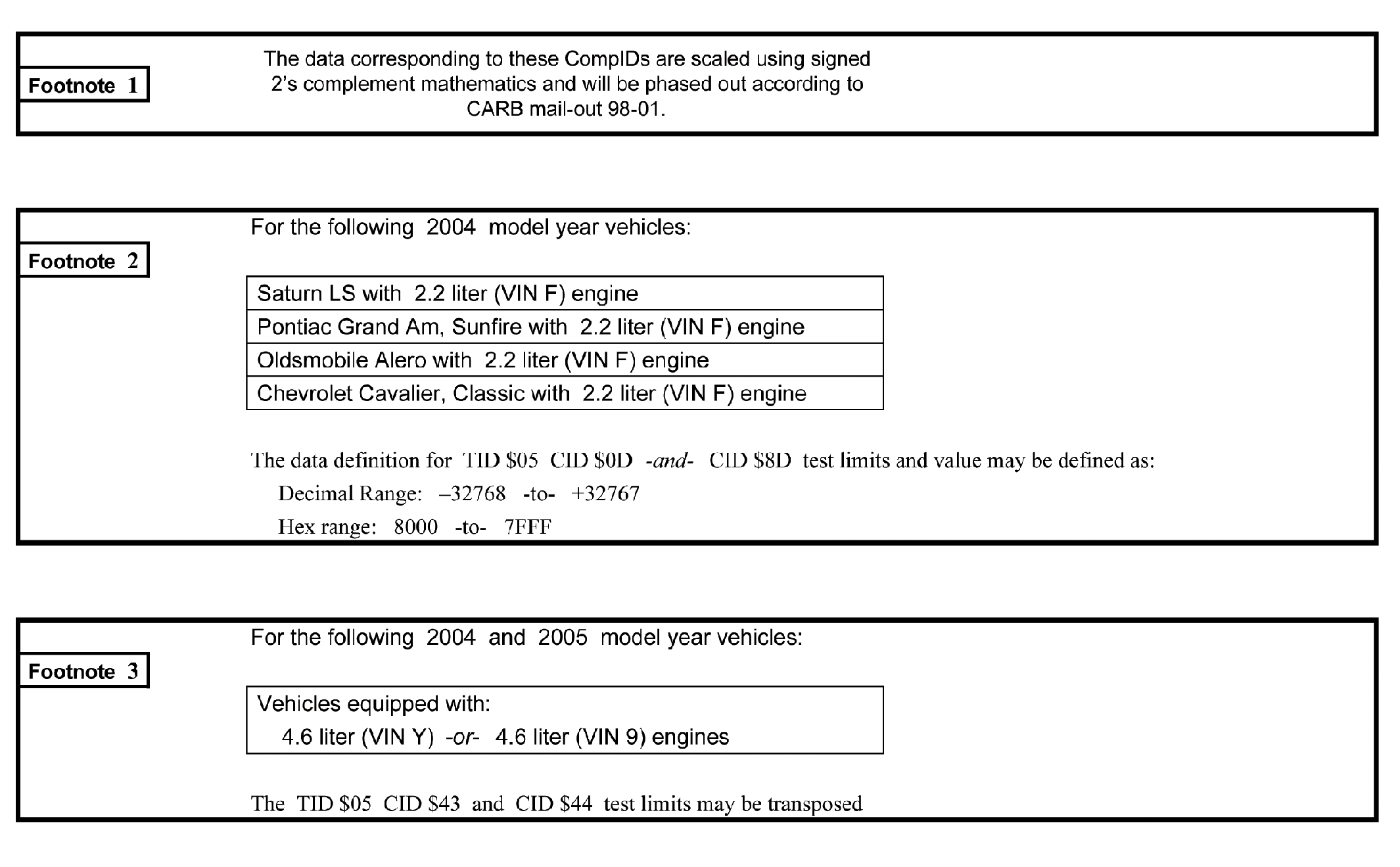

Fig 10: J1850/Class2 Footnotes 1-3

Courtesy of GENERAL MOTORS CORP.

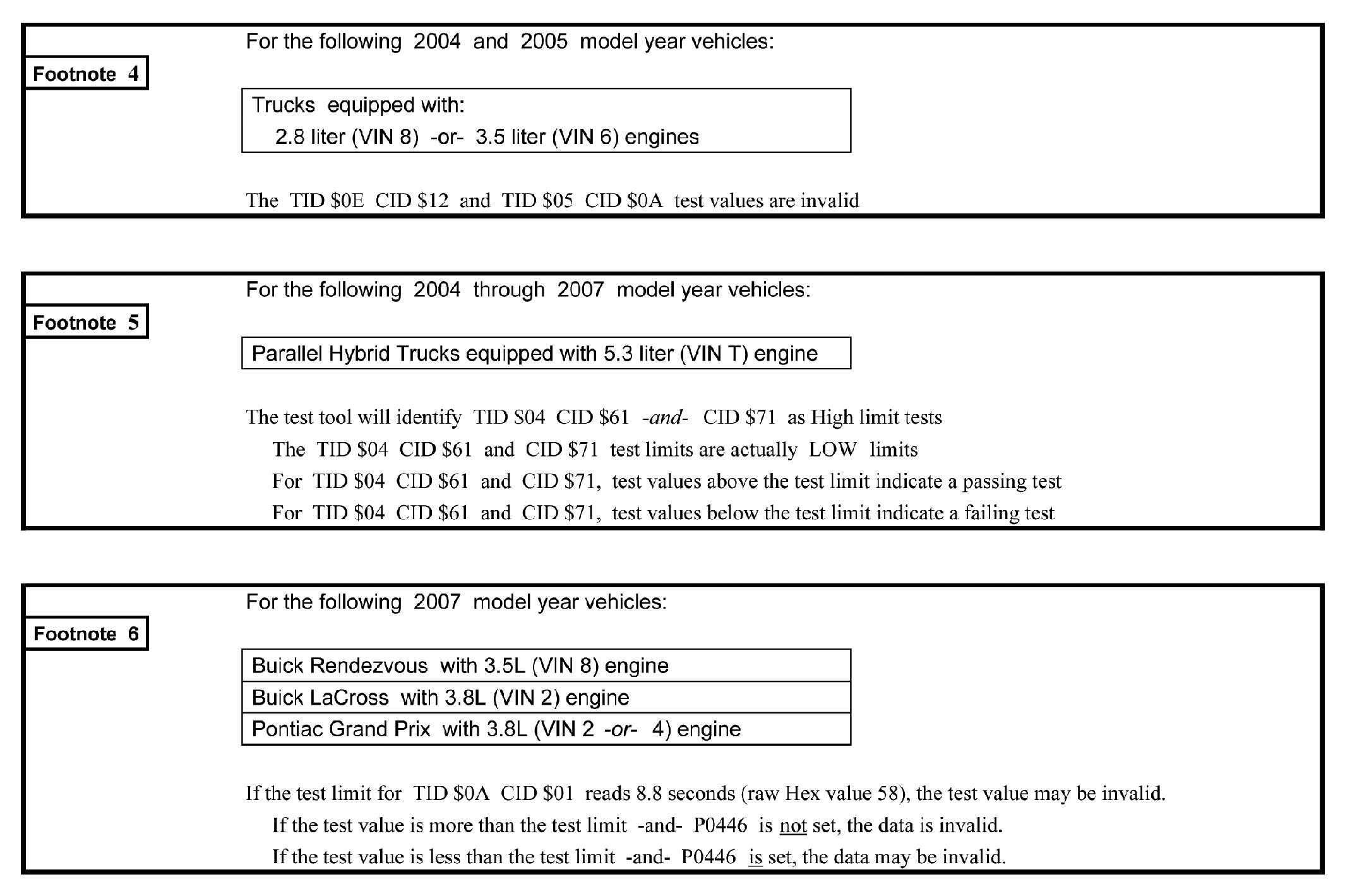

Fig 11: J1850/Class2 Footnotes 4-6

Courtesy of GENERAL MOTORS CORP.

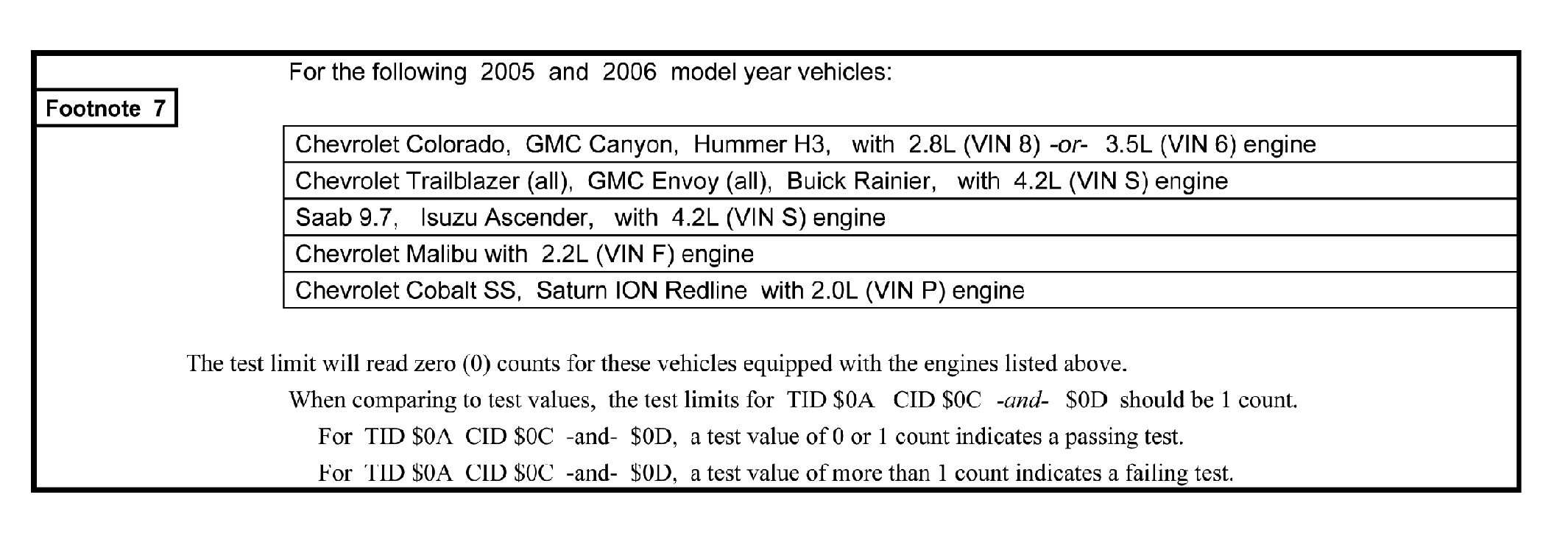

Fig 12: J1850/Class2 Footnote 7

Courtesy of GENERAL MOTORS CORP.

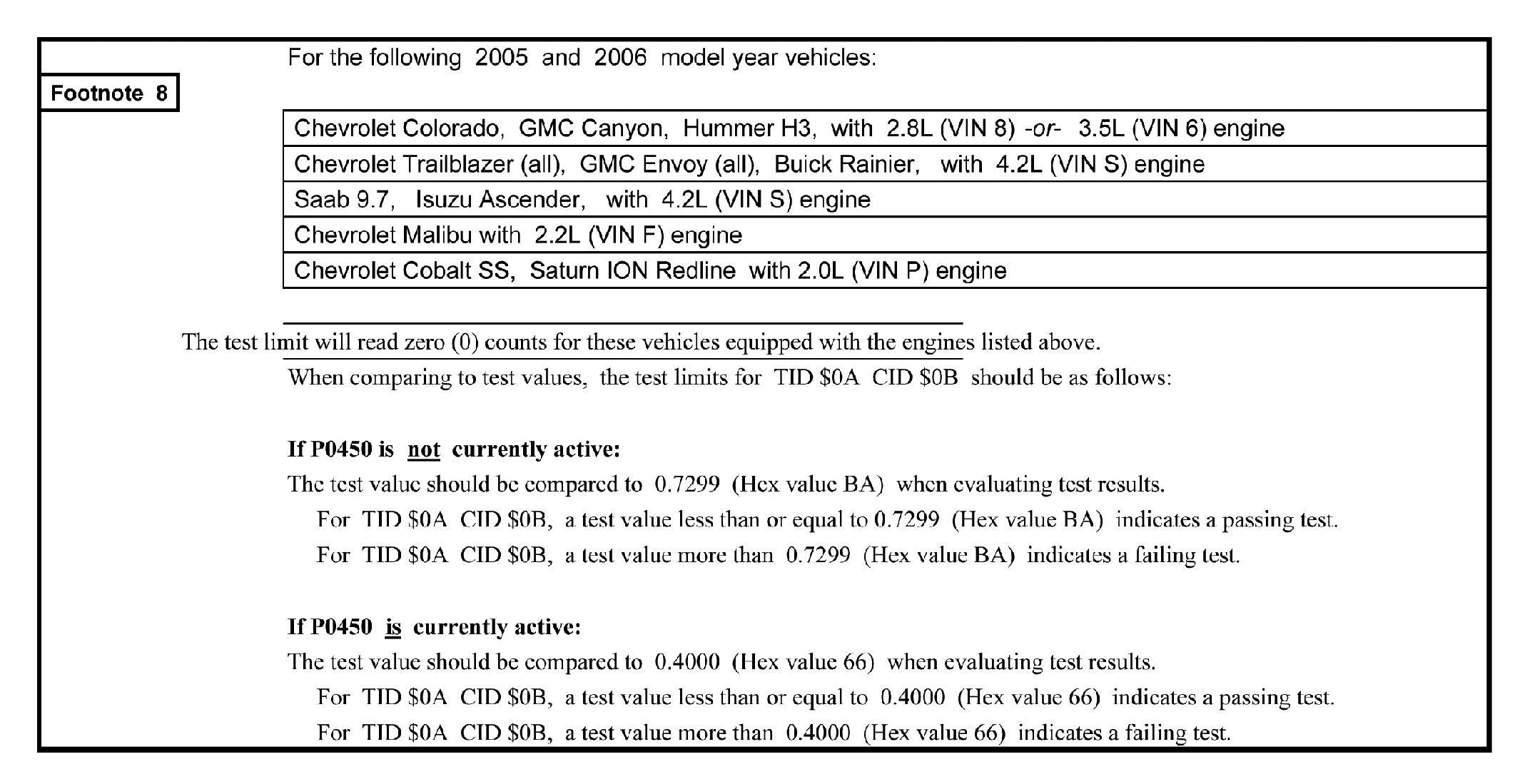

Fig 13: J1850/Class2 Footnote 8

Courtesy of GENERAL MOTORS CORP.

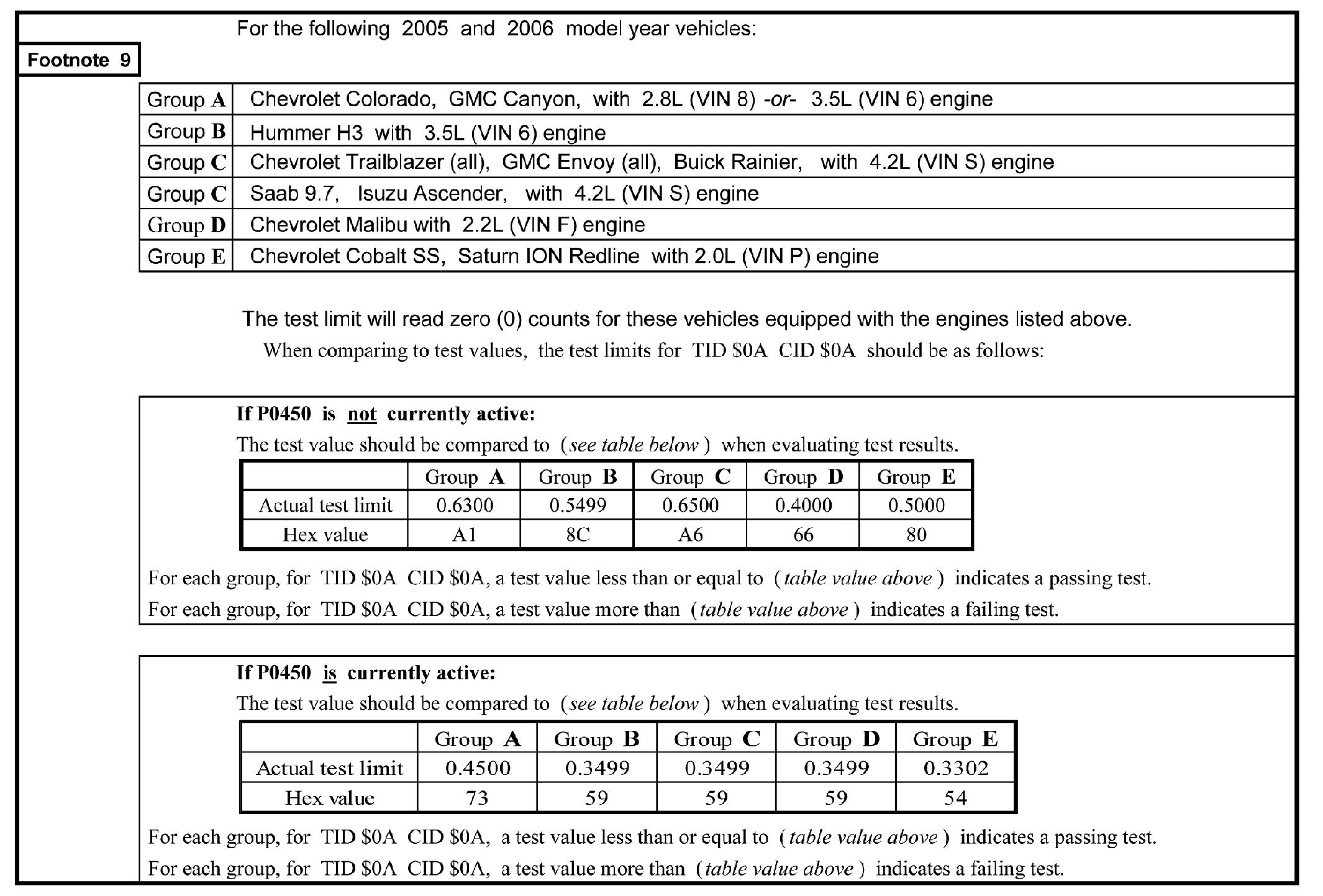

Fig 14: J1850/Class2 Footnote 9

Courtesy of GENERAL MOTORS CORP.
