Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small coin between the 2 halves of the transmitter case in the slot located near the key ring.
  2. Twist the coin in order to open the case.
  3. Remove the cover while being careful not to damage the seal.
  4. Remove the battery from the transmitter.

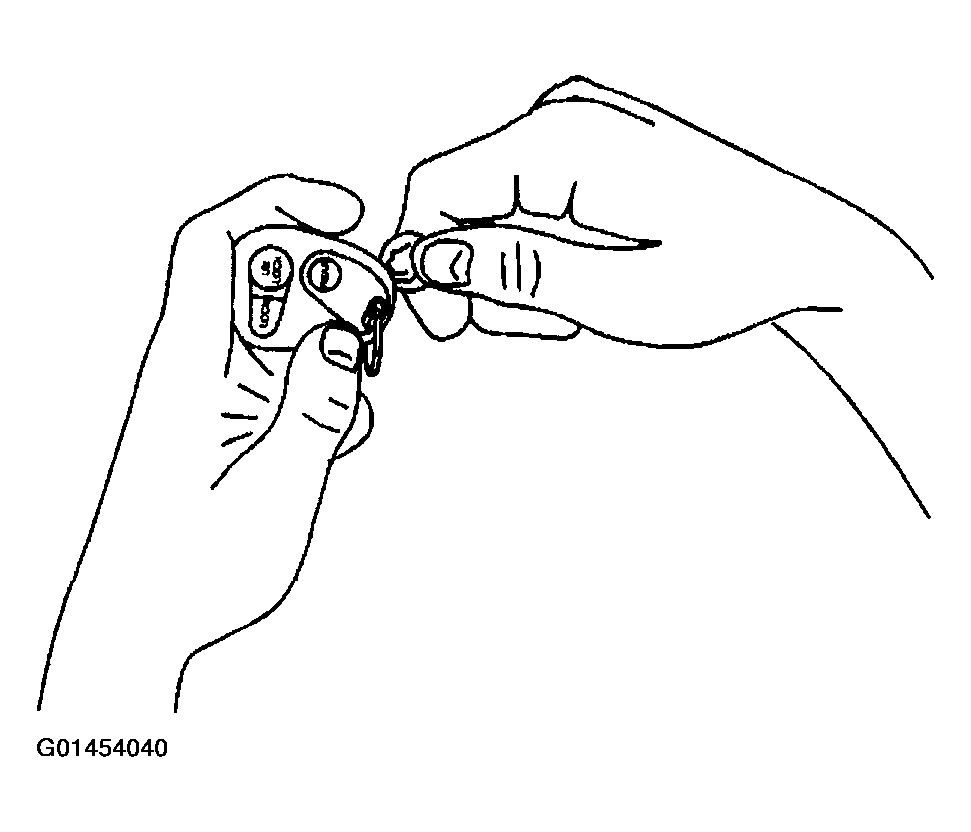

    Fig 1: Inserting Coin Between Halves Of Transmitter Case To Remove Cover
    G01454040Courtesy of GENERAL MOTORS CORP.
