Entertainment Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

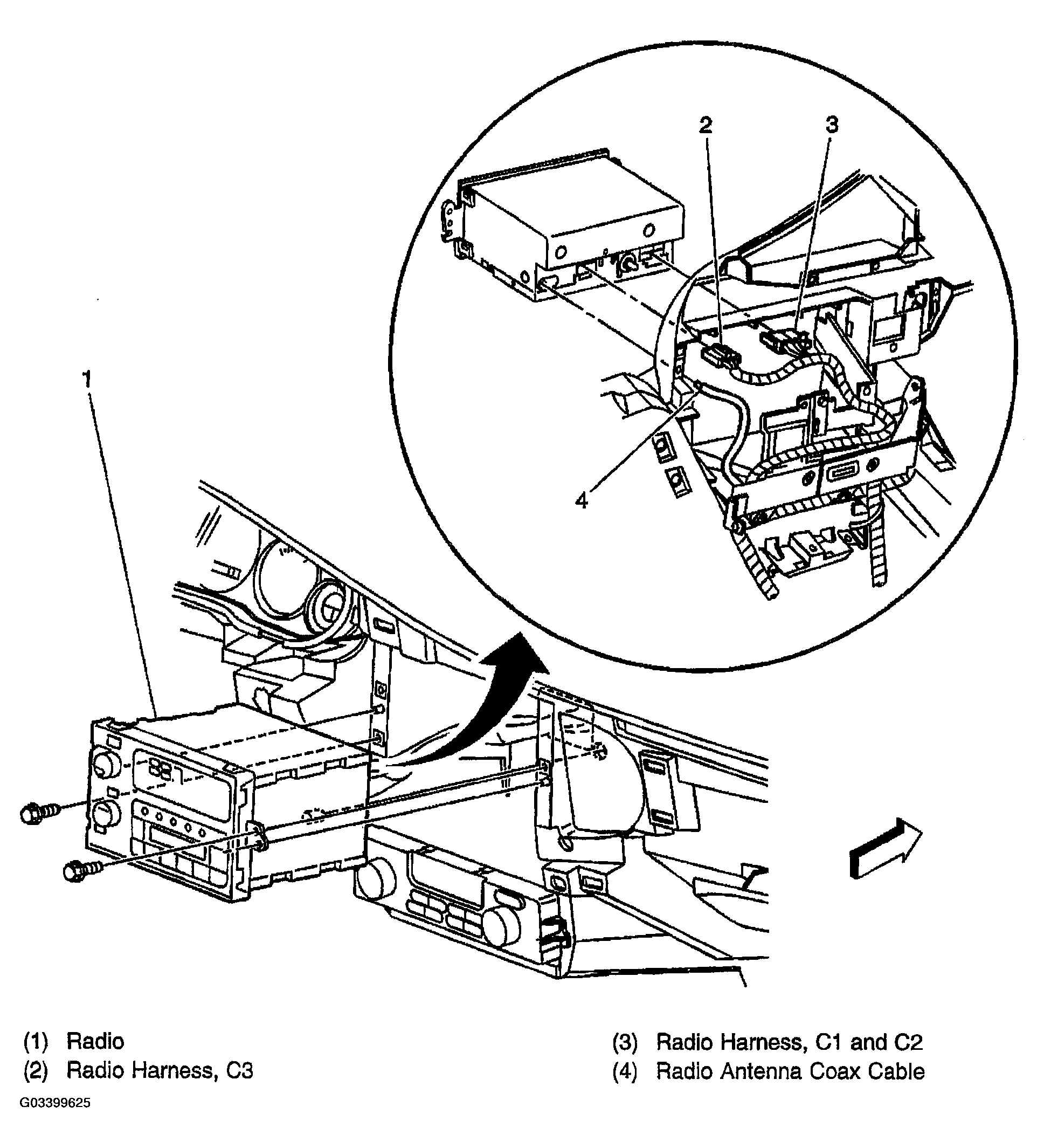

Fig 1: Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

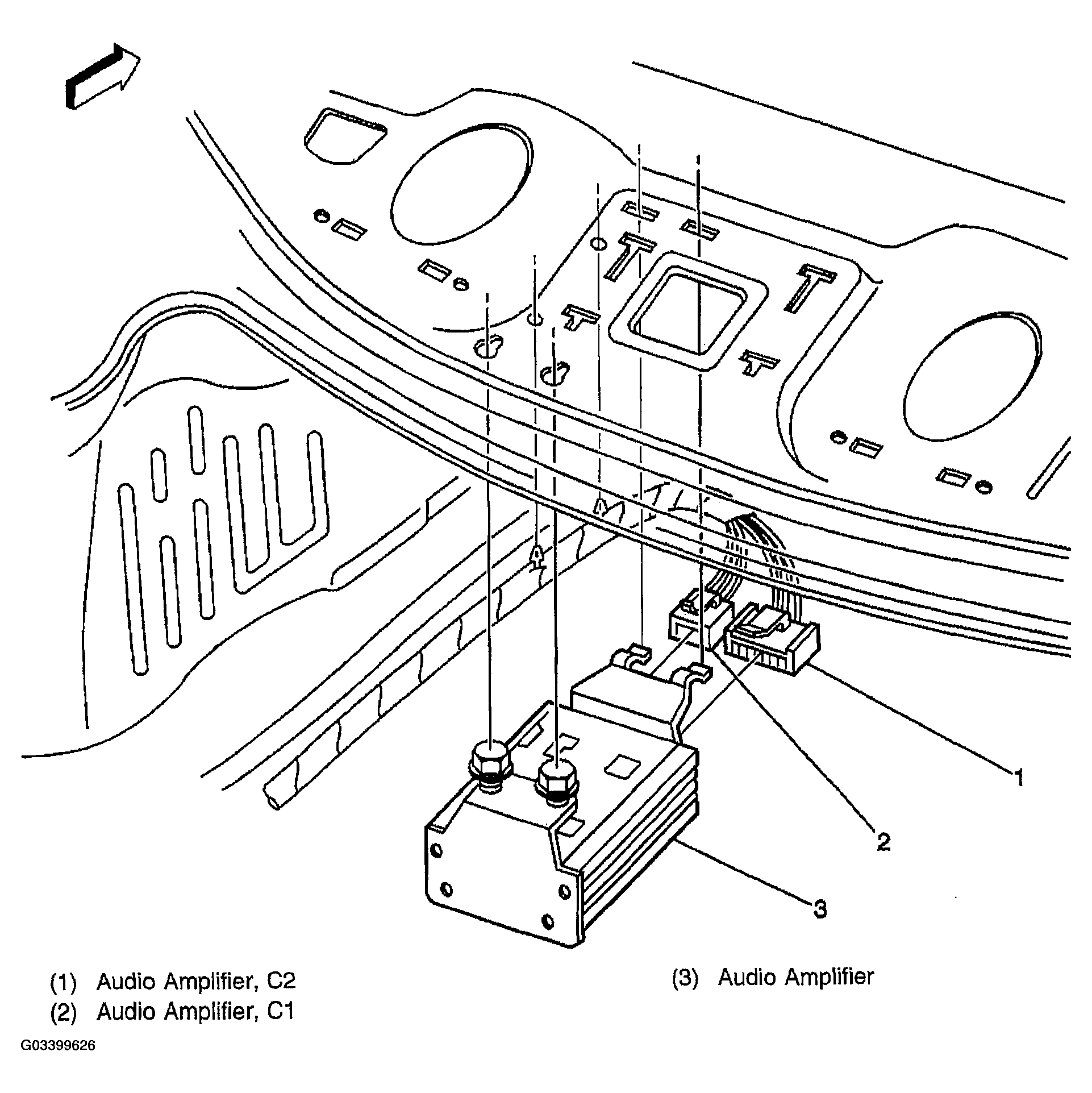

Fig 2: Below Rear Window Deck Component View (w/U85)

Courtesy of GENERAL MOTORS CORP.

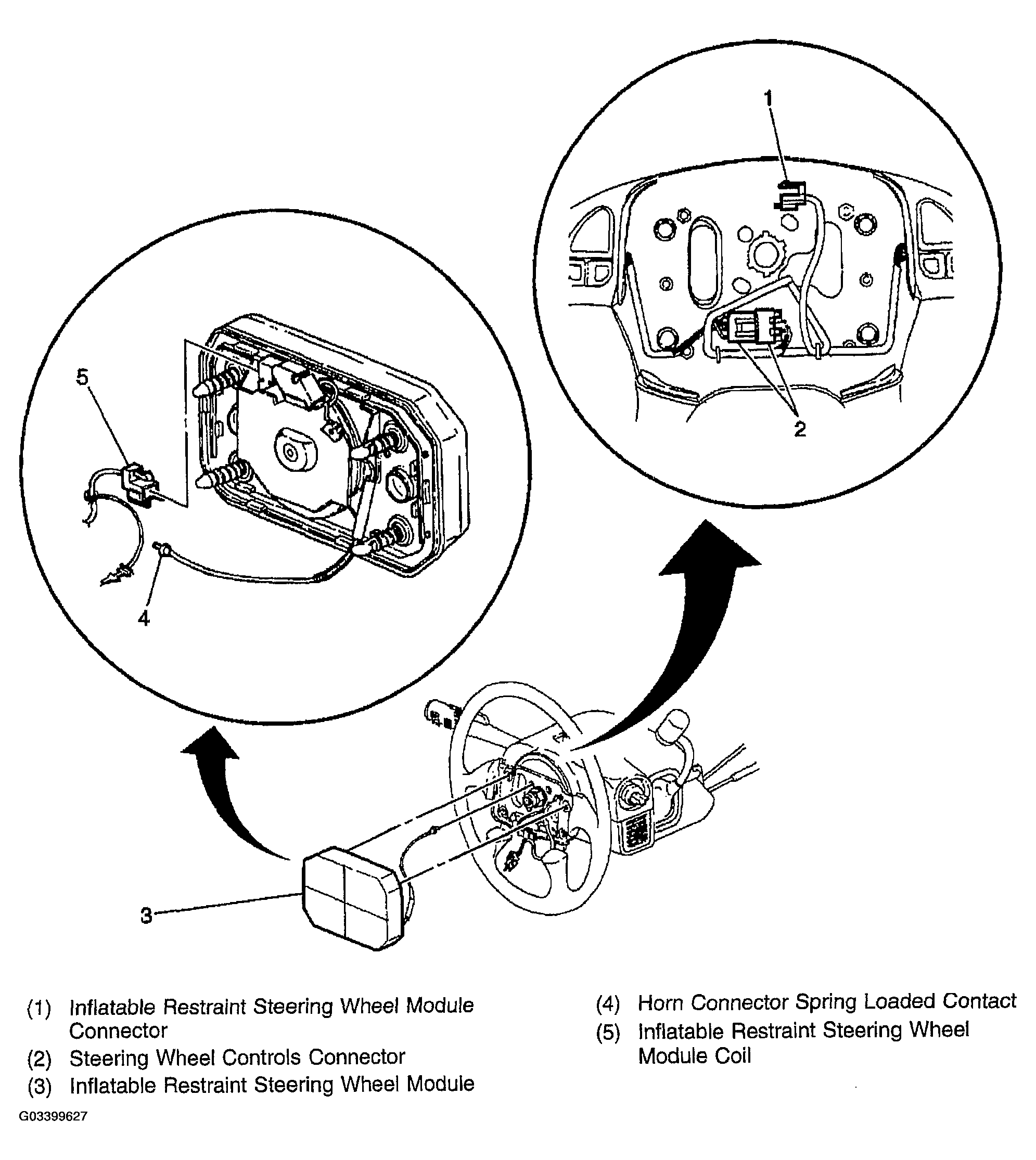

Fig 3: Front Of Steering Wheel Component View

Courtesy of GENERAL MOTORS CORP.

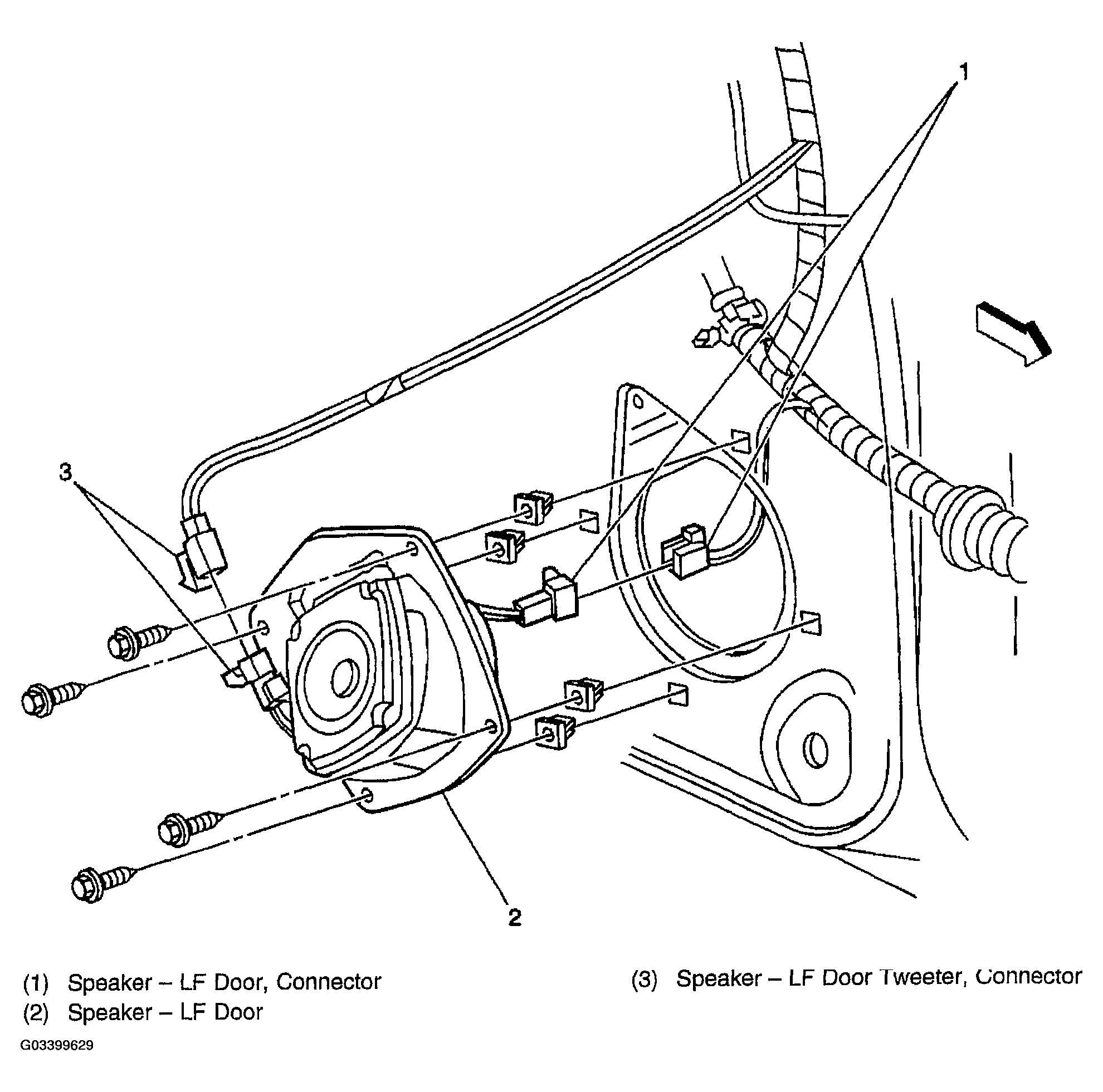

Fig 4: Left Front Door Component View (Right Similar) (w/o U85)

Courtesy of GENERAL MOTORS CORP.

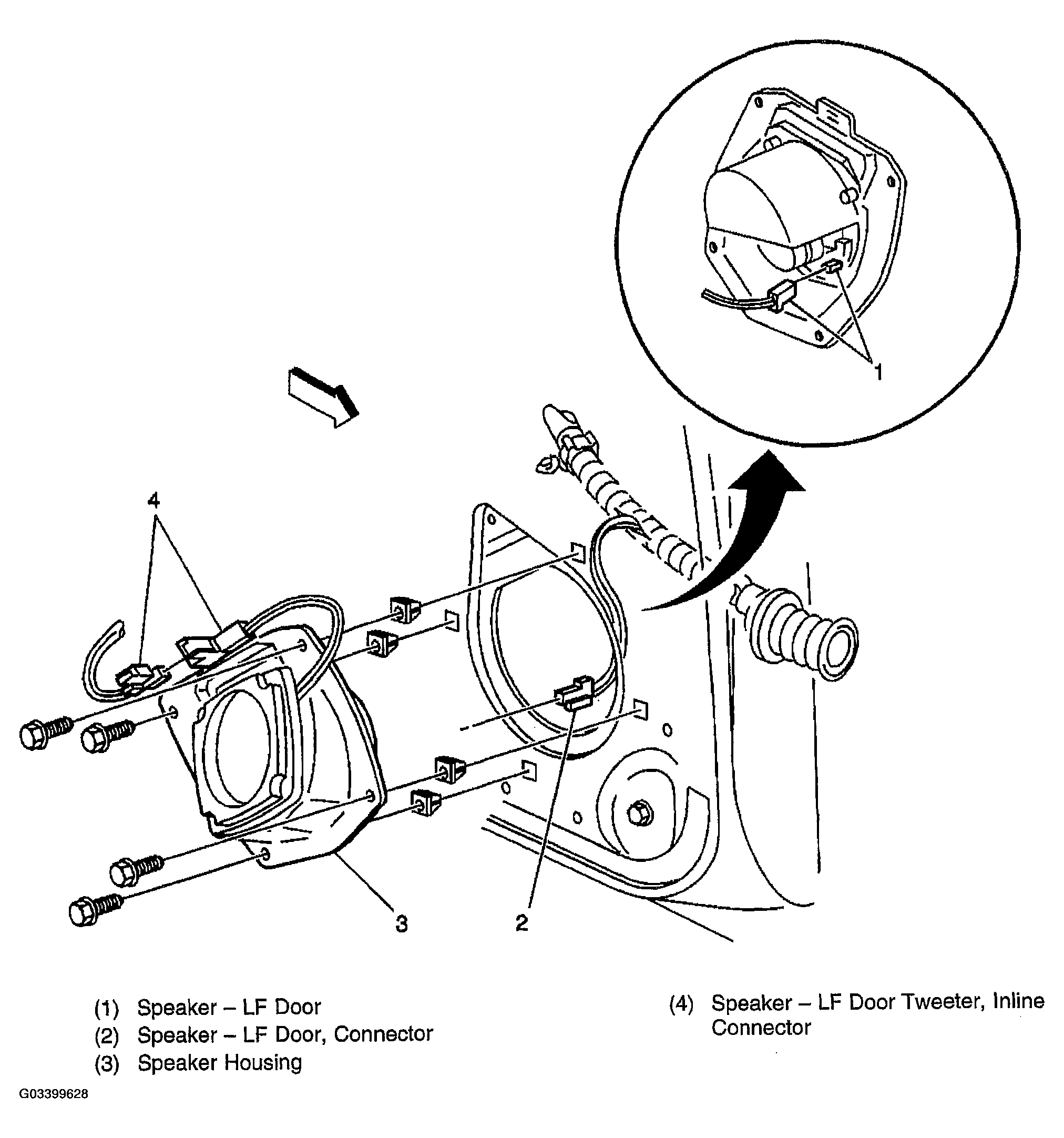

Fig 5: Left Front Door Component View (Right Similar) (W/U85)

Courtesy of GENERAL MOTORS CORP.

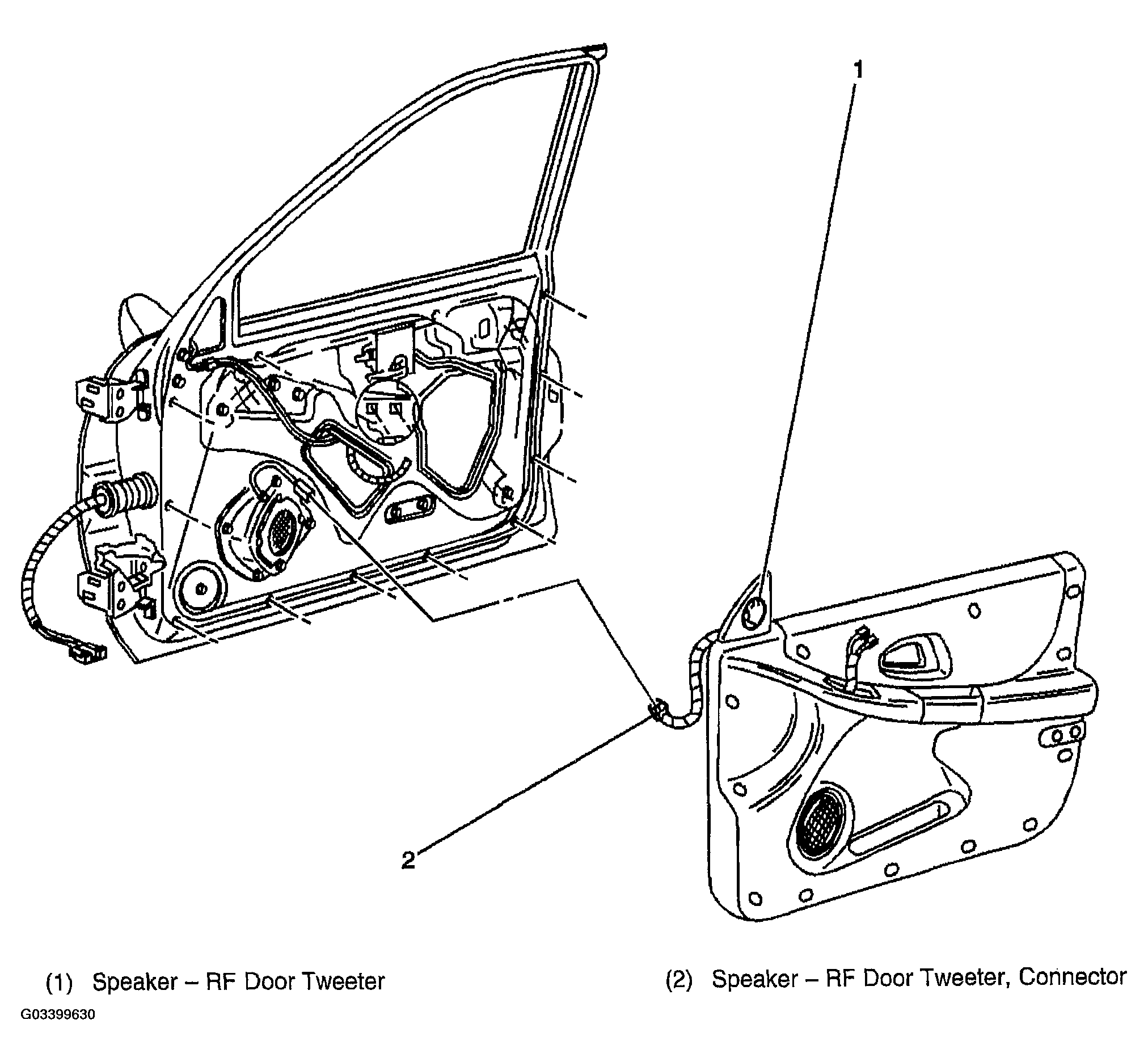

Fig 6: Right Front Door Component View (Left Similar)

Courtesy of GENERAL MOTORS CORP.

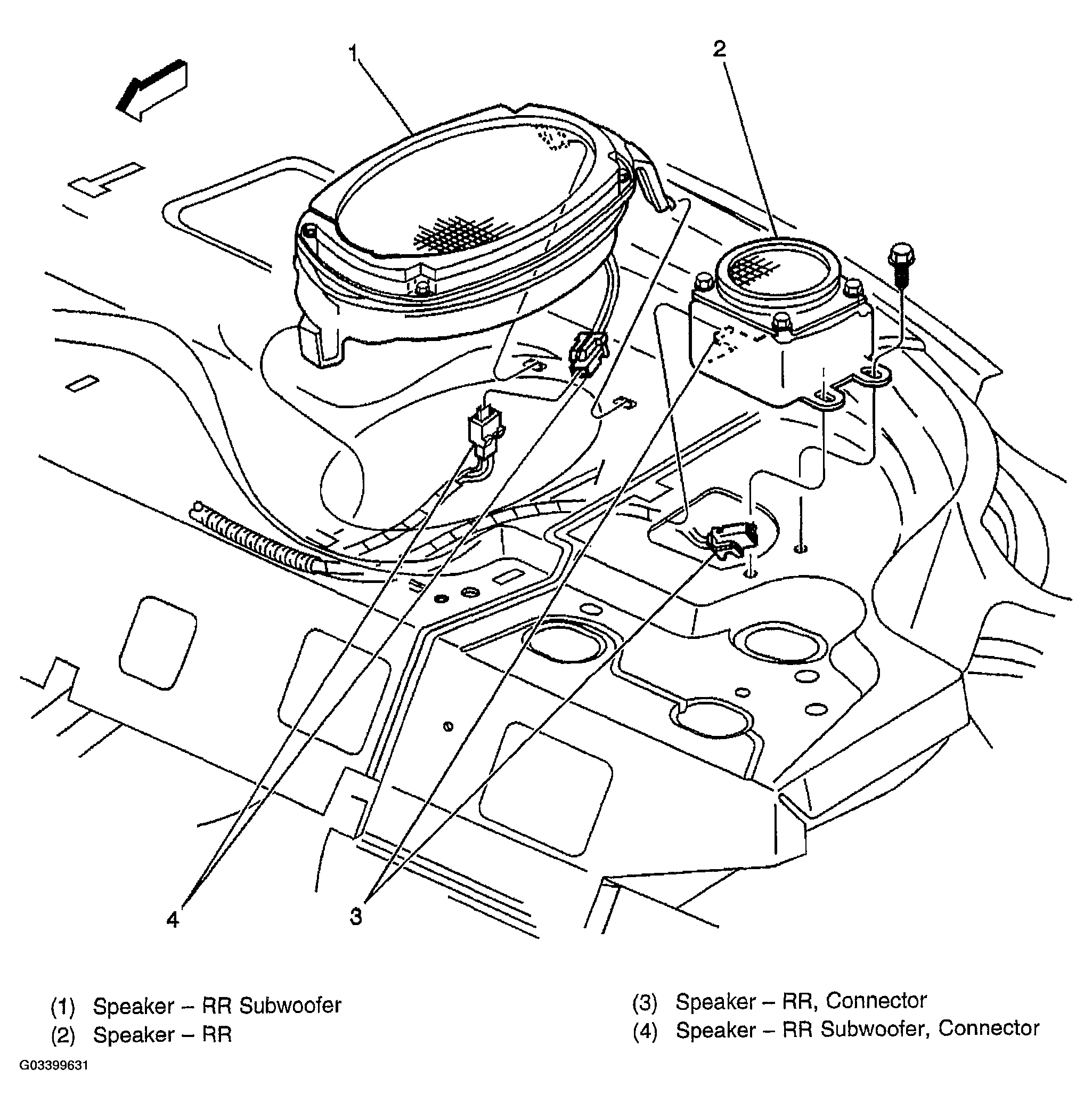

Fig 7: Right Top Side Of Rear Package Shelf Component View (Left Similar)

Courtesy of GENERAL MOTORS CORP.
