WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

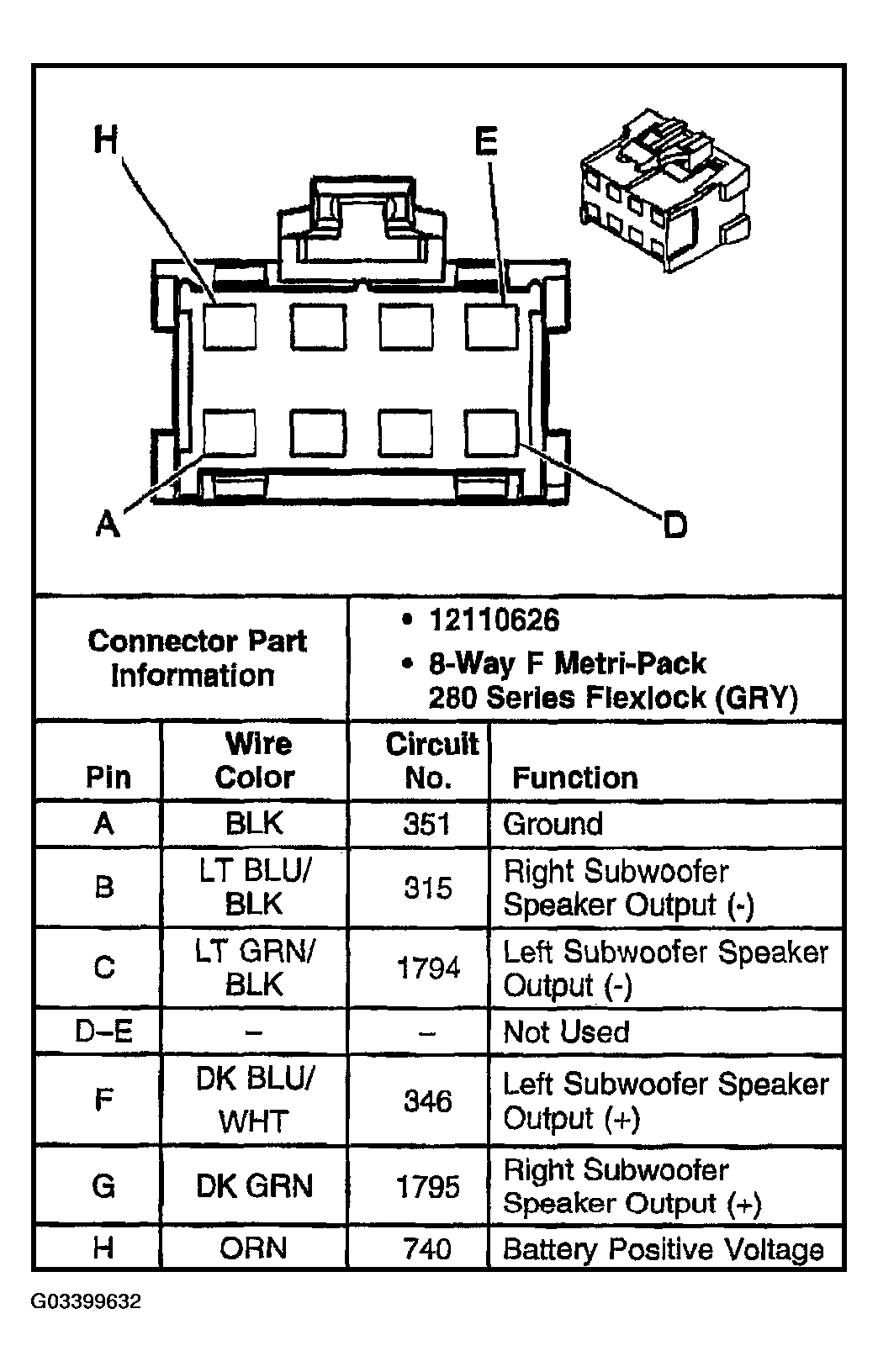

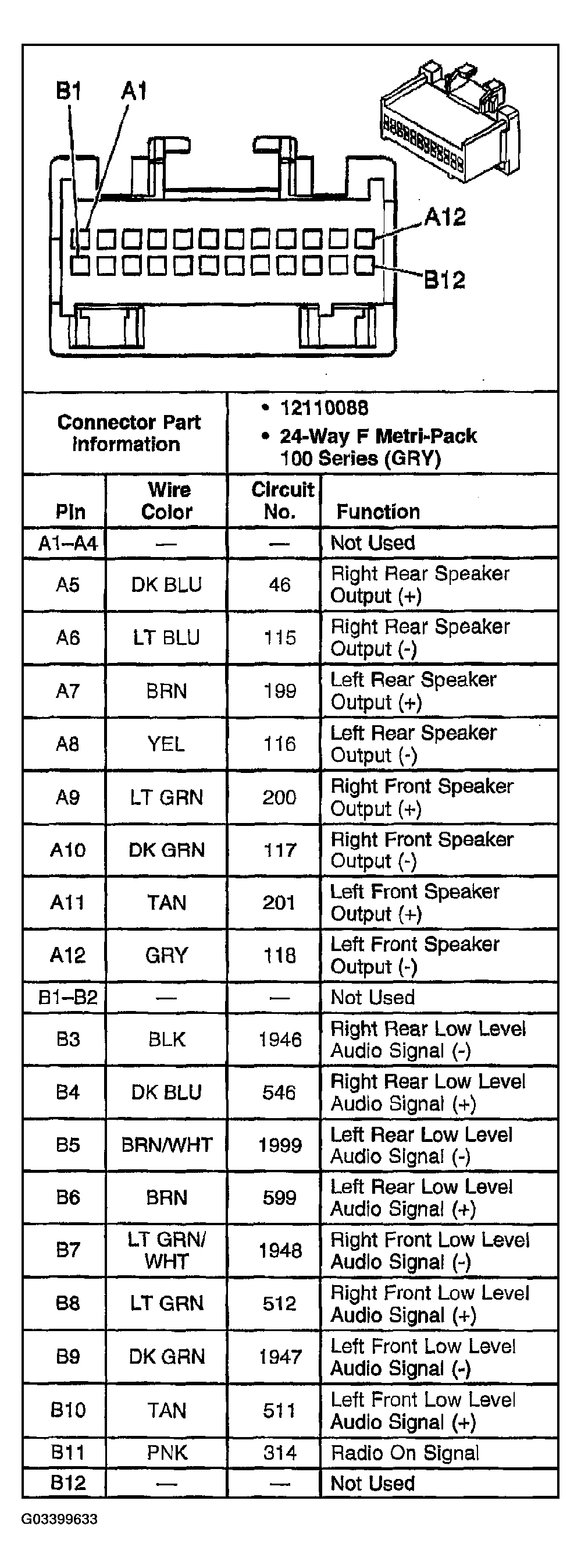

Fig 1: Audio Amplifier, C1 Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Audio Amplifier, C2 Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.

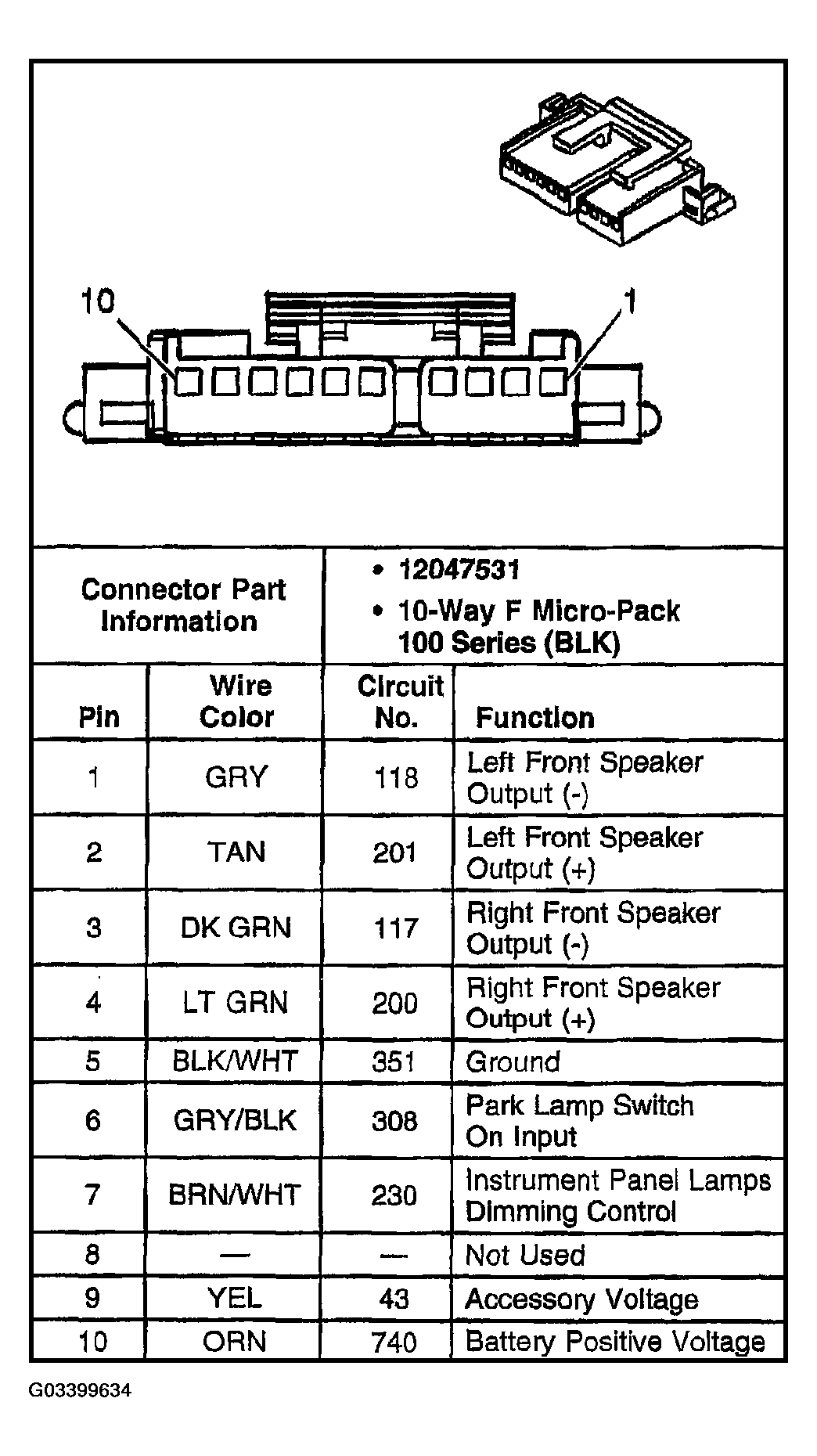

Fig 3: Radio, C1 Connector End View (w/o U85)
Courtesy of GENERAL MOTORS CORP.

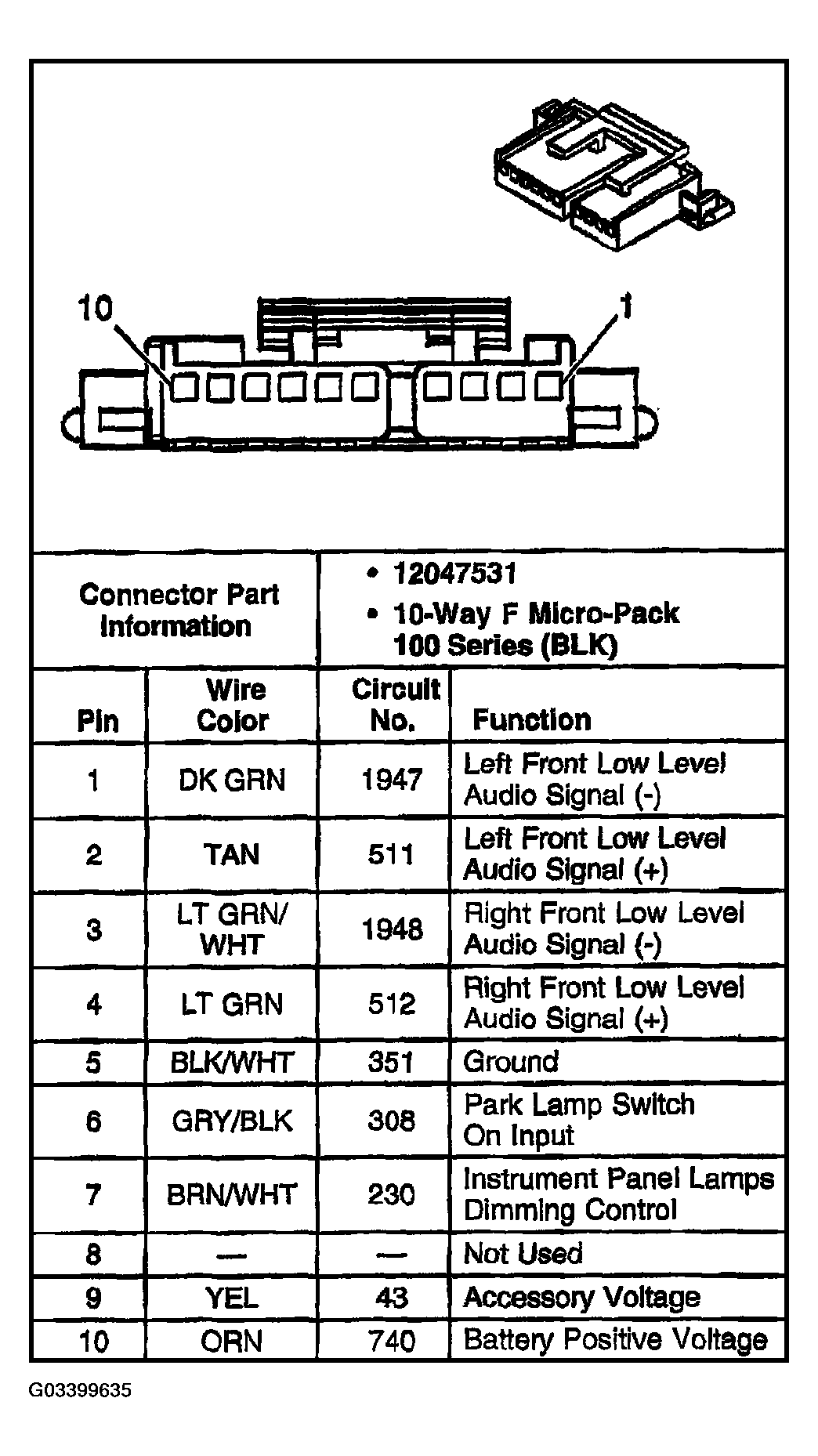

Fig 4: Radio, C1 Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.

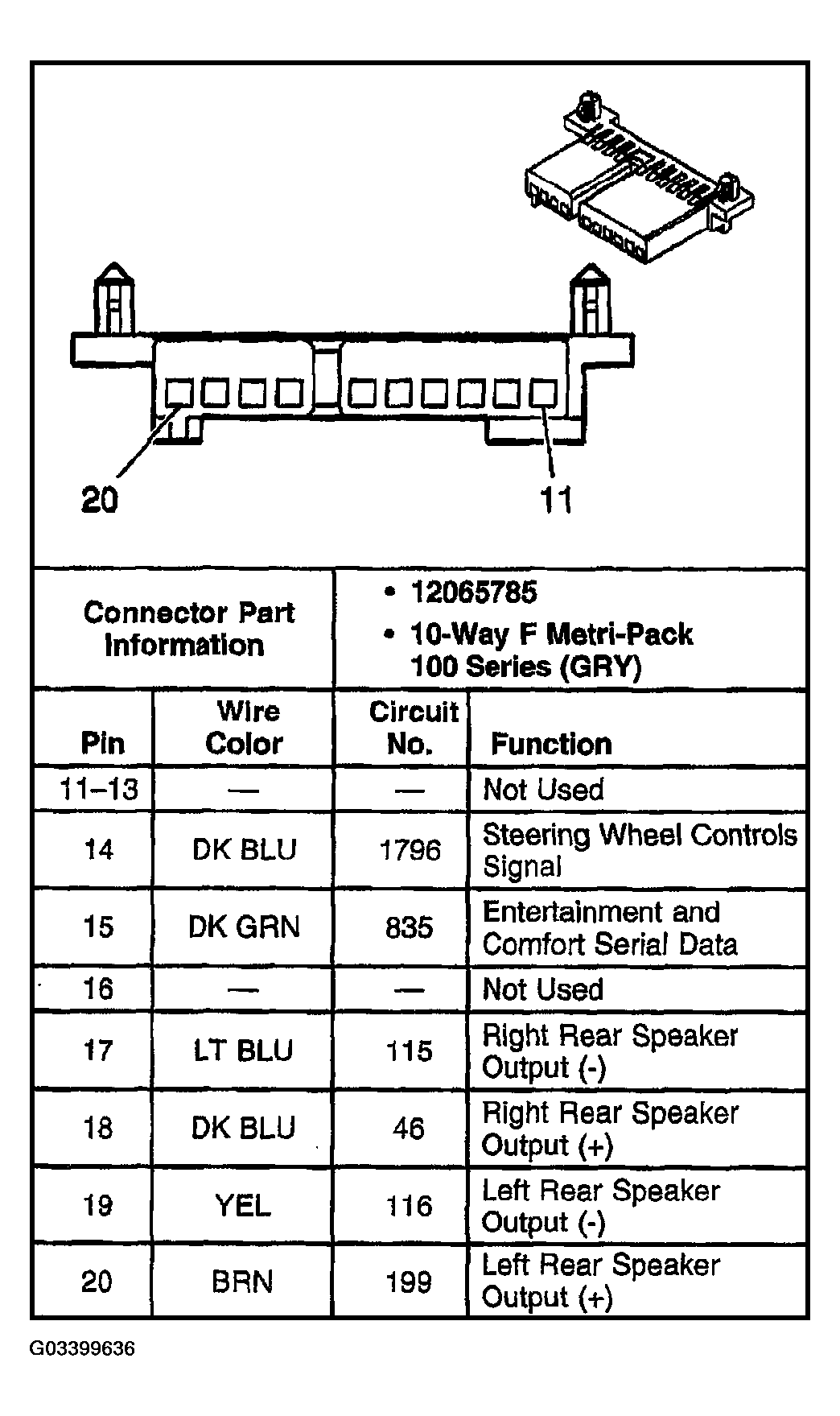

Fig 5: Radio, C2 Connector End View (w/o U85)
Courtesy of GENERAL MOTORS CORP.

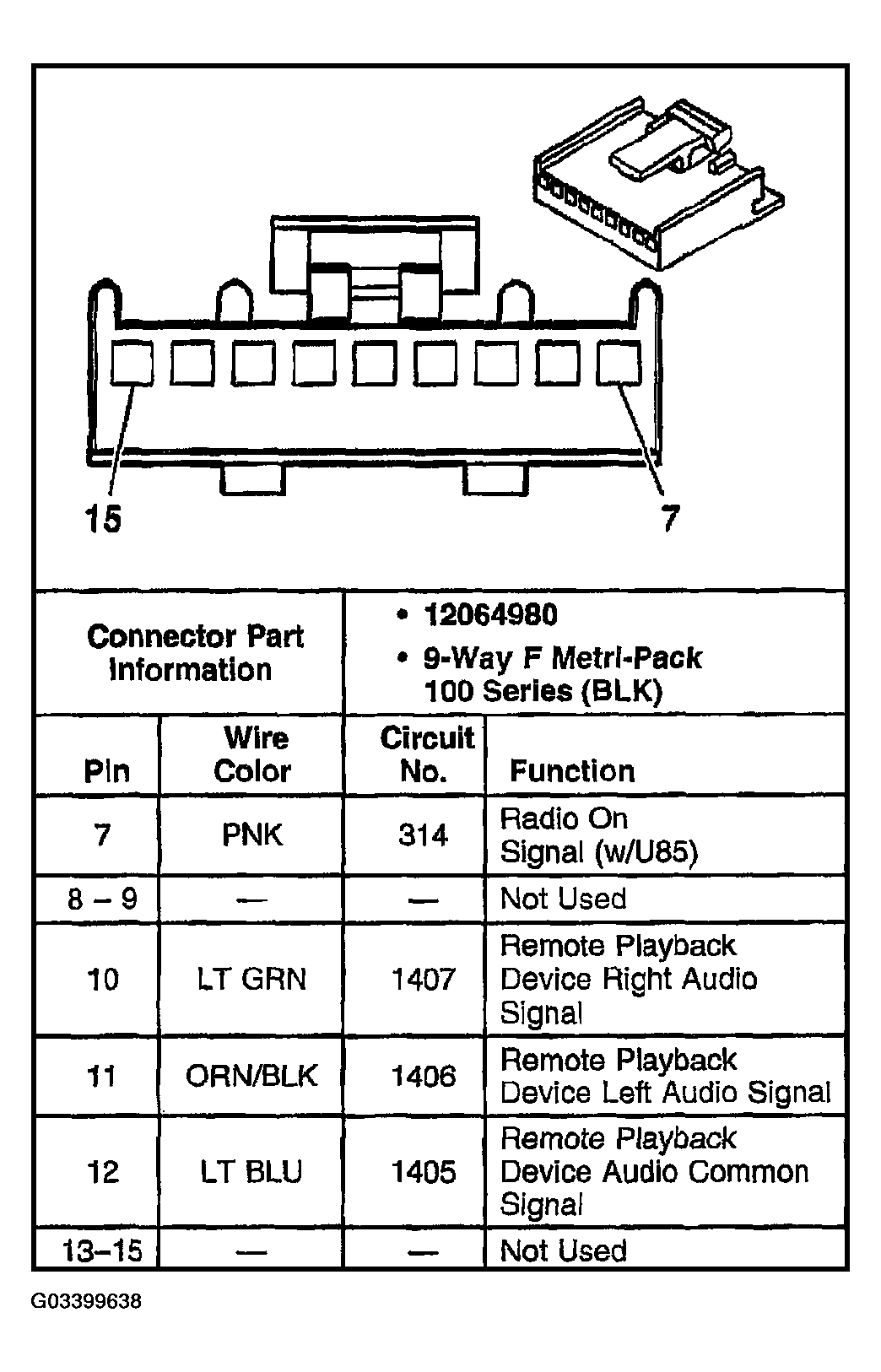

Fig 6: Radio, C2 Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.

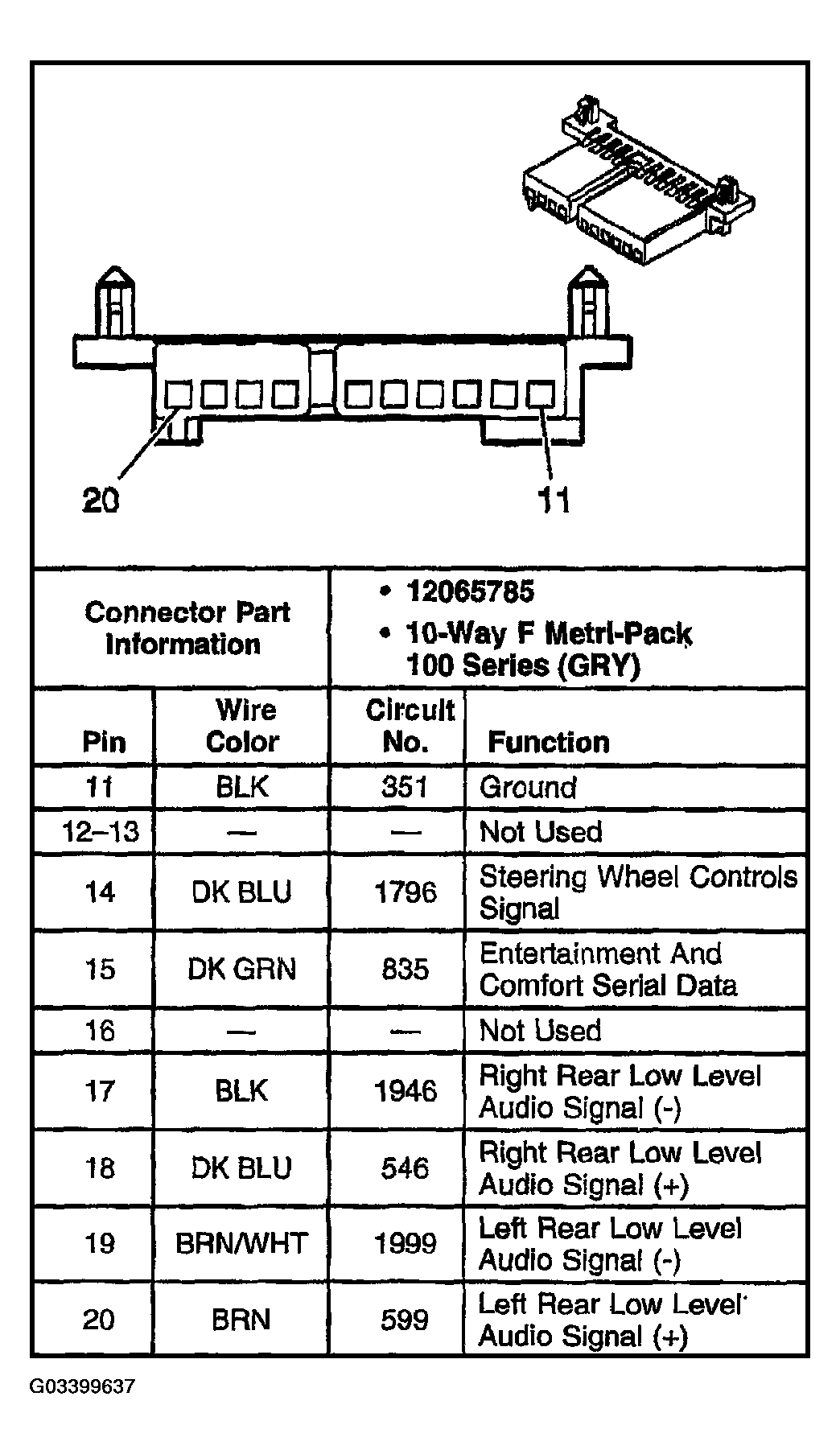

Fig 7: Radio, C3 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Speaker - LF Door, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 9: Speaker - LF Door, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

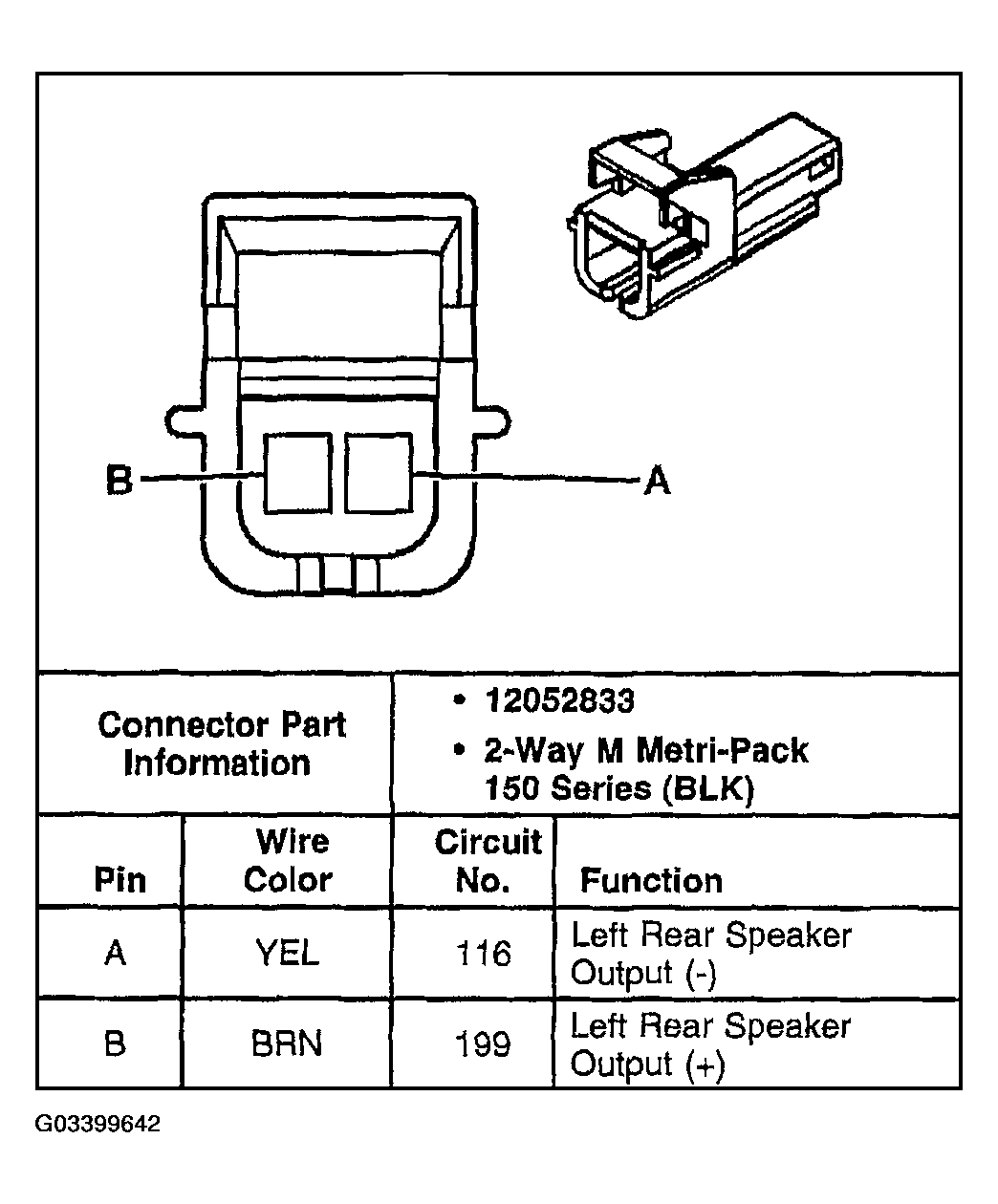

Fig 10: Speaker - LR Connector End View (w/o U85)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Speaker - LR Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.

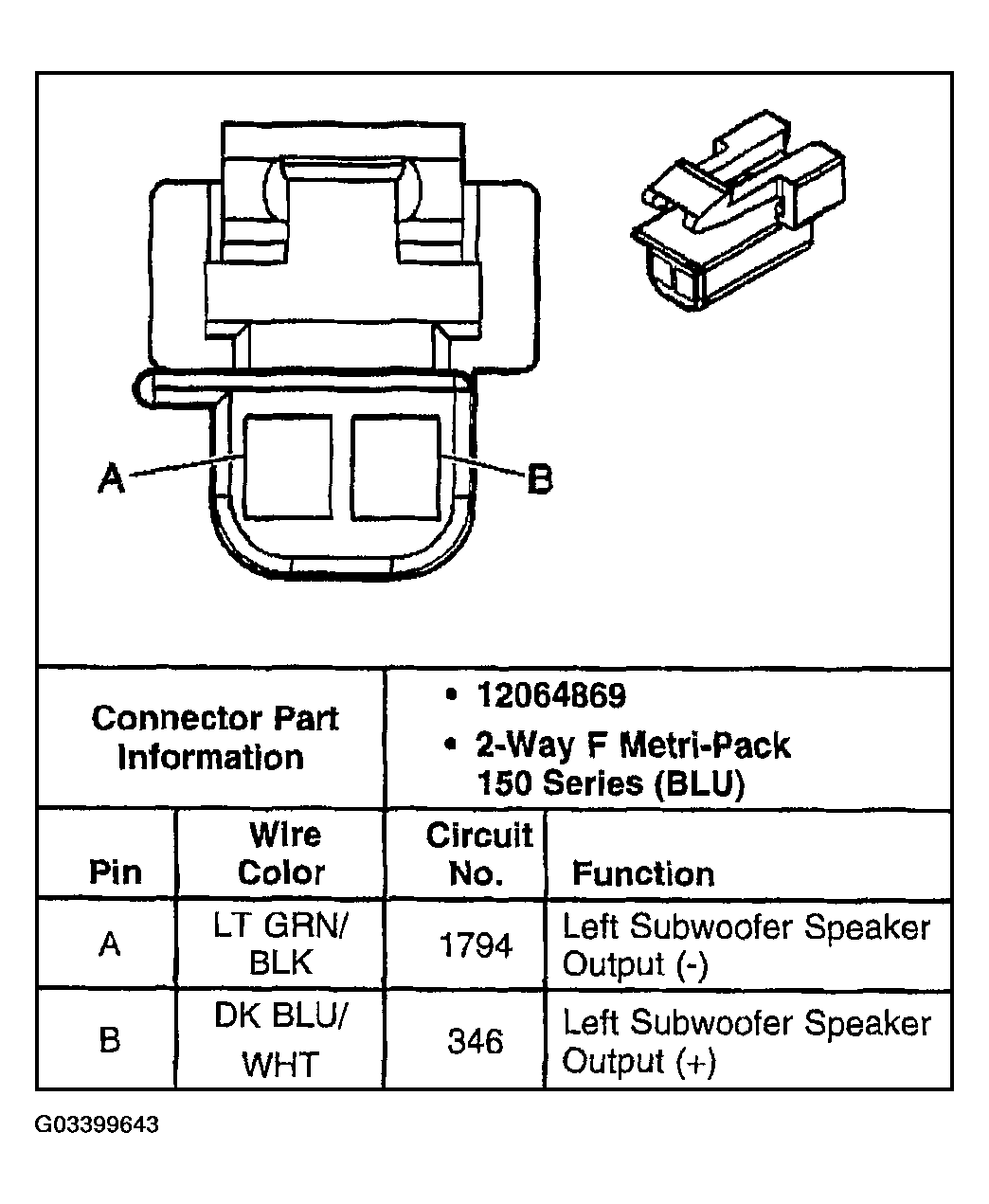

Fig 12: Speaker - LR Subwoofer Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Speaker - RF Door, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

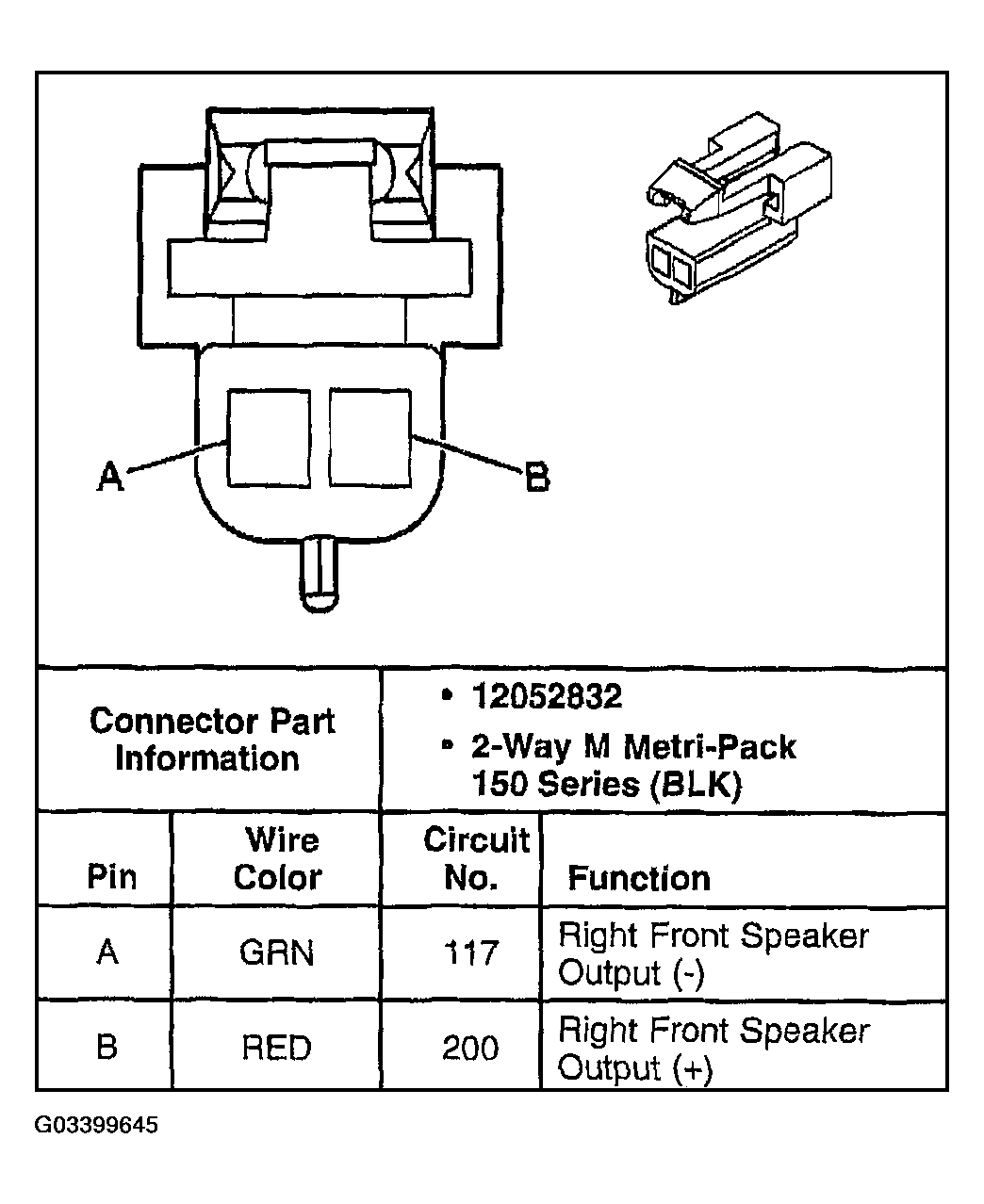

Fig 14: Speaker - RF Door, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

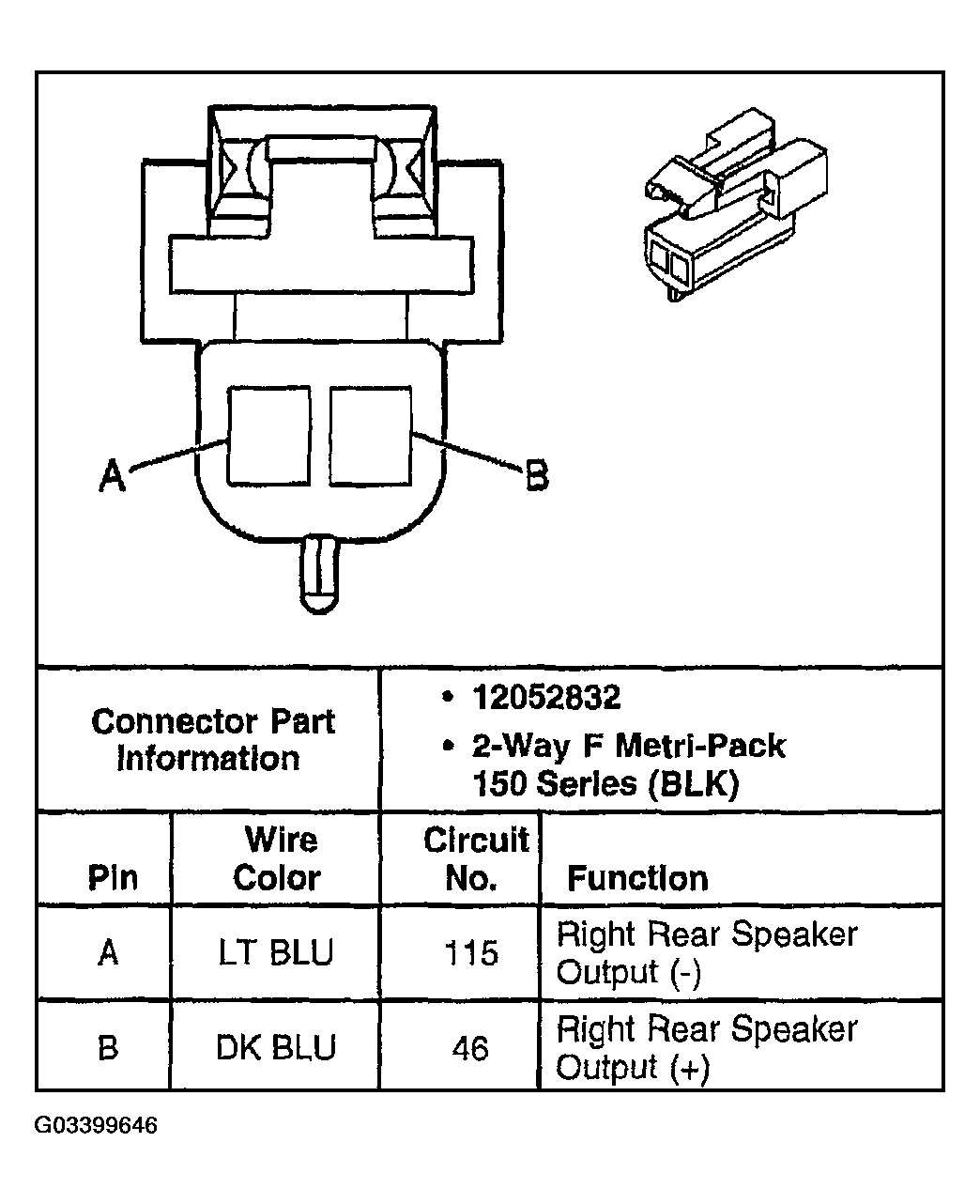

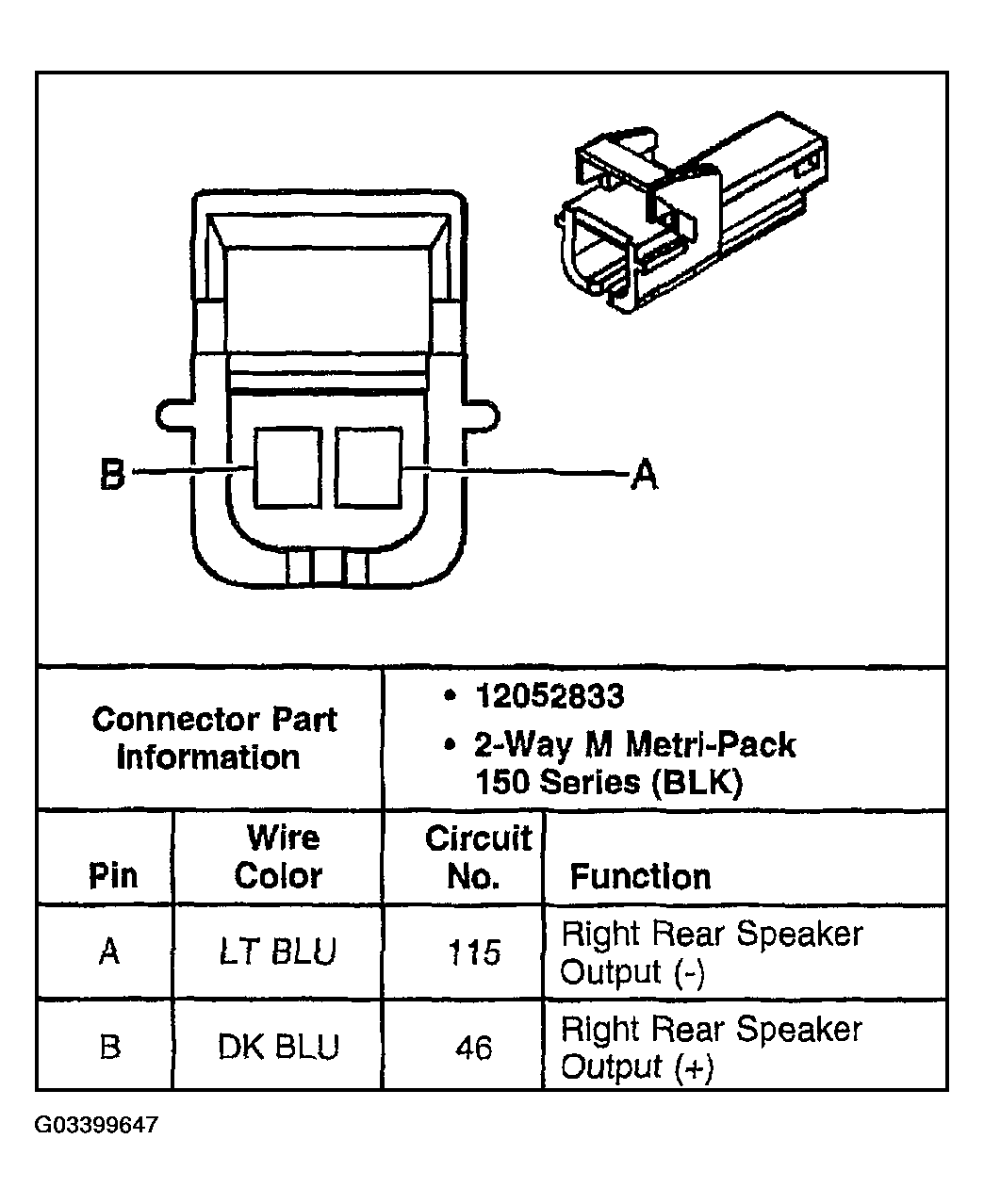

Fig 15: Speaker - RR Connector End View (w/o U85)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Speaker - RR Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.

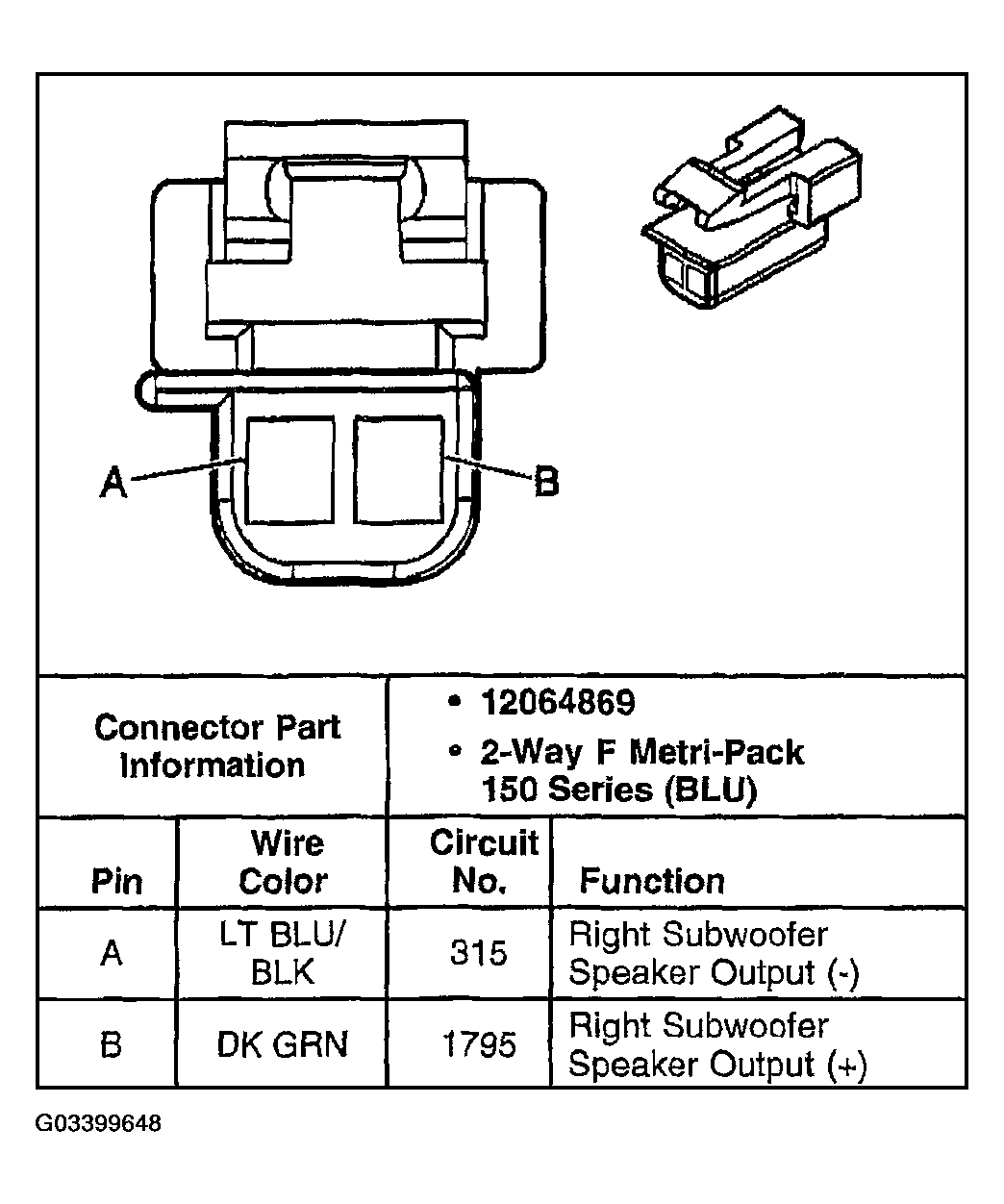

Fig 17: Speaker - RR Subwoofer Connector End View (U85)
Courtesy of GENERAL MOTORS CORP.

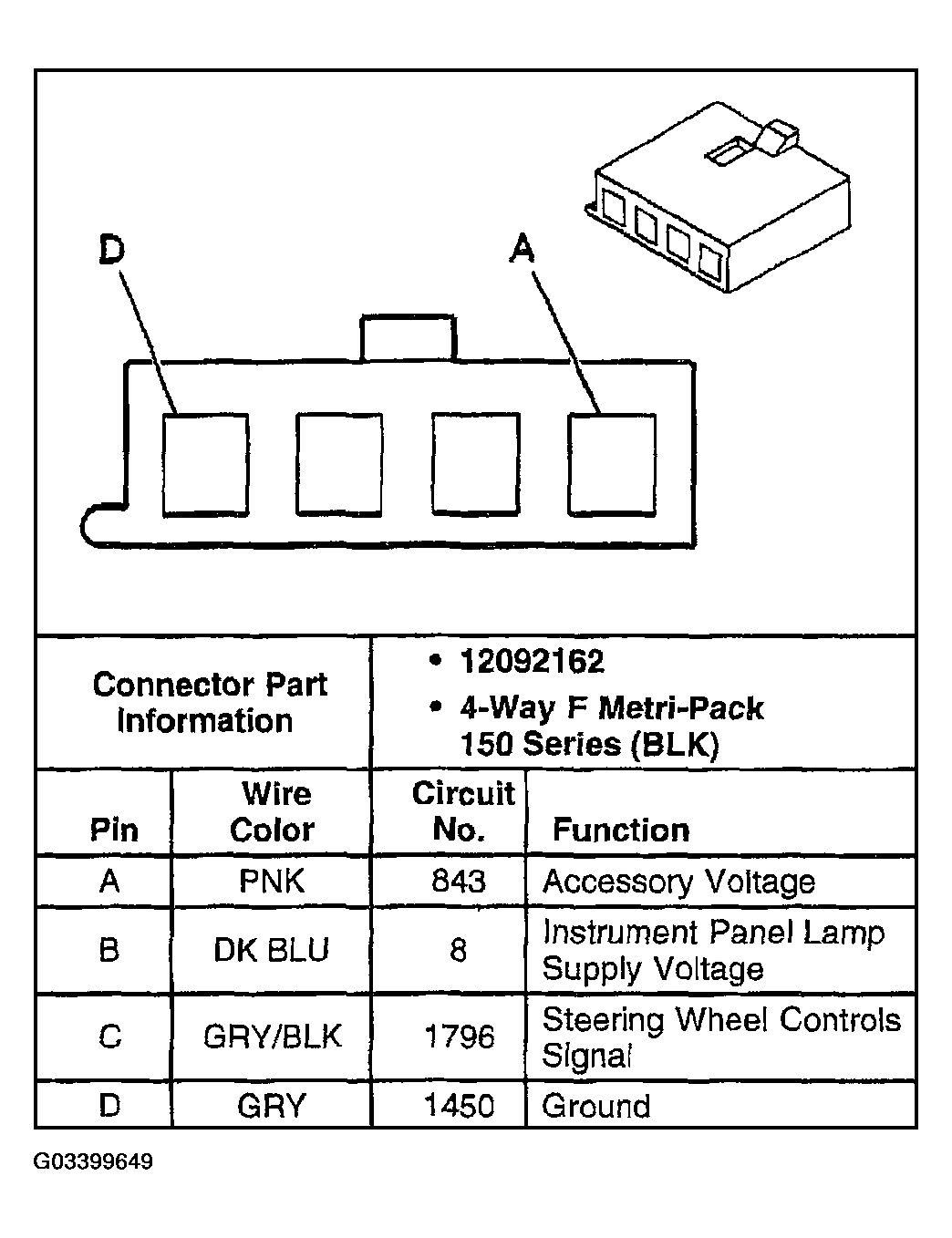

Fig 18: Steering Wheel Controls Connector End View
