Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the audio amplifier.
  2. Install the tabs of the audio amplifier to the slots in the rear window panel.
  3. Position the audio amplifier bolts to the openings in the rear window panel, as shown. Slide the audio amplifier forward.
  4. Close the rear compartment.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Tighten the audio amplifier bolts.

    Tighten

    Tighten audio amplifier bolts to 6 N.m (53 lb in).

  6. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

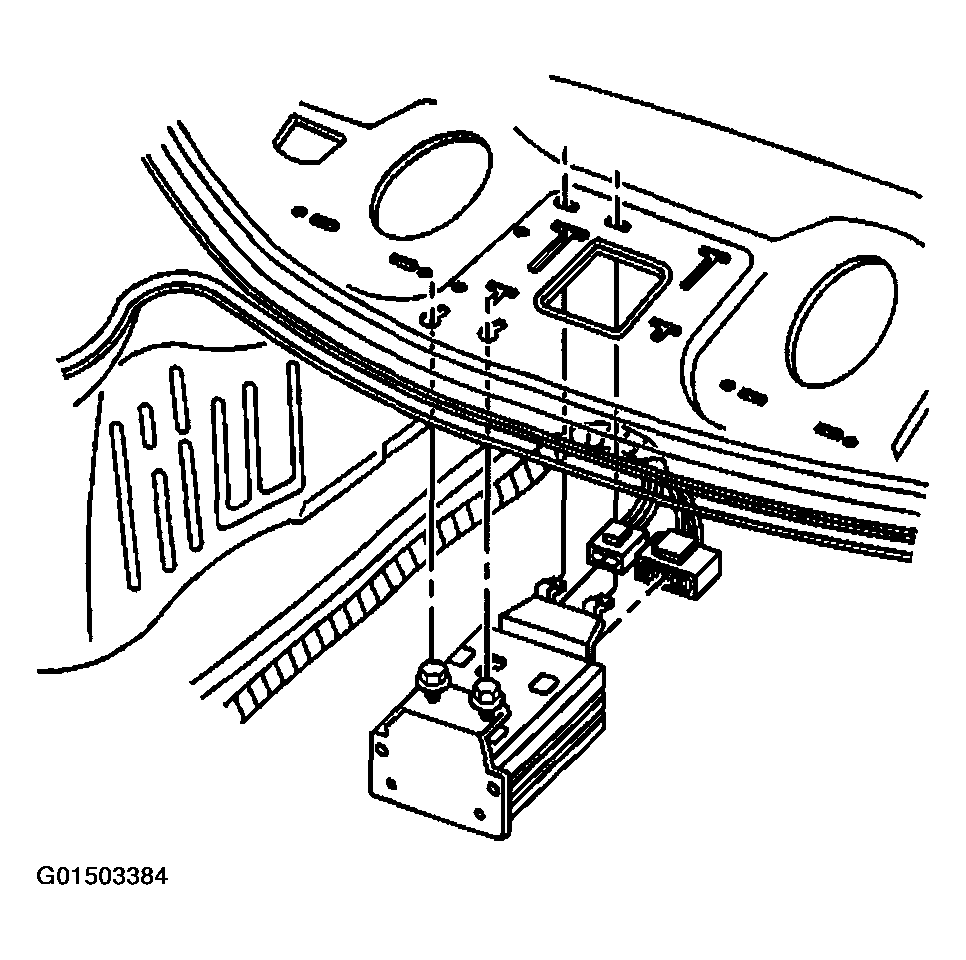

    Fig 1: Connecting Electrical Connectors To Audio Amplifier
    G01503384Courtesy of GENERAL MOTORS CORP.
