Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Remove the right I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  3. Remove the right front carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT in Interior Trim.
  4. Pull back the carpet for access.
  5. Disconnect the I/P antenna extension cable from the antenna cable.

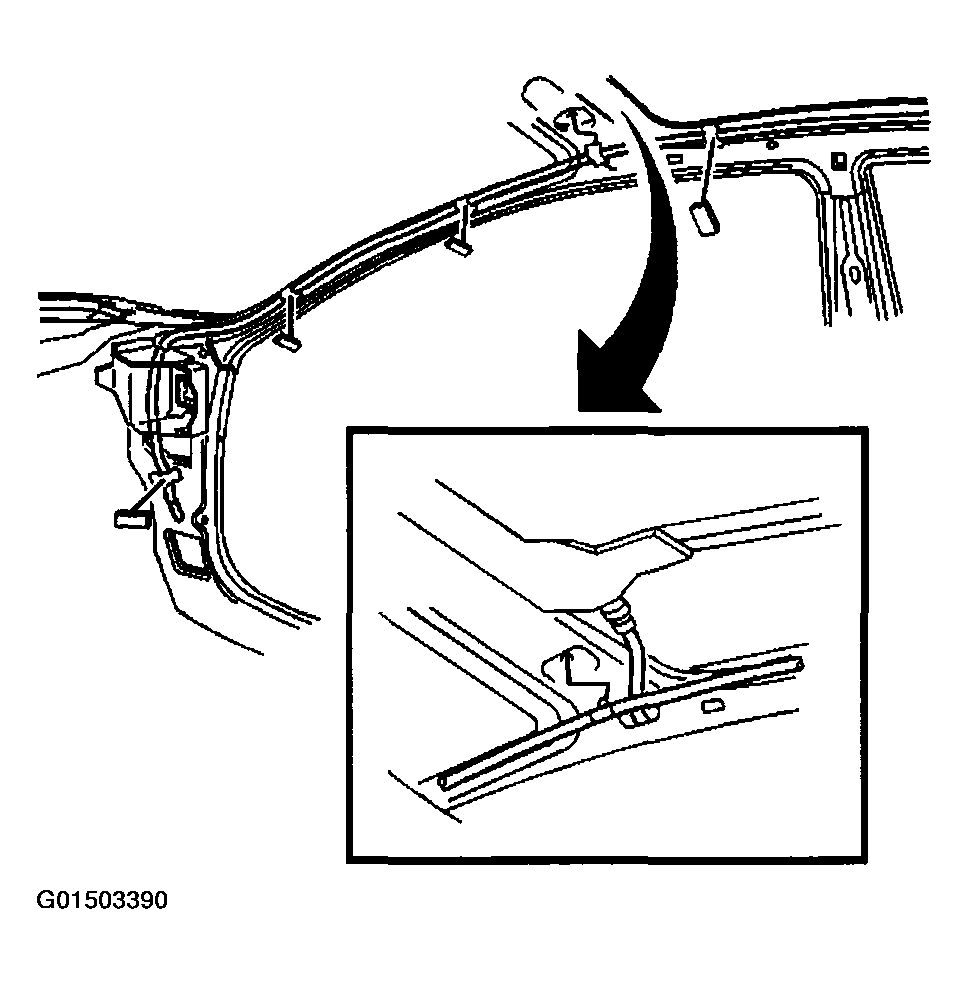

    Fig 1: Disconnect Instrument Panel Antenna Extension Cable From Antenna Cable
    G01503390Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the antenna cable from the rear window.
  7. Remove the screw from the antenna extension cable bracket.

    Important:  Take note of the antenna cable routing before removal from the vehicle.

  8. Remove the tape from the antenna cable.
  9. Remove the antenna cable.

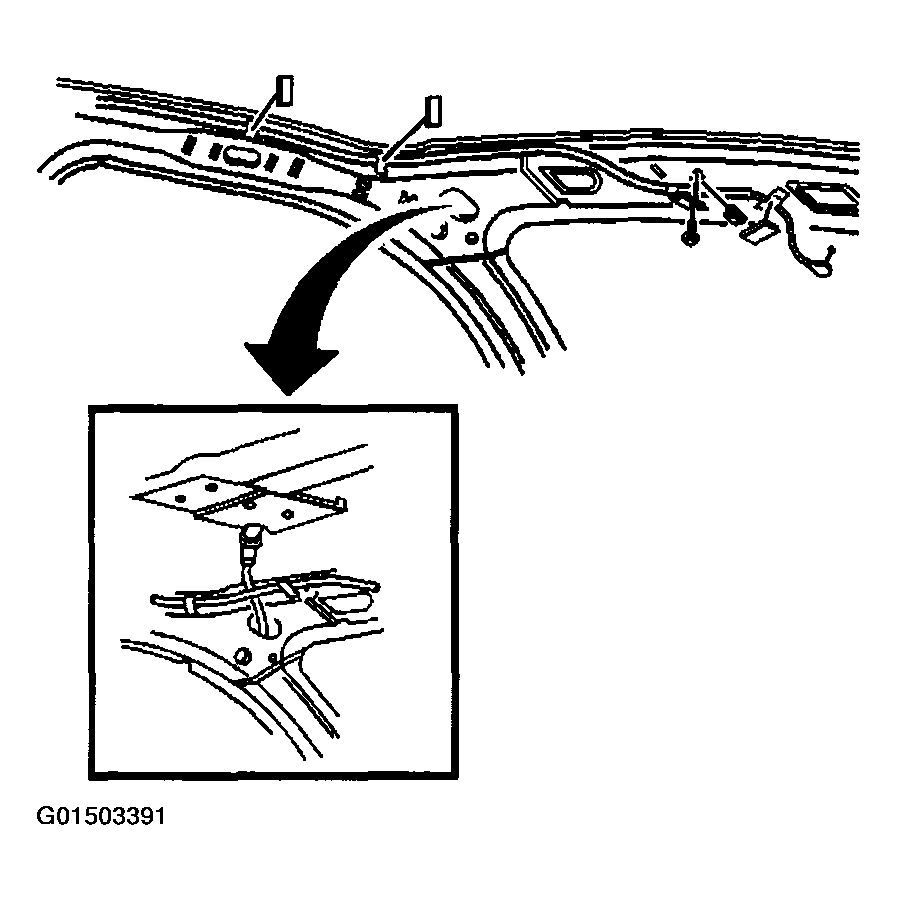

    Fig 2: Removing Screw From Antenna Extension Cable Bracket
    G01503391Courtesy of GENERAL MOTORS CORP.
