Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the surface of the rear shelf in the GPS antenna mounting location, using an isopropyl alcohol pad and a clean lint-free cloth.

    Important:  Do not touch the adhesive backing.

  2. Remove the protective backing from the adhesive backing of the GPS antenna.
  3. Install the GPS antenna to the rear shelf surface.

    Press the GPS antenna into place until fully seated for approximately 30 seconds.

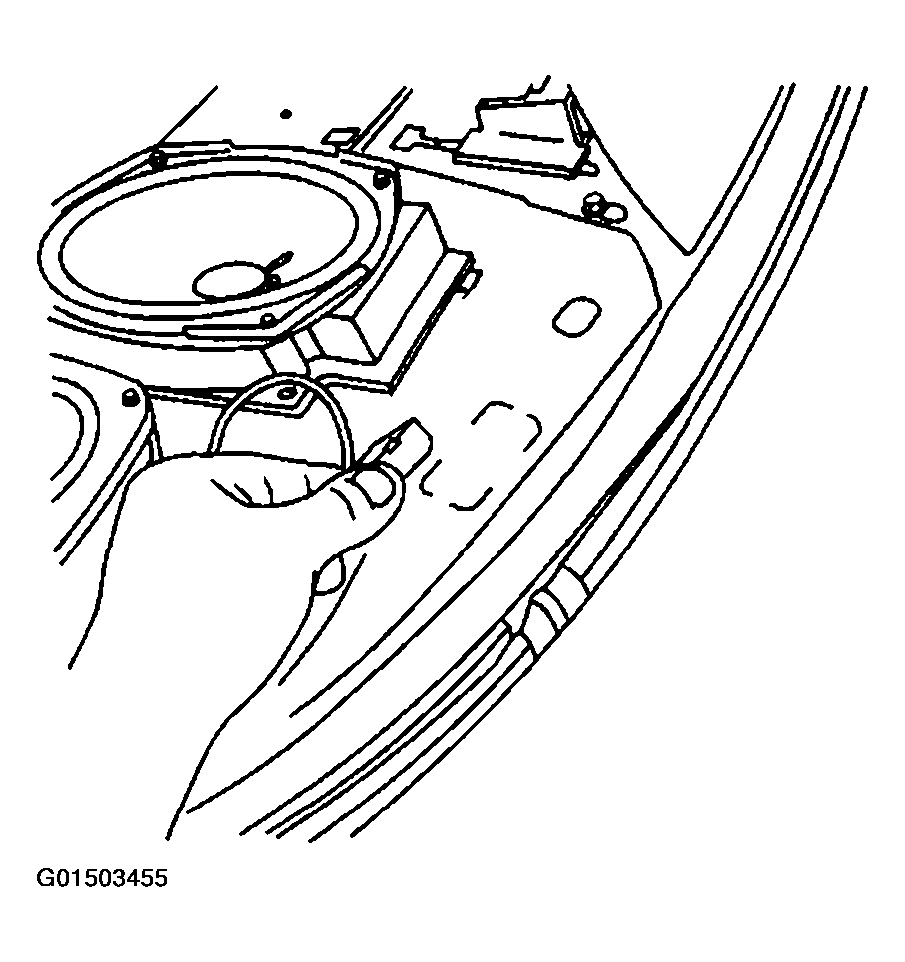

    Fig 1: Installing Global Positioning System Antenna To Rear Shelf
    G01503455Courtesy of GENERAL MOTORS CORP.
  4. Connect the GPS antenna cable connector.
  5. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

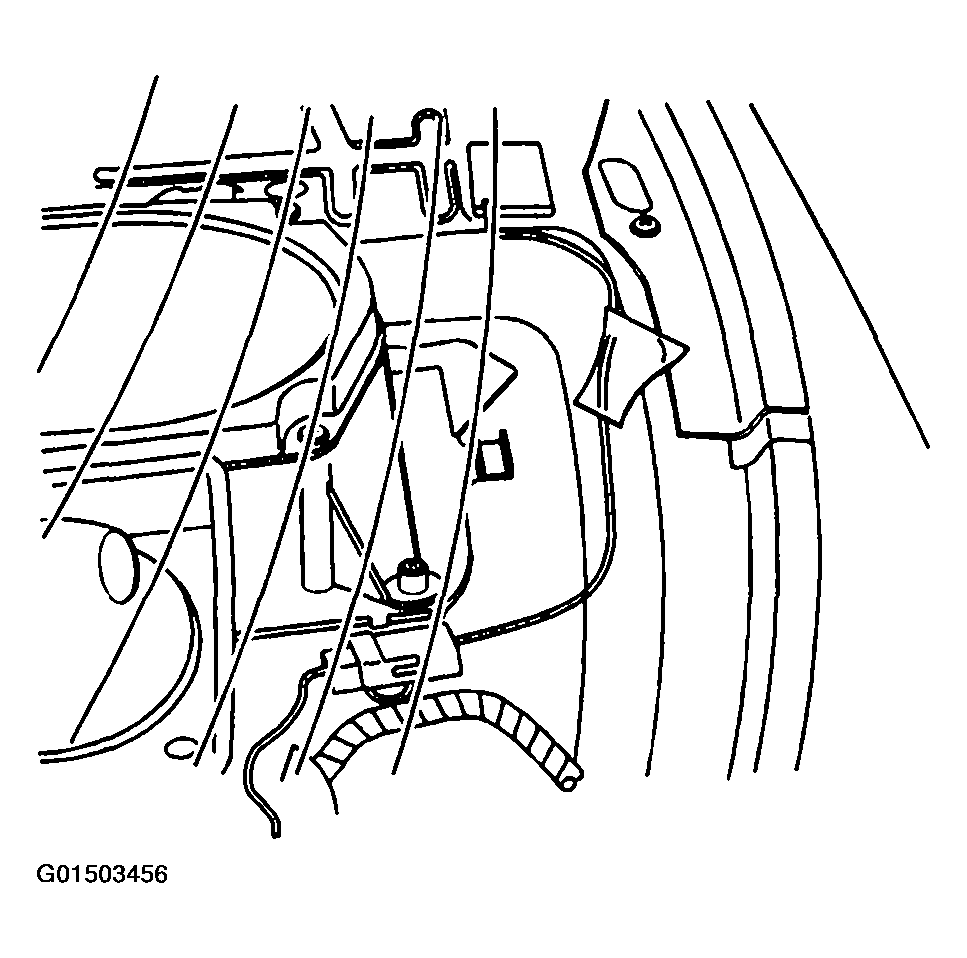

    Fig 2: Connecting Global Positioning System Antenna Cable Connector
    G01503456Courtesy of GENERAL MOTORS CORP.
