Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  in Interior  Trim.
  2. Disconnect the global positioning system (GPS) antenna cable connector.

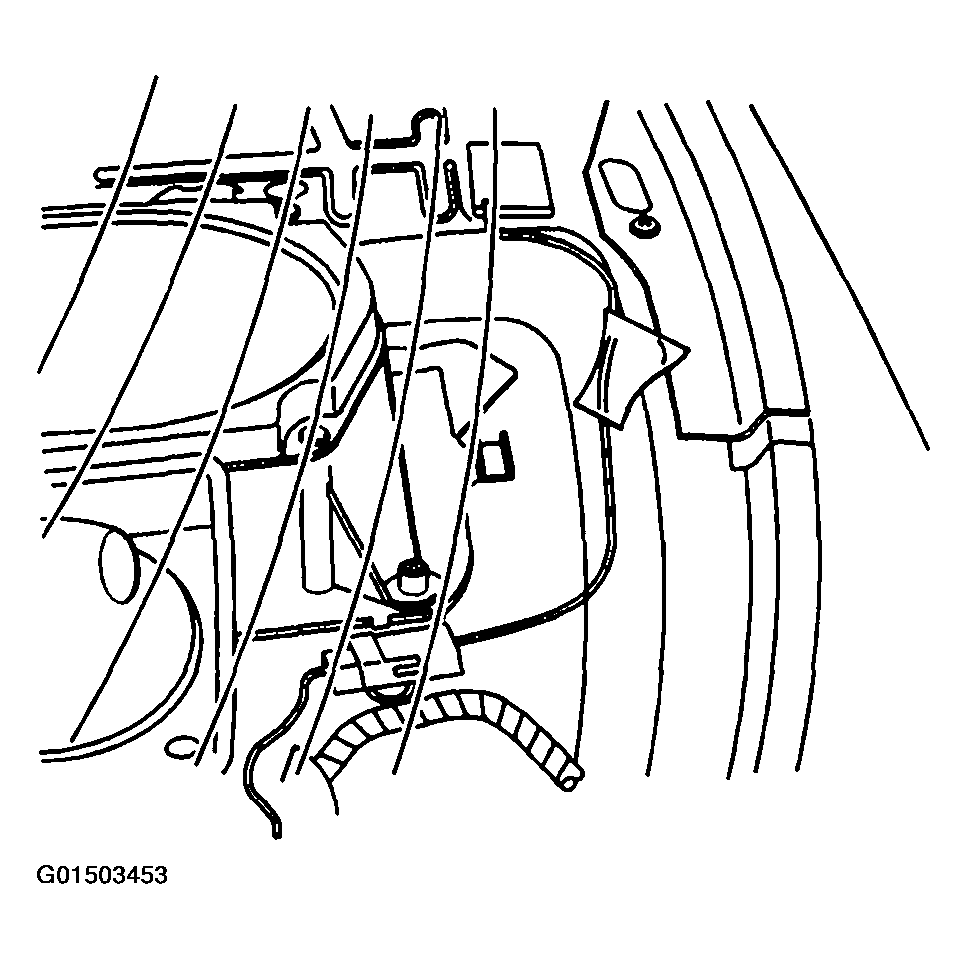

    Fig 1: Disconnecting Global Positioning System Antenna Cable Connector
    G01503453Courtesy of GENERAL MOTORS CORP.
  3. Remove the GPS antenna from the rear shelf using a small wide-bladed plastic tool in order to release the adhesive.
  4. Clean the adhesive residue from the rear shelf using a razor blade, an isopropyl alcohol pad, and a clean lint-free cloth.

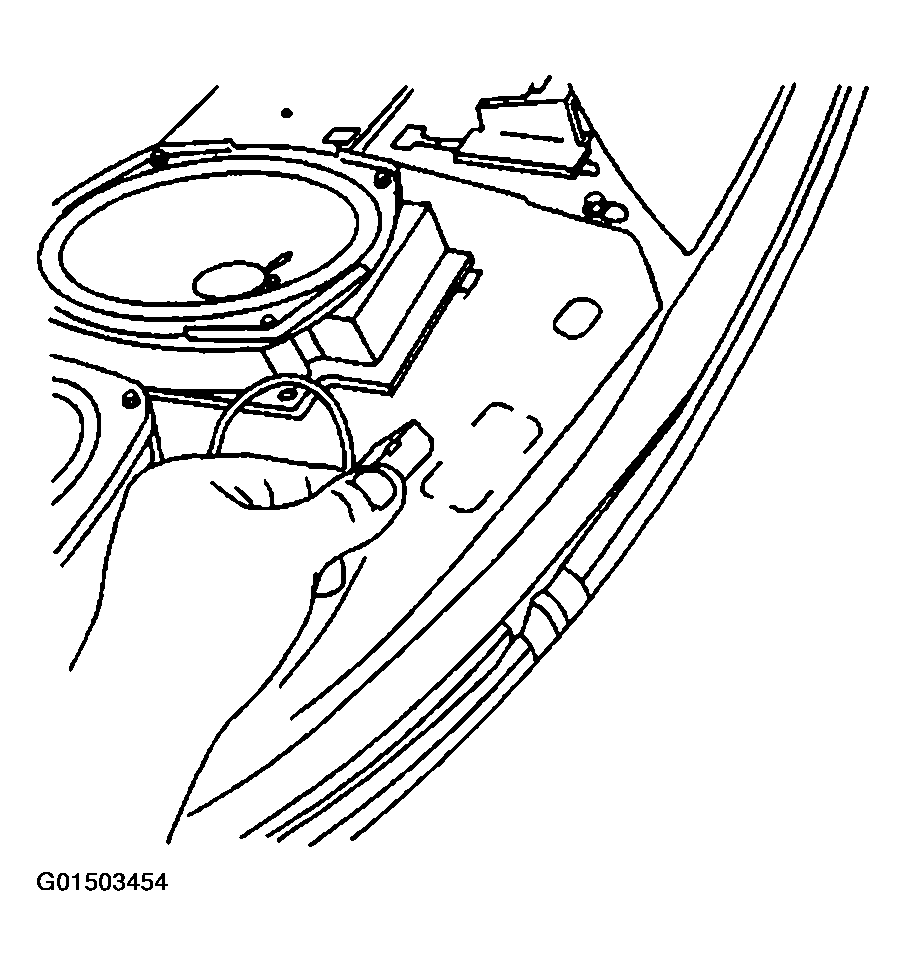

    Fig 2: Removing Global Positioning System Antenna From Rear Shelf
    G01503454Courtesy of GENERAL MOTORS CORP.
