Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control cable to the engine.
  2. Install the cruise control cable to the throttle lever and the accelerator control cable bracket.

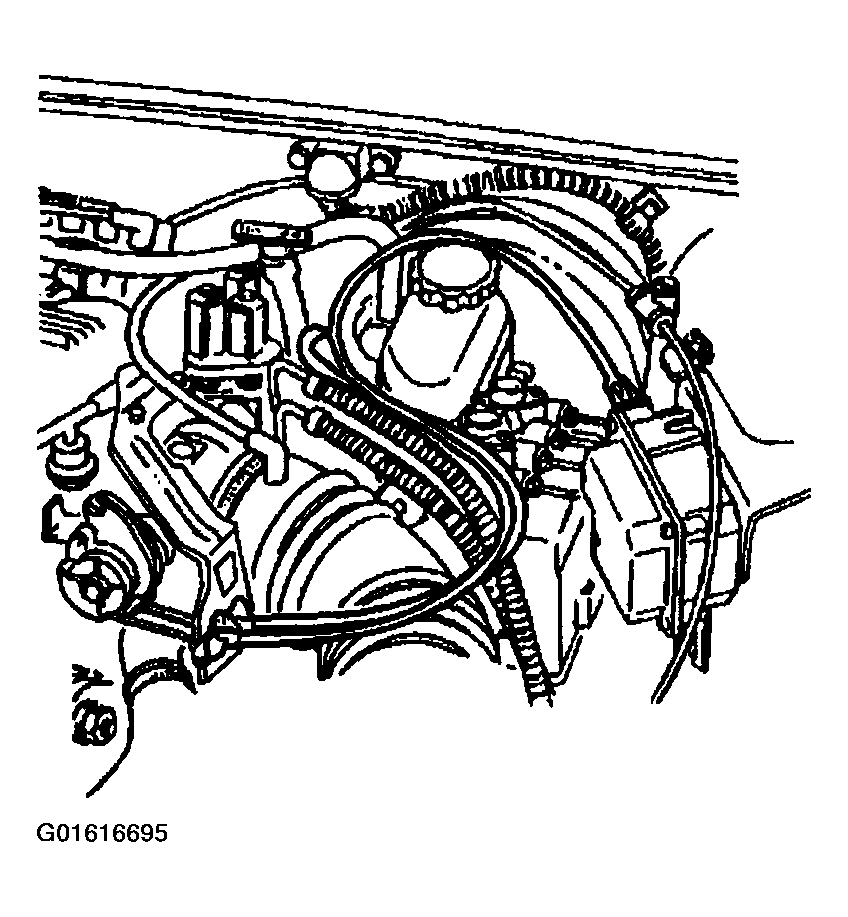

    Fig 1: Installing Cruise Control Cable To Engine
    G01616695Courtesy of GENERAL MOTORS CORP.
  3. Install the cruise control cable to the cruise control retainers.

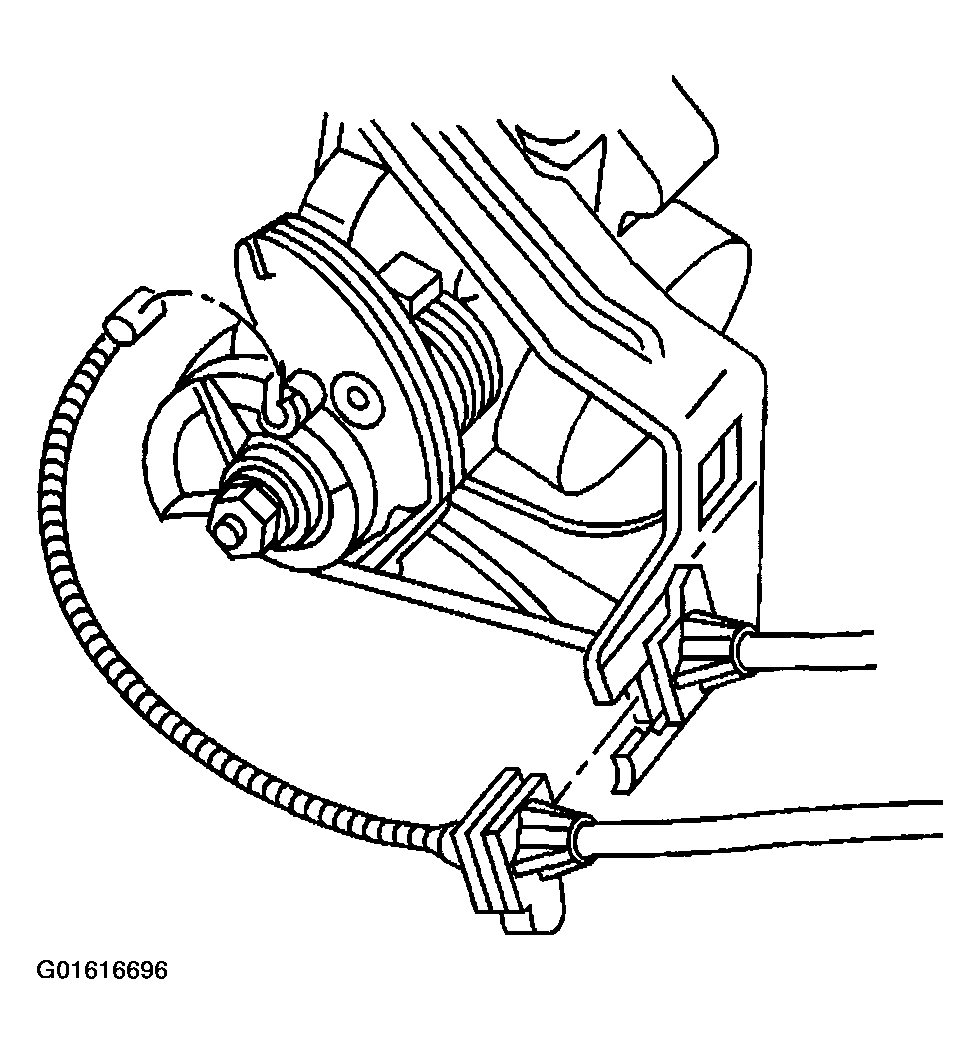

    Fig 2: Installing Cruise Control Cable To Retainers
    G01616696Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control cable to the cruise control module strap.

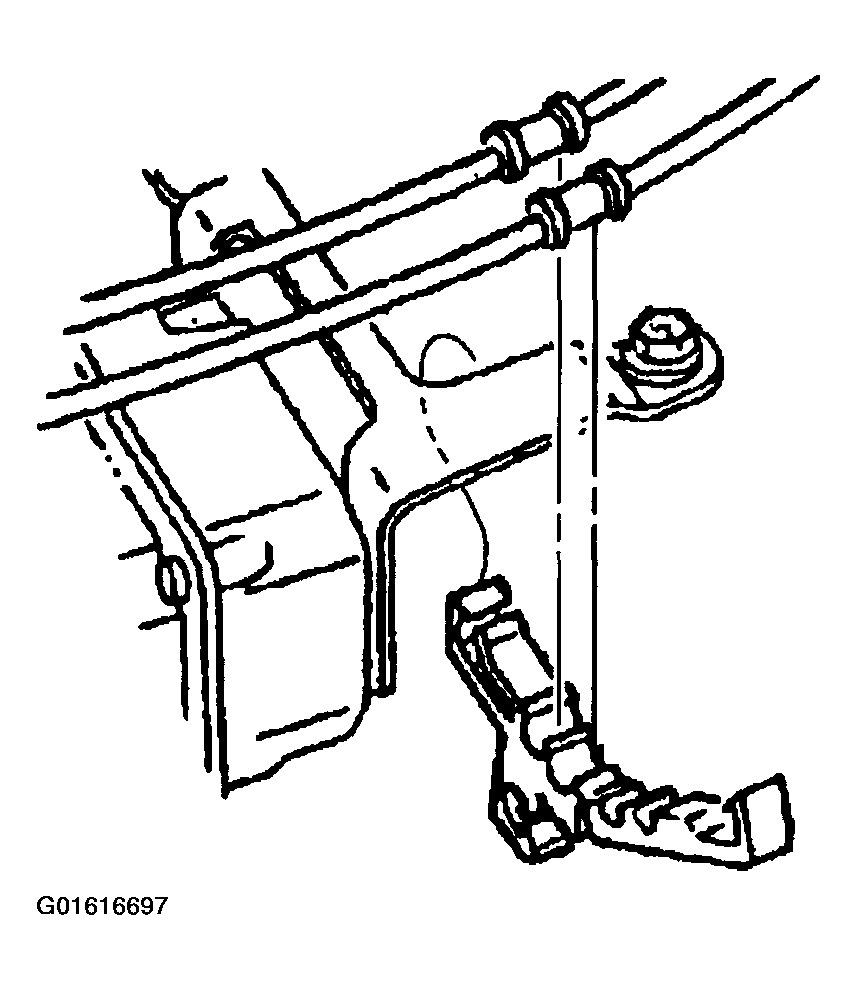

    Fig 3: Installing Cruise Control Cable To Module Strap
    G01616697Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the cruise control module strap is not twisted during installation of the cruise control cable.
  5. Rotate the cruise control cable clockwise. Install the cruise control cable to the cruise control module.

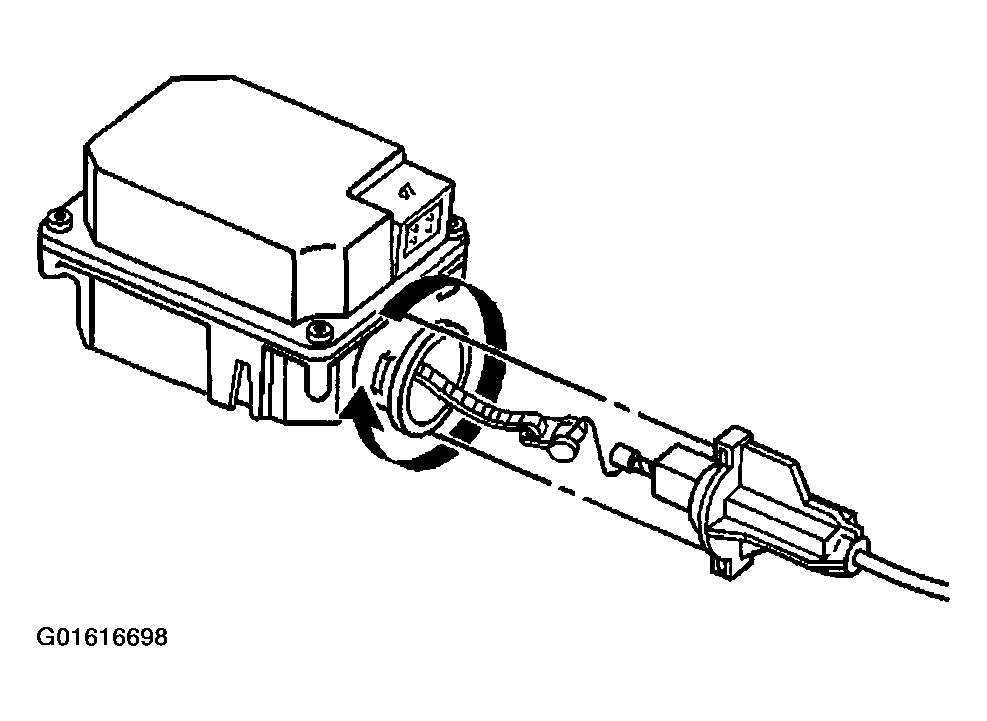

    Fig 4: Installing Cruise Control Cable To Module
    G01616698Courtesy of GENERAL MOTORS CORP.
