Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.

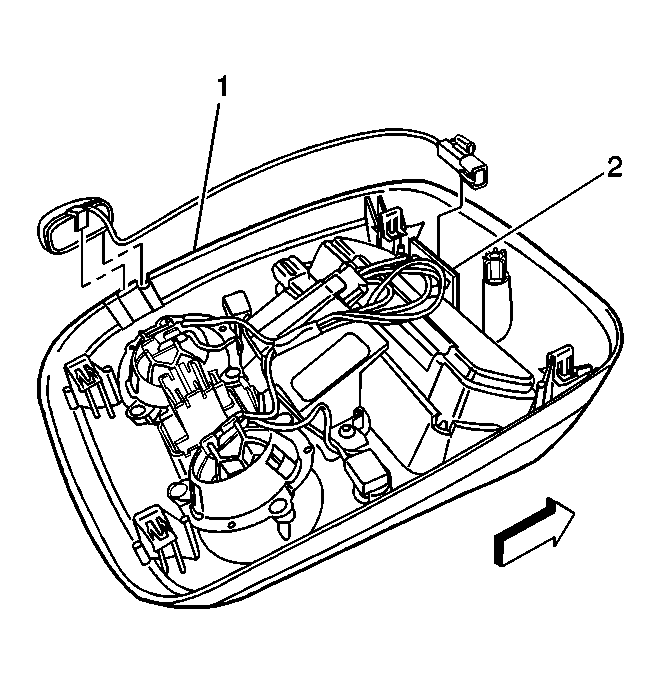

- Mount the microphone (1) to the overhead console at the left rear corner of the overhead console.
- Clip the microphone bracket (1) to the overhead console.
- Connect the microphone connector (2) to the mating 2-way connector.
- Reinstall the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (FULL LENGTH) or CONSOLE REPLACEMENT - OVERHEAD (SHORT LENGTH) .
