Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

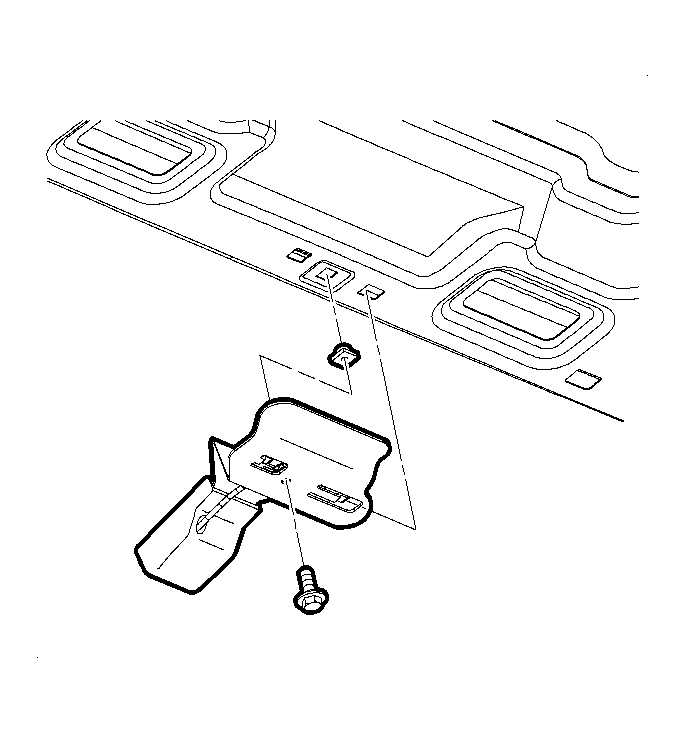

Fig 1: GPS Bracket & Fastener

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Slide the GPS bracket into position and install the bracket fastener.
Tighten: Tighten the fastener to 10 N.m (89 lb in).

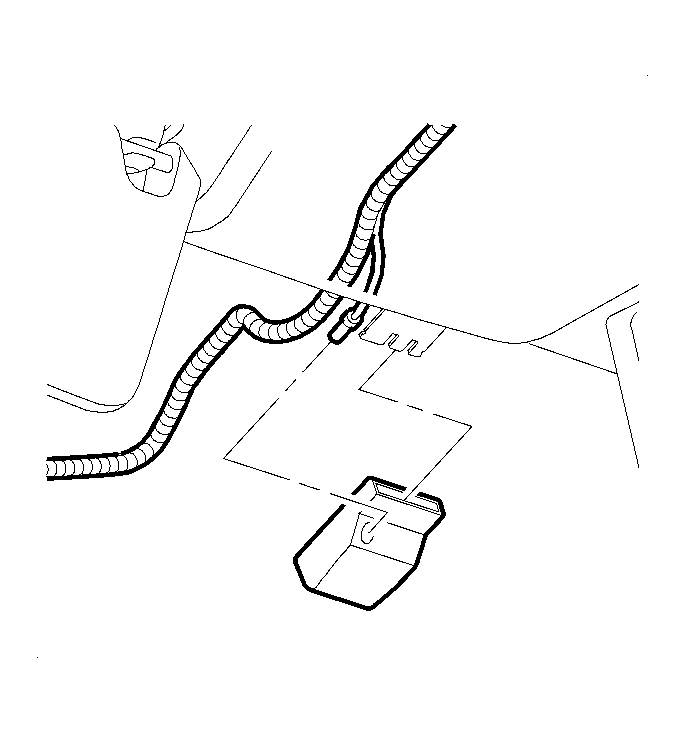

Fig 2: View Of GPS Coax & Antenna

Courtesy of GENERAL MOTORS CORP.

Slide the GPS antenna onto the bracket and connect the coax.
Install the headliner. Refer to Headliner Replacement in Interior Trim.
