Rear Differential Clutch Control Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

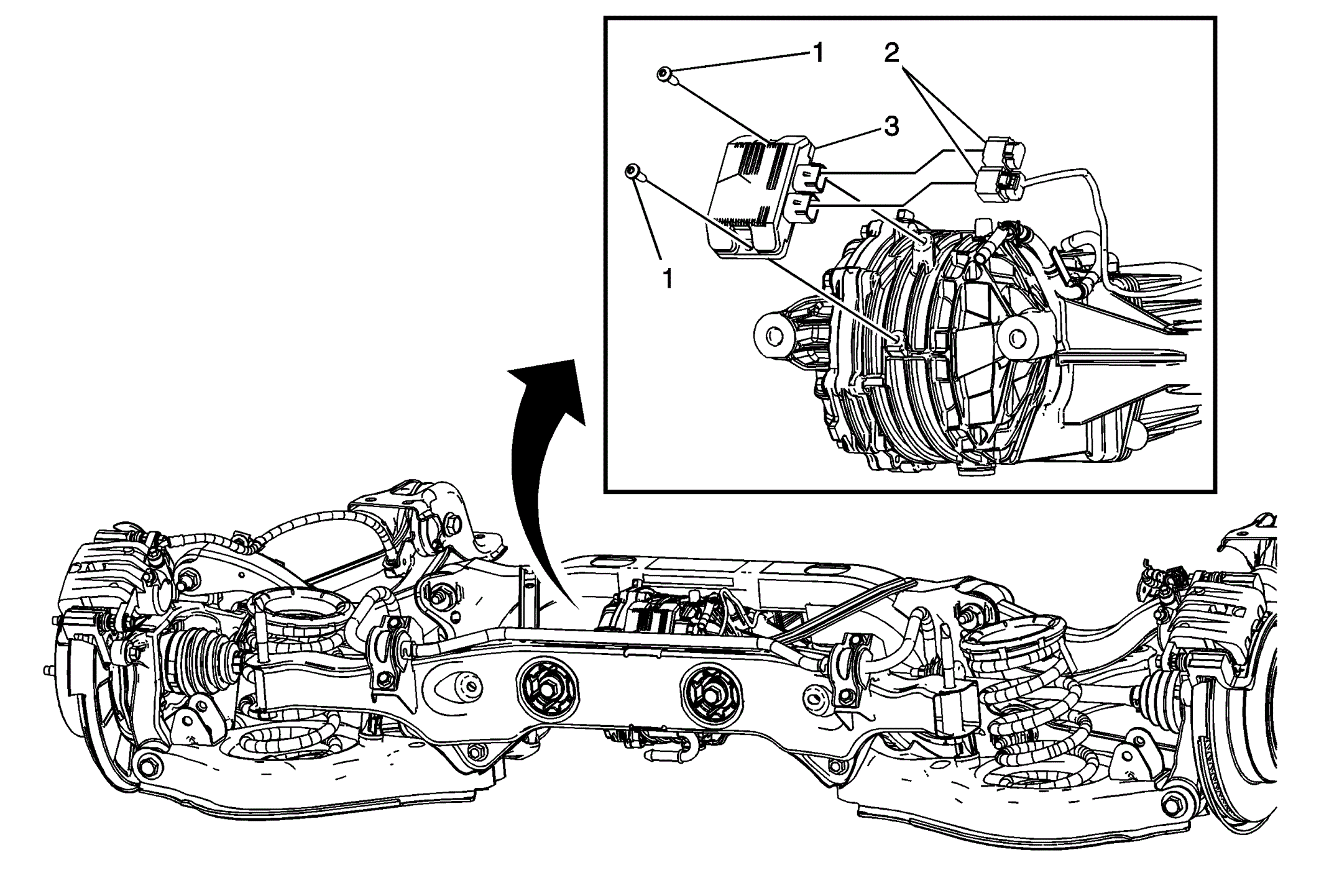

Fig 1: Identifying Rear Differential Clutch Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the exhaust system. Refer to Exhaust Muffler Replacement (LAT or LE5) or Exhaust Muffler Replacement (LZ4) or Exhaust Muffler Replacement (LY7) or Exhaust Muffler Replacement (LCS) . Remove the rear differential assembly. Refer to Differential Replacement .
1	Clutch Drum Control Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 15 N.m (133 lb in)
2	Clutch Drum Control Module Connector
3	Clutch Drum Control Module Procedure: Program the control module. Refer to Control Module References .
