BRAKELIGHT Switch: Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When installing the brake pedal switches, it is very important that the brake pedal remain in the full up or at rest position, or damage to the brake system and or switch misadjustment may occur.
- Connect the electrical connector to the switch.

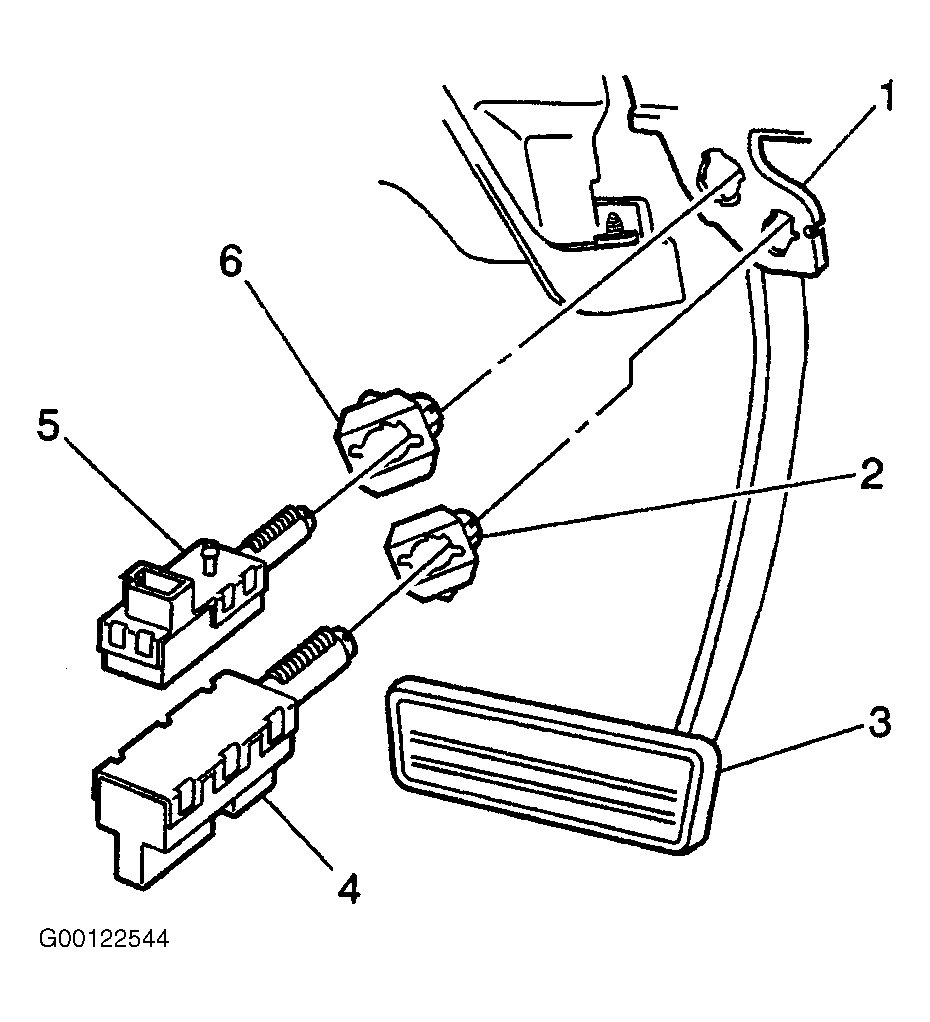

- Install the brakelight switch (4) into the opening in the bracket (1).
- Press the switch into the retainer until switch plunger is fully depressed into the switch barrel.
- Rotate switch clockwise until travel has stopped and switch locks fully into position.
- Install the left insulator panel.
NOTE:
The brakelight switch is self-adjusting when installed properly in the fully-locked position.
