Cruise Control Switch: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Position the switch (2) in the opening on the steering wheel.
  3. Install the fasteners (1) to retain the switch (2) to the steering wheel. Tighten the fasteners (1) to 20 INCH lbs. (2.3 N.m).
  4. Install the access plate.
  5. Install the steering wheel. See STEERING COLUMNS - AURORA article in STEERING.

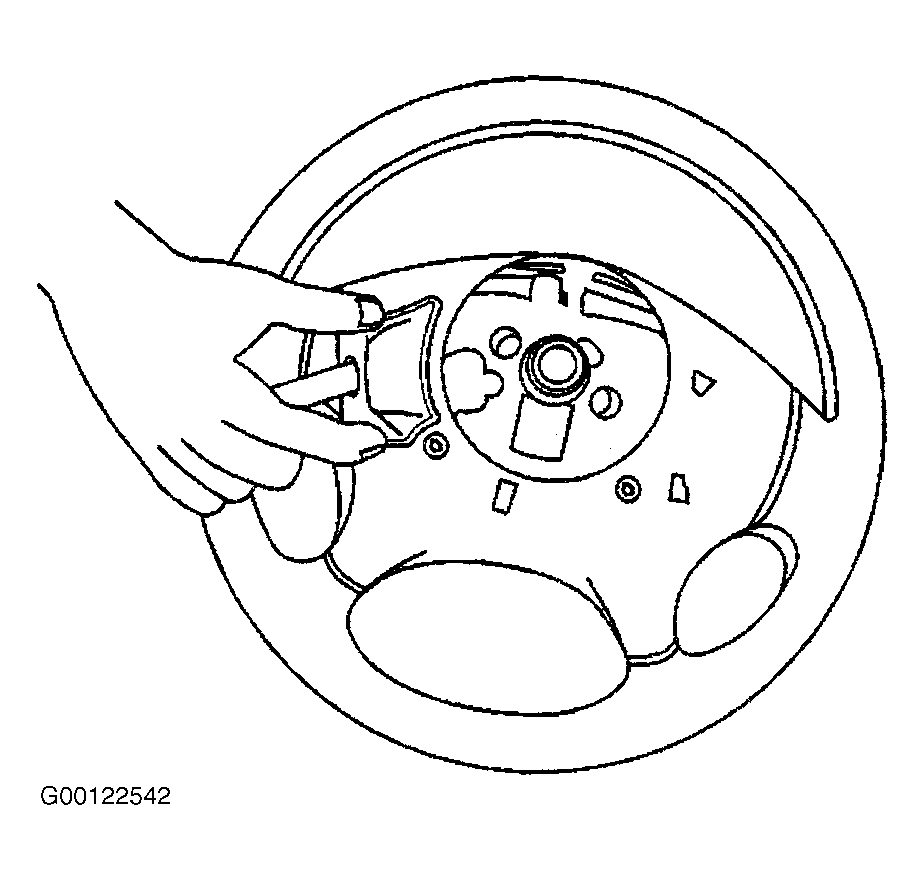

Fig 1: Removing & Installing Access Plate
G00122542Courtesy of GENERAL MOTORS CORP.

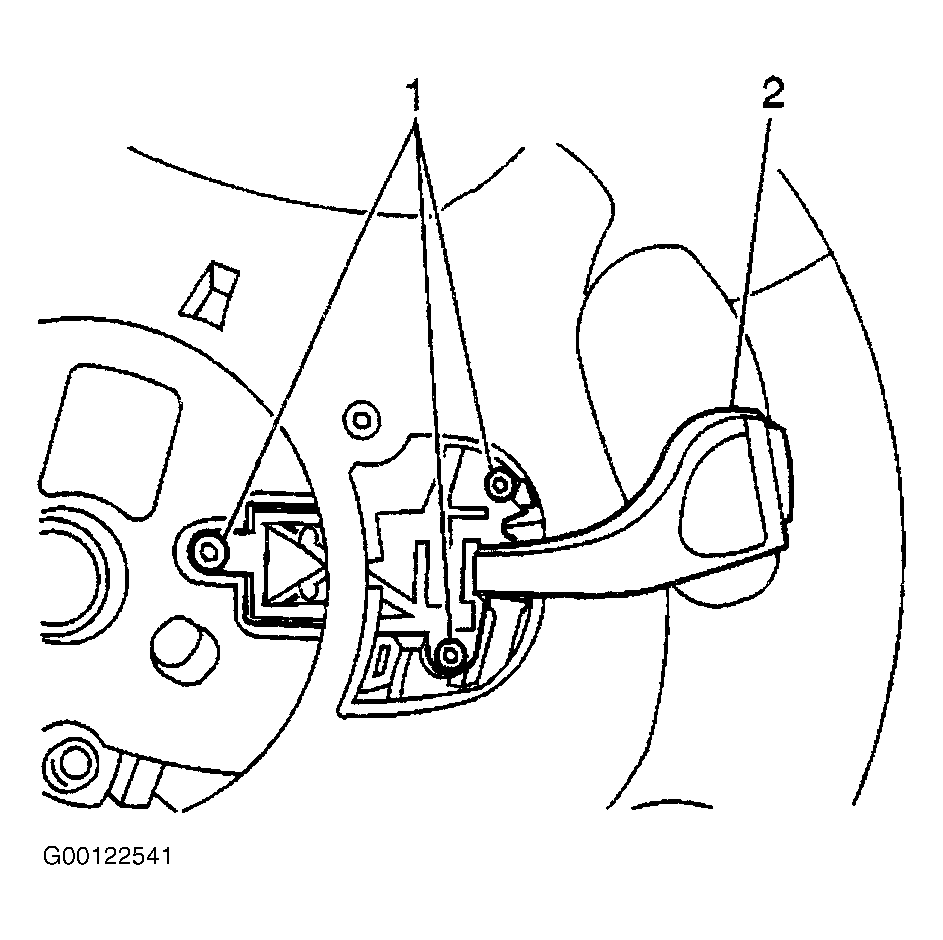

Fig 2: Removing & Installing Cruise Control Switch
G00122541Courtesy of GENERAL MOTORS CORP.
