Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) top cover. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  2. Remove the module. Unsnap the 2 lock arms.

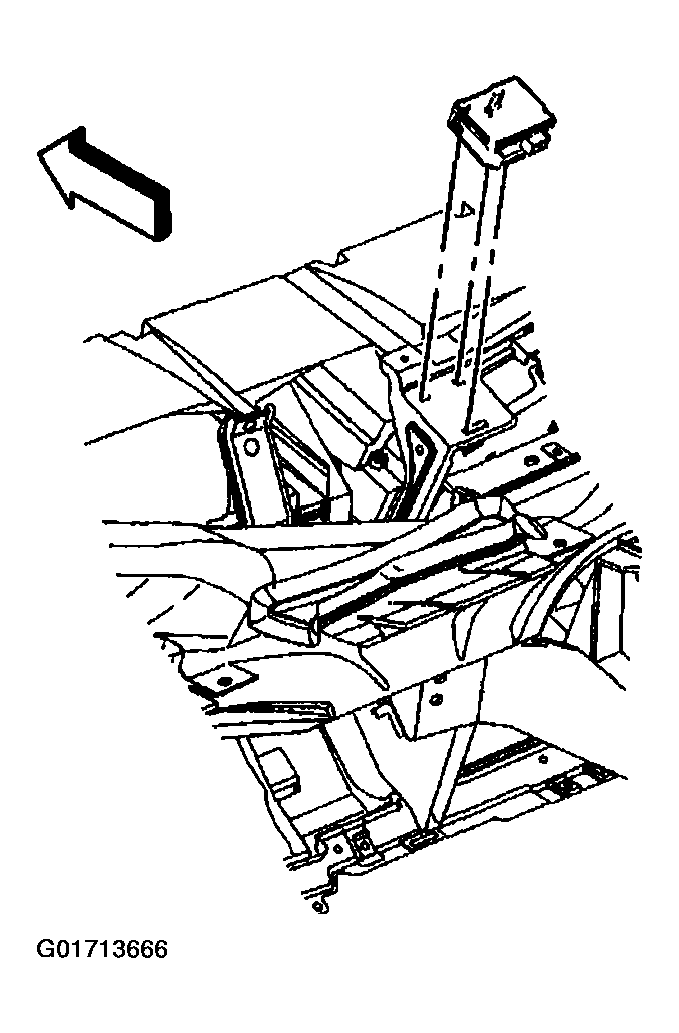

    3. Fig 1: Remote Control Door Lock Receiver Replacement
    G01713666Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector.
