Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery (2) with the positive side down into the transmitter.
  2. Ensure that the seal (7) is in position. Align the two halves of the case (6, 4), and snap the two halves together.
  3. Verify the operation of the transmitter.
  4. A malfunctioning transmitter may need re-synchronization. Refer to Transmitter Synchronization  .

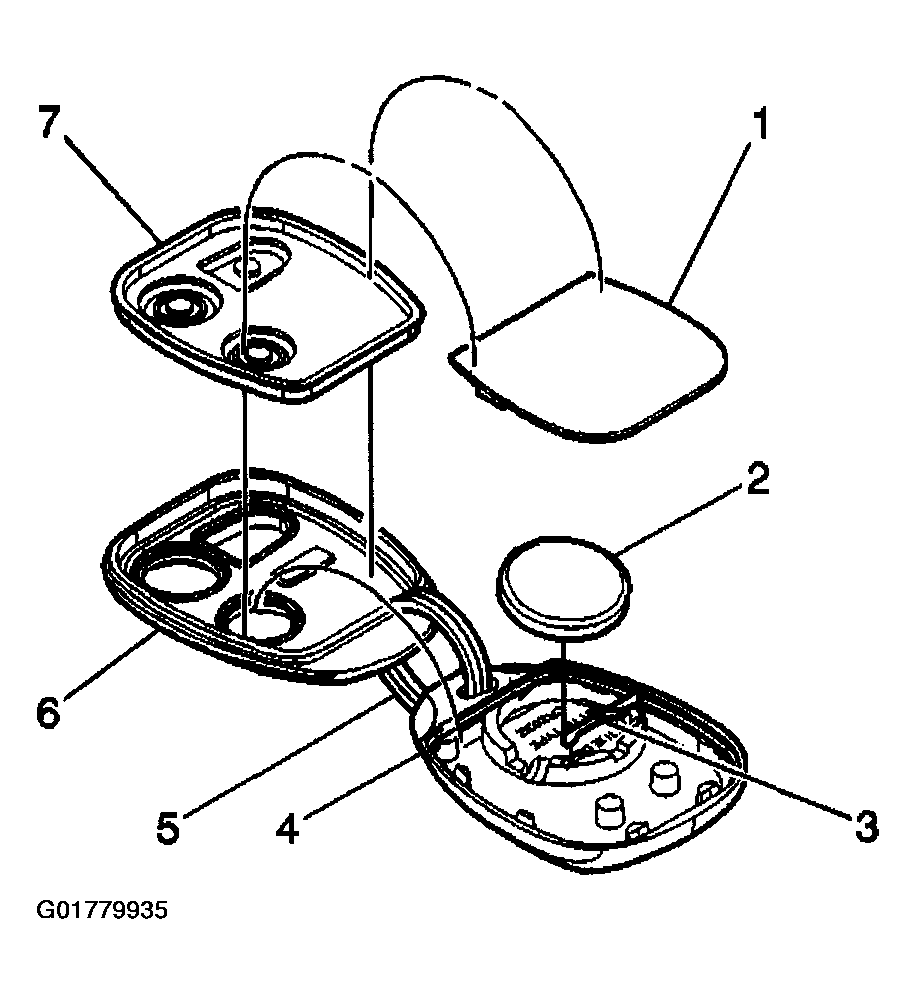

    Fig 1: Installing Transmitter Battery
    G01779935Courtesy of GENERAL MOTORS CORP.
