Installation Procedure

Install the seat belt retractor to the center pillar.

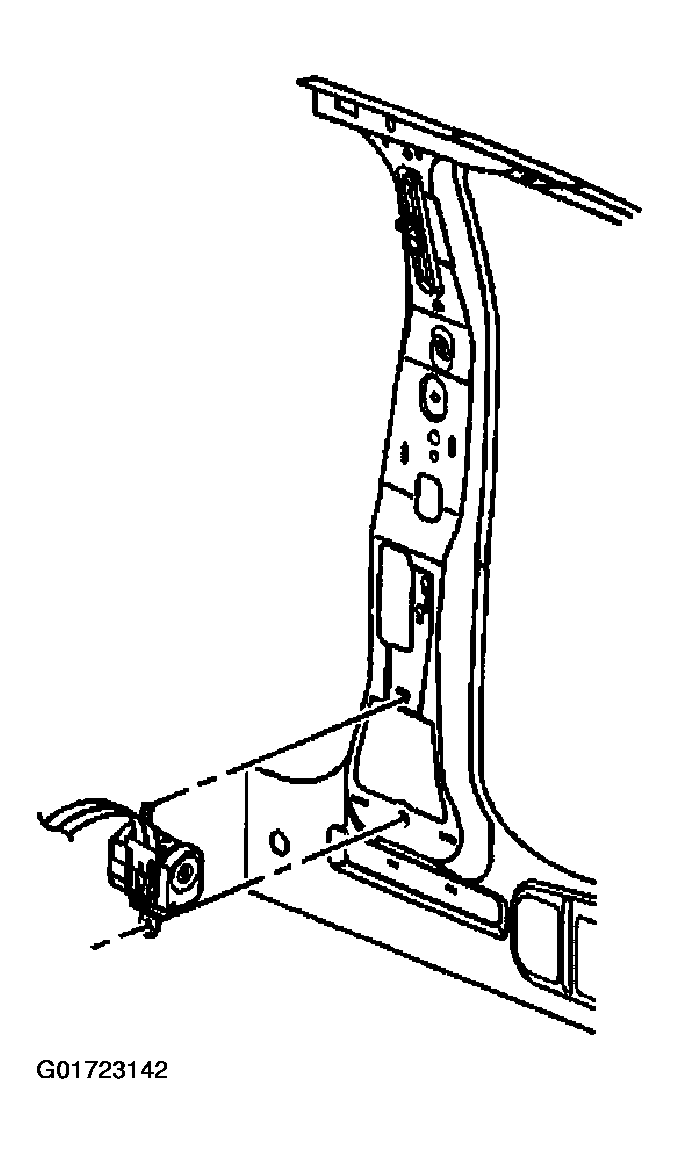

Fig 1: Installing Seat Belt Retractor
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolt to the seat belt retractor.
Tighten

Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).
Install the center pillar lower trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .

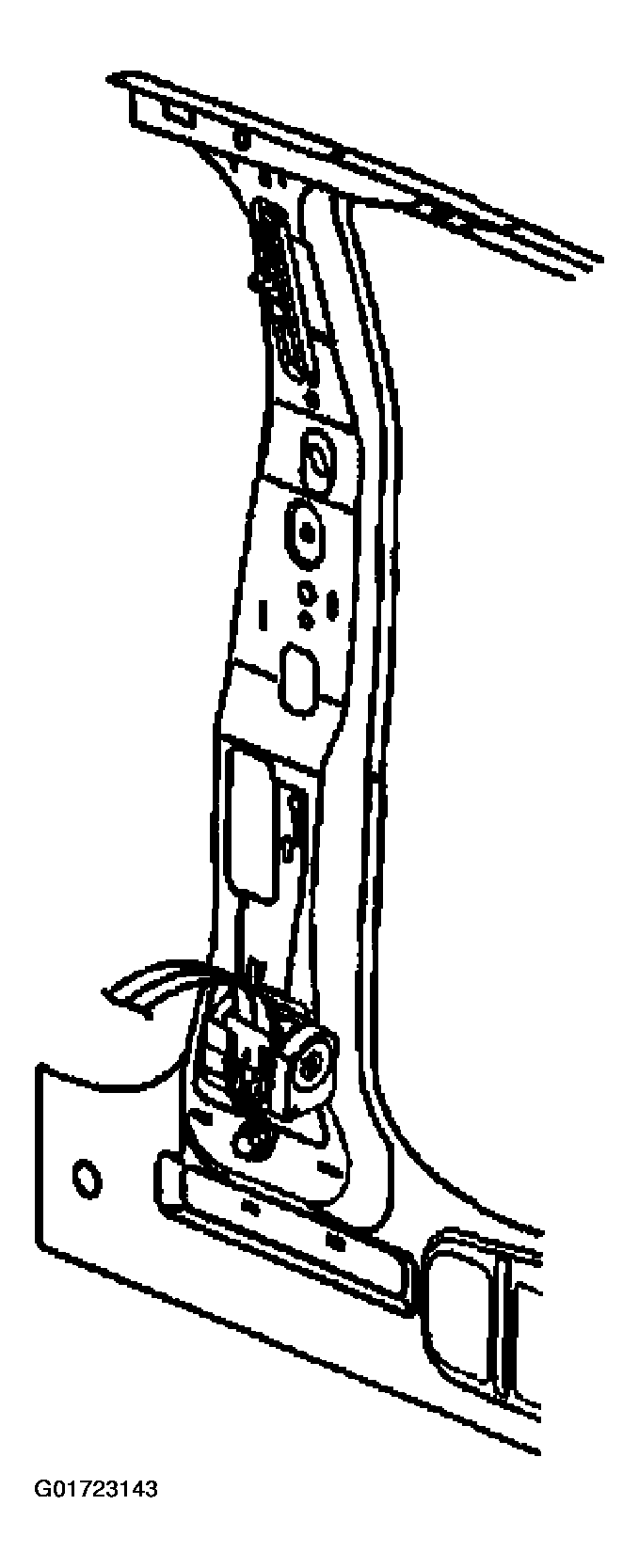

Fig 2: Installing Seat Belt Retractor Bolt
Courtesy of GENERAL MOTORS CORP.
Place the seat belt guide loop to the guide adjuster bracket.

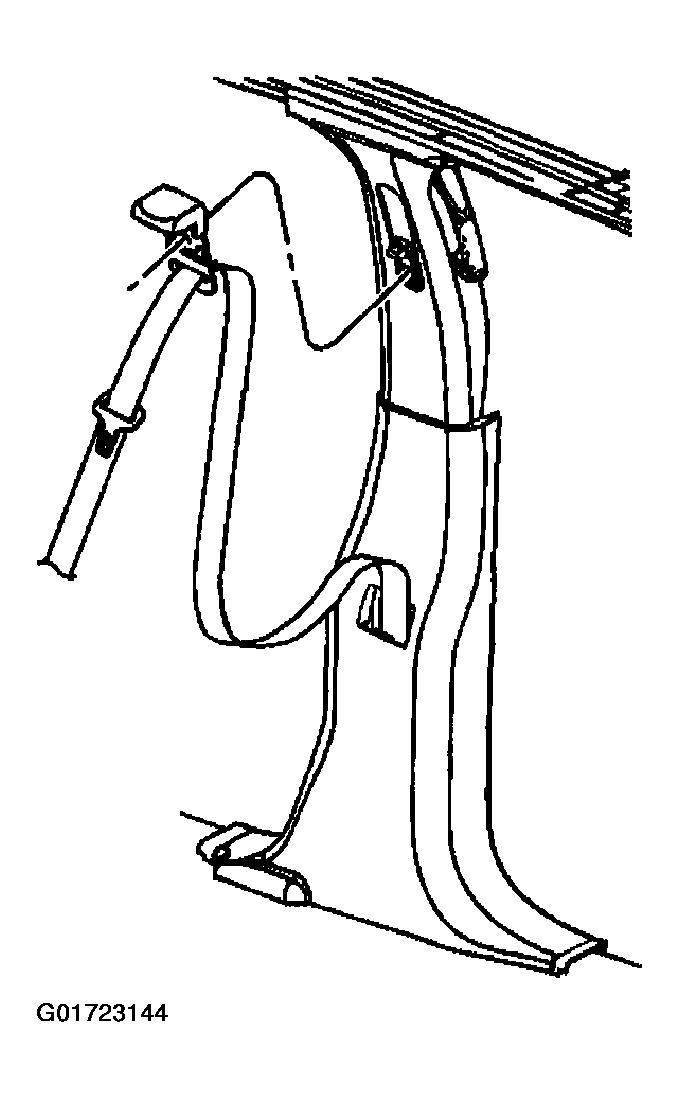

Fig 3: Installing Seat Belt Guide Loop
Courtesy of GENERAL MOTORS CORP.
Install the nut to the seat belt guide loop.
Tighten

Tighten the seat belt guide loop nut to 42 N.m (31 lb ft).
Install the seat belt guide loop cover.

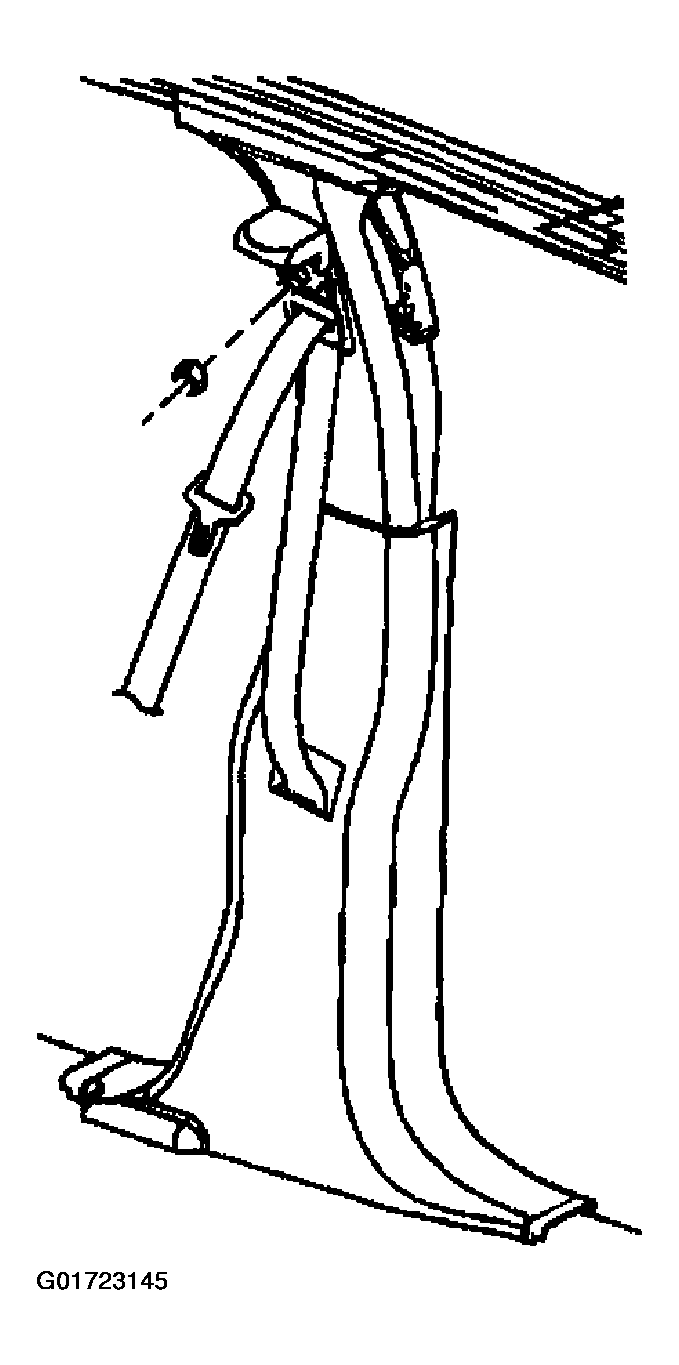

Fig 4: Installing Seat Belt Guide Loop Nut
Courtesy of GENERAL MOTORS CORP.
Place the front seat belt anchor plate to the front seat rear outboard stud.
Install the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET .

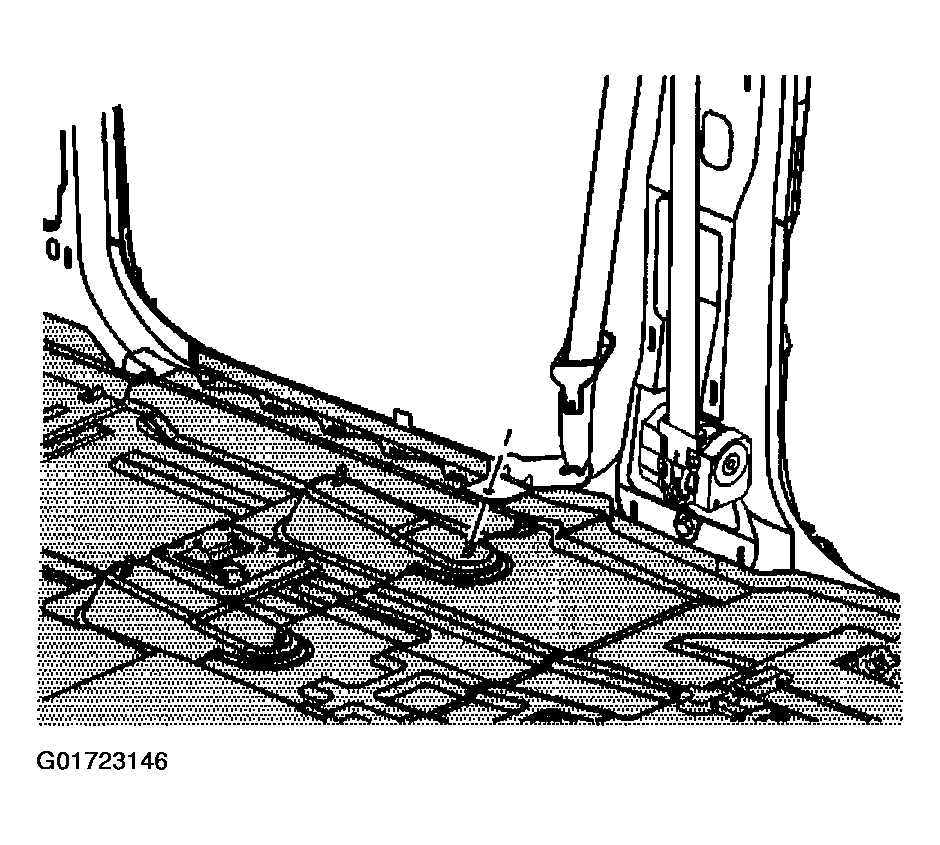

Fig 5: Installing Front Anchor Plate To Front Seat Rear Outboard Stud
