Removal Procedure

  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the front seat belt anchor from the rear outboard front seat stud.

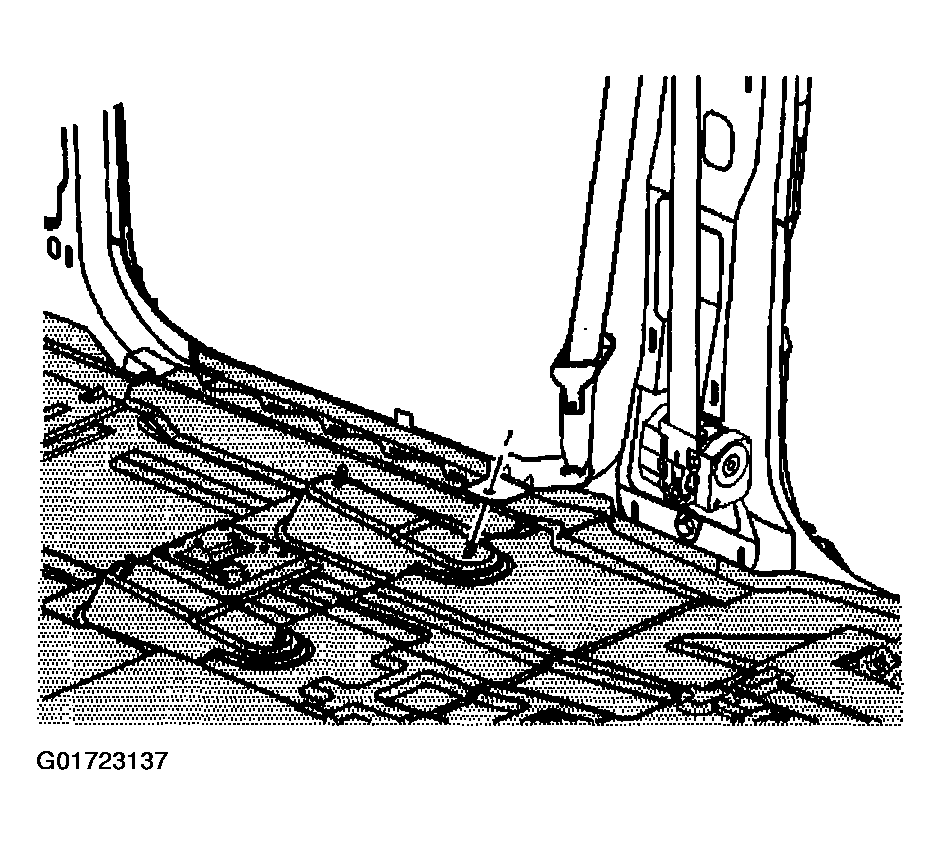

    Fig 1: Removing Front Seat Belt Anchor From Rear Outboard Front Seat Stud
    G01723137Courtesy of GENERAL MOTORS CORP.
  3. Open the seat belt guide loop cover.
  4. Remove the nut from seat belt guide loop.

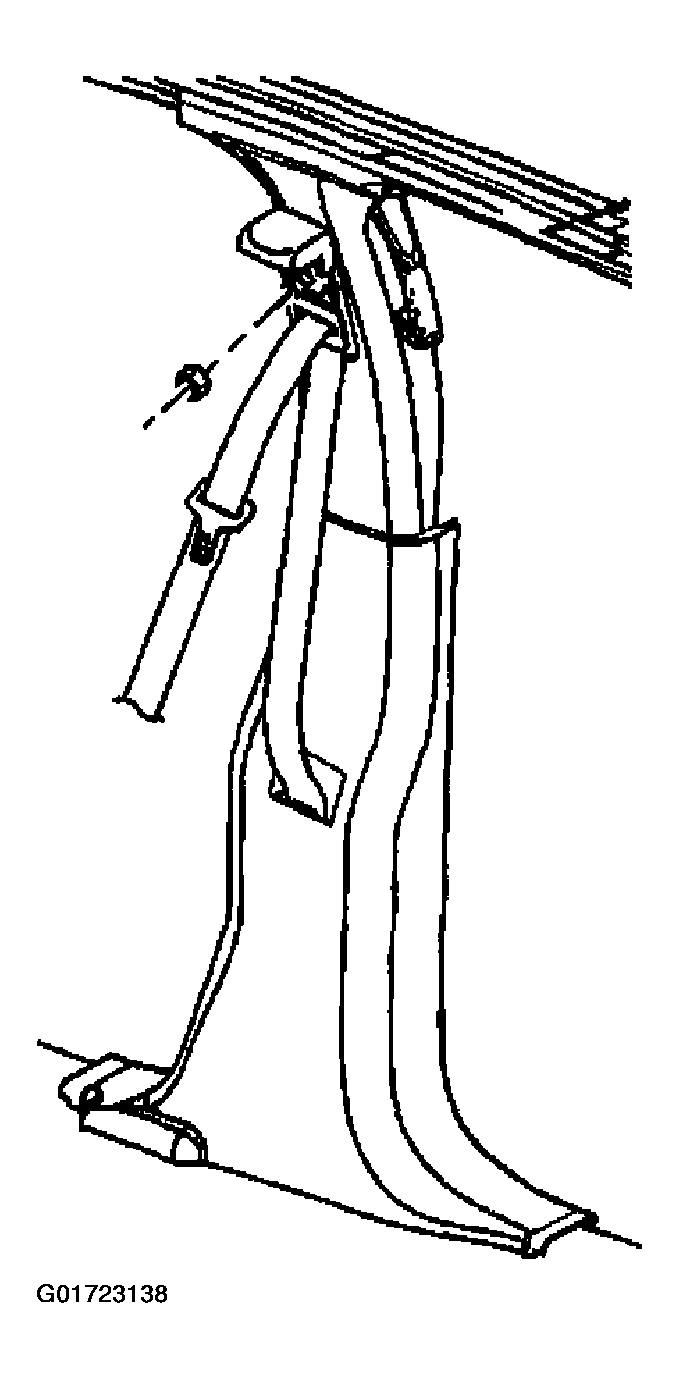

    Fig 2: Removing Seat Belt Guide Loop Nut
    G01723138Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat belt guide loop from the guide adjuster bracket.

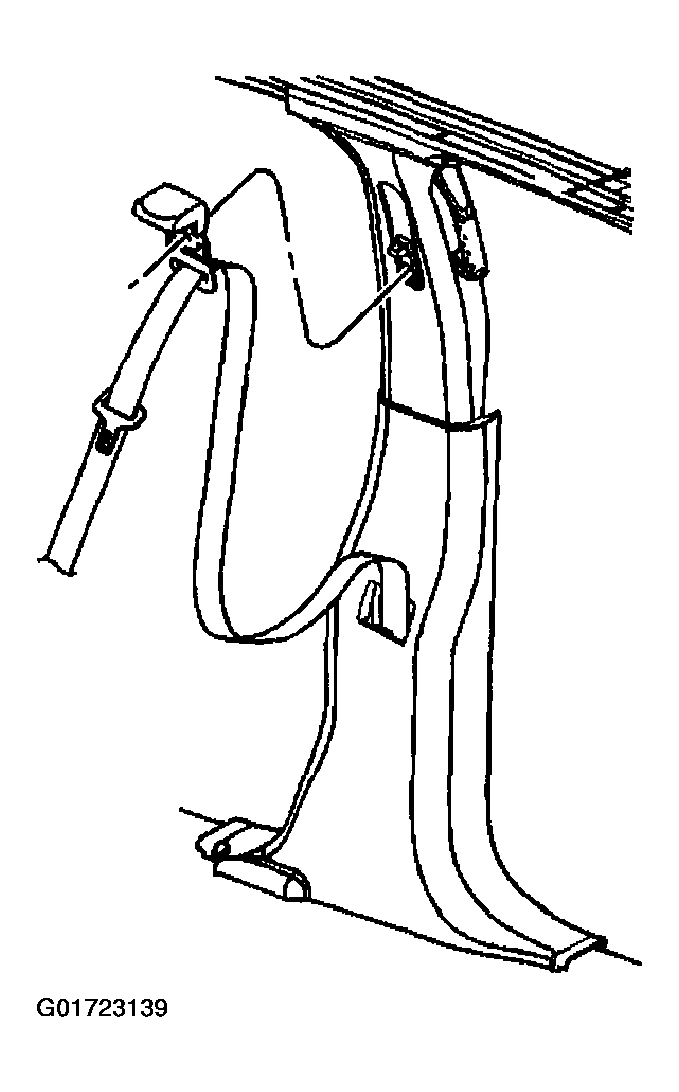

    Fig 3: Removing Seat Belt Guide Loop
    G01723139Courtesy of GENERAL MOTORS CORP.
  6. Remove the center pillar lower trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  7. Remove the bolt from the seat belt retractor.

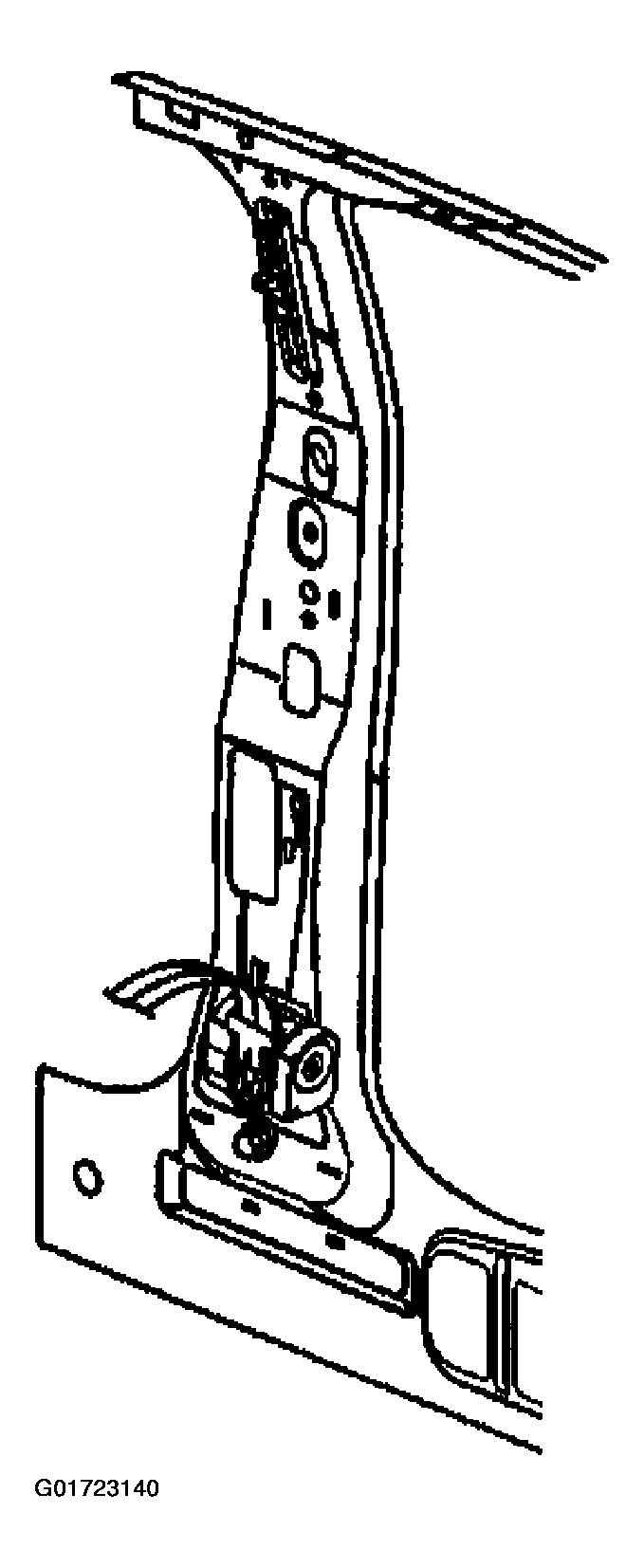

    Fig 4: Removing Seat Belt Retractor Bolt
    G01723140Courtesy of GENERAL MOTORS CORP.
  8. Remove the seat belt retractor from the center pillar.
  9. Remove the front seat belt from the vehicle.

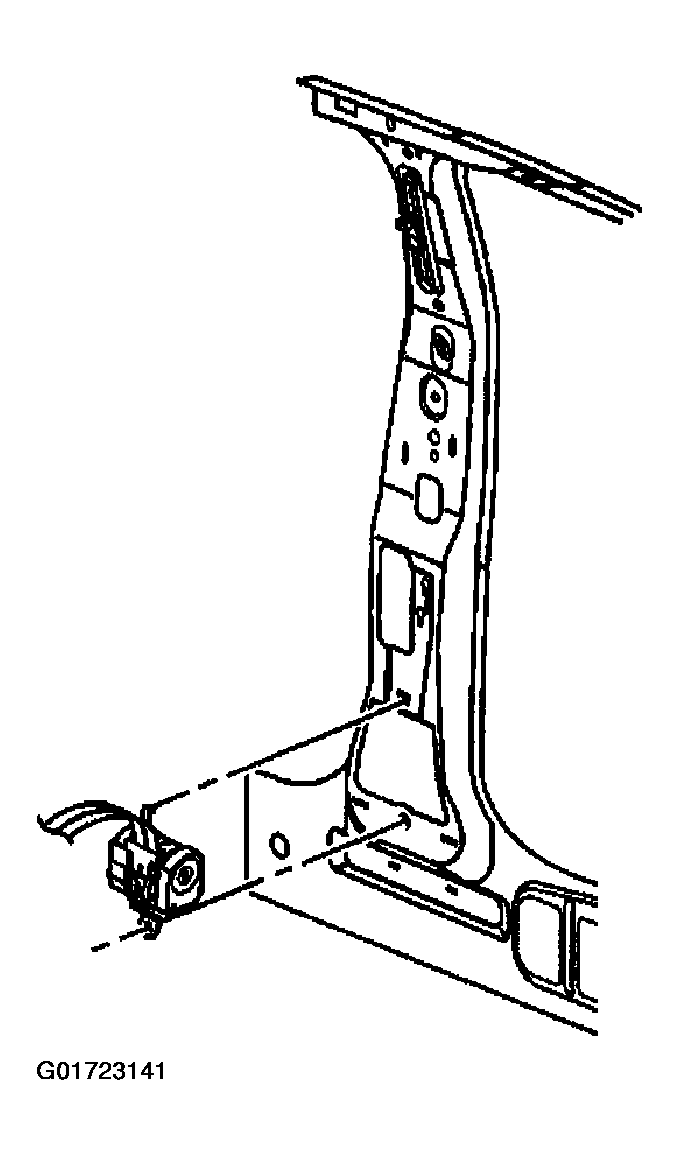

    Fig 5: Removing Seat Belt Retractor
    G01723141Courtesy of GENERAL MOTORS CORP.
