Removal Procedure

  1. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR .
  2. Remove the bolts from the shoulder belt guide adjuster bracket.
  3. Remove the shoulder belt guide belt adjuster bracket from the center pillar.

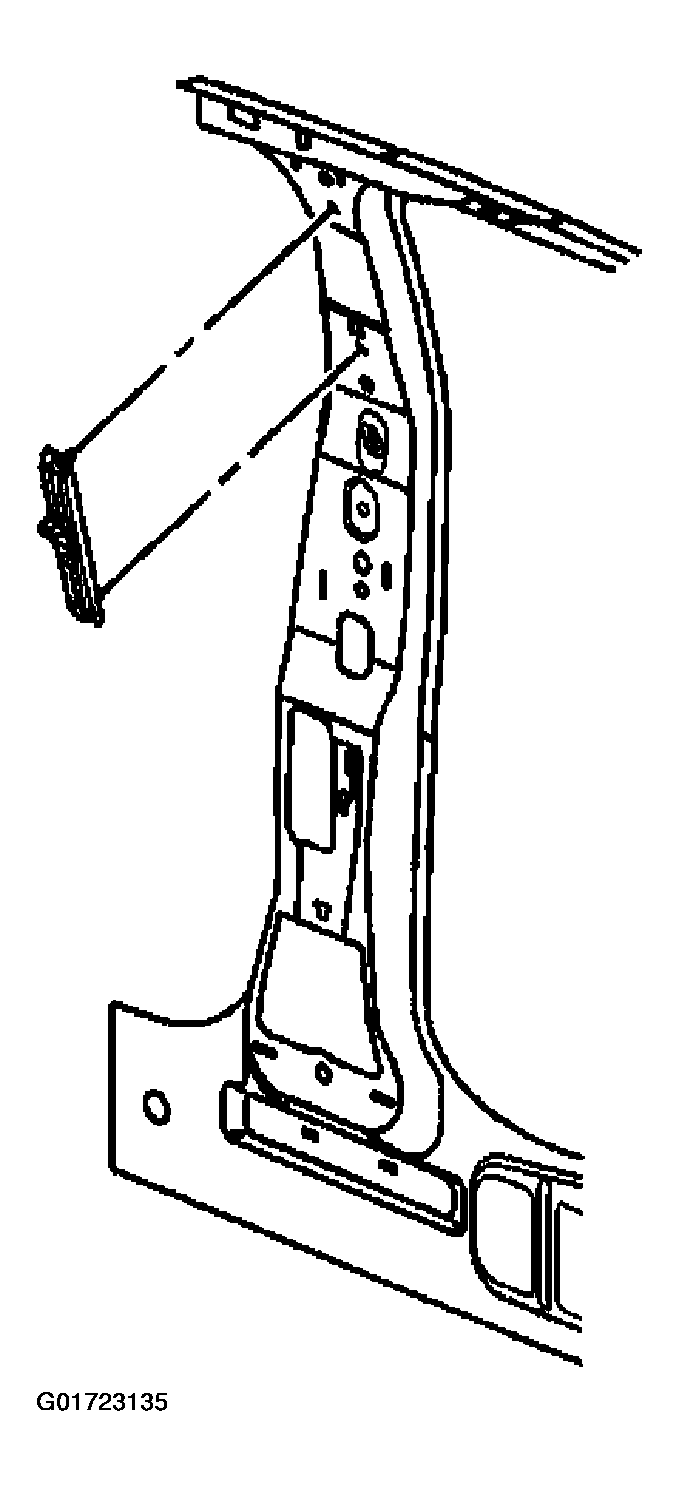

    Fig 1: Removing Shoulder Belt Guide Belt Adjuster Bracket
    G01723135Courtesy of GENERAL MOTORS CORP.
