Installation Procedure

  1. Install the stabilizer shaft to the vehicle from the right side of the vehicle.

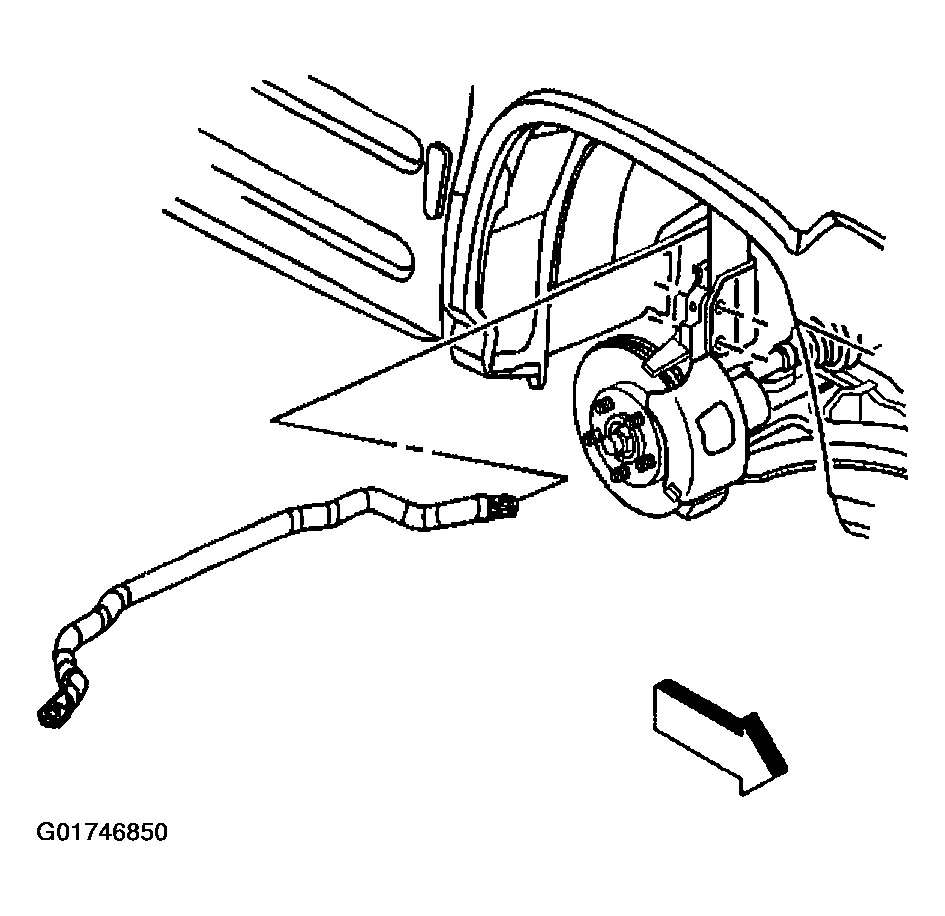

    Fig 1: Installing Stabilizer Shaft
    G01746850Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft insulators (4) and brackets. Refer to Stabilizer Shaft Insulator Replacement .
    NOTE: Refer to FASTENER NOTICE .
  3. Install the stabilizer shaft bolts.

    Tighten

    Tighten the stabilizer shaft bolts to 48 N.m (35 lb ft).

  4. Install the left and right stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement .
  5. Install the tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  6. Lower the vehicle.

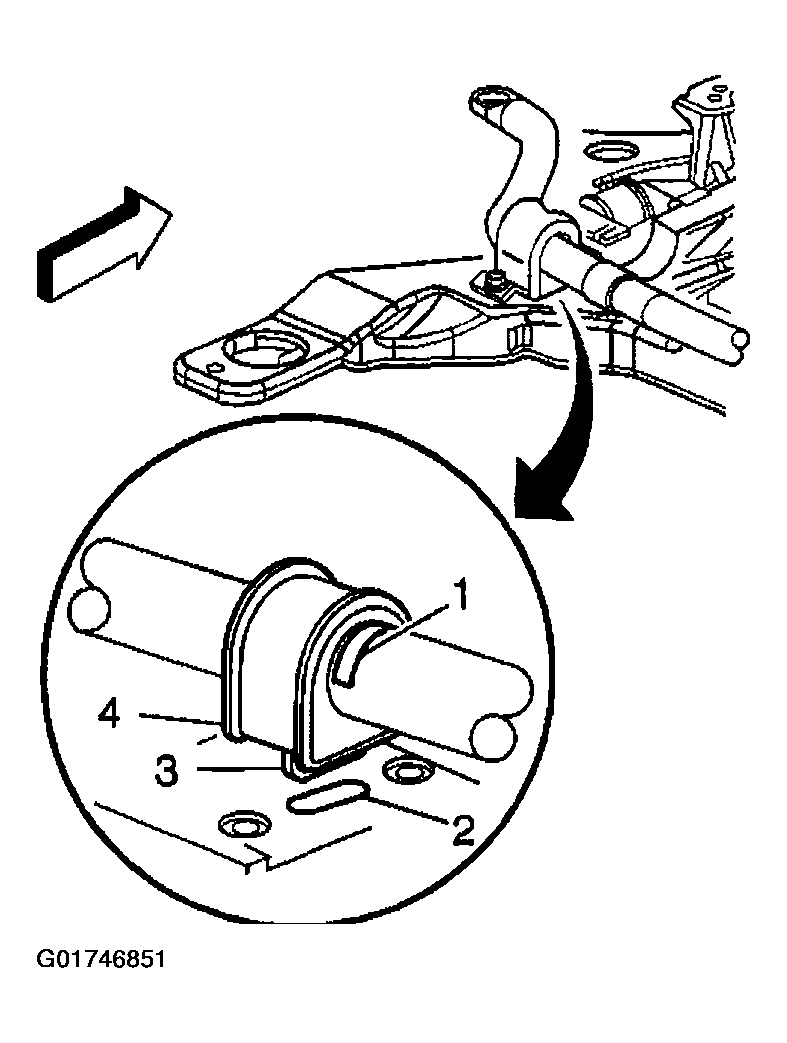

    Fig 2: Installing Stabilizer Shaft Insulators
    G01746851Courtesy of GENERAL MOTORS CORP.
