Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .

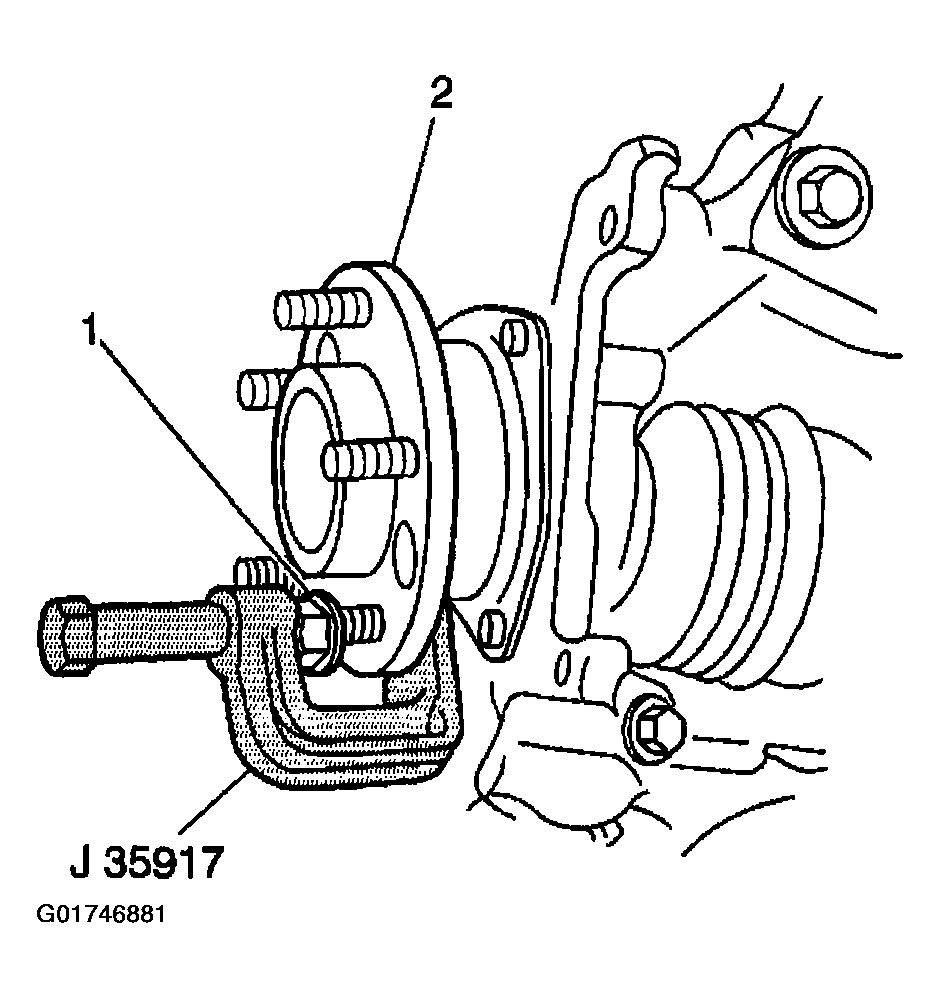

    Fig 1: Using J 35917 To Press Wheel Stud From Bearing/Hub
    G01746881Courtesy of GENERAL MOTORS CORP.
  3. Remove the brake rotor. Refer to BRAKE ROTOR .
  4. Use the J 35917  in order to press the wheel stud (1) from the bearing/hub (2).
