Transaxle Brace: Installation

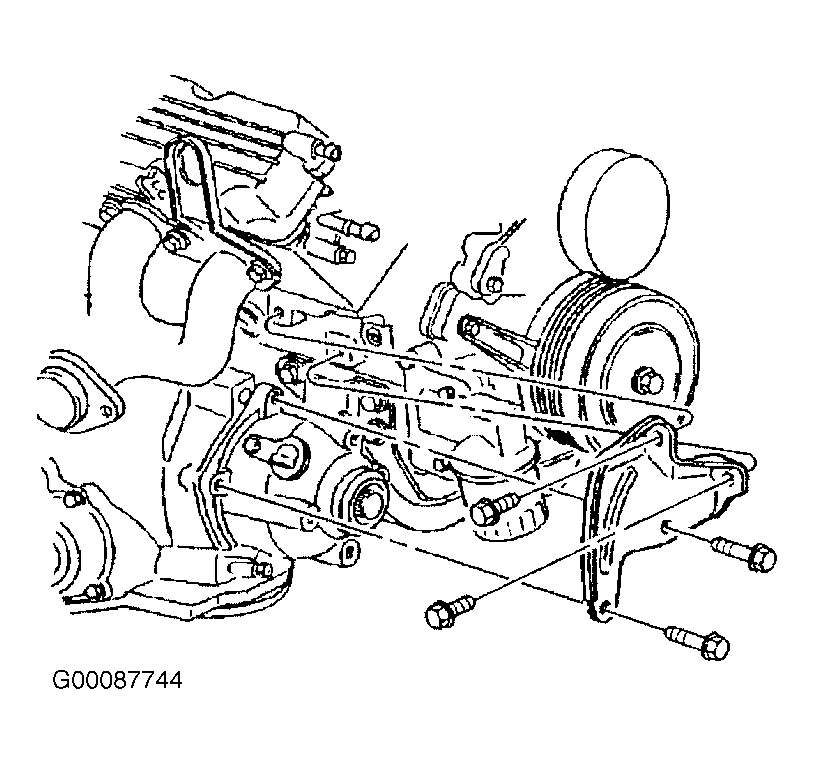

Position the transaxle brace to transaxle and engine. Hand start the bolts to the engine. Hand start the bolts to the transaxle. Install the transaxle brace bolts to the engine. Install the transaxle brace bolts to the transaxle. See Figure . Tighten the transaxle brace bolts to the transaxle to specification. See TORQUE SPECIFICATIONS  . Tighten the transaxle brace bolts to the engine to specification. Install the right engine splash shield. Install the right front tire and wheel. Lower the vehicle. Connect the negative battery cable.
