Vehicle Speed Sensor: Installation

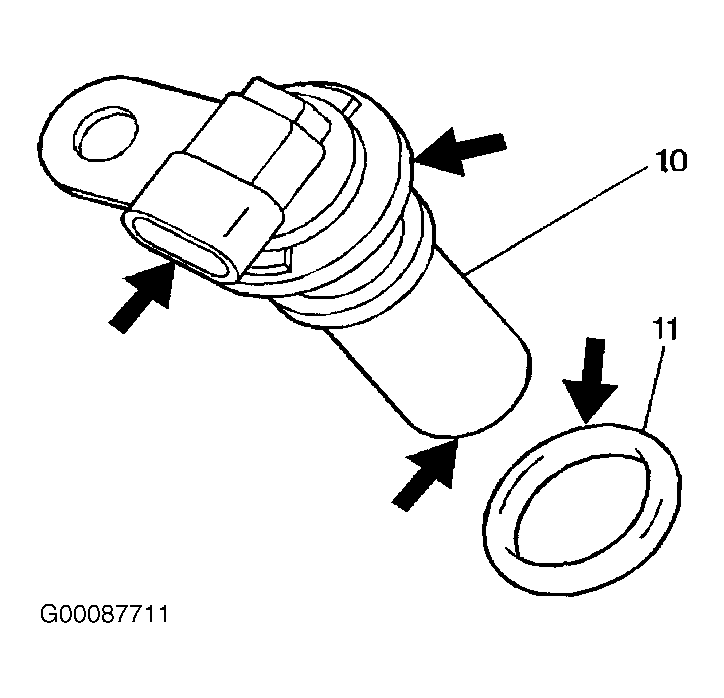

Install the O-ring (11) to the vehicle speed sensor (10). See Figure . Install the vehicle speed sensor (10) to the extension case. Install the vehicle speed sensor bolt (9). See Figure . Tighten the vehicle speed sensor bolt (9) to specification. See TORQUE SPECIFICATIONS  . Install the vehicle speed sensor wiring harness connector. Install the right front tire and wheel assembly. Lower the vehicle.
