Connector Identification

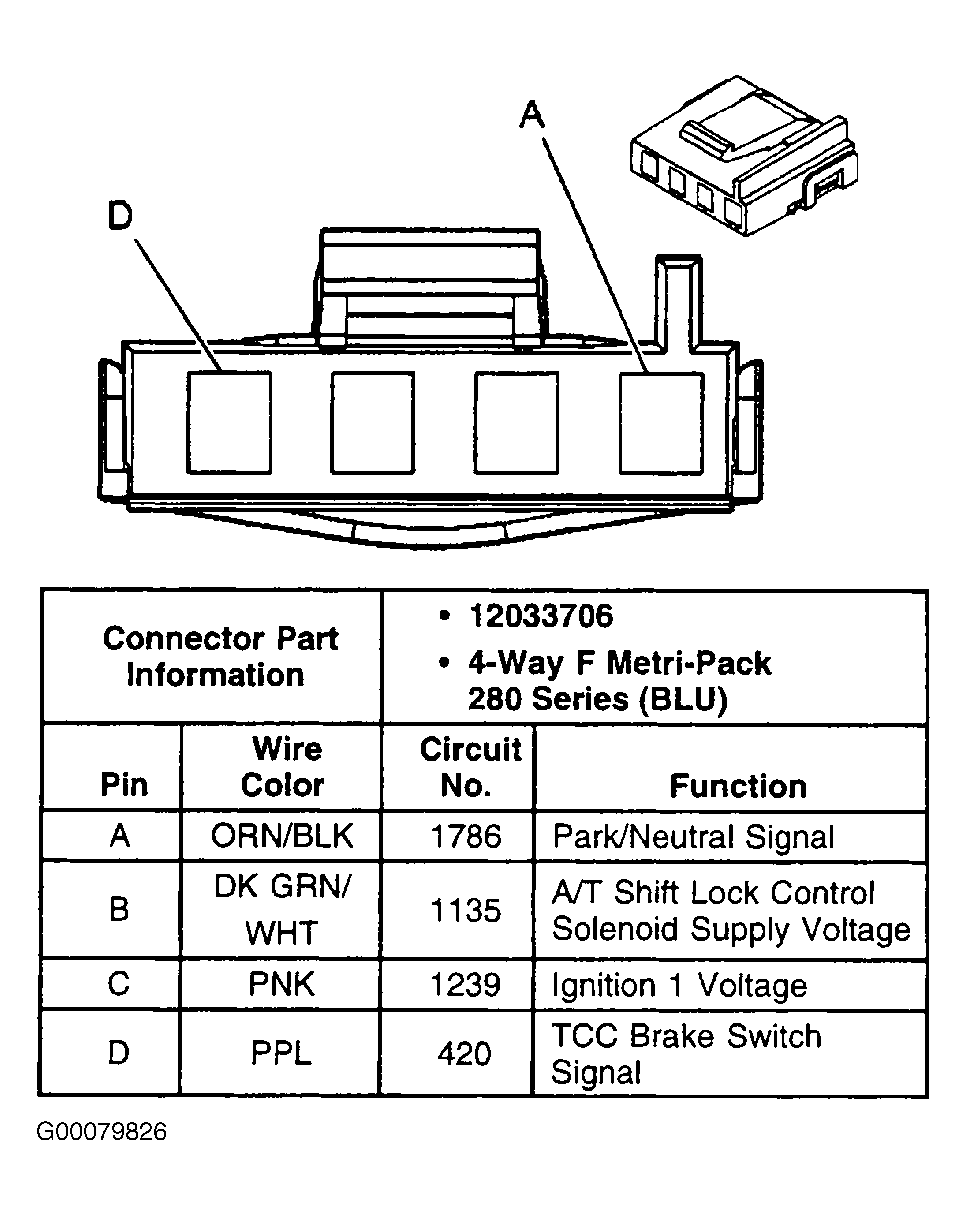

Fig 1: Identifying A/T Shift Lock Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Stoplamp Switch Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Stoplamp Switch Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.

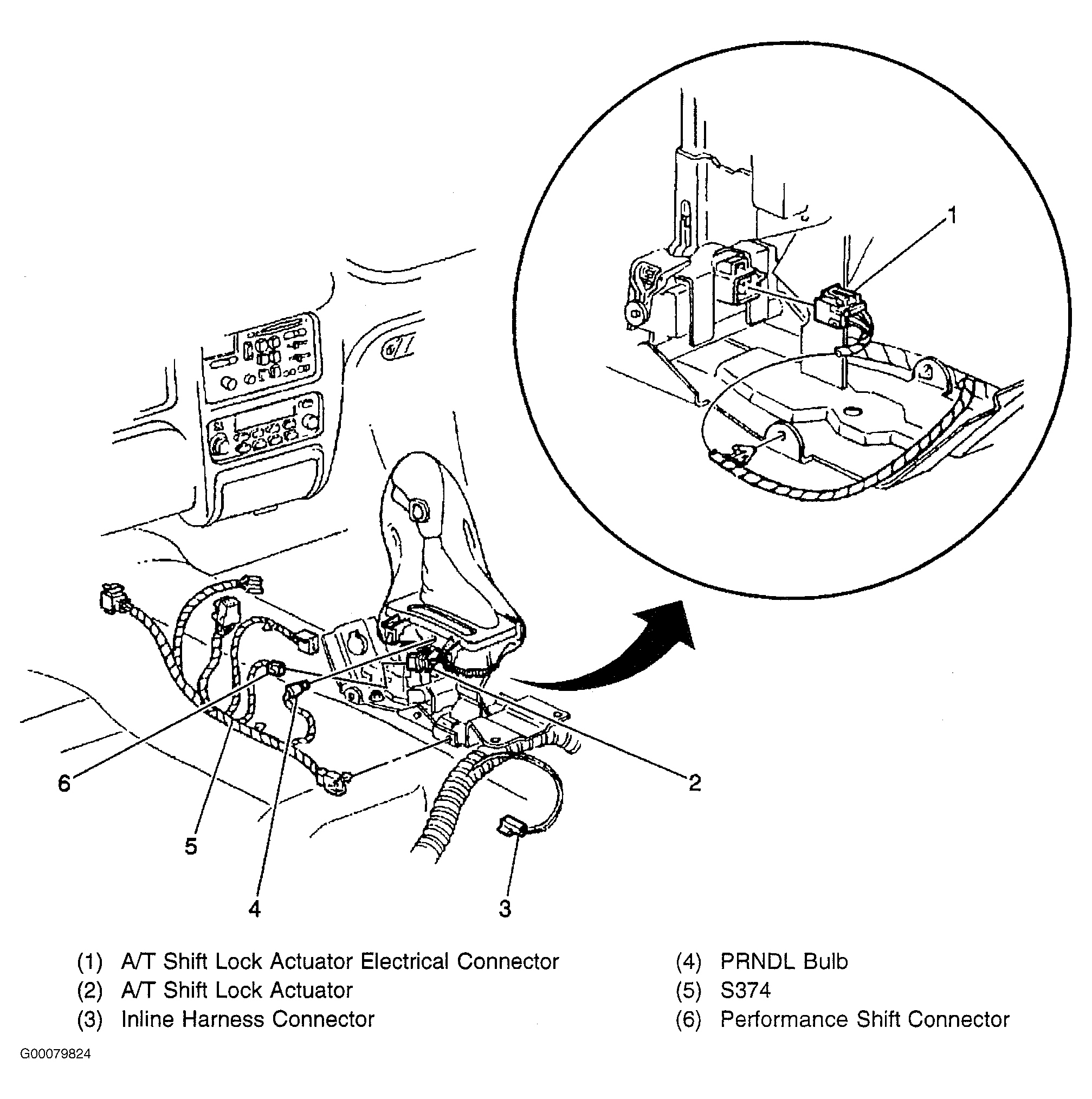

Fig 4: Identifying Floor Console Harness Connector Locations

Courtesy of GENERAL MOTORS CORP.
