Installation Procedure

Important:  Align the BCM to the console accessory wiring junction block.

1. Install the BCM (1) onto the console accessory wiring junction block.
2. Rotate the BCM retaining lever (2) to secure the BCM to the console accessory wiring junction block.
3. Install the console accessory wiring junction block. Refer to CONSOLE ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT in Wiring Systems.
4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO in Engine Electrical.
5. Perform the new BCM setup. Refer to Body Control Module (BCM) Programming/RPO Configuration .

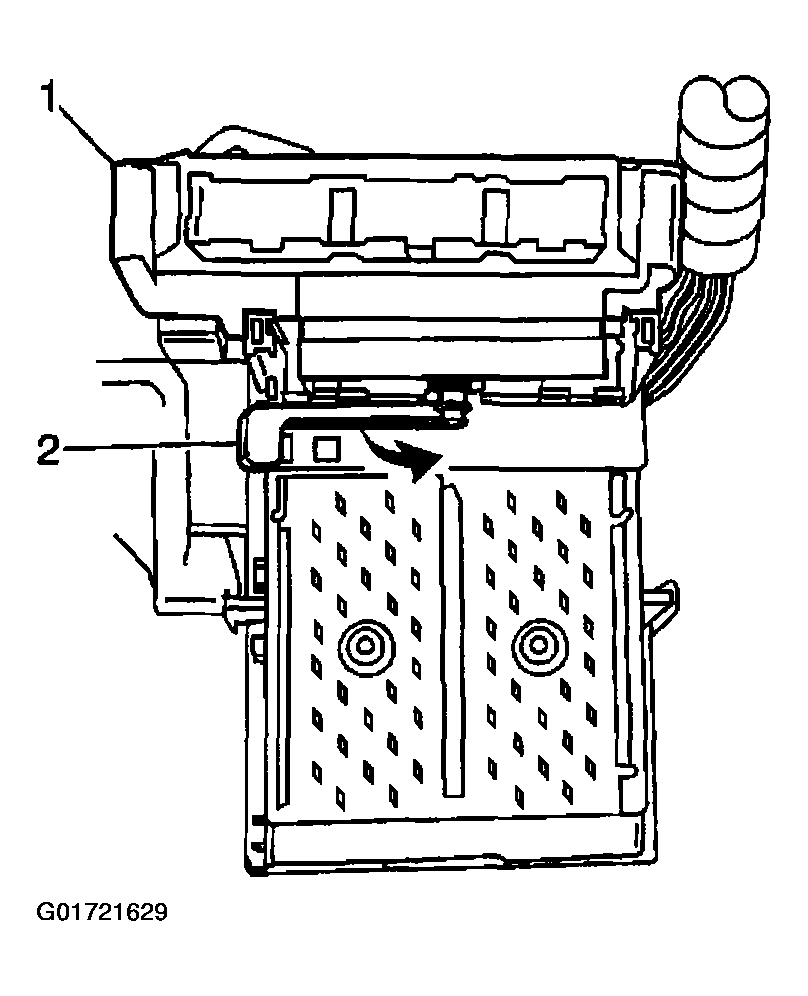

   Fig 1: Installing BCM To Console Accessory Wiring Junction Block And Rotating BCM Retaining Lever

   Courtesy of GENERAL MOTORS CORP.
