Installation Procedure

  1. Install the cruise control module to the mounting bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the mounting bracket bolt to the cruise control module.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

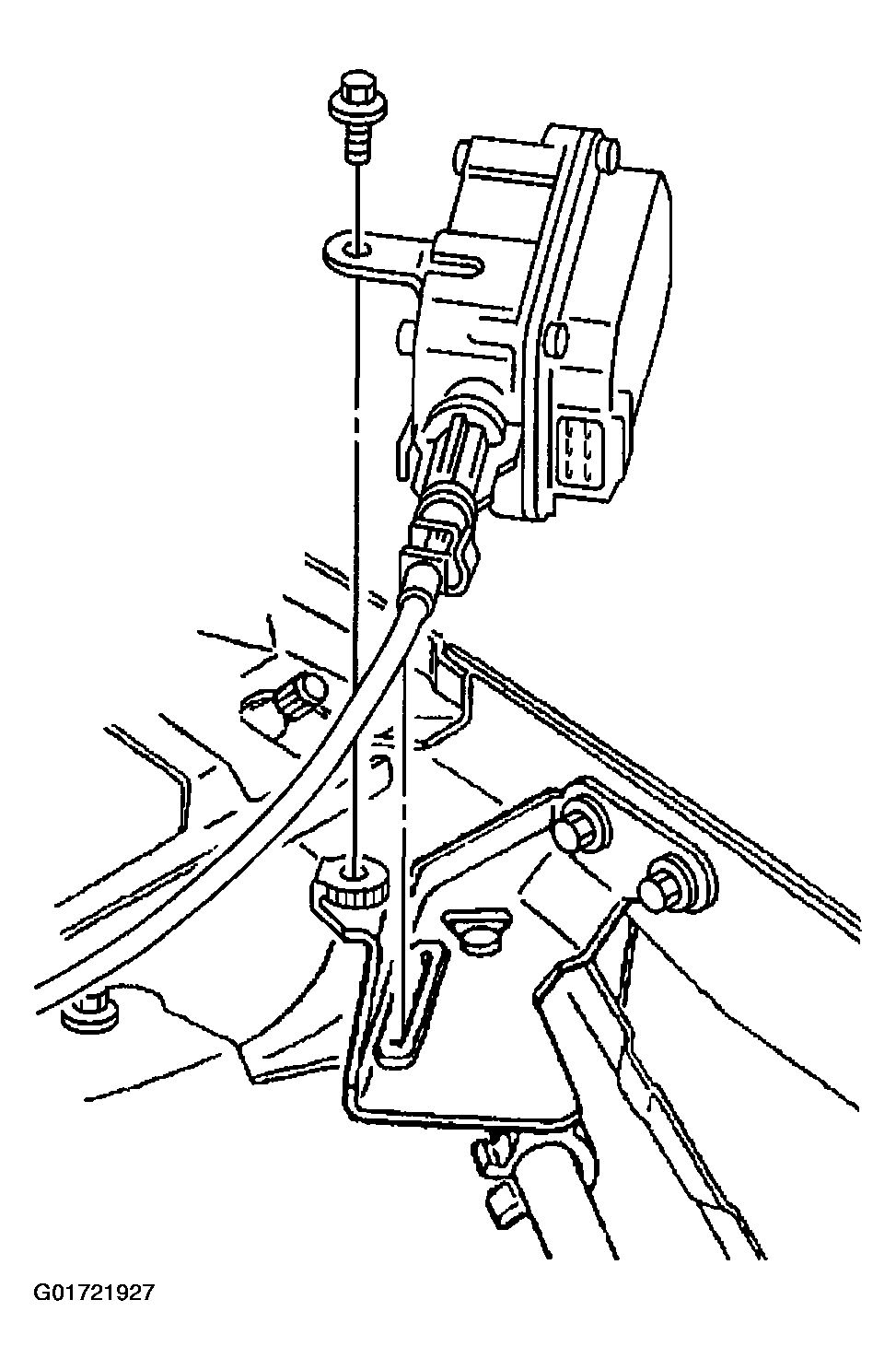

    Fig 1: Installing Cruise Control Module, Mounting Bracket and Bolts
    G01721927Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the module.
  4. Install the cruise control cable to the module. Refer to Cruise Control Cable Replacement .
  5. Adjust the cruise control cable. Refer to Cruise Control Cable Replacement .

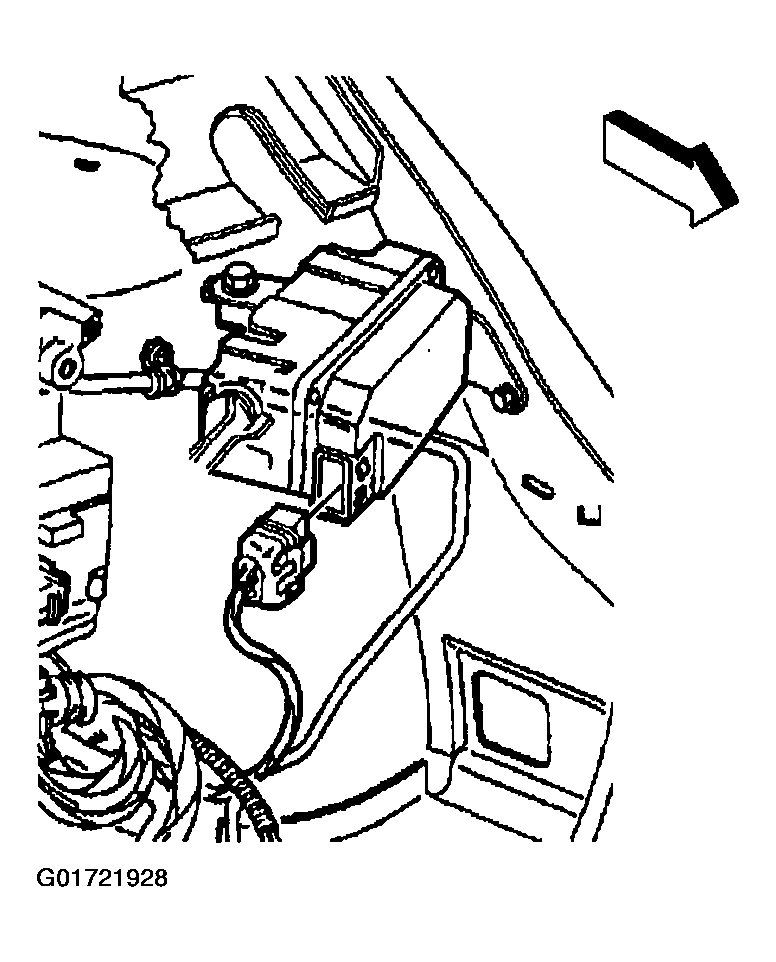

    Fig 2: Connecting Cruise Control Module Electrical Connector
    G01721928Courtesy of GENERAL MOTORS CORP.
