Removal Procedure

  1. Remove the cruise control cable from the module. Refer to Cruise Control Cable Replacement .

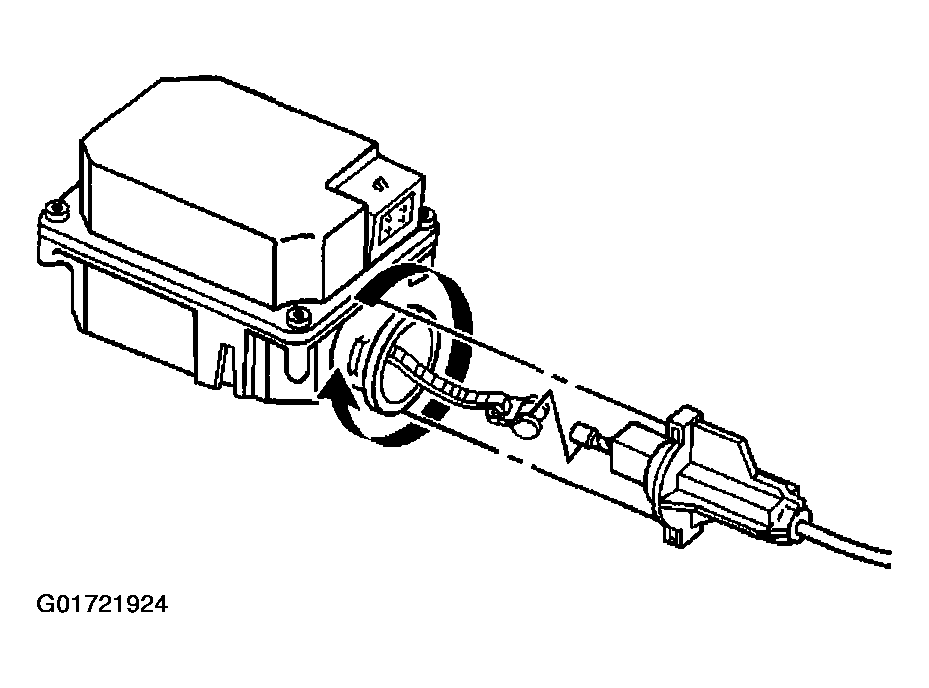

    Fig 1: Removing Cruise Control Cable
    G01721924Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector.

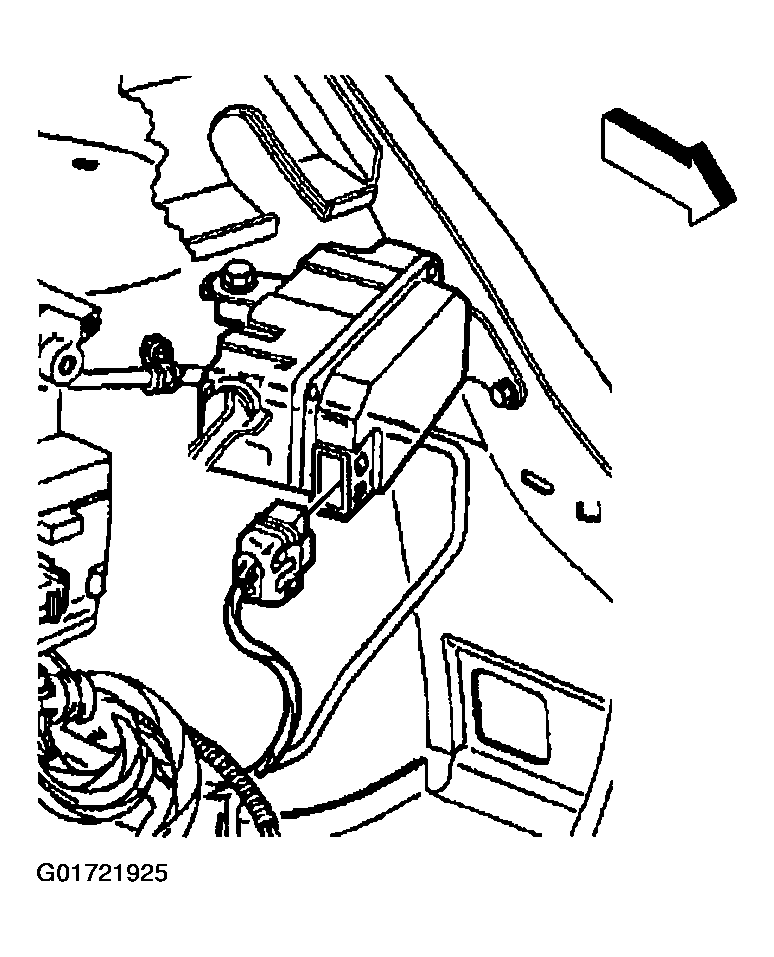

    Fig 2: Disconnecting Cruise Control Module Electrical Connector
    G01721925Courtesy of GENERAL MOTORS CORP.
  3. Remove the mounting bracket bolt from the cruise control module.
  4. Remove the cruise control module from the mounting bracket.

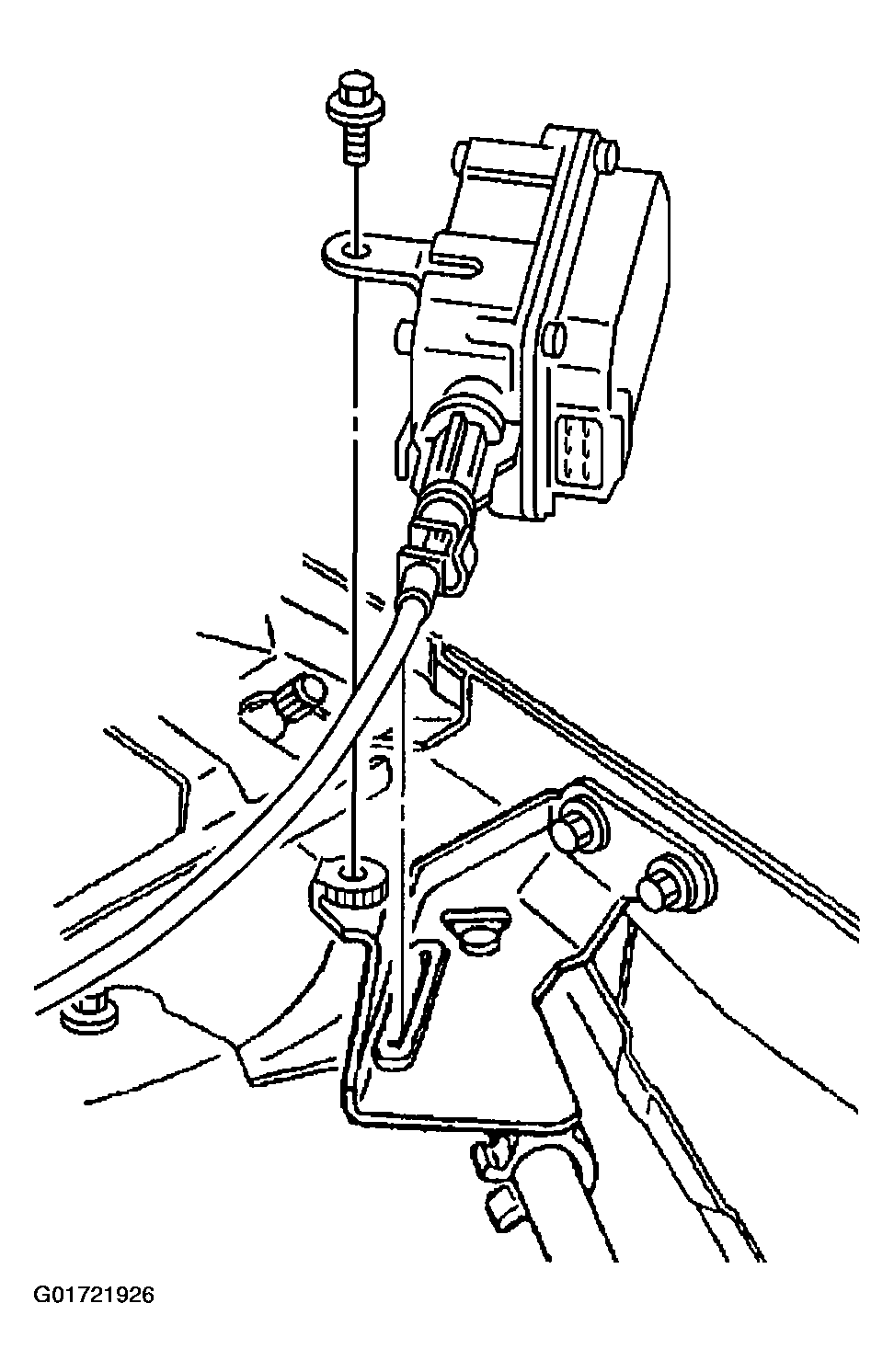

    Fig 3: Removing Cruise Control Module, Mounting Bracket And Bolts
    G01721926Courtesy of GENERAL MOTORS CORP.
