Removal Procedure

  1. Remove the upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.
  2. Disconnect the remote control door lock receiver electrical connector (1).

    Important:  Disengage the remote control door lock receiver retainers and lift upward.

  3. Remove the remote control door lock receiver (2) from the defroster air duct.

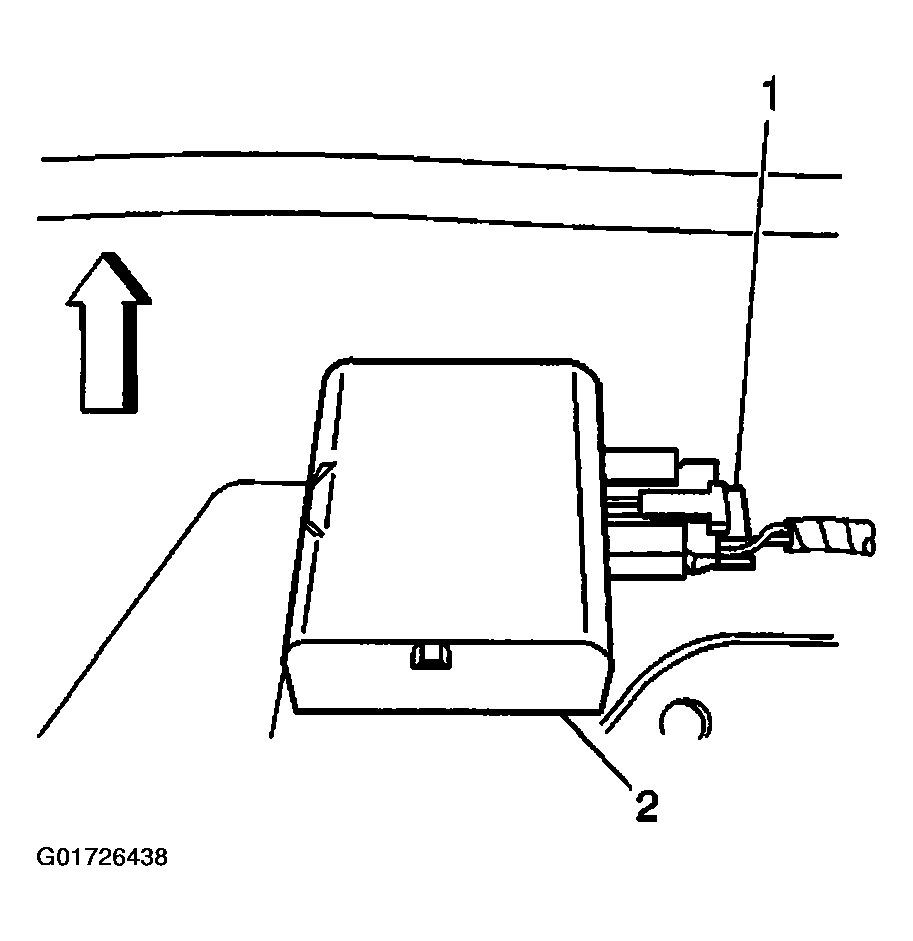

    Fig 1: View Of Remote Control Door Lock Receiver And Electrical Connector
    G01726438Courtesy of GENERAL MOTORS CORP.
