Power Door Systems Connector End Views

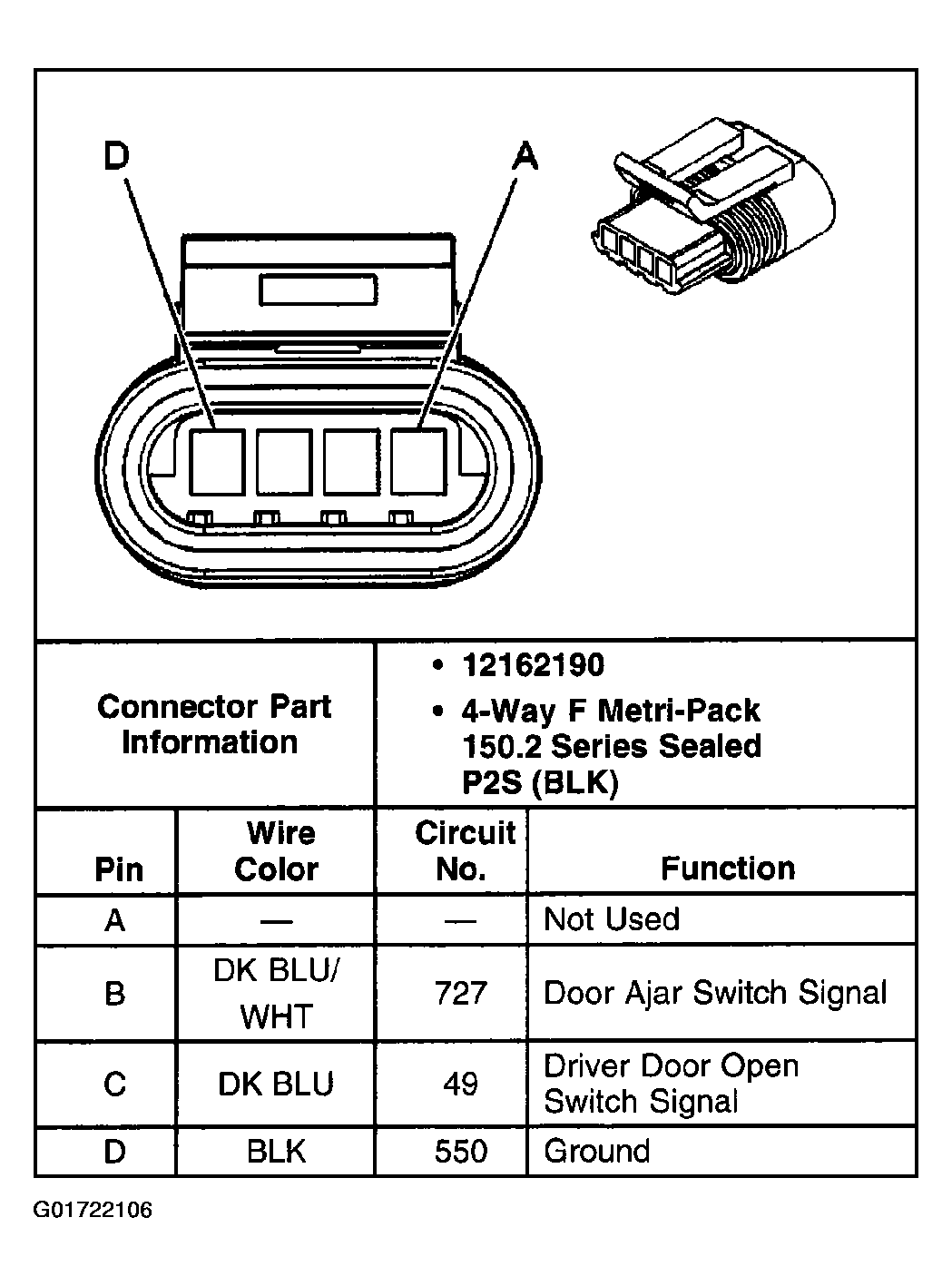

Fig 1: Door Latch Connector End View - Driver
G01722106Courtesy of GENERAL MOTORS CORP.
Fig 2: Door Latch Connector End View - Front Passenger
G01722107Courtesy of GENERAL MOTORS CORP.

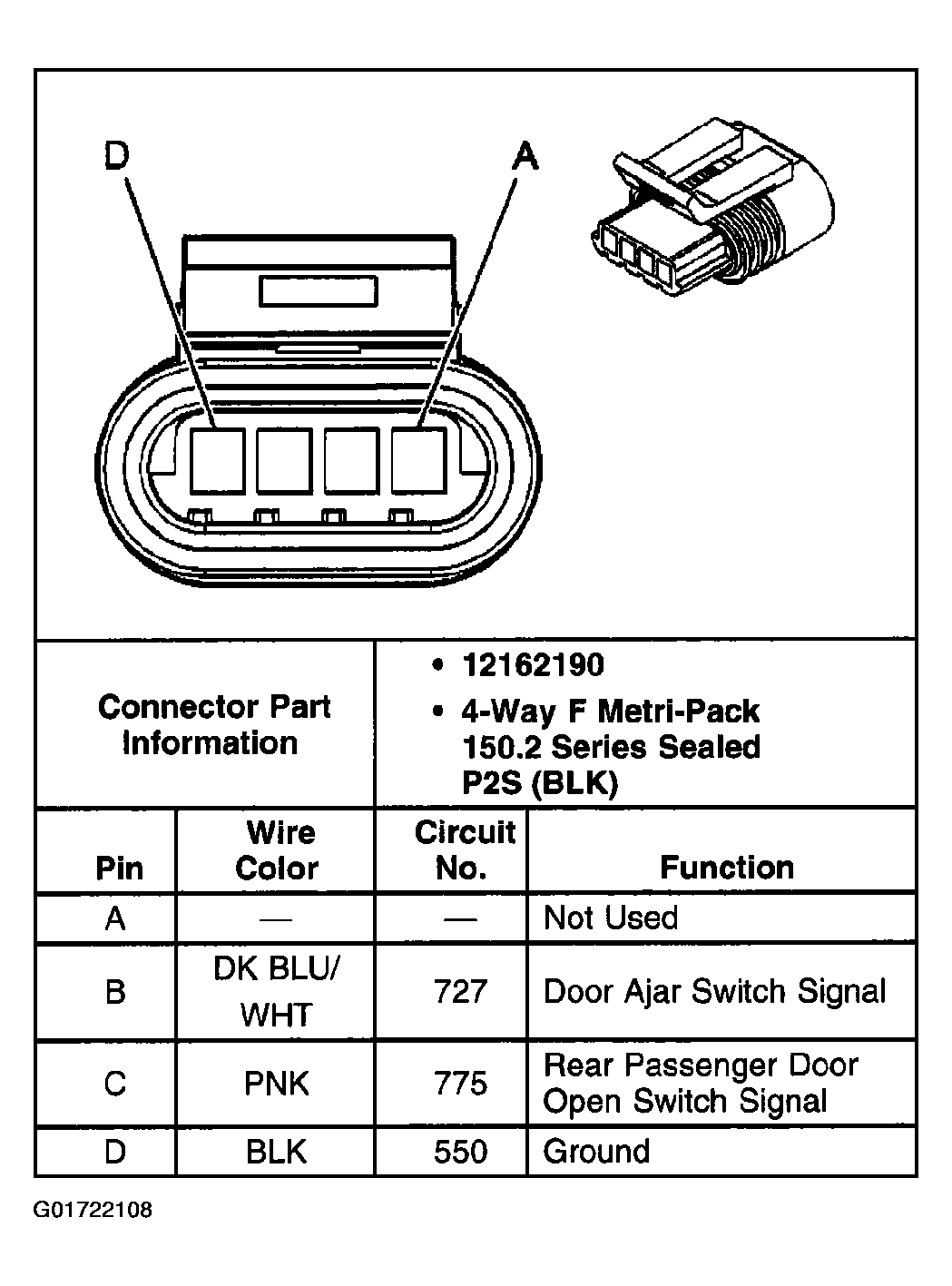

Fig 3: Door Latch Connector End View - LR
G01722108Courtesy of GENERAL MOTORS CORP.

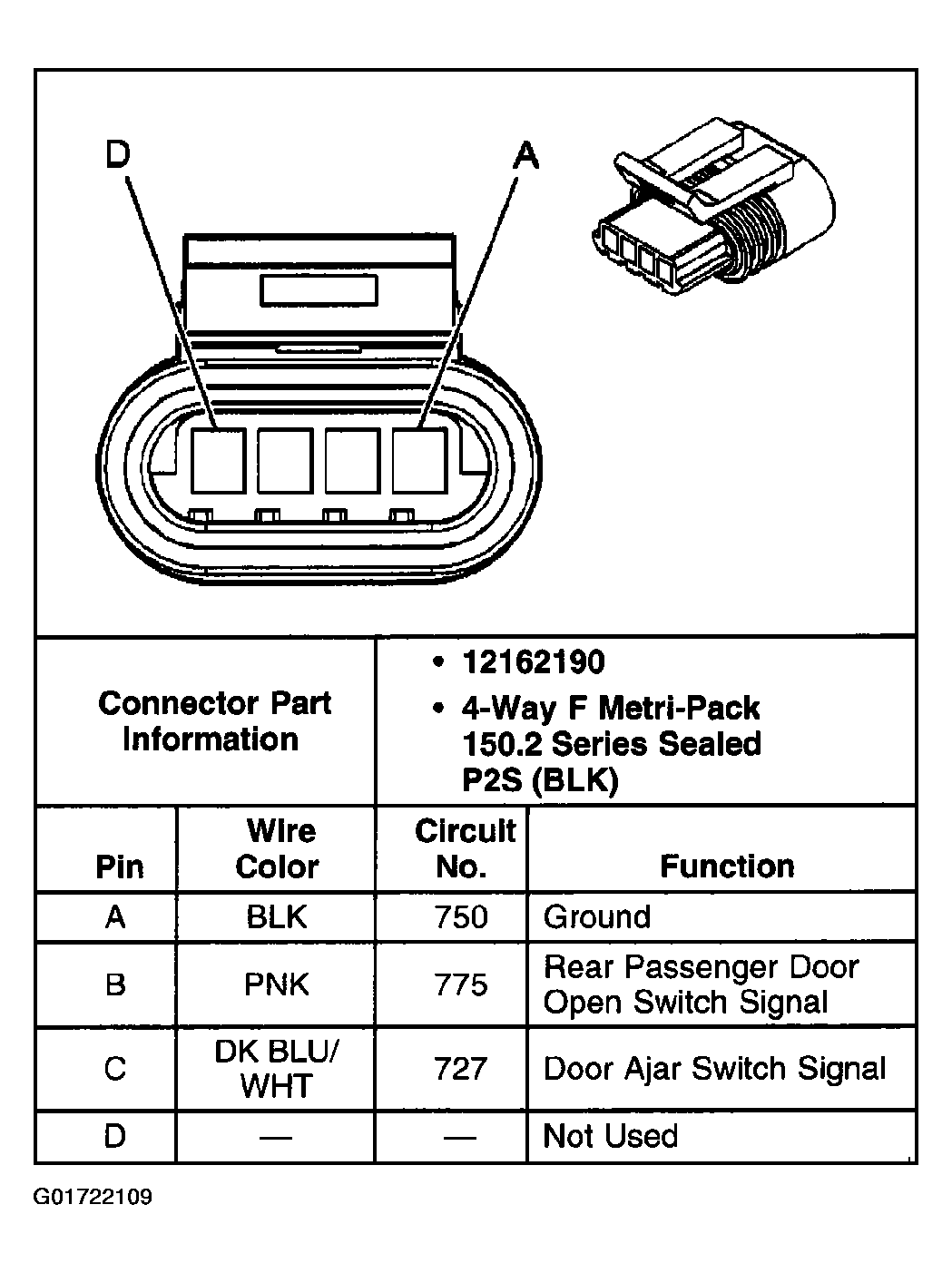

Fig 4: Door Latch Connector End View - RR
G01722109Courtesy of GENERAL MOTORS CORP.

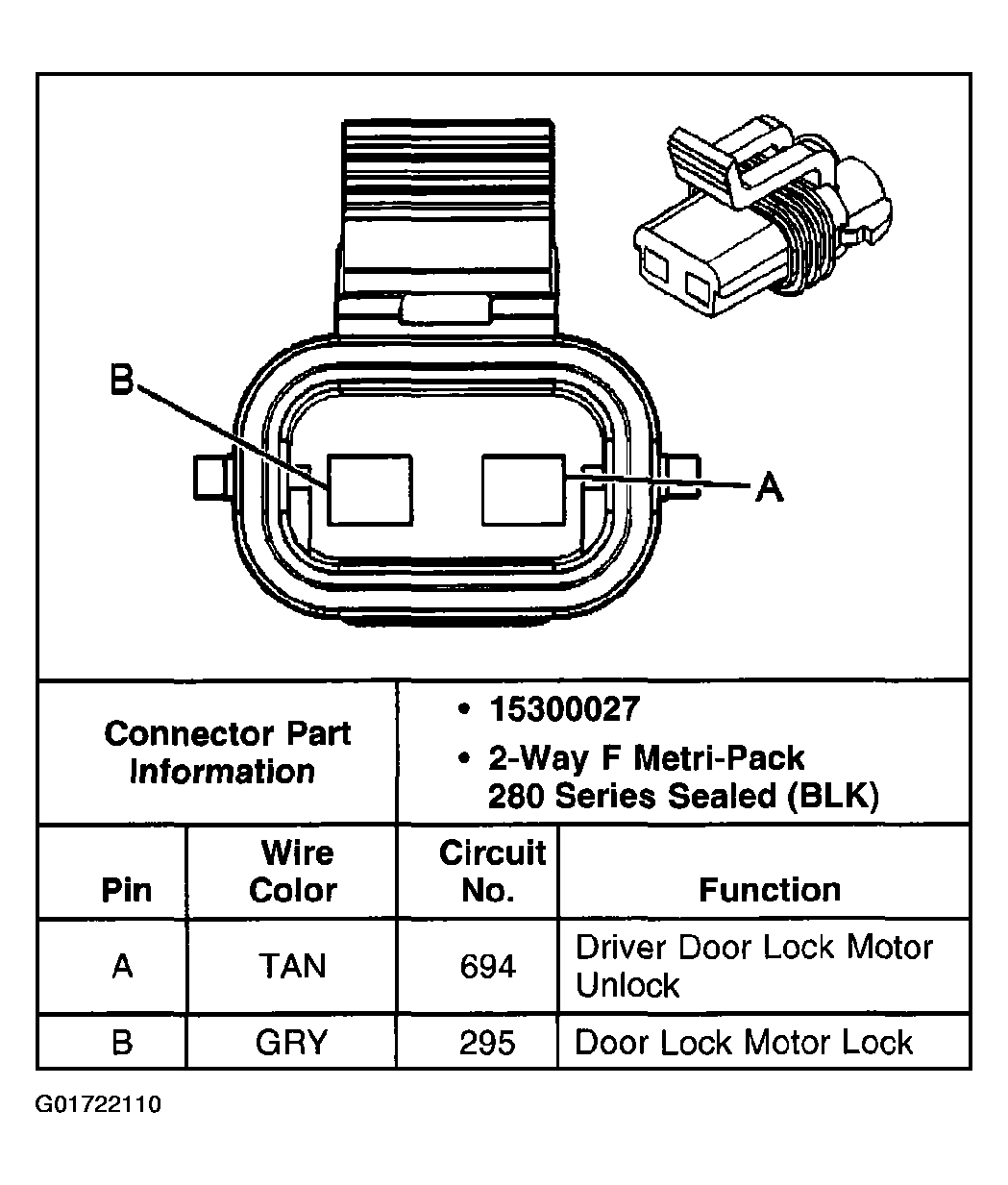

Fig 5: Door Lock Actuator Connector End View - Driver
G01722110Courtesy of GENERAL MOTORS CORP.

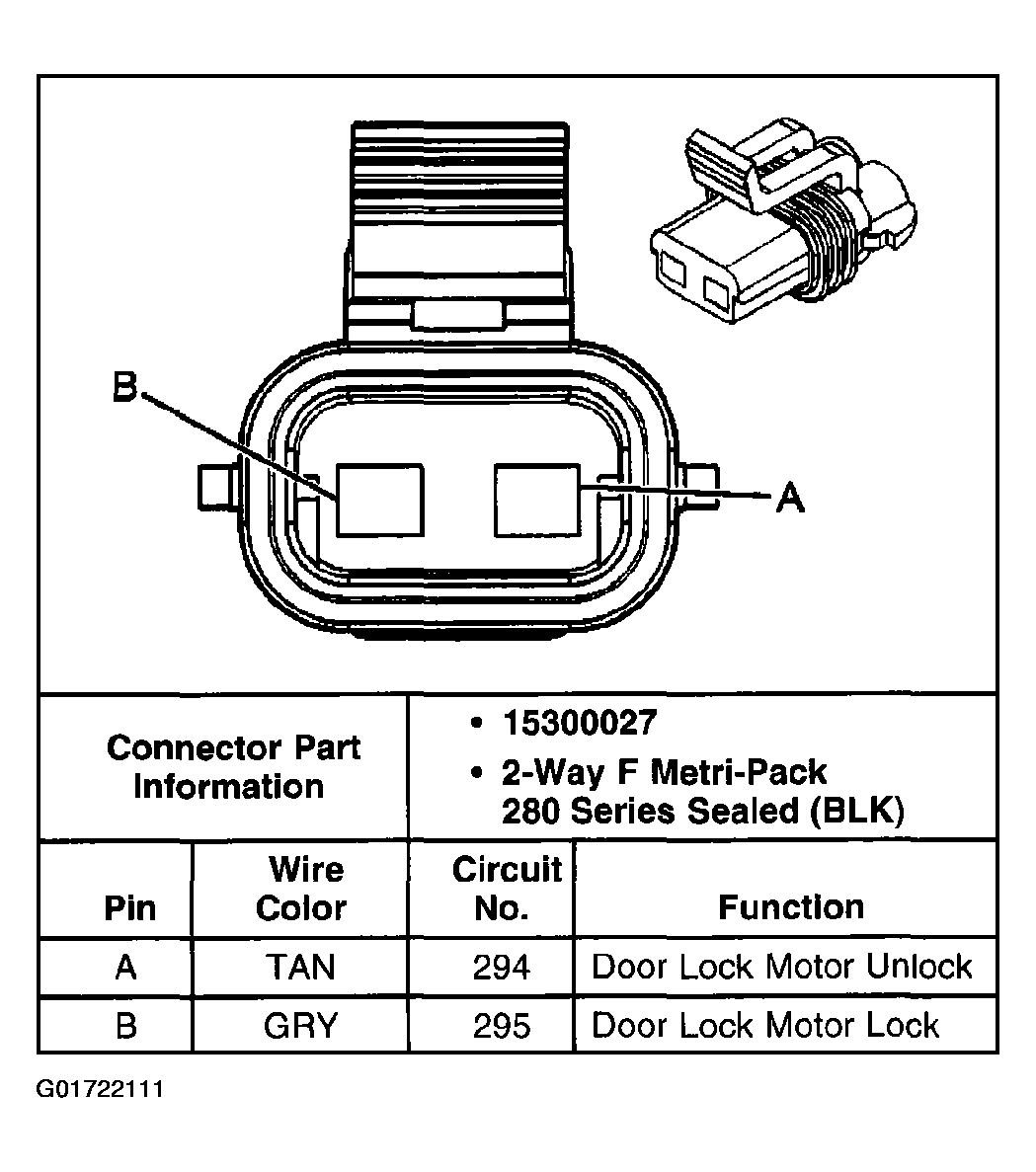

Fig 6: Door Lock Actuator Connector End View - LR
G01722111Courtesy of GENERAL MOTORS CORP.

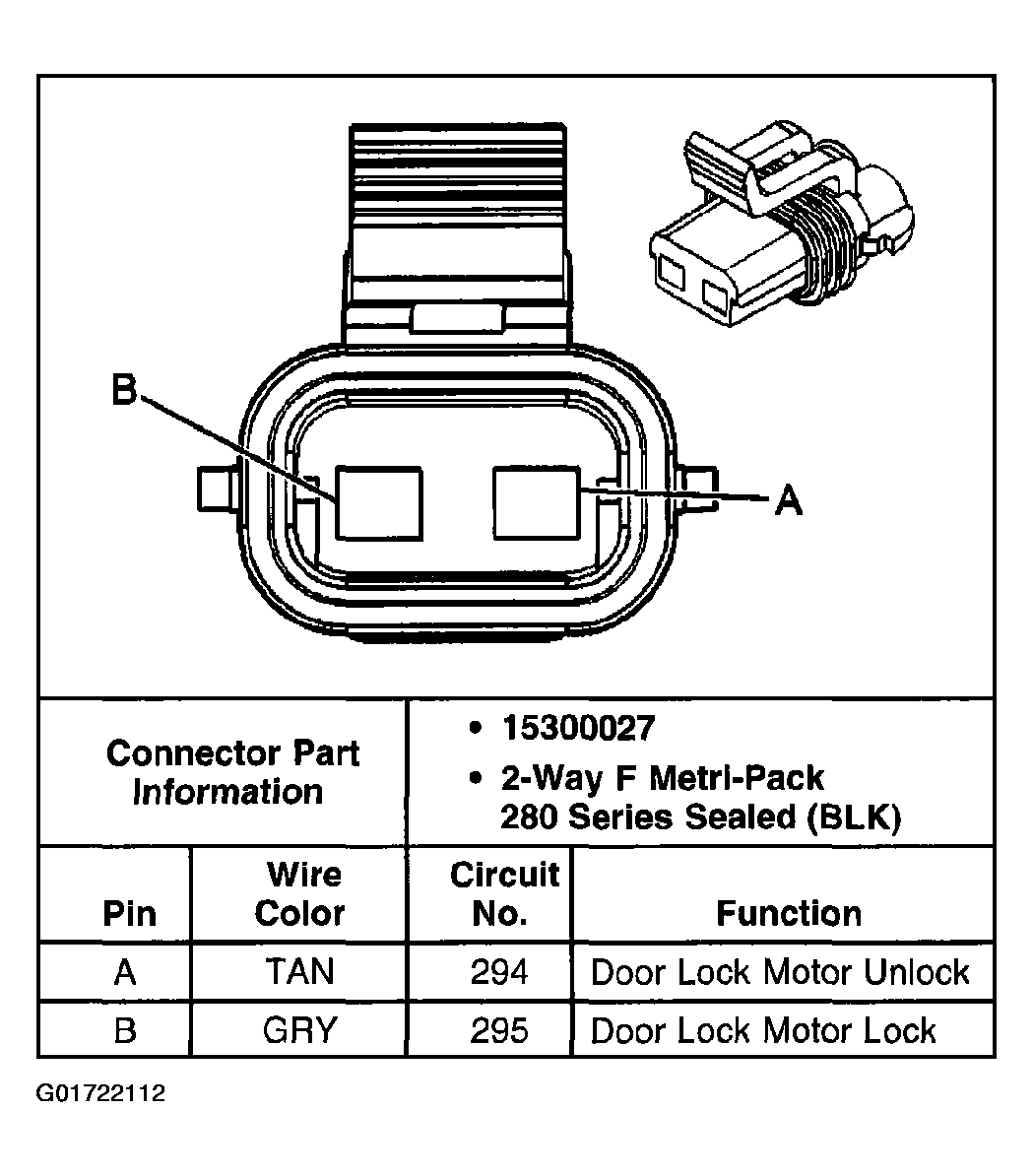

Fig 7: Door Lock Actuator Connector End View - Front Passenger
G01722112Courtesy of GENERAL MOTORS CORP.
Fig 8: Door Lock Actuator Connector End View - RR
G01722113Courtesy of GENERAL MOTORS CORP.

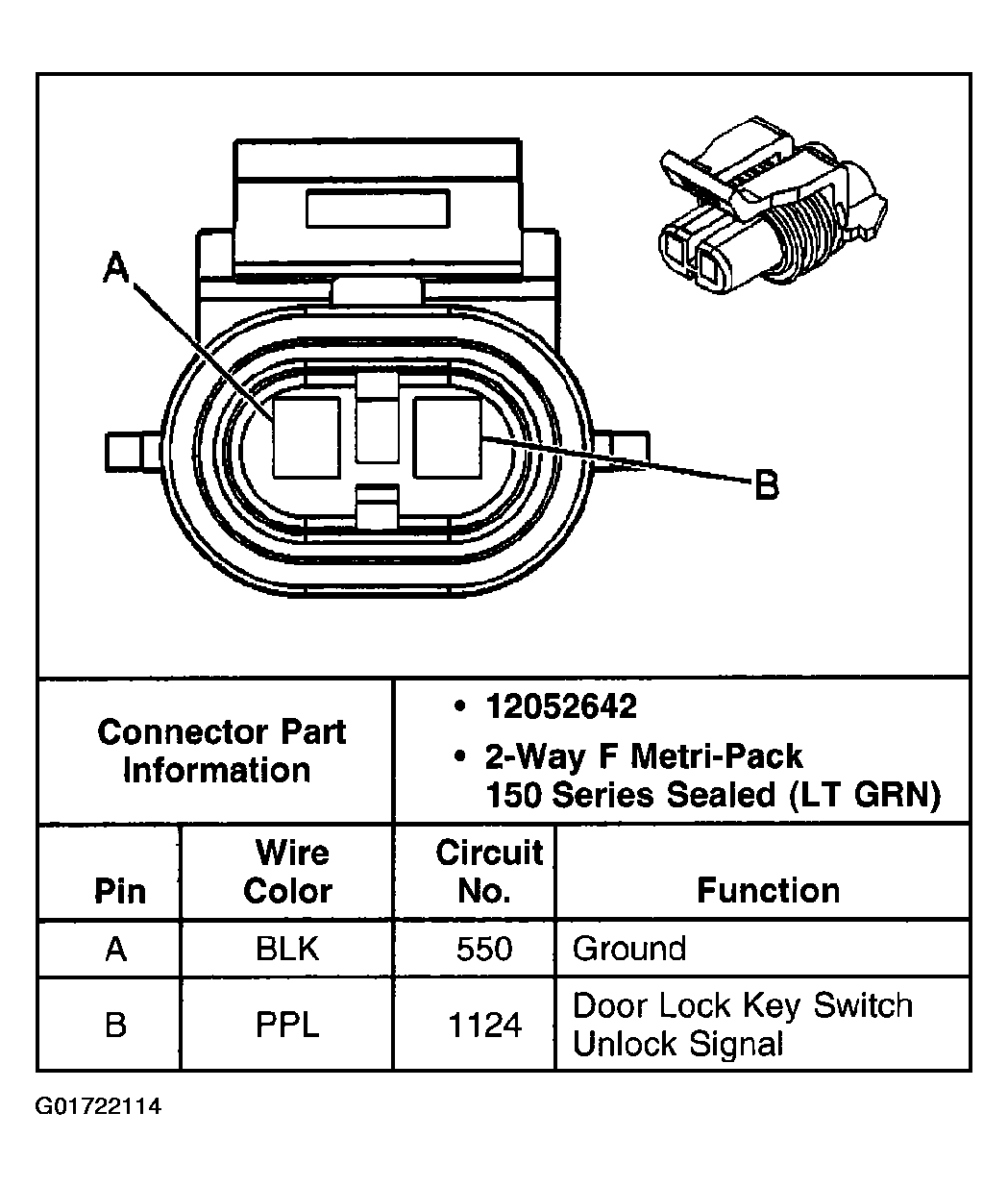

Fig 9: Door Lock Cylinder Switch Connector End View - Driver
G01722114Courtesy of GENERAL MOTORS CORP.

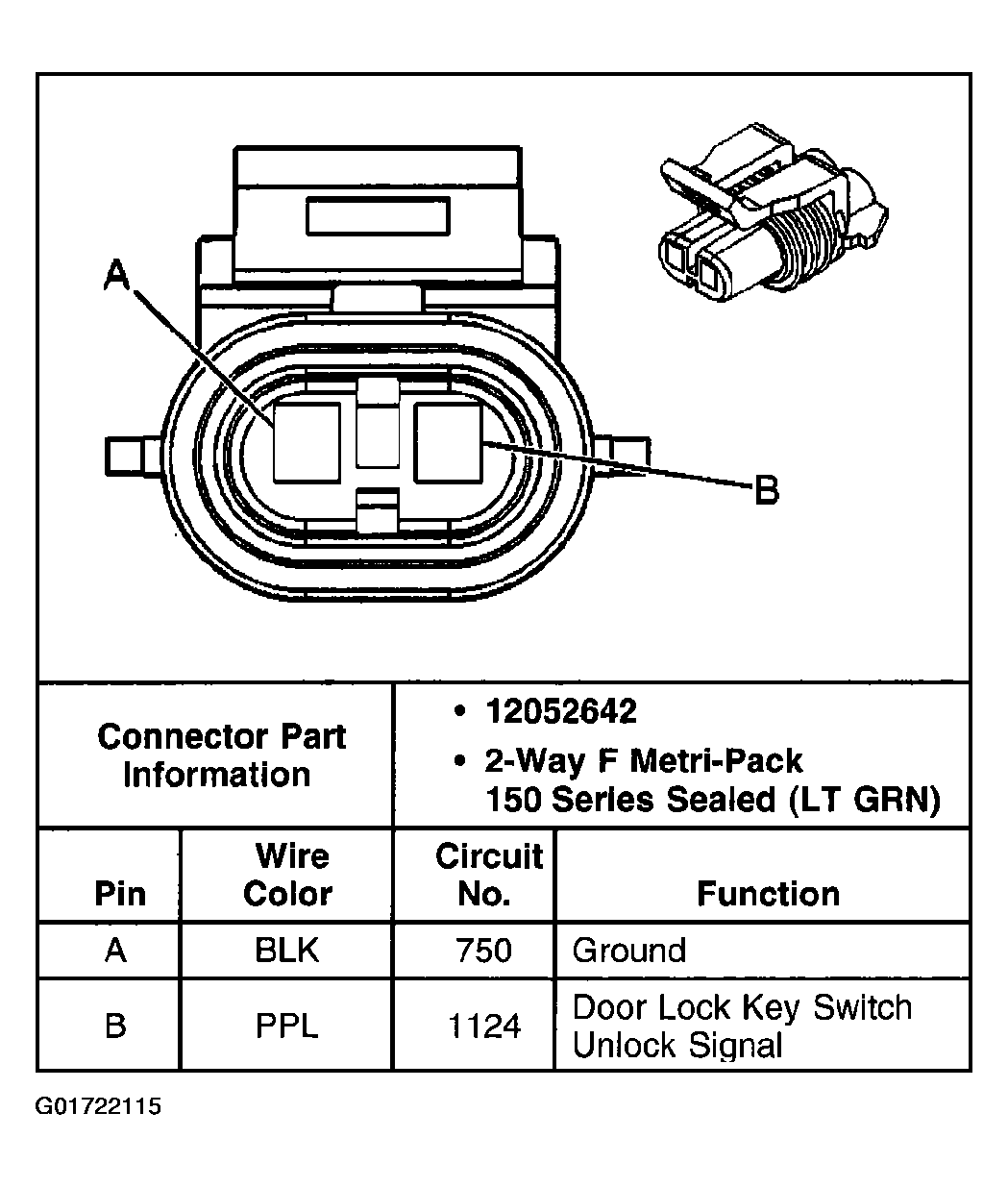

Fig 10: Door Lock Cylinder Switch Connector End View - Front Passenger
G01722115Courtesy of GENERAL MOTORS CORP.

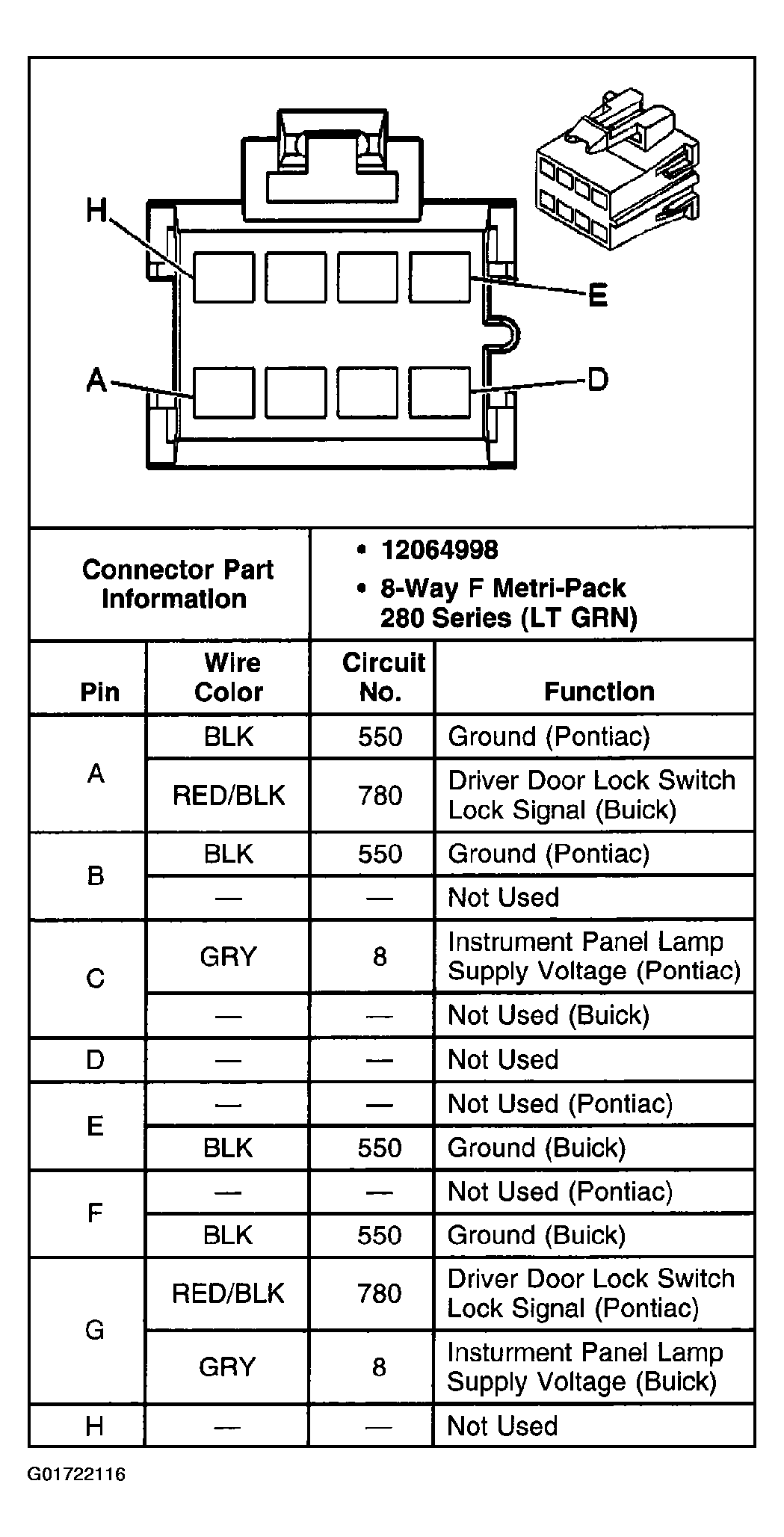

Fig 11: Door Lock Switch Connector End View - Driver
G01722116Courtesy of GENERAL MOTORS CORP.

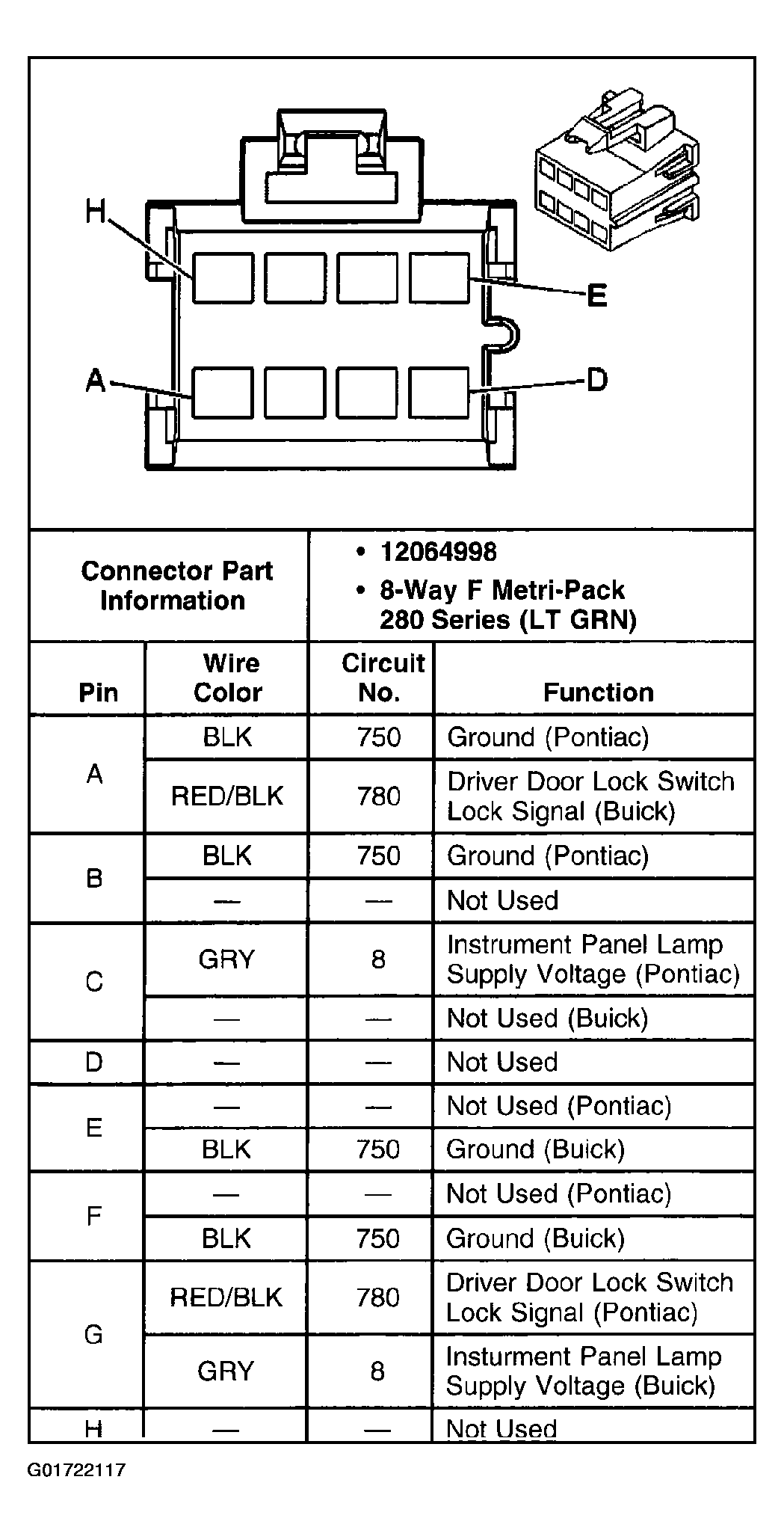

Fig 12: Door Lock Switch Connector End View - Front Passenger
G01722117Courtesy of GENERAL MOTORS CORP.

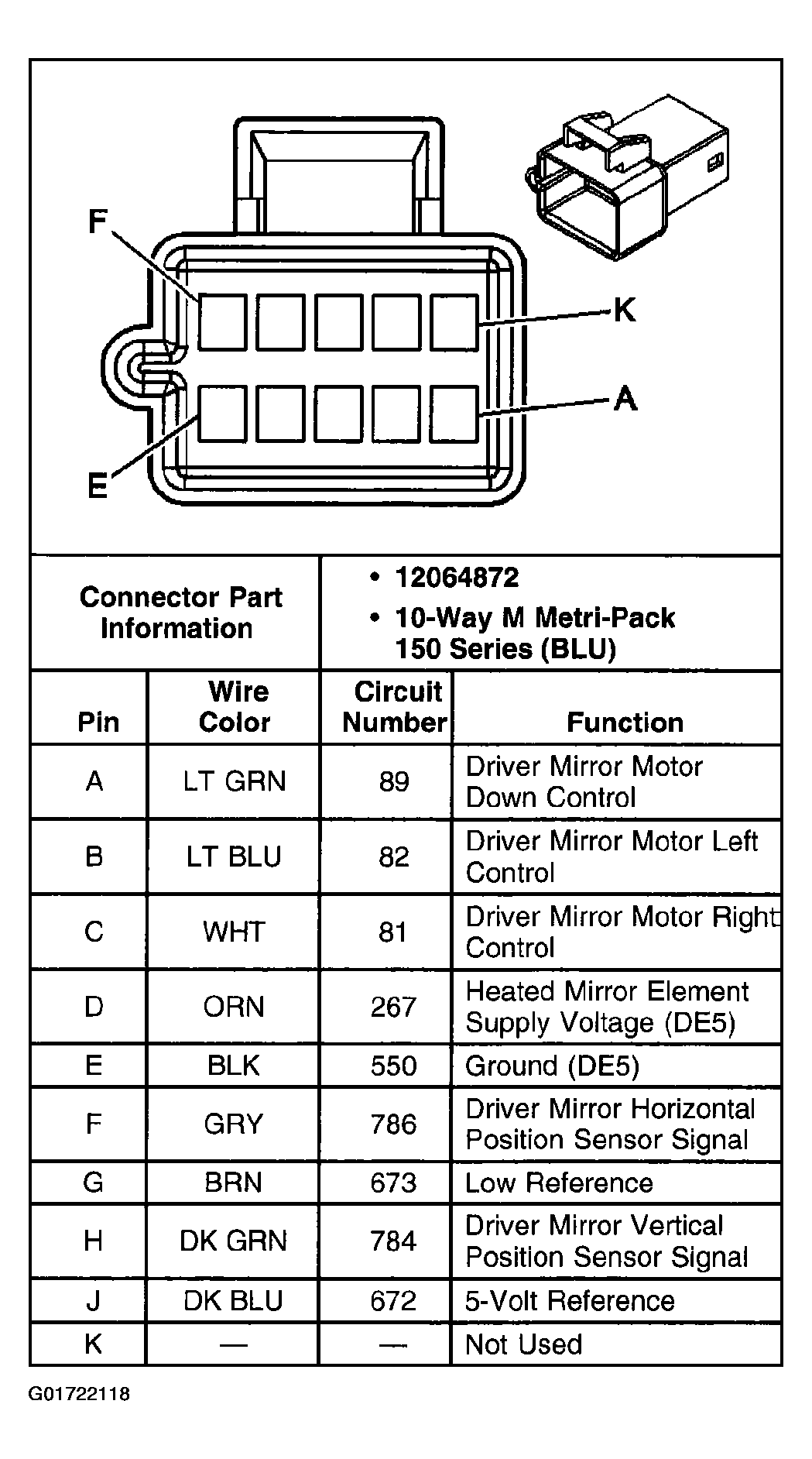

Fig 13: Outside Rearview Mirror Connector End View - Driver (A43)
G01722118Courtesy of GENERAL MOTORS CORP.

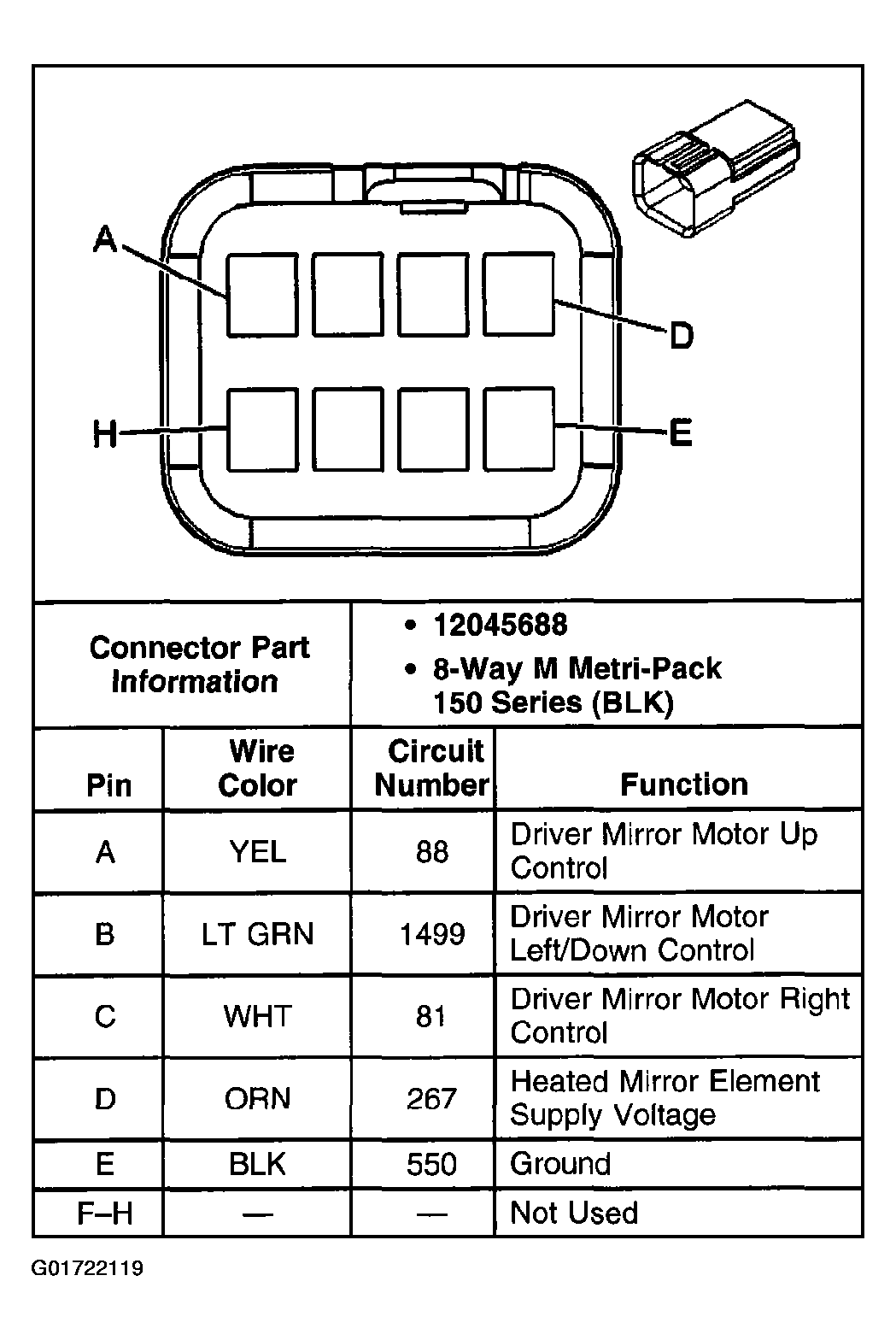

Fig 14: Outside Rearview Mirror Connector End View - Driver (W/O A43)
G01722119Courtesy of GENERAL MOTORS CORP.

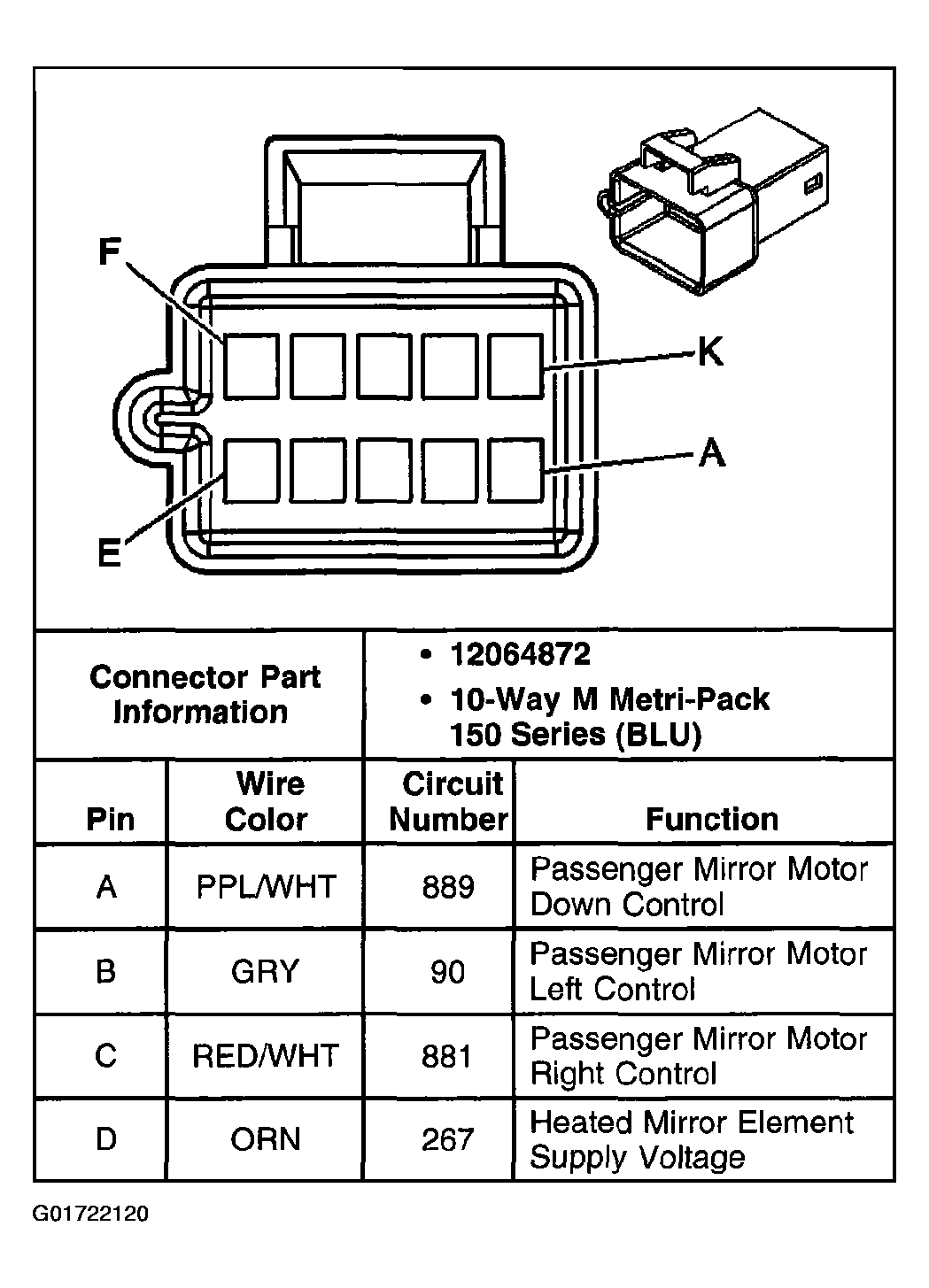

Fig 15: Outside Rearview Mirror Connector End View (1 Of 2) - Passenger (A43)
G01722120Courtesy of GENERAL MOTORS CORP.

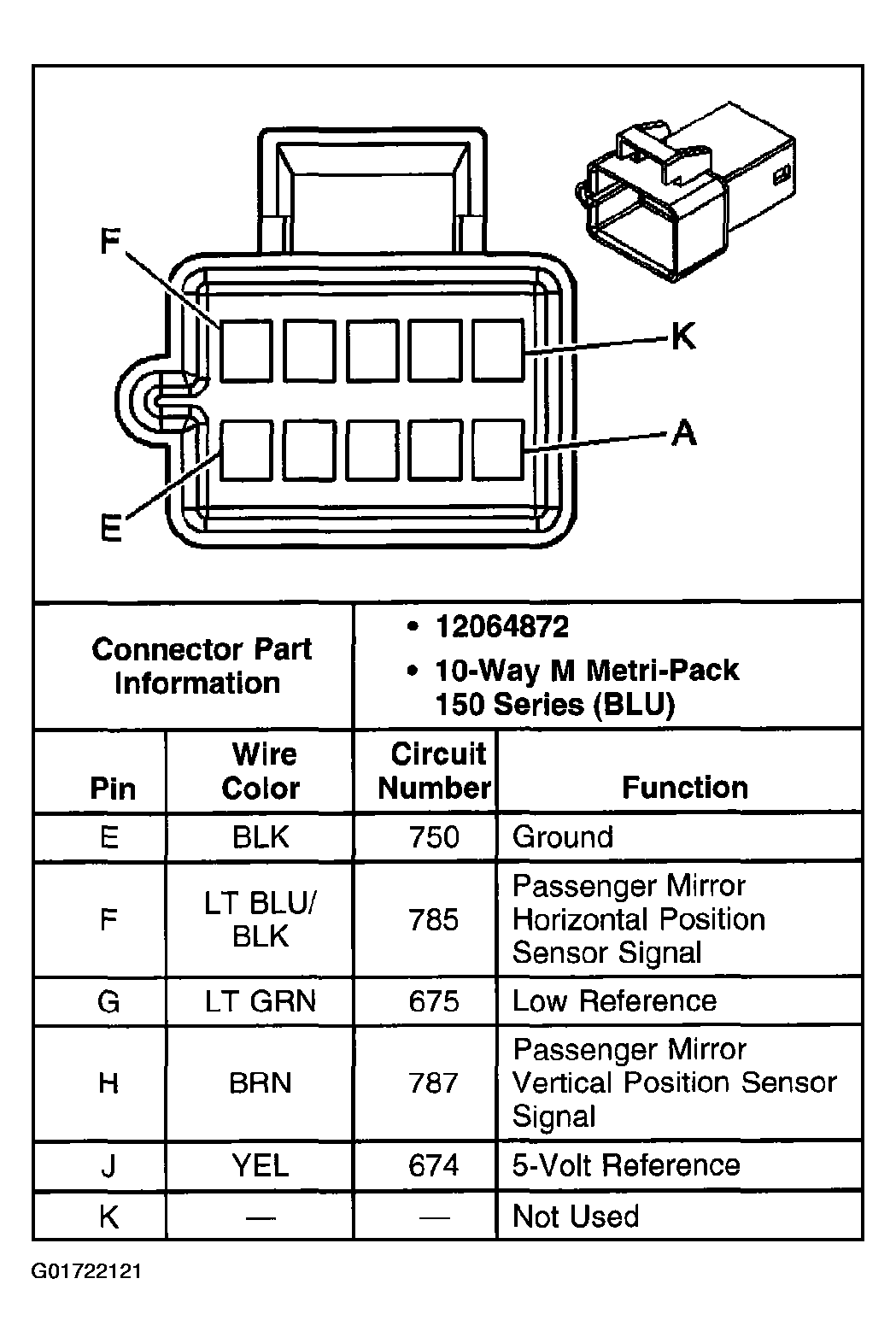

Fig 16: Outside Rearview Mirror Connector End View (2 Of 2) - Passenger (A43)
G01722121Courtesy of GENERAL MOTORS CORP.

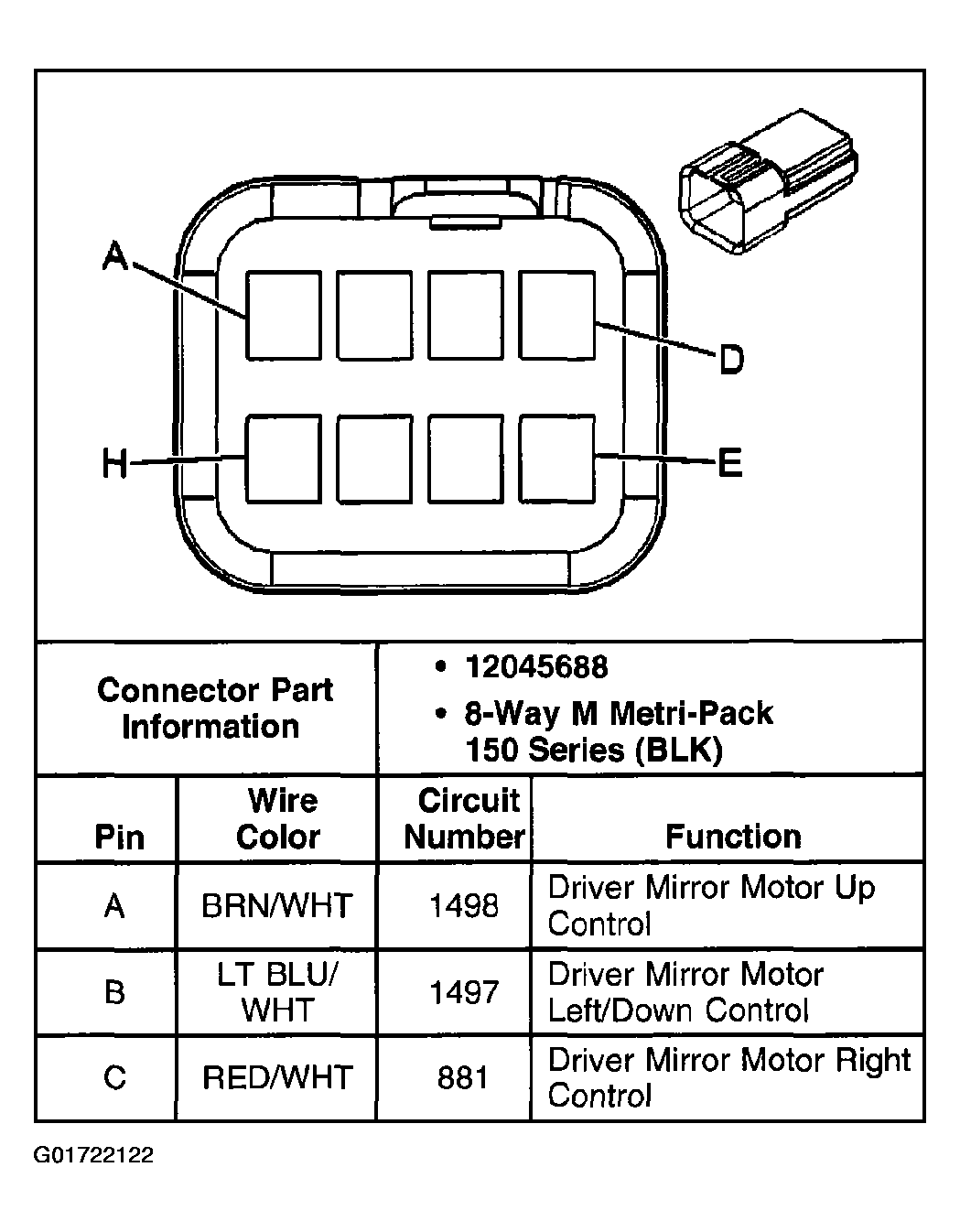

Fig 17: Outside Rearview Mirror Connector End View (1 Of 2) - Passenger (W/O A43)
G01722122Courtesy of GENERAL MOTORS CORP.
Fig 18: Outside Rearview Mirror Connector End View (2 Of 2) - Passenger (W/O A43)
G01722123Courtesy of GENERAL MOTORS CORP.

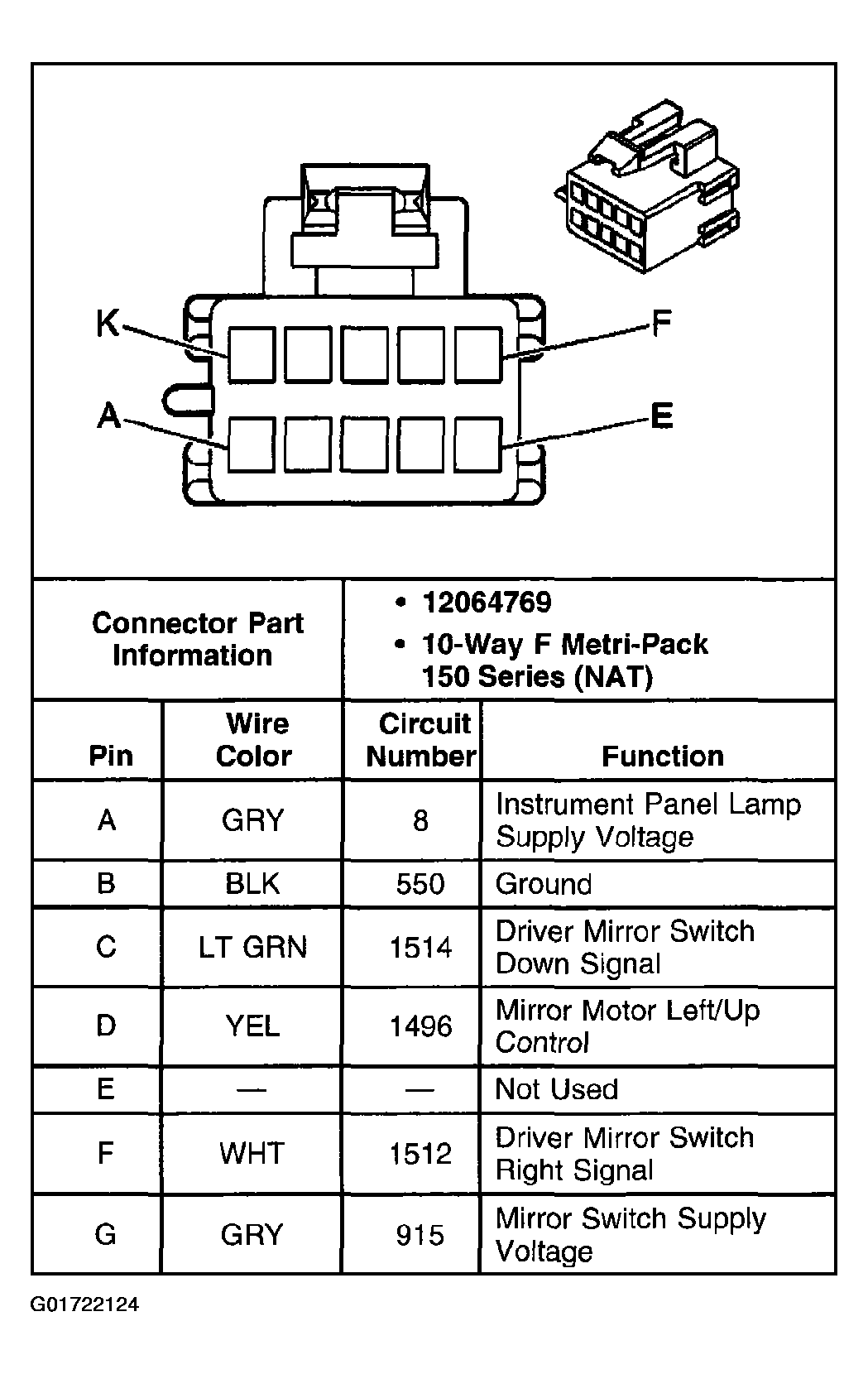

Fig 19: Outside Rearview Mirror Switch (1 Of 2) Connector End View (A43)
G01722124Courtesy of GENERAL MOTORS CORP.

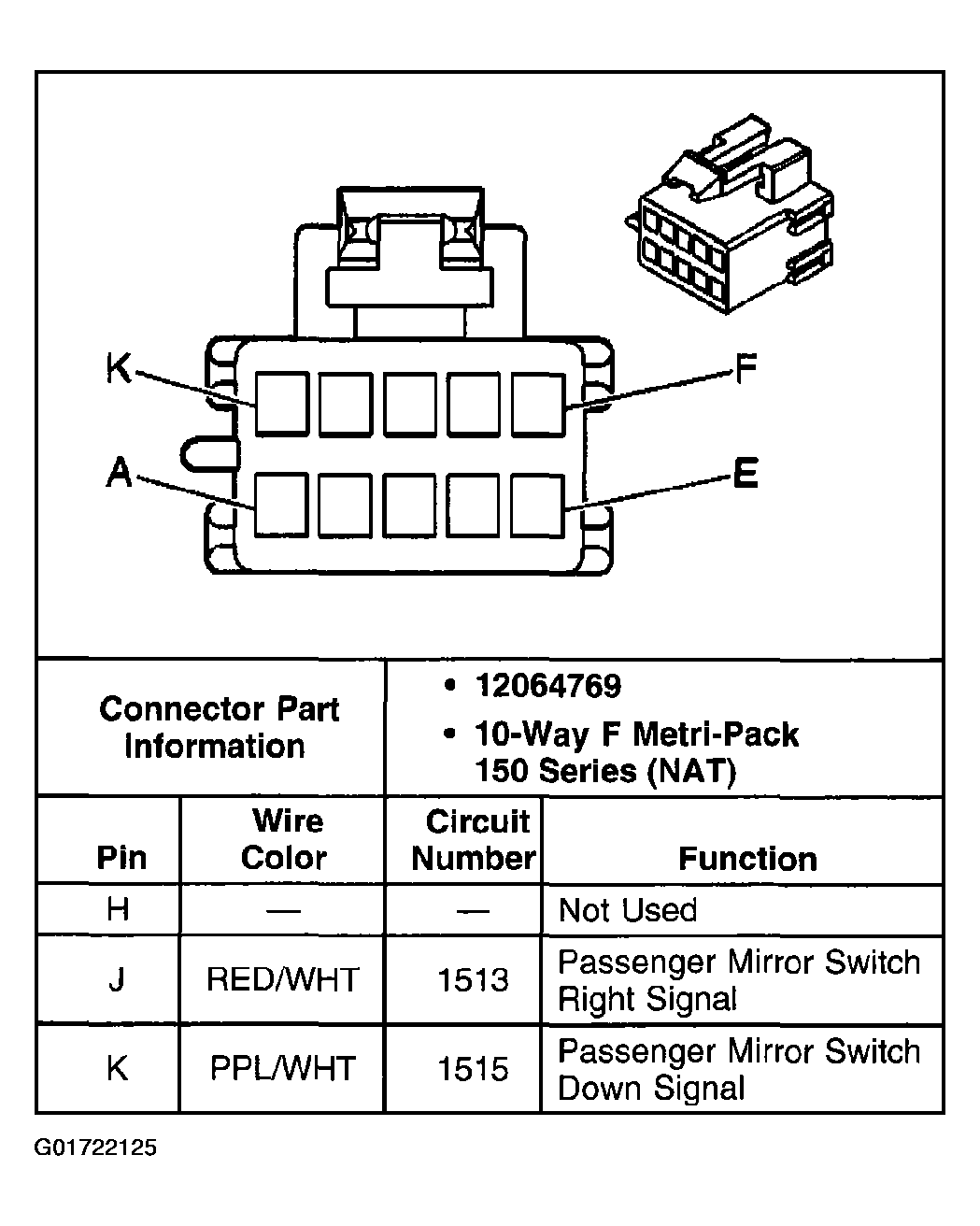

Fig 20: Outside Rearview Mirror Switch (2 Of 2) Connector End View (A43)
G01722125Courtesy of GENERAL MOTORS CORP.

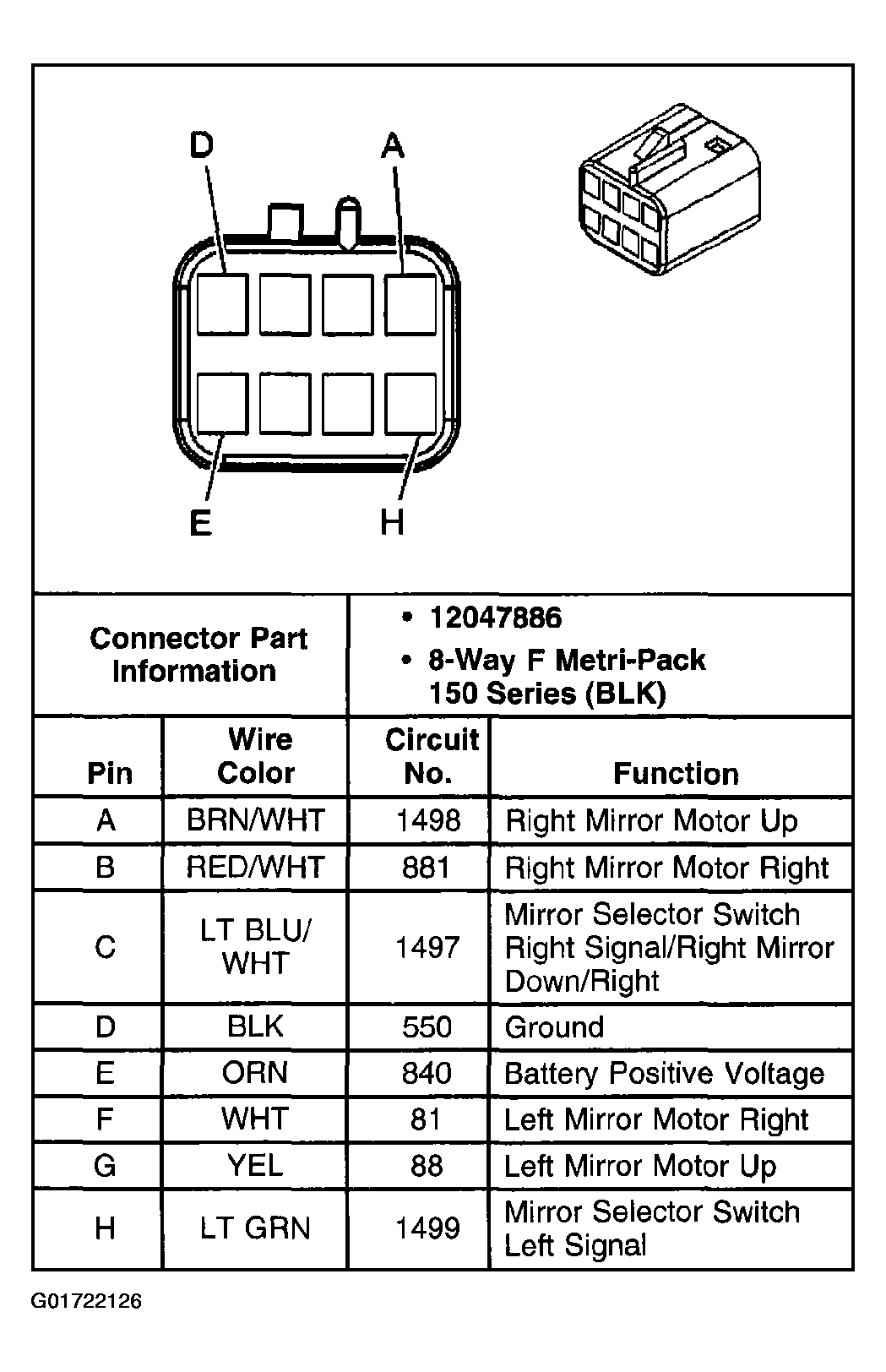

Fig 21: Outside Rearview Mirror Switch Connector End View (W/O A43)
G01722126Courtesy of GENERAL MOTORS CORP.

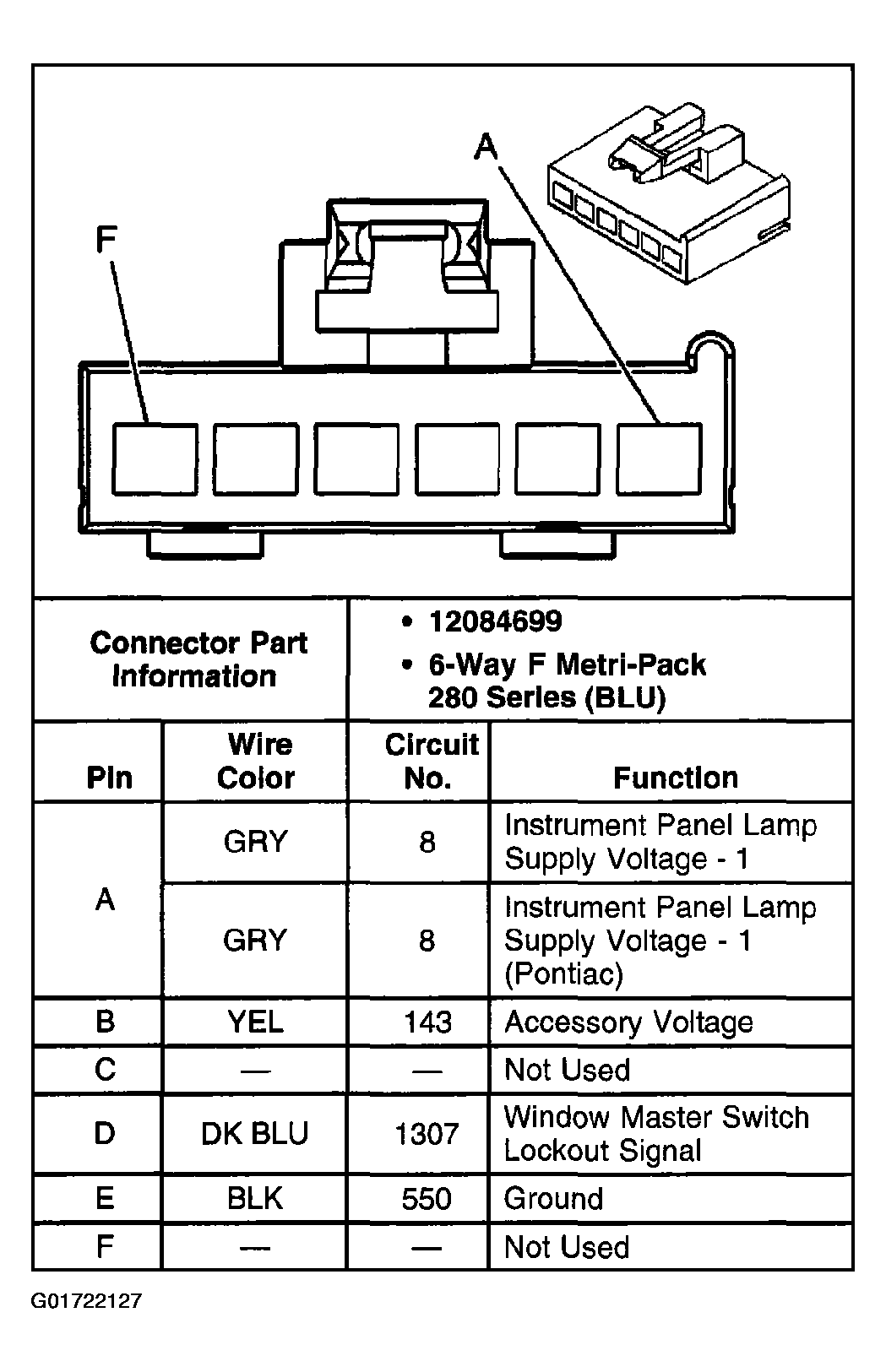

Fig 22: Window Master Switch Connector End View - C1
G01722127Courtesy of GENERAL MOTORS CORP.

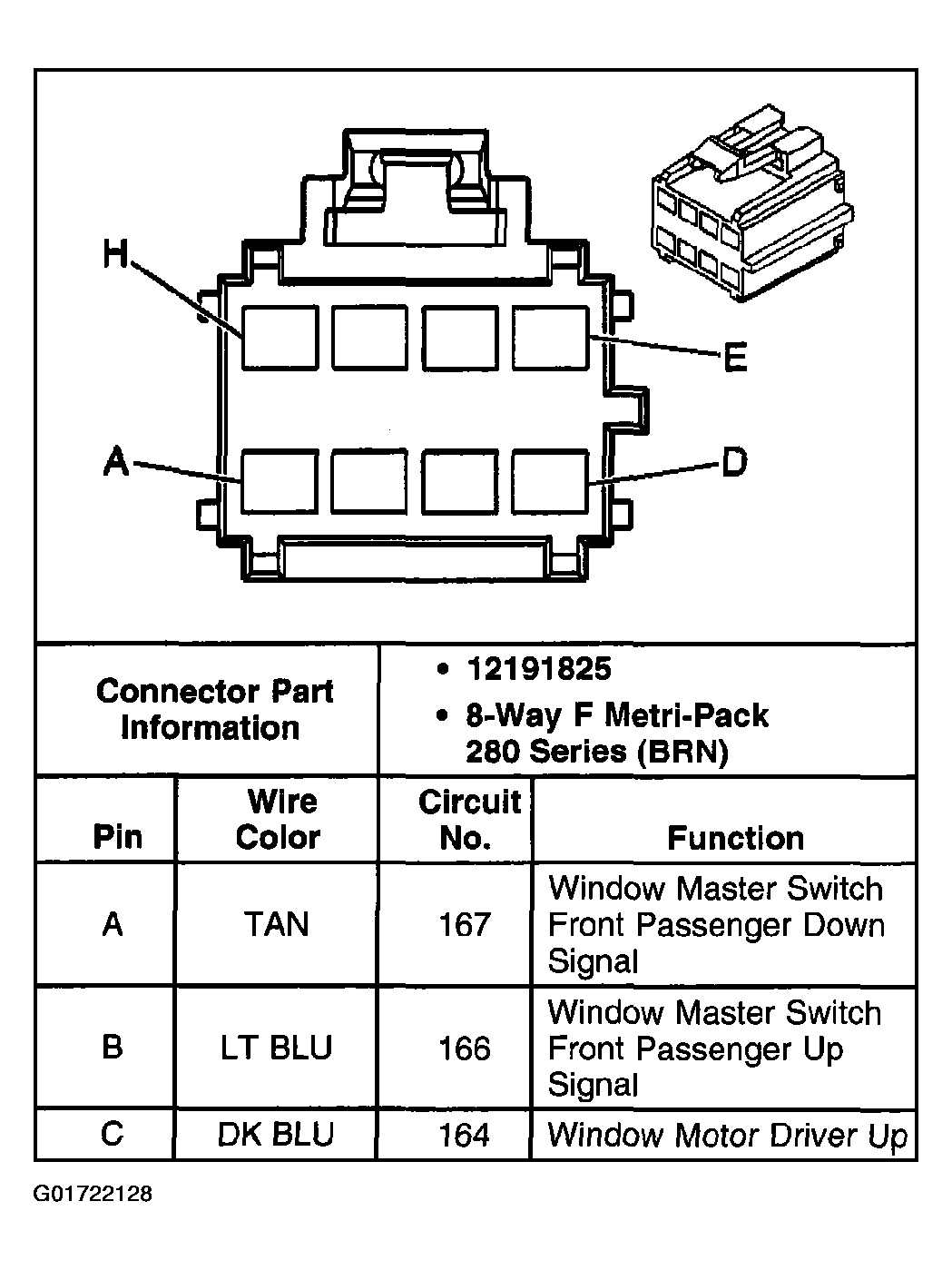

Fig 23: Window Master Switch Connector End View (1 Of 2) - C2
G01722128Courtesy of GENERAL MOTORS CORP.

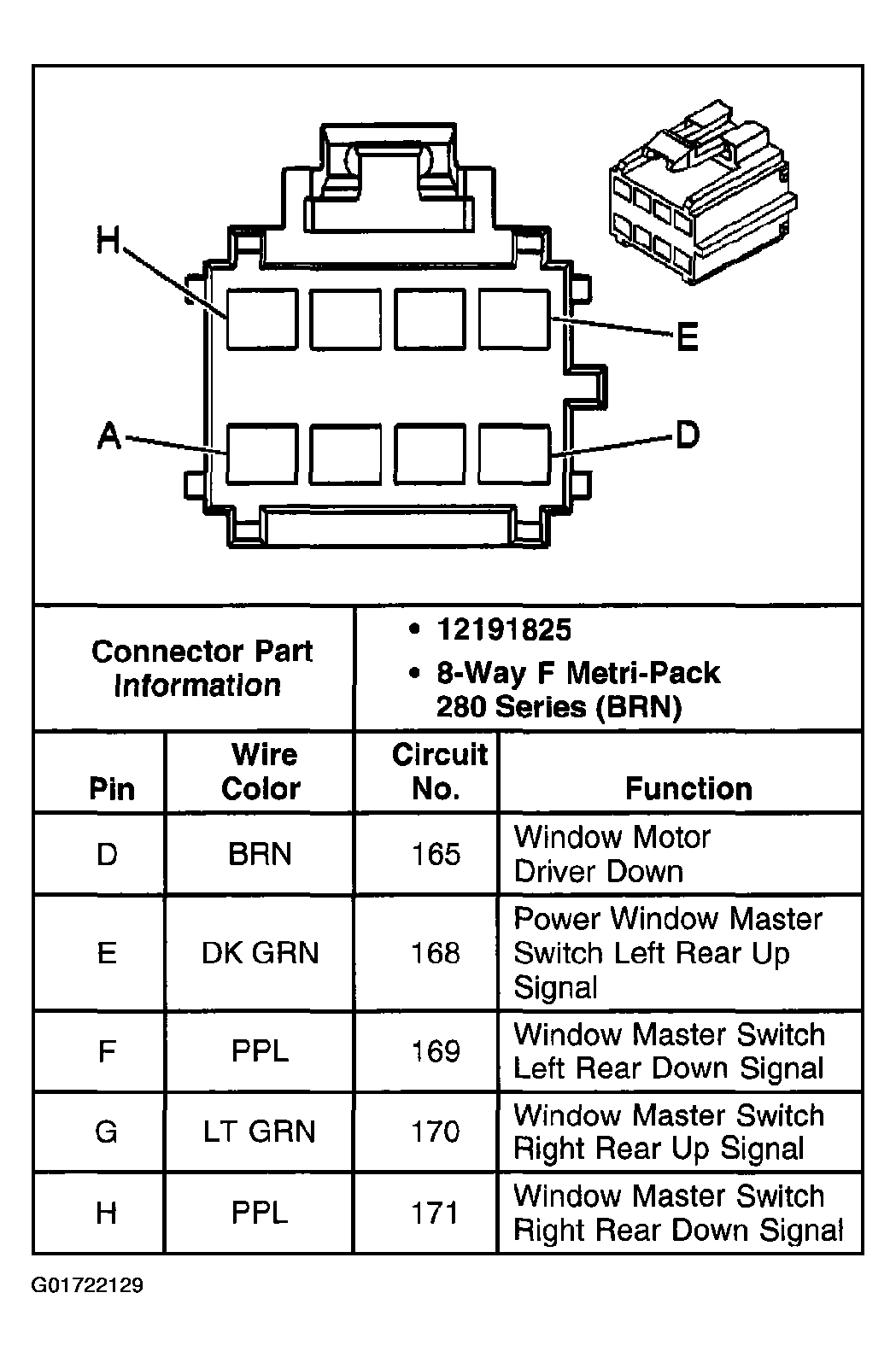

Fig 24: Window Master Switch Connector End View (2 Of 2) - C2
G01722129Courtesy of GENERAL MOTORS CORP.

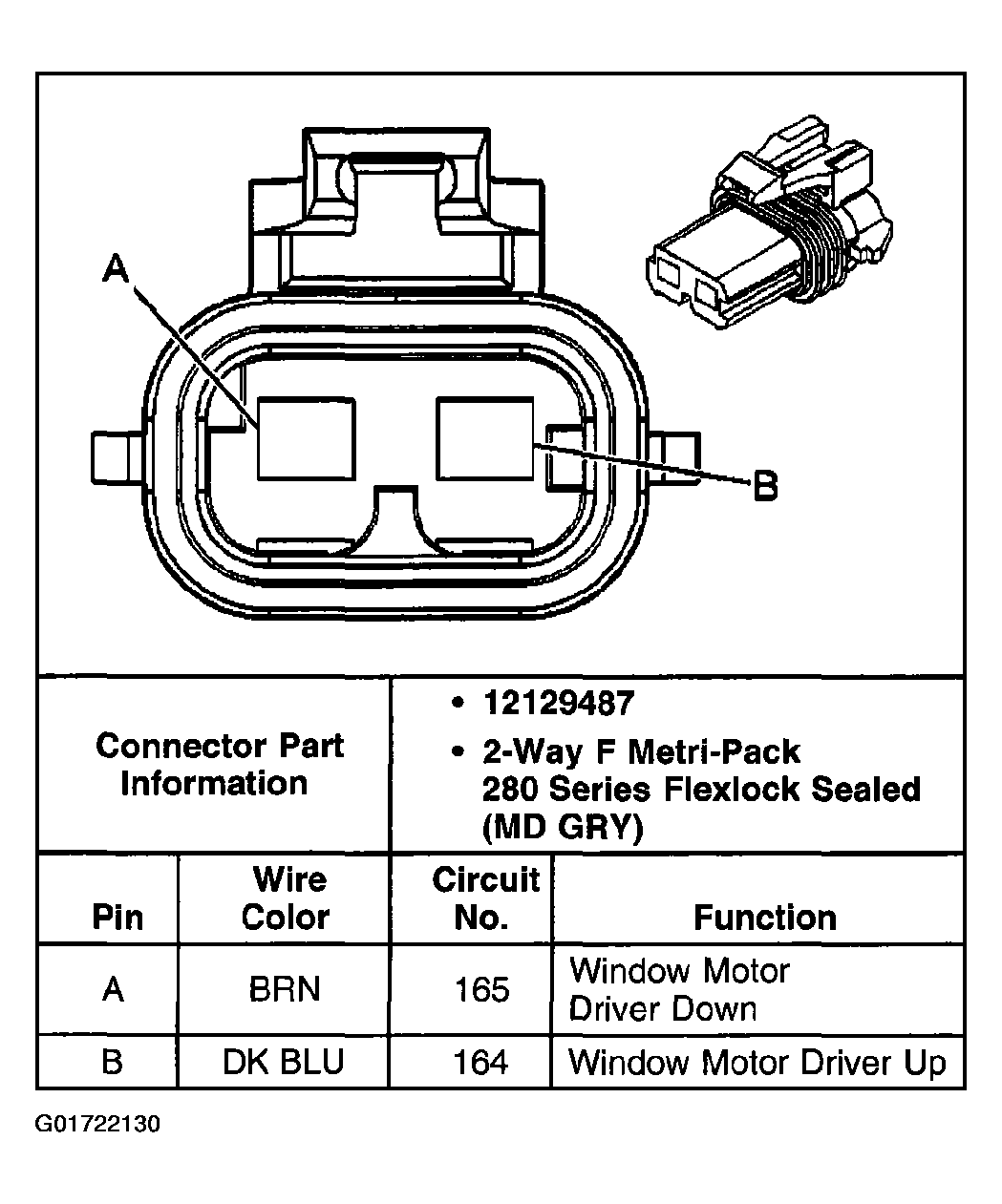

Fig 25: Window Motor Connector End View- Driver
G01722130Courtesy of GENERAL MOTORS CORP.

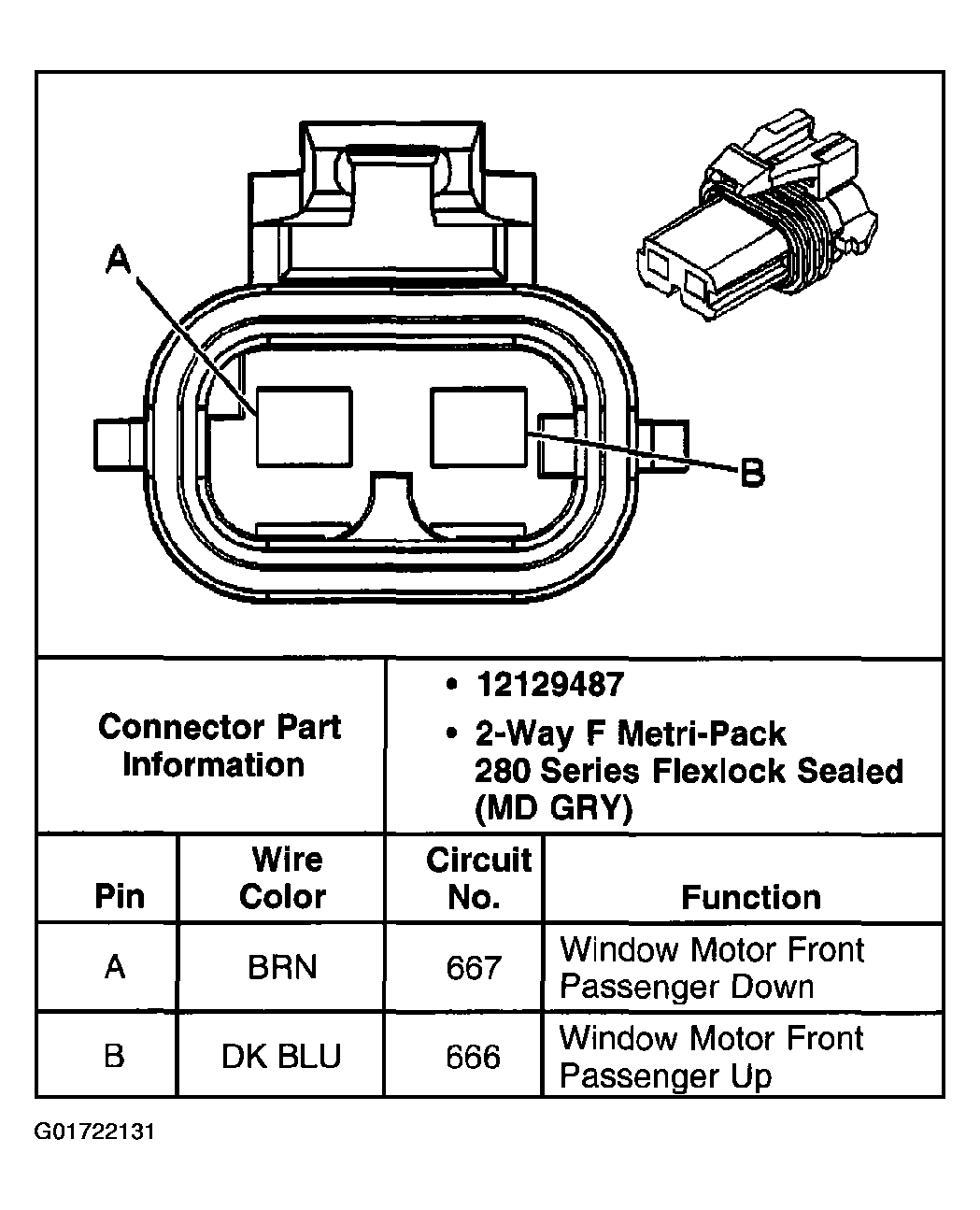

Fig 26: Window Motor Connector End View - Front Passenger
G01722131Courtesy of GENERAL MOTORS CORP.

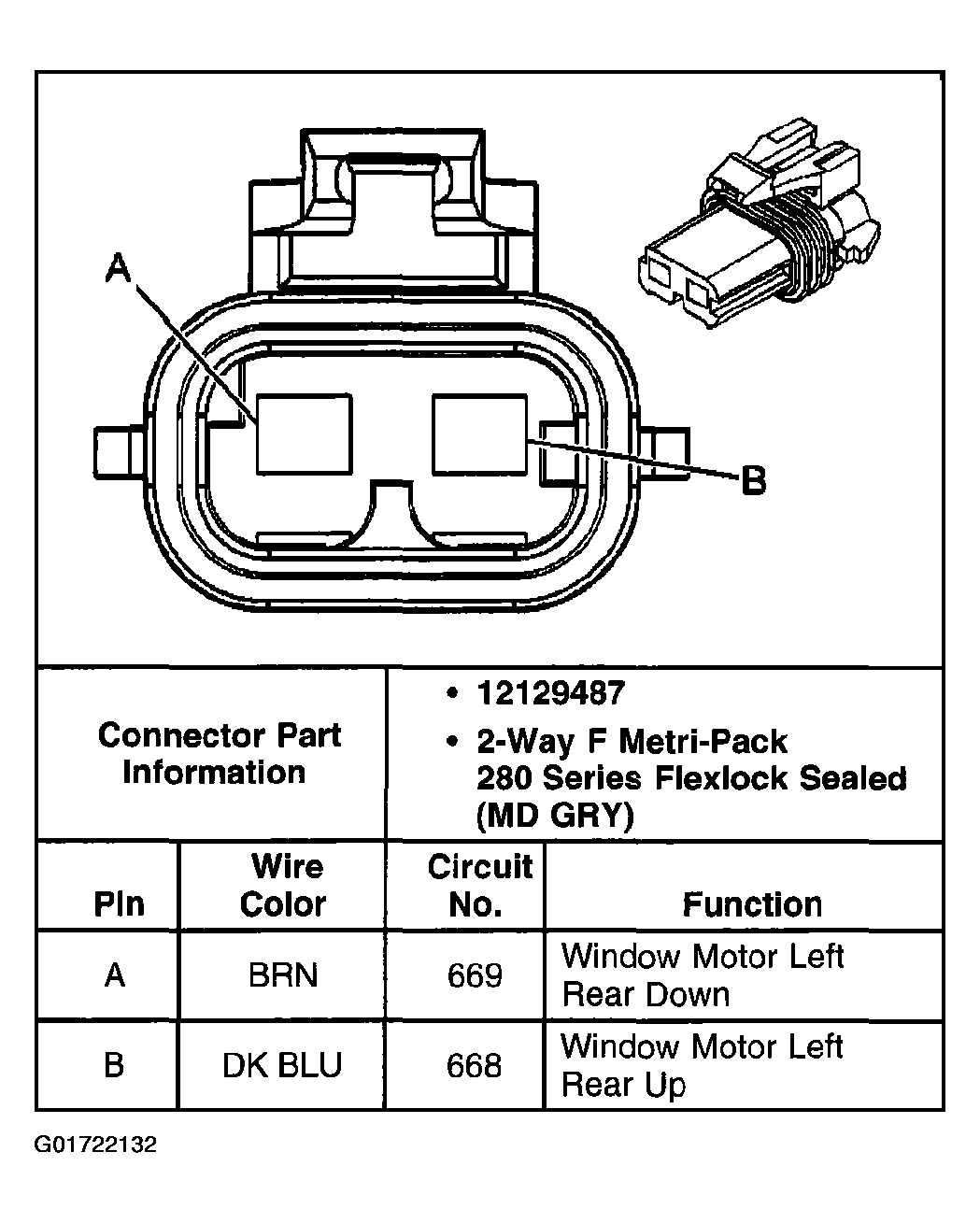

Fig 27: Window Motor Connector End View - LR
G01722132Courtesy of GENERAL MOTORS CORP.

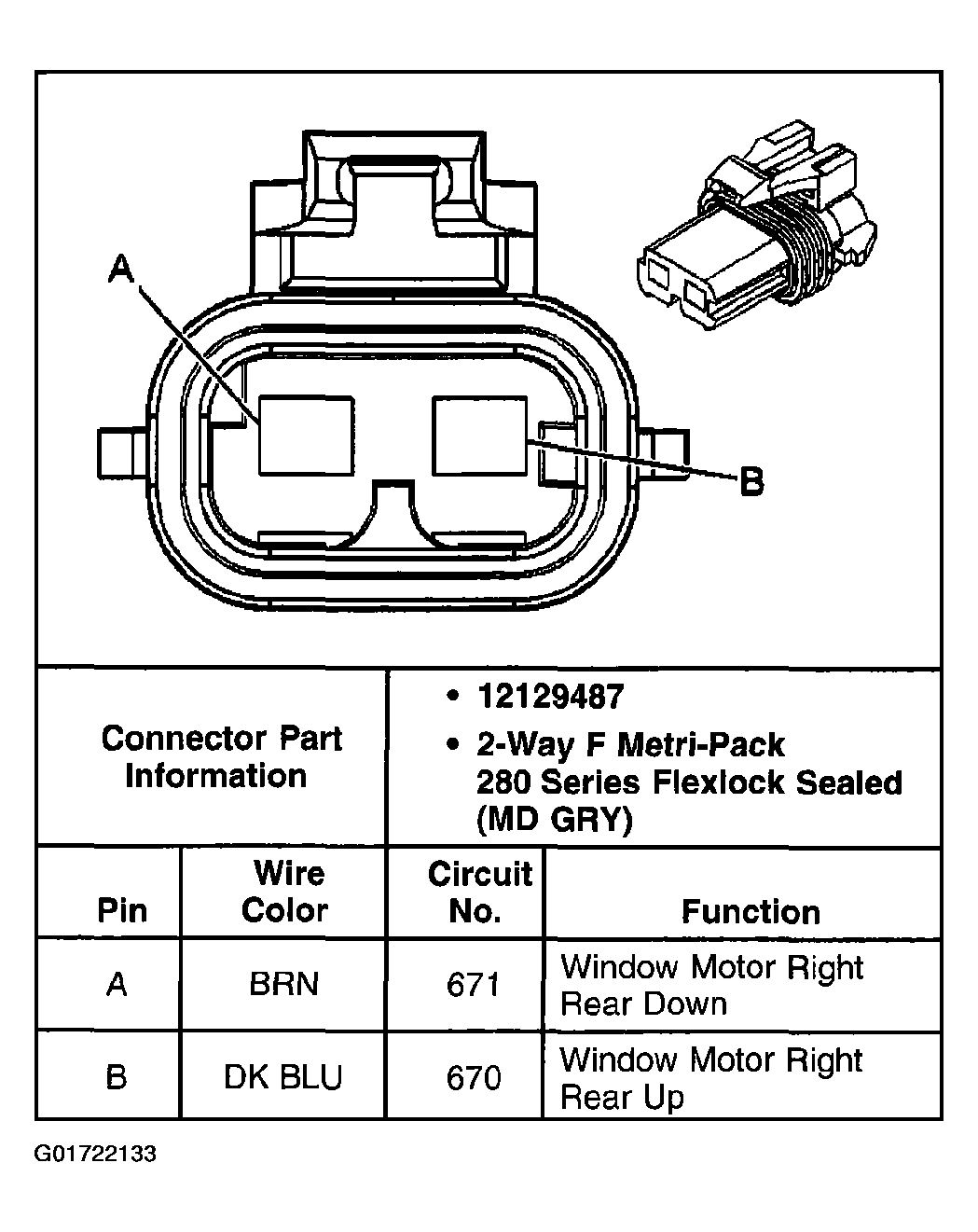

Fig 28: Window Motor Connector End View - RR
G01722133Courtesy of GENERAL MOTORS CORP.

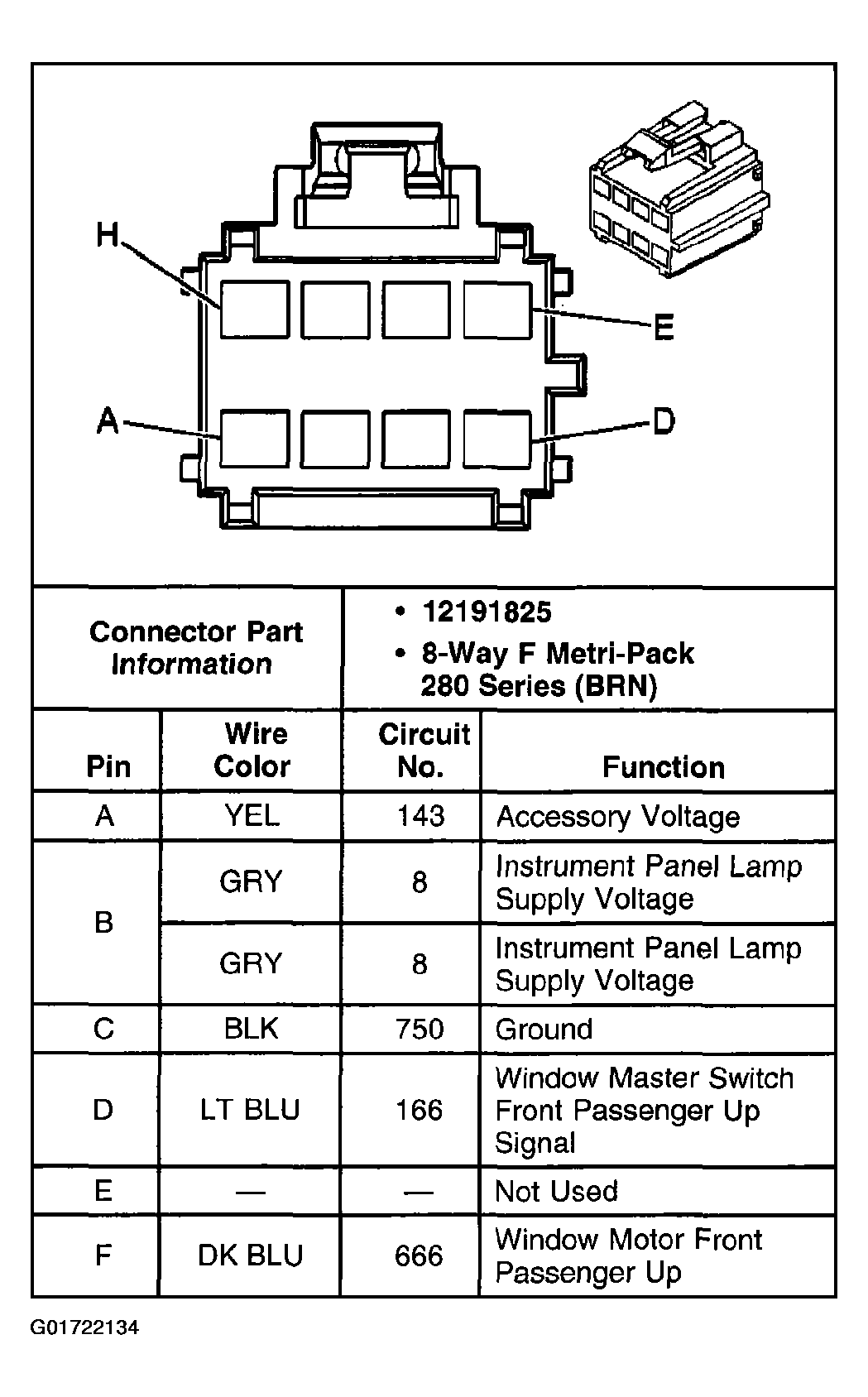

Fig 29: Window Switch Connector End View (1 Of 2) - Front Passenger
G01722134Courtesy of GENERAL MOTORS CORP.

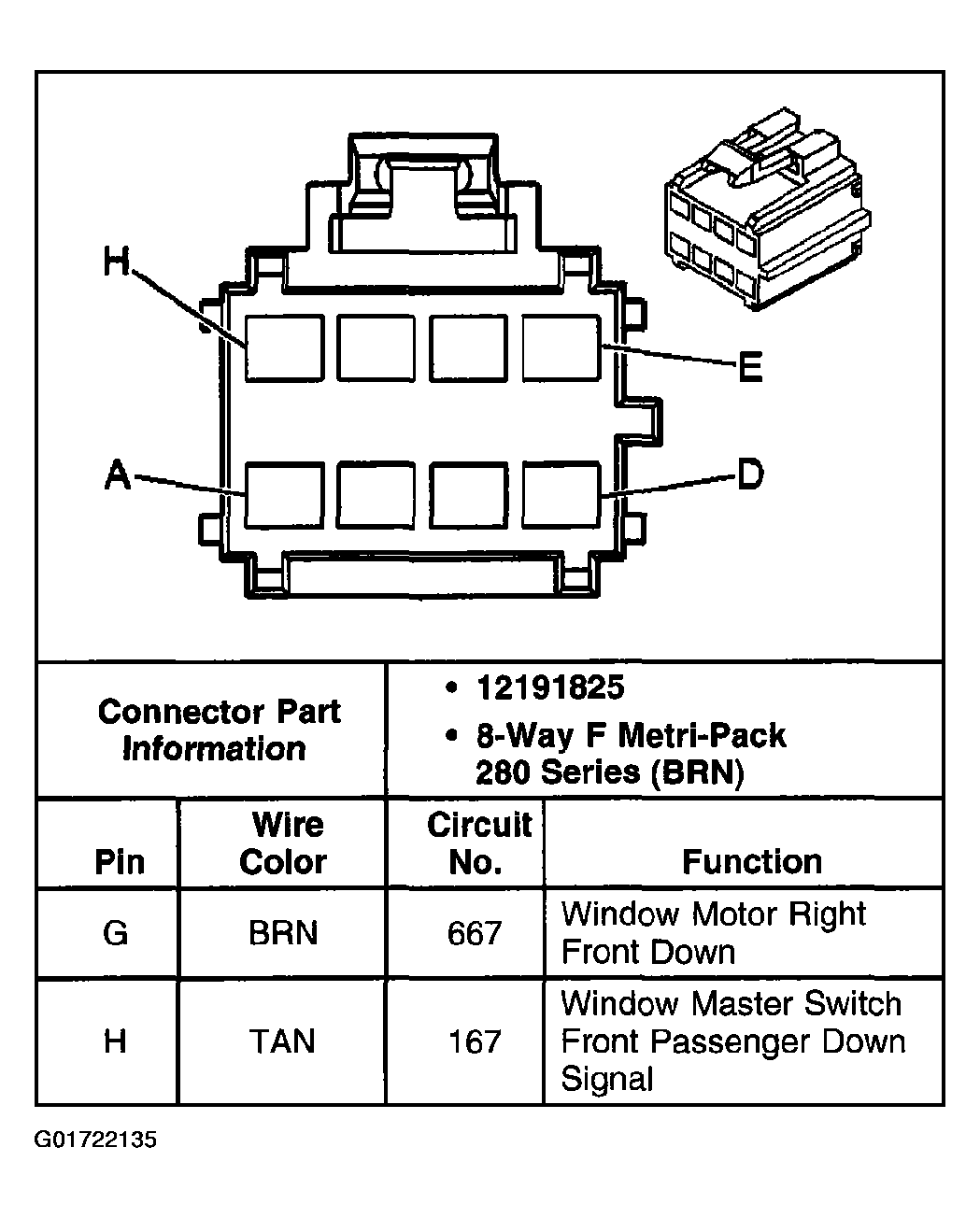

Fig 30: Window Switch Connector End View (2 Of 2) - Front Passenger
G01722135Courtesy of GENERAL MOTORS CORP.

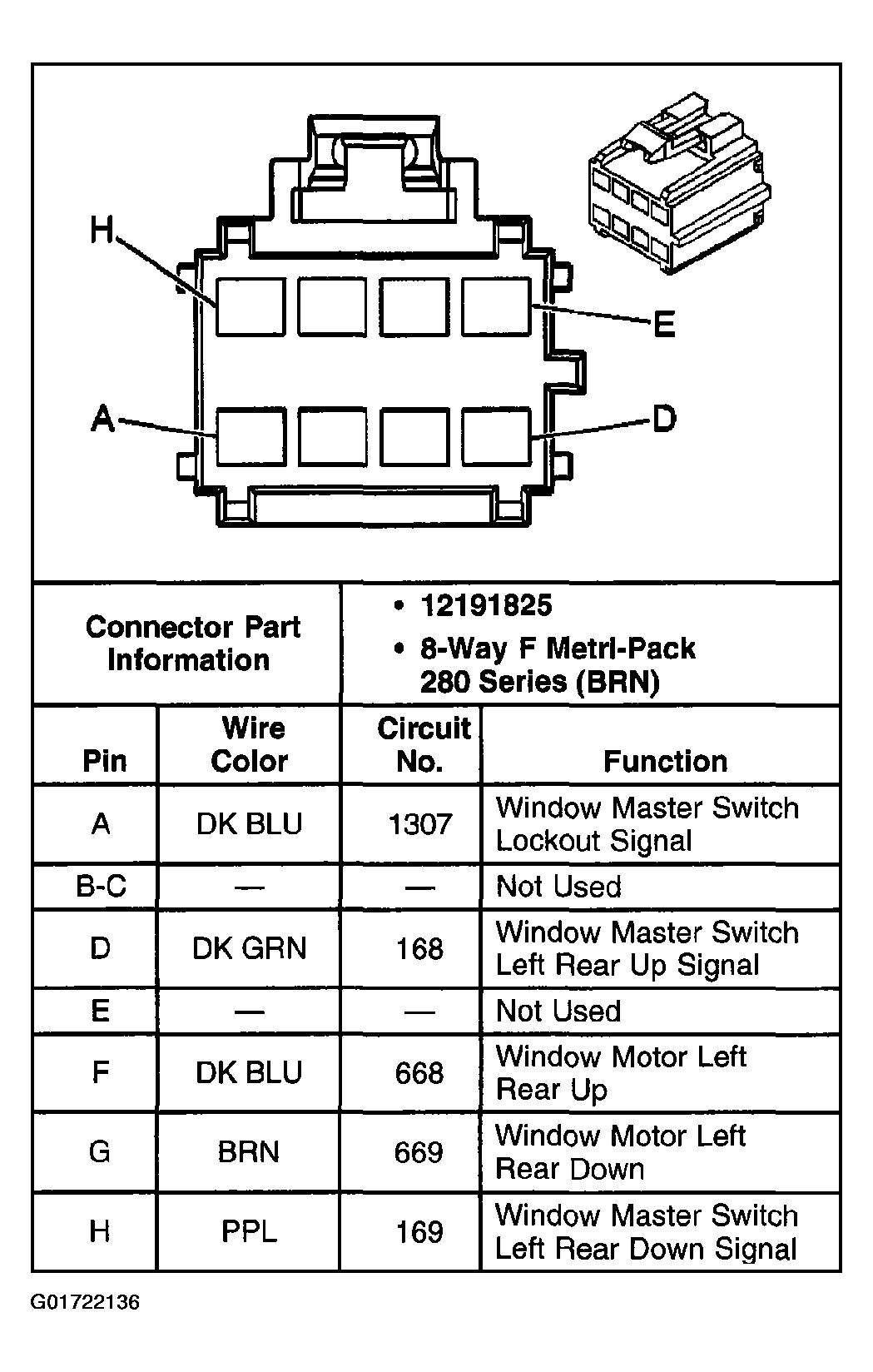

Fig 31: Window Switch Connector End View - LR
G01722136Courtesy of GENERAL MOTORS CORP.
Fig 32: Window Switch Connector End View - RR
G01722137Courtesy of GENERAL MOTORS CORP.
