Stationary Windows Connector End Views

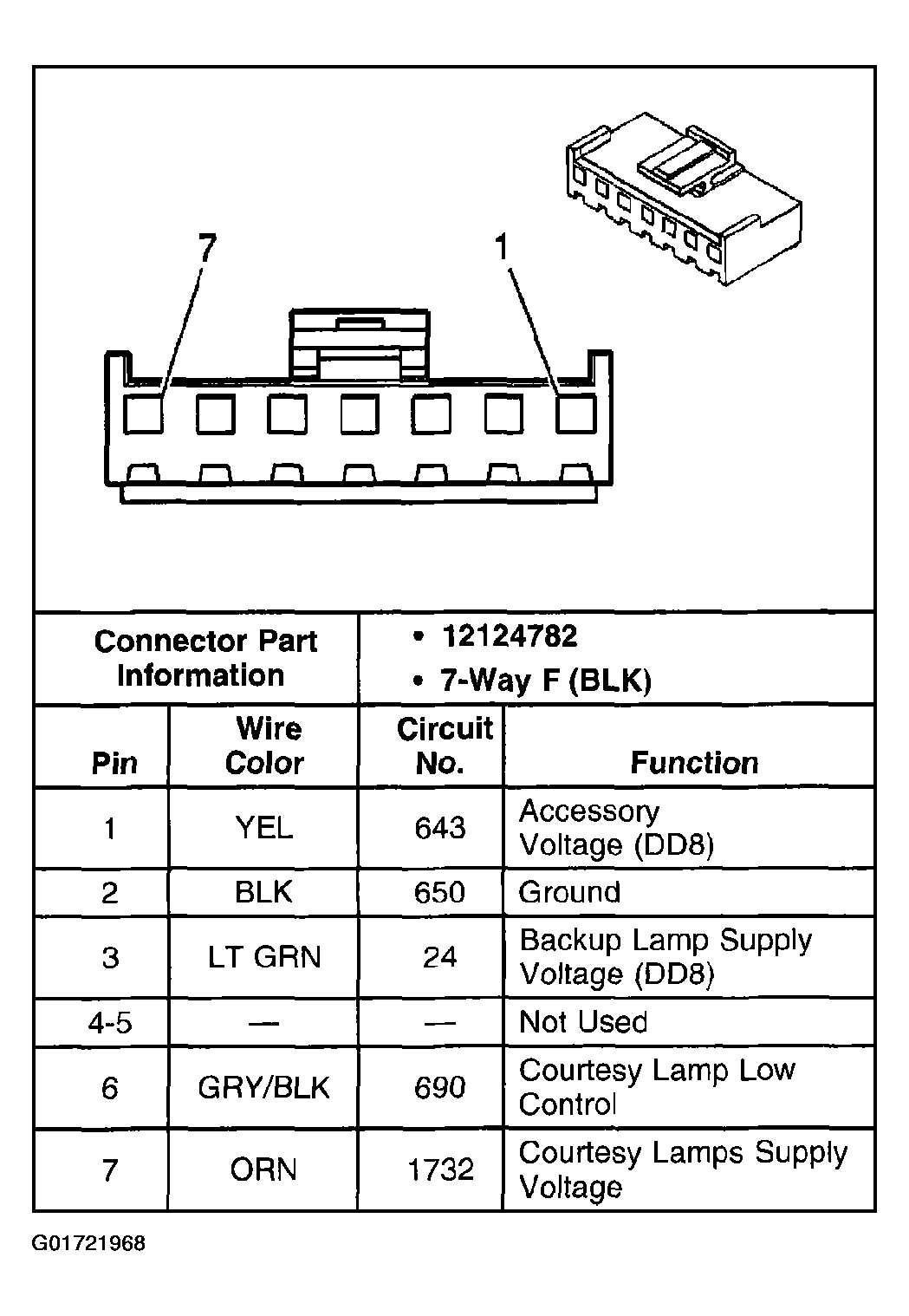

Fig 1: Inside Rearview Mirror Connector End Views
G01721968Courtesy of GENERAL MOTORS CORP.

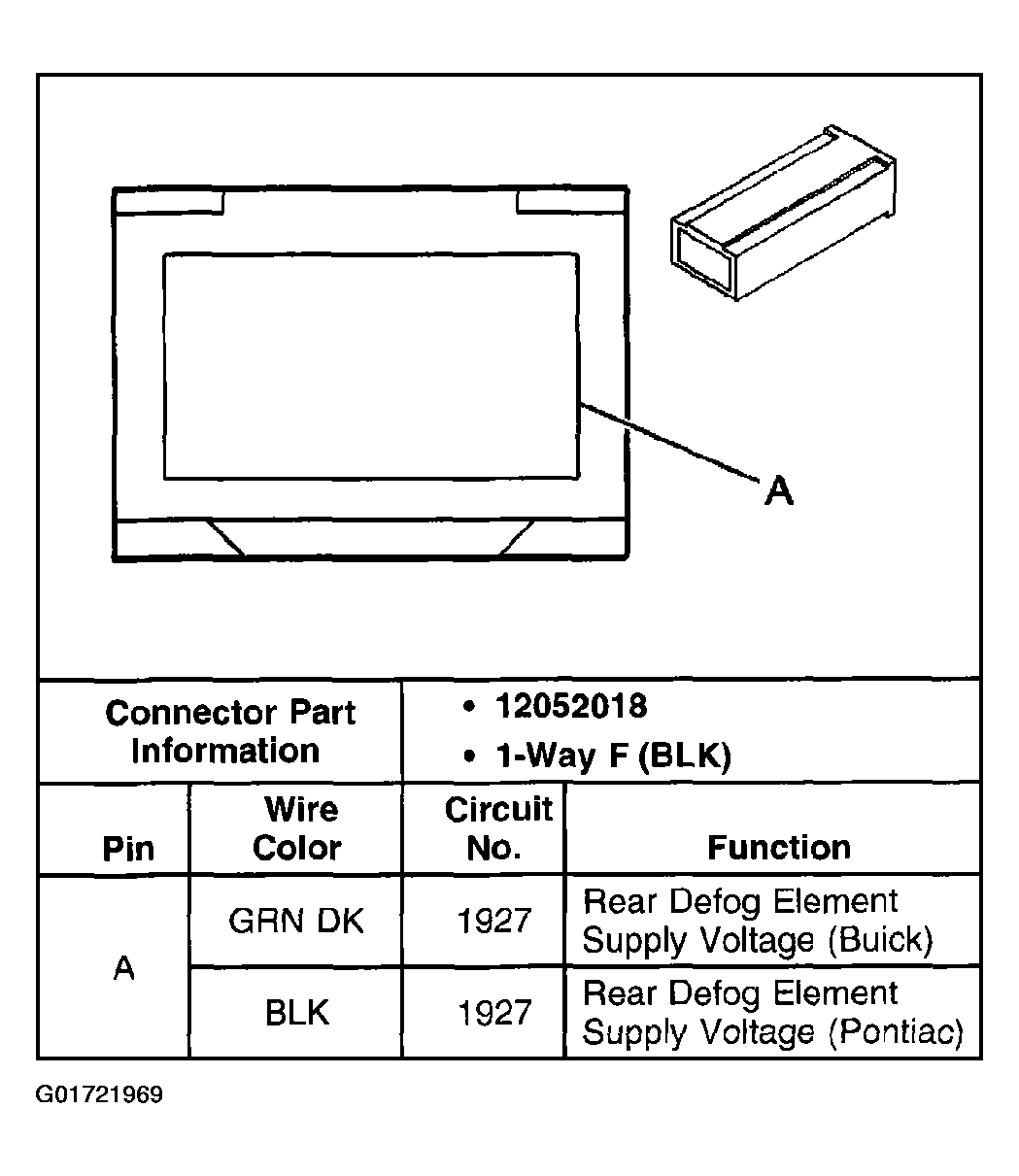

Fig 2: Rear Window Defogger Connector End Views - C1
G01721969Courtesy of GENERAL MOTORS CORP.

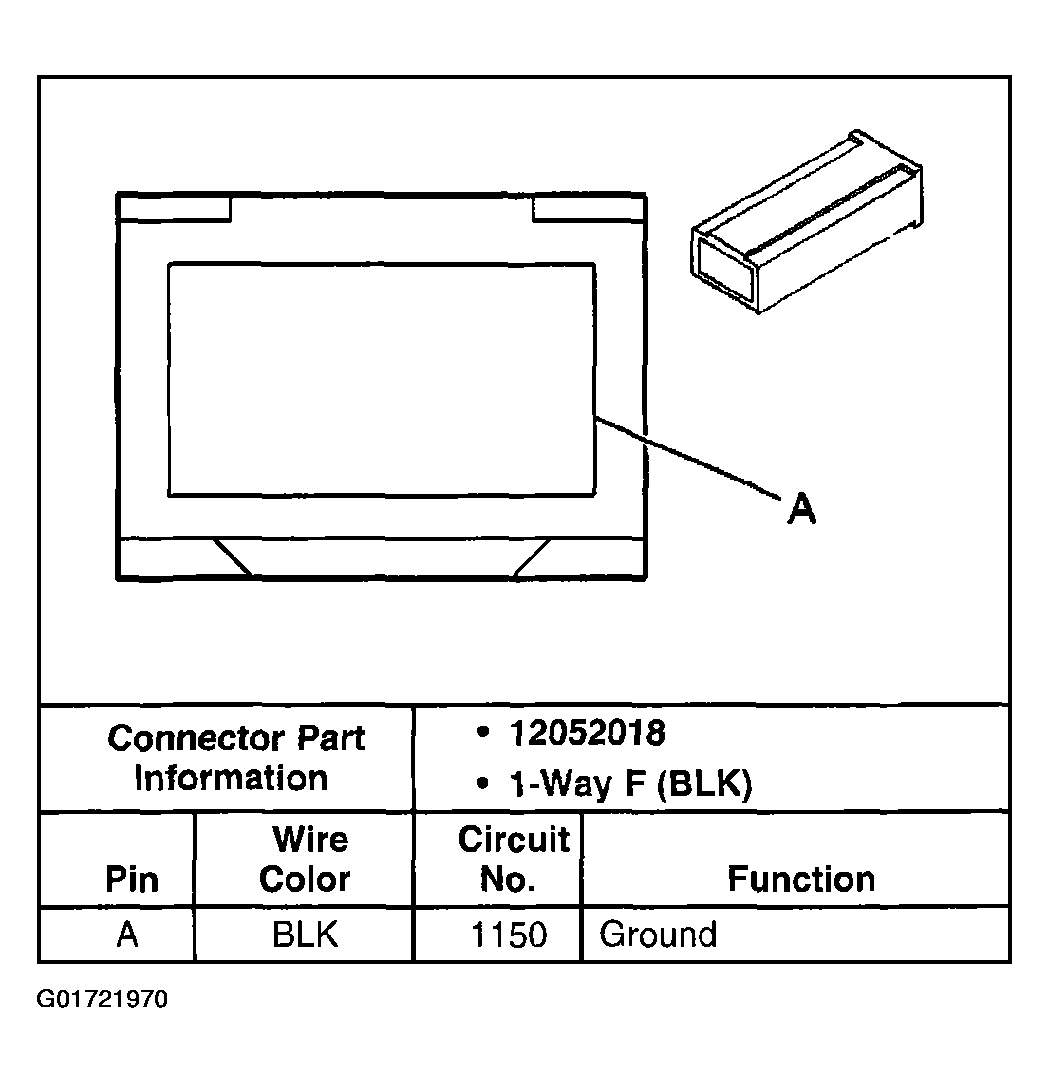

Fig 3: Rear Window Defogger Connector End Views - C2
G01721970Courtesy of GENERAL MOTORS CORP.
