Removal Procedure

  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.

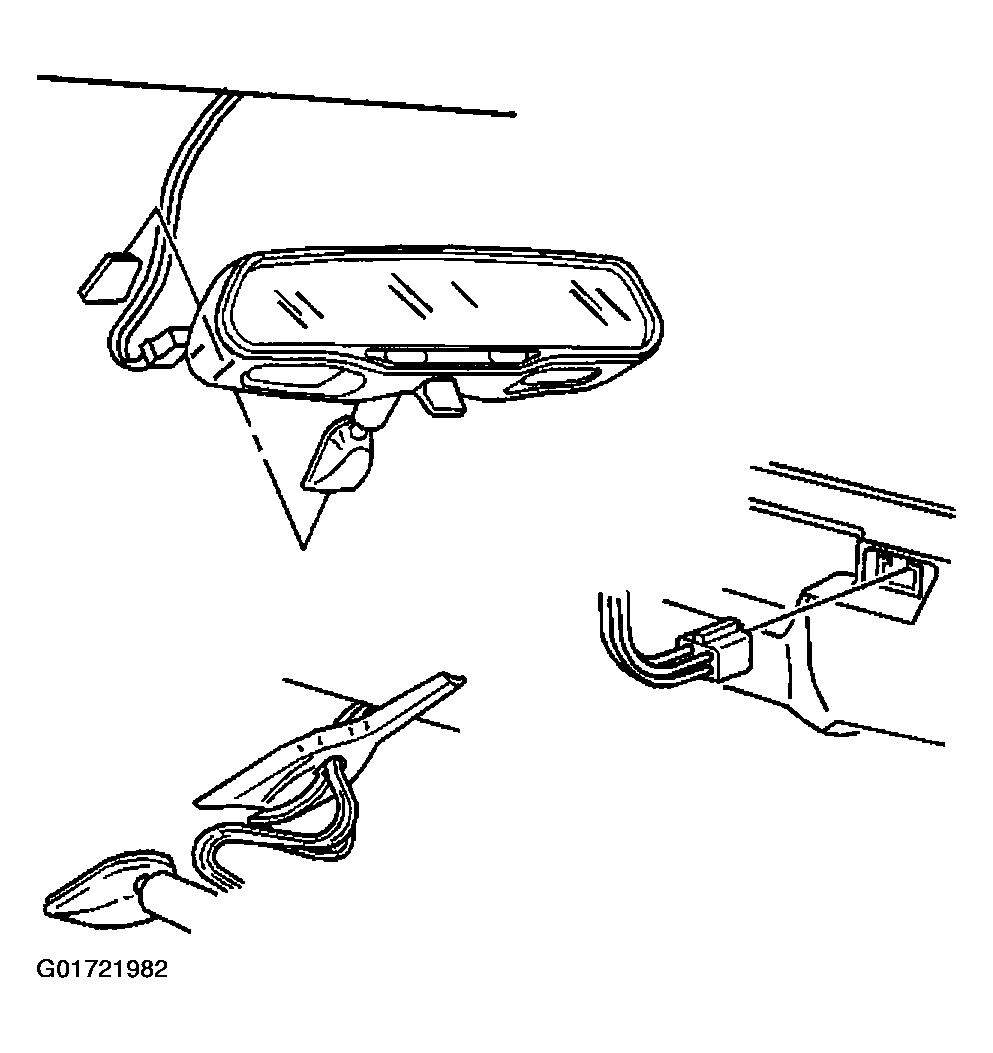

    Fig 1: Removing Rearview Mirror Wire Harness
    G01721982Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw from the base.
  3. Slide mirror off of the support.
  4. Disconnect the electrical connector from the lighted rearview mirror, if equipped.

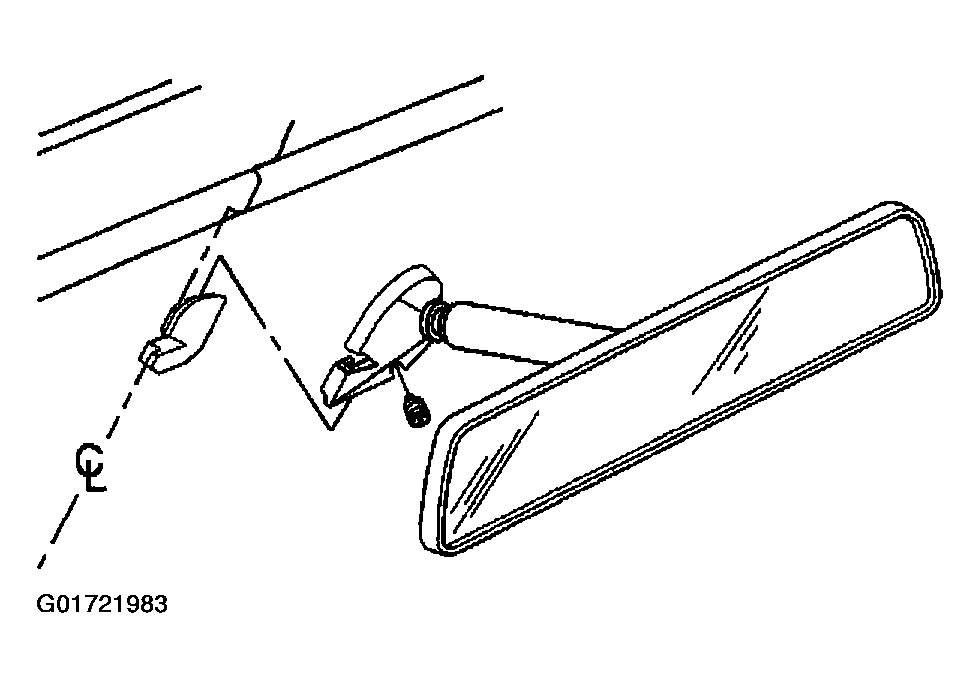

    Fig 2: Removing Rearview Mirror Base Screw
    G01721983Courtesy of GENERAL MOTORS CORP.
