Data Display/Definitions

The Scan Tool Data Display/Definitions contains a brief description of all the ABS/ TCS/VSES data parameters. The menus available depend on the number and type of system on the vehicle and are listed below in alphanumeric order.

ABS Active:  The scan tool displays Yes or No. The scan tool will display Yes when the ABS is active and No during normal vehicle operation.

ABS Warning Lamp:  The scan tool will display On or Off depending on the state of the ABS indicator.

Brake Switch:  The scan tool will display Applied or Released depending on the state of the brake switch.

DRP Active:  The scan tool will display Yes/No depending on the state of the DRP.

DRP Disabled:  The scan tool will display Yes/No depending on the state of the DRP.

EBTCM to PCM Requested Torque:  The scan tool displays 0-100 percent. The scan tool displays the duty cycle of the Delivered Torque PWM signal. The duty cycle of the signal is used to transmit how much torque the EBCM is requesting the PCM to deliver. Normal values are between 10 and 90 percent duty cycle. The signal should be at 90 percent duty cycle when traction control is not active and at a lower value, approximately 10 percent, when the traction control is active.

Engine Speed:  The scan tool will display between 0 to 10200 RPM which is a digital tachometer display.

Ignition Voltage:  The scan tool displays 0-17 Volts. The scan tool displays the level of ignition voltage at the EBCM.

LF Inlet Valve Solenoid Inactive:  The scan tool will display Active or Inactive. The scan tool displays the commanded state of the LF inlet solenoid valve.

LF Outlet Valve Solenoid Inactive:  The scan tool will display Active or Inactive. The scan tool displays the commanded state of the LF outlet solenoid valve.

LF TCS Isolation Solenoid:  The scan tool will display Active/Inactive. This displays the commanded state of the solenoid valve.

LF TCS Prime Solenoid:  The scan tool will display Active/Inactive. This displays the commanded of the solenoid valve.

Left Front Wheel Speed:  The scan tool displays 0-255 km/h or (0-158 mph). The scan tool displays the actual speed of the left front wheel.

Left Rear Wheel Speed:  The scan tool displays 0-255 km/h or (0-158 mph). The scan tool displays the actual speed of the left rear wheel.

Low Traction Lamp:  The scan tool will display On/Off. This will indicate the state of the LOW TRAC Indicator.

LR Inlet Valve Solenoid Inactive:  The scan tool displays Active or Inactive. The scan tool displays the commanded state of the LR inlet solenoid valve.

LR Outlet Valve Solenoid Inactive:  The scan tool displays Active or Inactive. The scan tool displays the commanded state of the LR outlet solenoid valve.

Monitor Relay State:  The scan tool display On/Off. This is the commanded state of the relay.

PCM to EBTCM Delivered Torque:  The scan tool displays 0-100 percent. The scan tool displays the duty cycle of the Requested Torque PWM signal. The duty cycle of the signal is used to transmit how much engine torque the PCM is delivering. Normal values are between 10 and 90 percent duty cycle. The signal is at low values, approximately 10 percent, at idle and at higher values under driving conditions.

RF Inlet Valve Solenoid Inactive:  The scan tool displays Active or Inactive. The scan tool displays the commanded state of the RF inlet solenoid valve.

RF Outlet Valve Solenoid Inactive:  The scan tool displays Active or Inactive. The scan tool displays the commanded state of the RF outlet solenoid valve.

Right Front Wheel Speed:  The scan tool displays 0-255 km/h or (0-158 mph). The scan tool displays the actual speed of the right front wheel.

RF TCS Isolation Solenoid:  The scan tool will display Active/Inactive. This will be the commanded state of the solenoid valve.

RF TCS Prime Solenoid:  The scan tool will display Active/Inactive. This will be the commanded state of the solenoid valve.

RR Inlet Valve Solenoid Inactive:  The scan tool displays Active or Inactive - The scan tool displays the commanded state of the RR inlet solenoid valve.

RR Outlet Valve Solenoid Inactive:  The scan tool displays Active or Inactive - The scan tool displays the commanded state of the RR outlet solenoid valve.

Right Rear Wheel Speed:  The scan tool displays 0-255 km/h or (0-158 mph). The scan tool displays the actual speed of the right rear wheel.

Rough Road Parameters:  The scan tool will display 0 to 1 g. The scan tool will display the EBCM calculation of the road surface roughness. This information is then sent to the PCM over the class 2 serial data line. This information is used by the PCM for misfire detection.

TCS Active:  The scan tool displays Off or On. The scan tool displays On if the TCS indicator is currently being commanded ON.

TCS Switch State:  The scan tool displays Pressed or Released. The scan tool will display the state of the Traction Control Switch.

TCS Warning Lamp:  The scan tool will display On or Off depending on the state of the TCS indicator.

Valve Relay State:  The scan tool will display On/Off depending on the state of the relay.

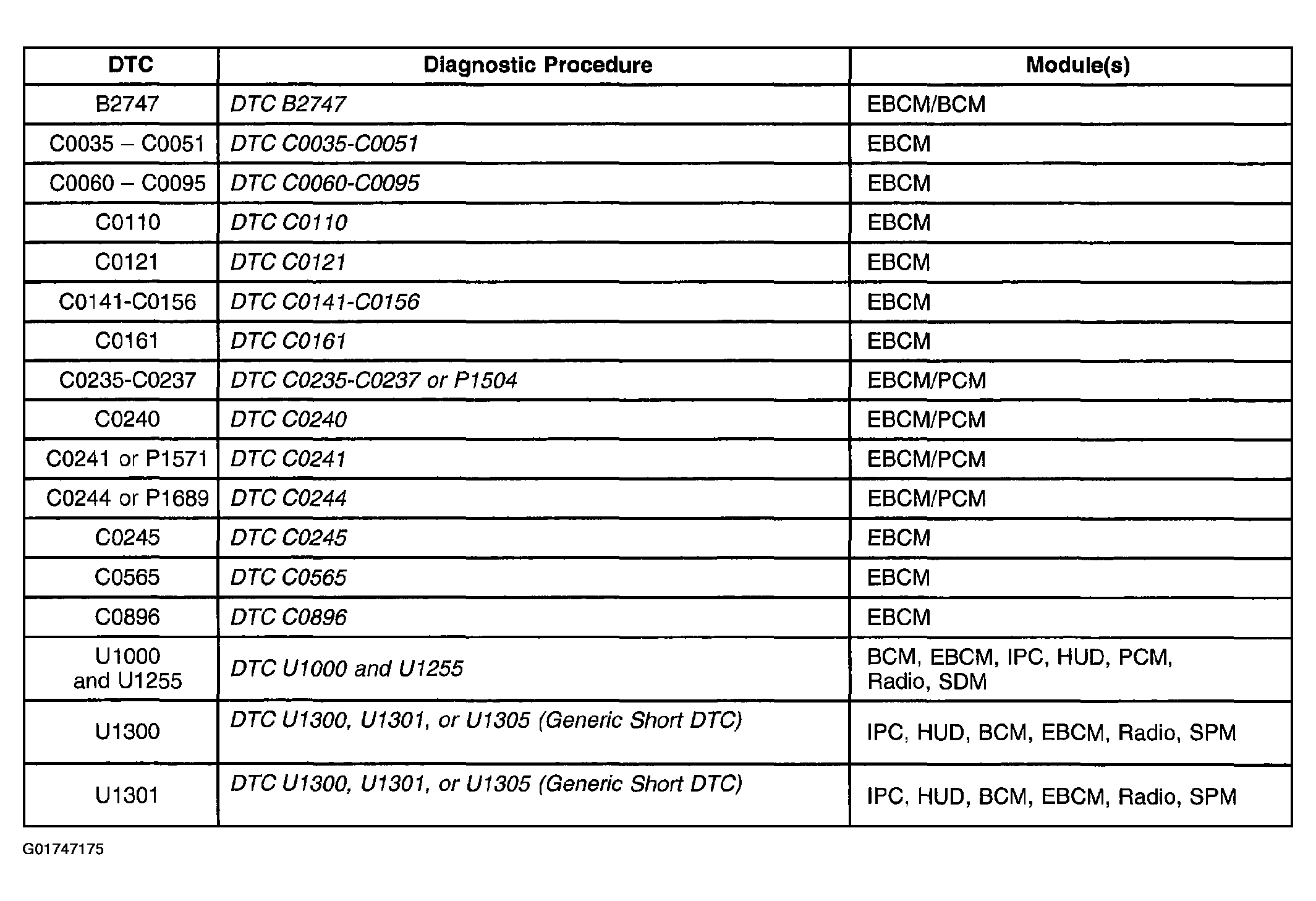

Fig 1: Diagnostic Trouble Code (DTC) List
G01747175Courtesy of GENERAL MOTORS CORP.
DIAGNOSTIC TROUBLE CODE (DTC) DEFINITION

DTC Description
B2747  Traction Control Switch Circuit Low
C0035  LF Wheel Speed Circuit Malfunction
C0040  RF Wheel Speed Circuit Malfunction
C0041  RF Wheel Speed Sensor Circuit Range/Performance (EBCM)
C0045  LR Wheel Speed Circuit Malfunction
C0046  LR Wheel Speed Sensor Circuit Range/Performance (EBCM)
C0050  RR Wheel Speed Circuit Malfunction
C0051  LF Wheel Speed Sensor Circuit Range/Performance (EBCM)
C0060  LF ABS Solenoid #1 Circuit Malfunction
C0065  LF ABS Solenoid #2 Circuit Malfunction
C0070  RF ABS Solenoid #1 Circuit Malfunction
C0075  RF ABS Solenoid #2 Circuit Malfunction
C0080  LR ABS Solenoid #1 Circuit Malfunction
C0085  LR ABS Solenoid #2 Circuit Malfunction
C0090  RR ABS Solenoid #1 Circuit Malfunction
C0095  RR ABS Solenoid #2 Circuit Malfunction
C0110  Pump Motor Circuit Malfunction
C0121  Valve Relay Circuit Malfunction
C0141  Left TCS Solenoid #1 Circuit Malfunction
C0146  Left TCS Solenoid #2 Circuit Malfunction
C0151  Right TCS Solenoid #1 Circuit Malfunction
C0156  Right TCS Solenoid #2 Circuit Malfunction
C0161  ABS/TCS Brake Switch Circuit Malfunction
C0235  Rear Wheel Speed Signal Circuit Open
C0236  Rear Wheel Speed Signal Circuit Missing
C0237  Rear Wheel Speed Signal Erratic
C0240  PCM Traction Control Not Allowed (ETS)
C0241  EBCM Control Valve Circuit
C0244  PWM Delivered Torque Malfunction
C0245  Wheel Speed Sensor Frequency Error
C0550  ECU Malfunction - Internal Write/Checksum Malfunction
C0565  EBCM Detects Digits 5 Of VIN Is Incorrect
C0896  Electronic Suspension Control (ESC) Voltage Is Outside Normal Range Of 9-15.5 Volts
P1504  Vehicle Speed Output Circuit
P1571  TCS PWM Circuit No Frequency
P1689  Traction Control Delivered Torque Control Circuit
