Removal Procedure

  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK) .

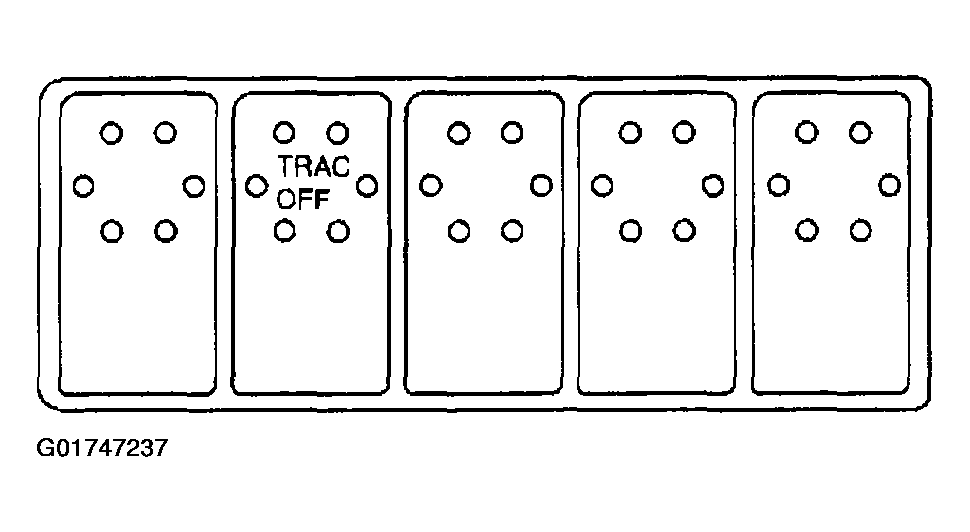

    Fig 1: Removing Instrument Panel Accessory Trim Plate
    G01747237Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts/screws from the switch bank to instrument panel.
  3. Pull straight out from the instrument panel in order to remove the switch bank from the instrument panel.

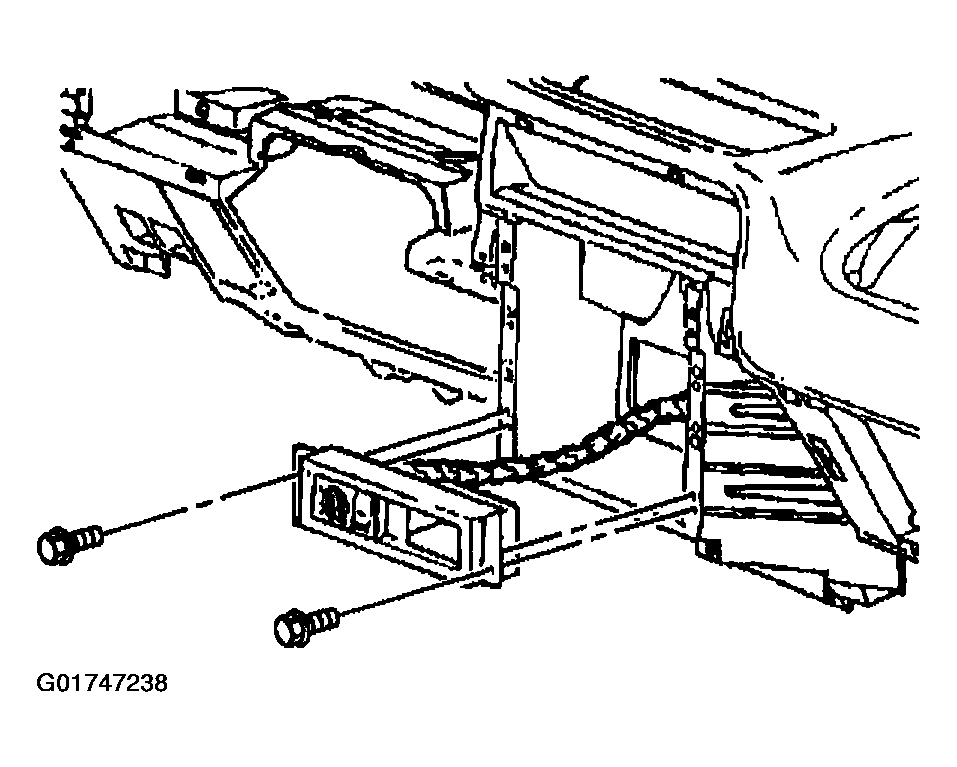

    Fig 2: Removing Switch Bank & Screws
    G01747238Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.

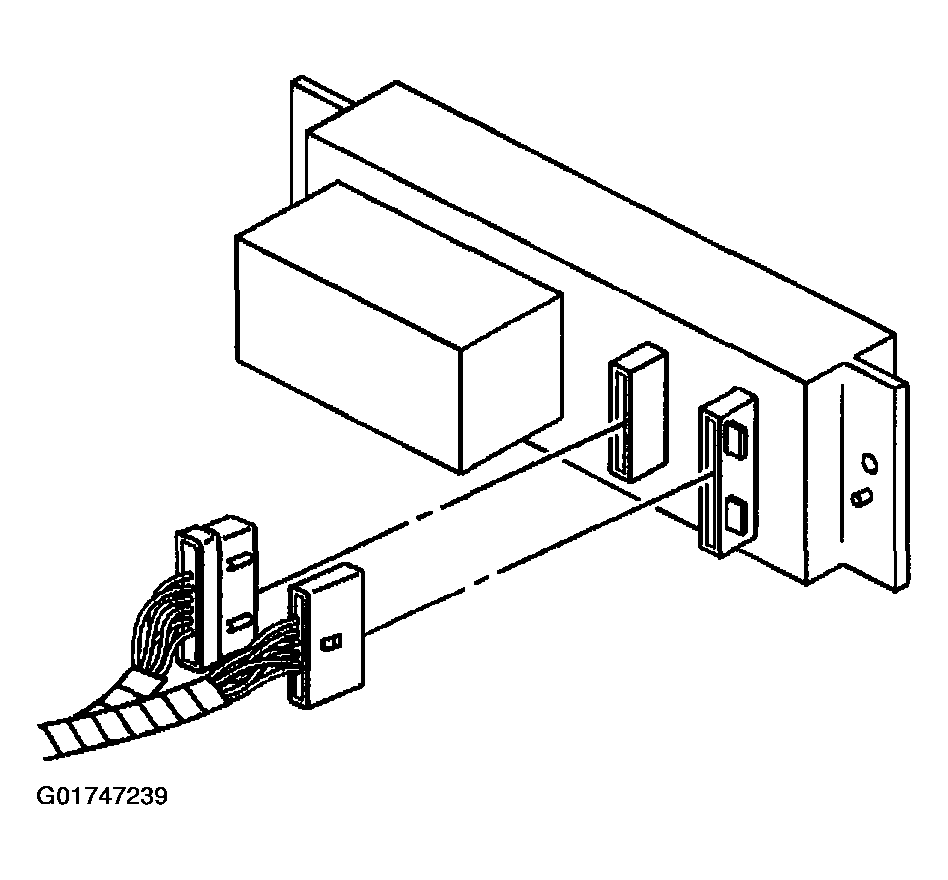

    Fig 3: Disconnecting Electrical Connectors
    G01747239Courtesy of GENERAL MOTORS CORP.
