Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .

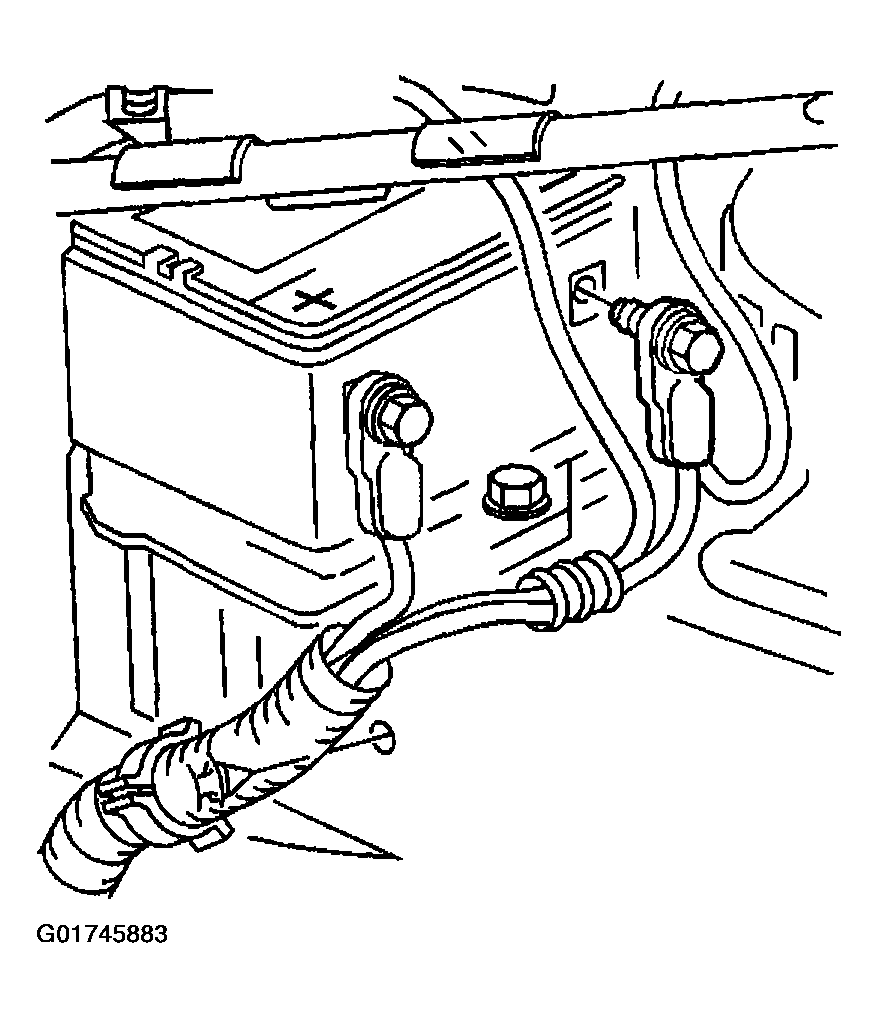

Fig 1: Removing Battery Ground Cable & Bolt

G01745883

Courtesy of GENERAL MOTORS CORP.

Record all of the customer's radio station presets.
Turn off all the lamps and accessories.
Turn the ignition OFF.
Remove the battery ground (negative) cable and bolt from the battery.
