Installation Procedure

  1. Position and support the catalytic converter under the vehicle.
  2. Install a new catalytic converter gasket.
  3. Install the catalytic converter bolts. Do not tighten the bolts.
    Fig 1: Installing Catalytic Converter & Bolts
    G01747754Courtesy of GENERAL MOTORS CORP.
  4. Install a new catalytic converter seal.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the catalytic converter nuts.

    Tighten

    1. 5.1. Tighten the nuts to 35 N.m (26 lb ft).
    2. 5.2. Tighten the bolts to 34 N.m (25 lb ft).
  6. Install the oxygen sensor. Refer to HEATED OXYGEN SENSOR .
  7. Lower the vehicle.

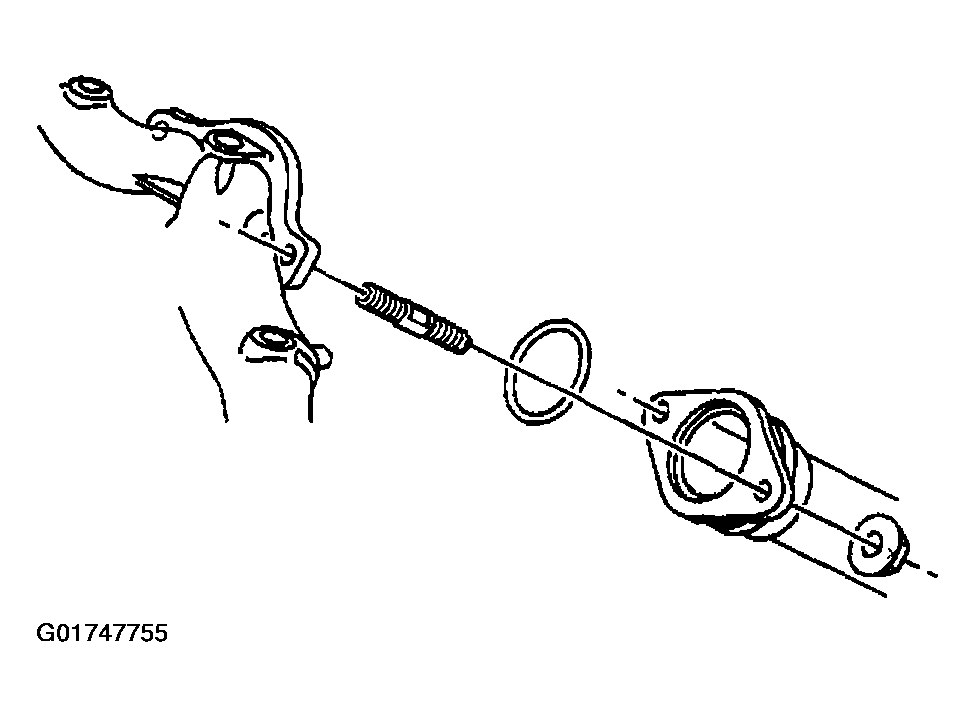

    Fig 2: Installing Catalytic Converter Seal & Nuts
    G01747755Courtesy of GENERAL MOTORS CORP.
