Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reach your hand through the access opening in order to install the OnStar® button assembly (2) and connect the electrical connectors (1).

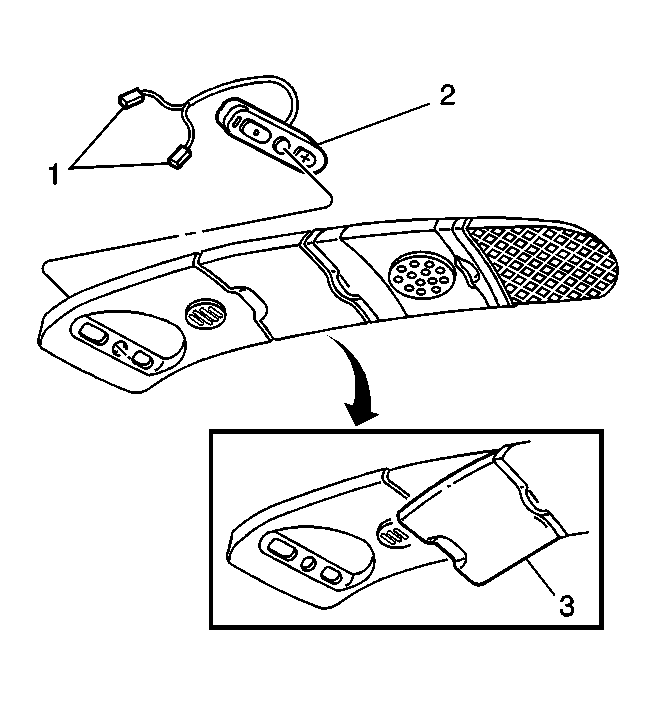

    Fig 1: View Of Onstar® Button Assembly
    GM725613Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the overhead console door (3). Install the screws securing the overhead console door.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).
