Body Control System Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

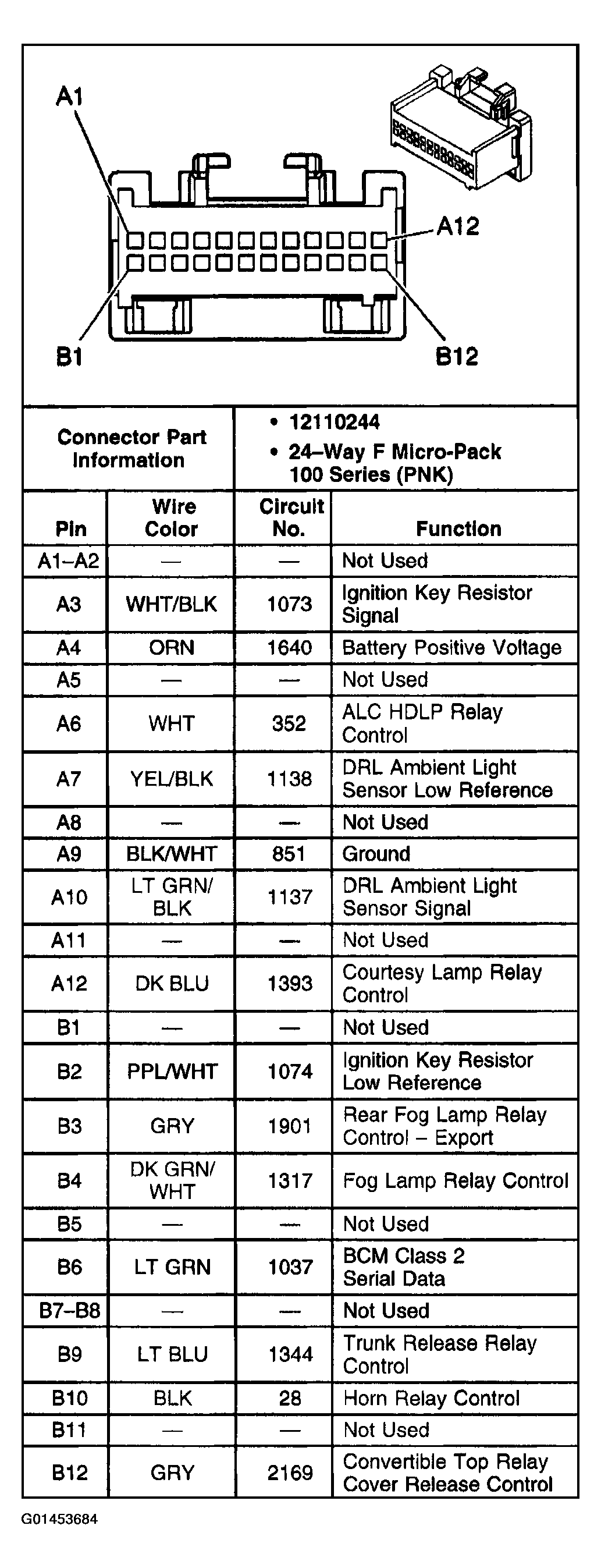

Fig 1: Body Control Module (BCM) C1

Courtesy of GENERAL MOTORS CORP.

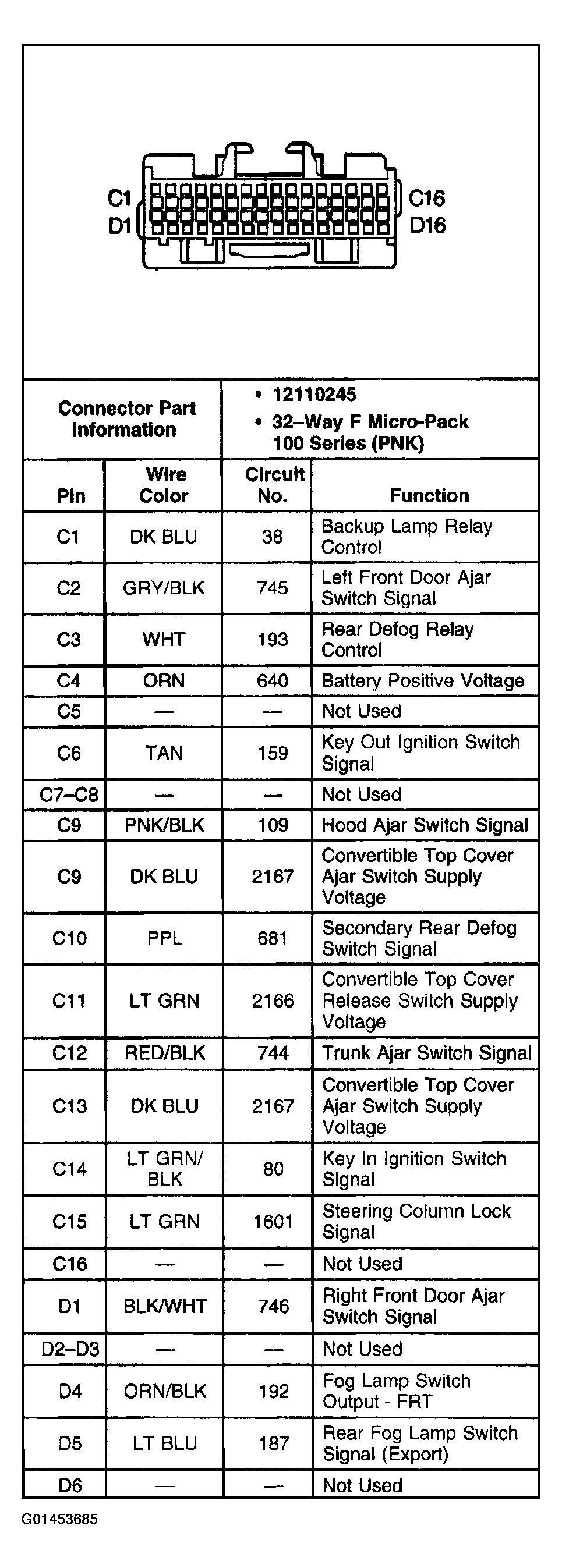

Fig 2: Body Control Module (BCM) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

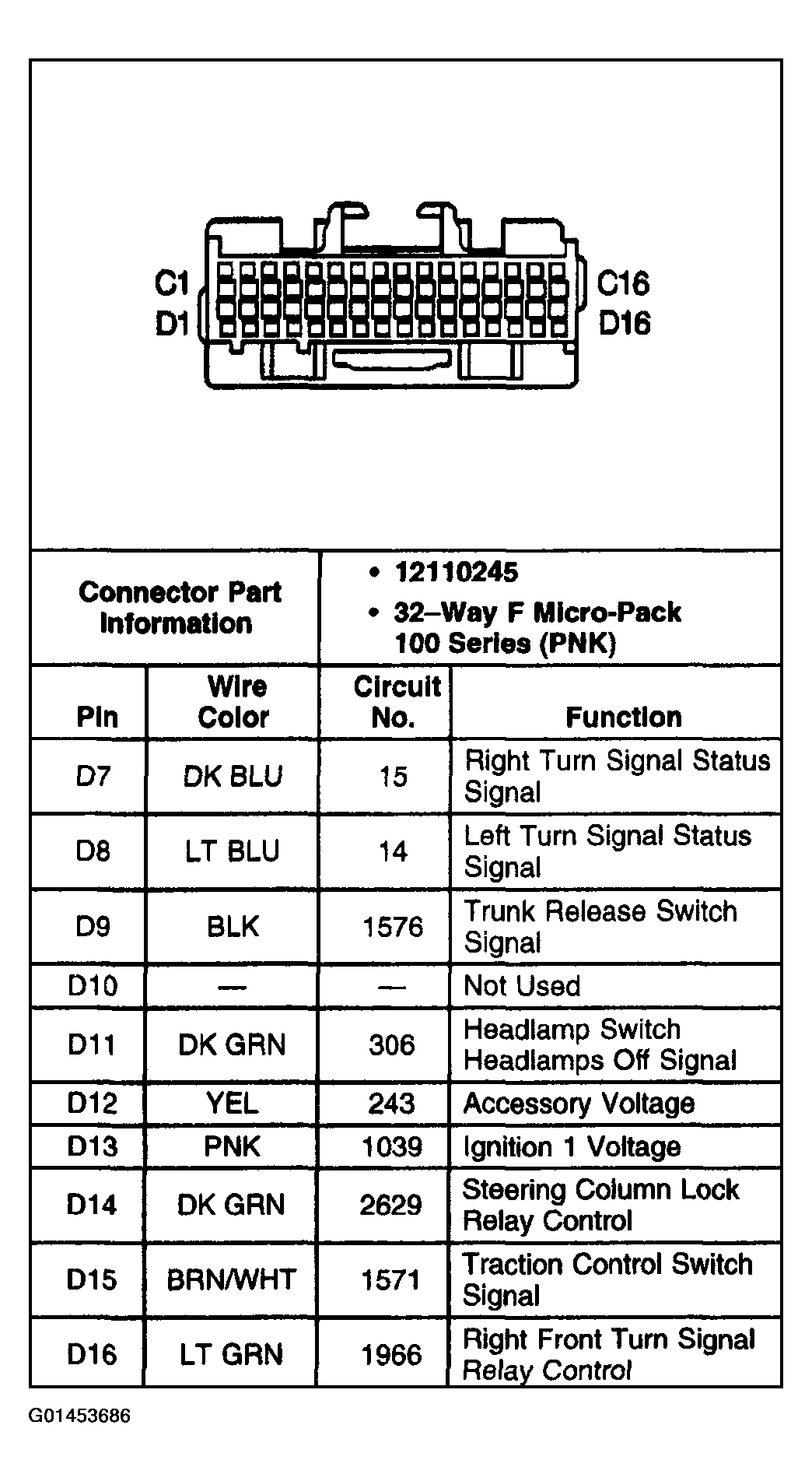

Fig 3: Body Control Module (BCM) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

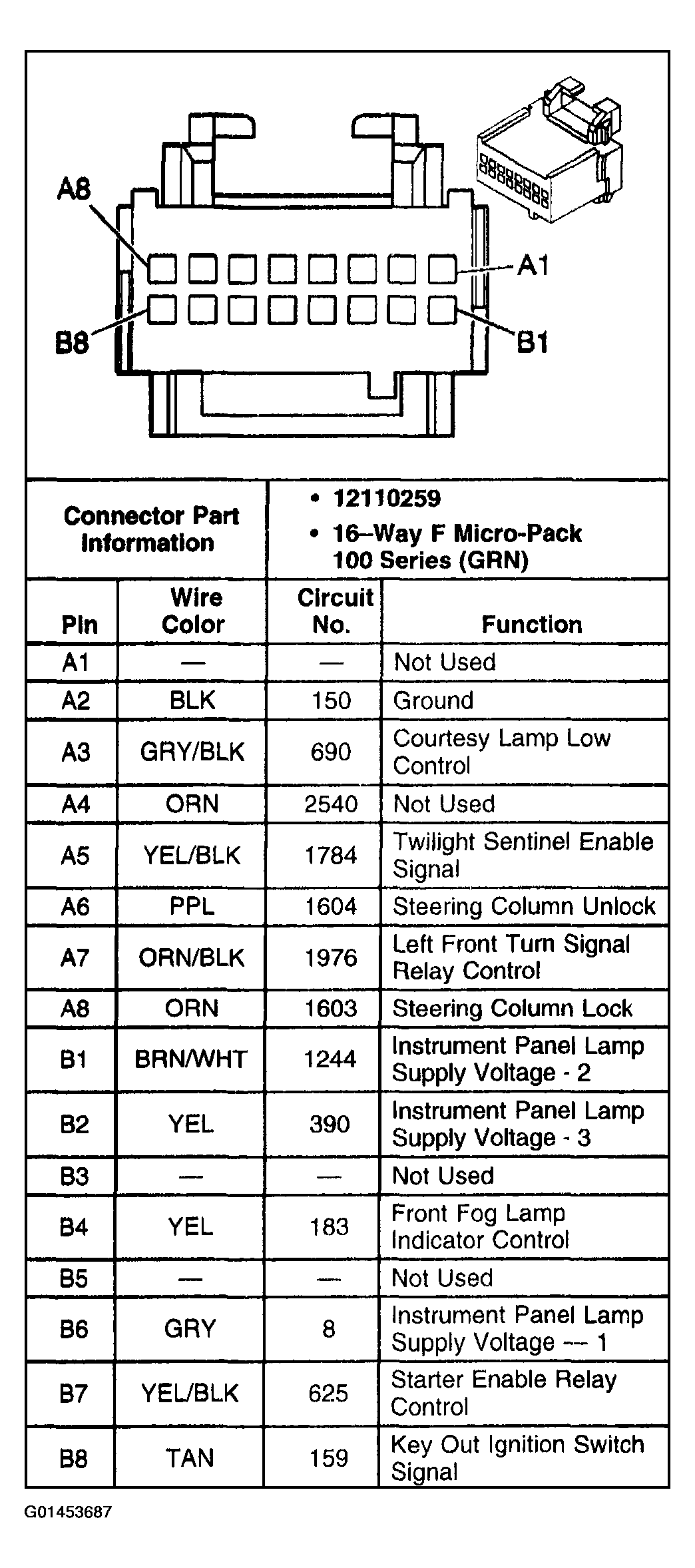

Fig 4: Body Control Module (BCM) C3

Courtesy of GENERAL MOTORS CORP.
