Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Clean back glass with an alcohol wipe.
- Dry the glass thoroughly using a lint free cloth.
- Apply Glass Adhesion Promoter GM P/N 12378555 (Canadian P/N 88901239) to the back glass in the area where you will install the antenna coupling.
Follow the Glass Adhesion Promoter instructions on the product label.
Important:
- Align the inner and outer antenna couplings.
- Do not touch the adhesive backing on the antenna coupling.
- Remove the protective film from the adhesive backing on the outer antenna coupling.
- Align the outer antenna coupling to the inner antenna coupling.

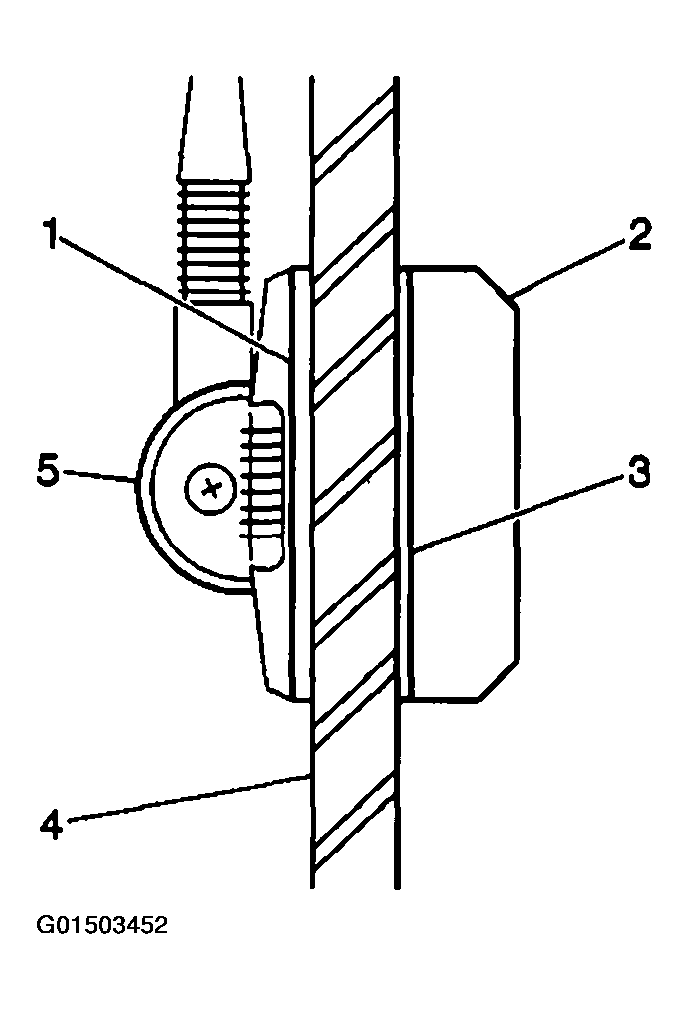

- Press firmly on all 4 corners and on the center of the antenna outer coupling (5) in order to ensure proper adhesion to the back glass (4).
Hold pressure on the outer coupling (5) for 10-30 seconds.
- Ensure that no gaps occur between the couplings (5, 2) and the back glass (4).
- Keep the vehicle dry. Allow 6-8 hours, at 15°C (60°F), for the adhesive to cure after installation.
