Body Control System Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

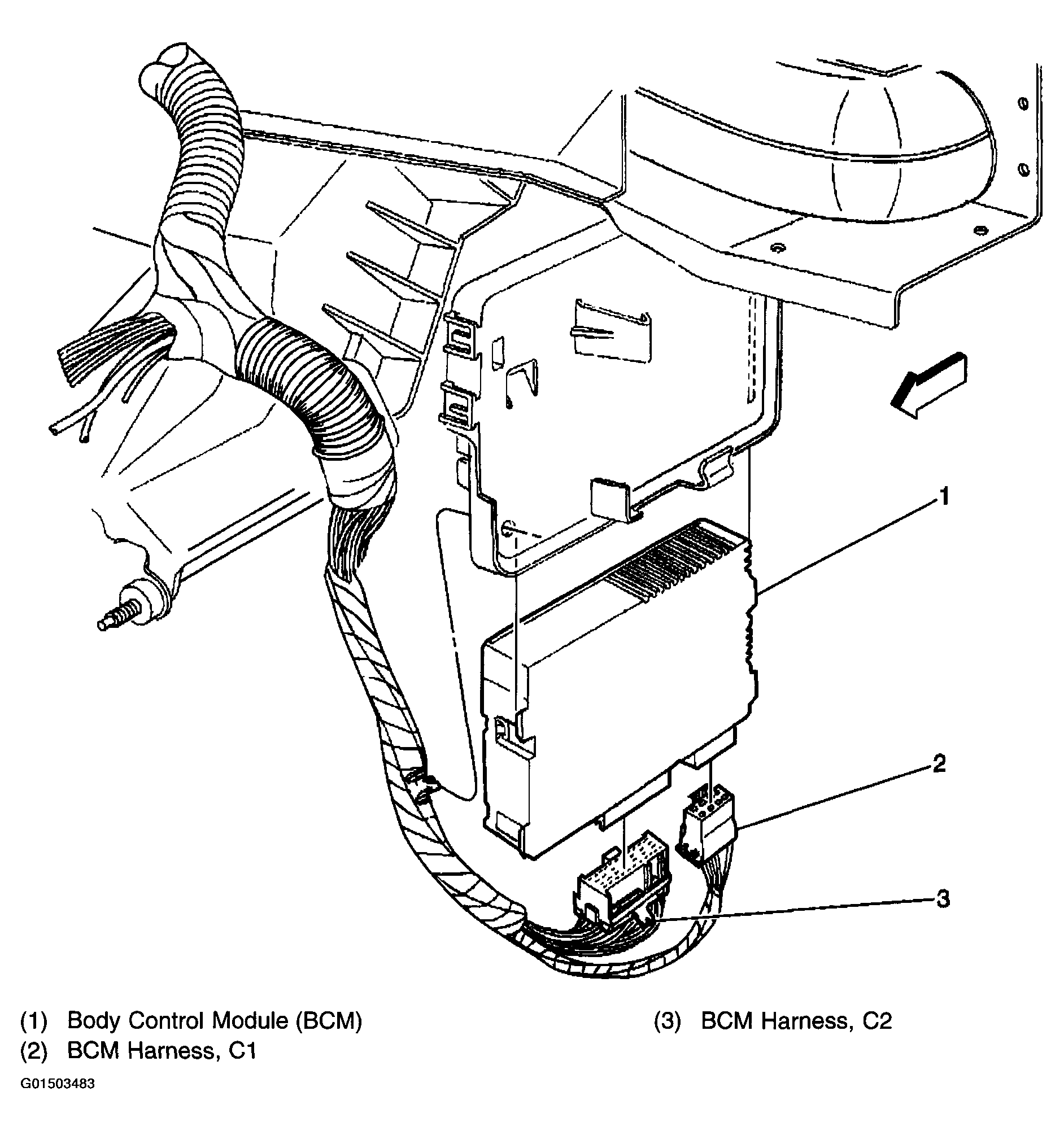

Fig 1: Body Control Module (Lower LH Side Of Instrument Panel) Component View
G01503483Courtesy of GENERAL MOTORS CORP.
