Cruise Control Connector End Views
WARNING:
This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

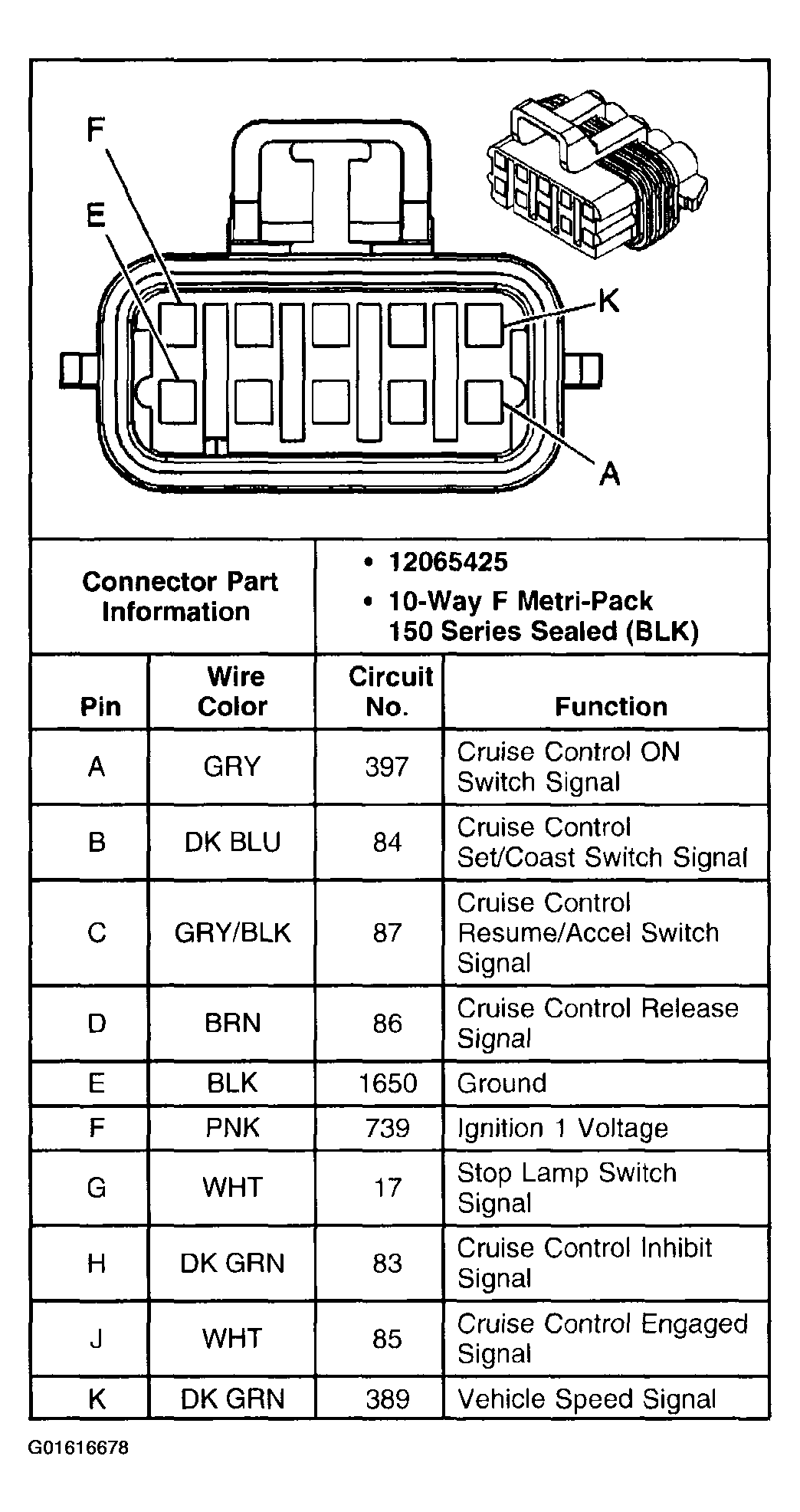

Fig 1: Cruise Control Module (CCM)
Courtesy of GENERAL MOTORS CORP.

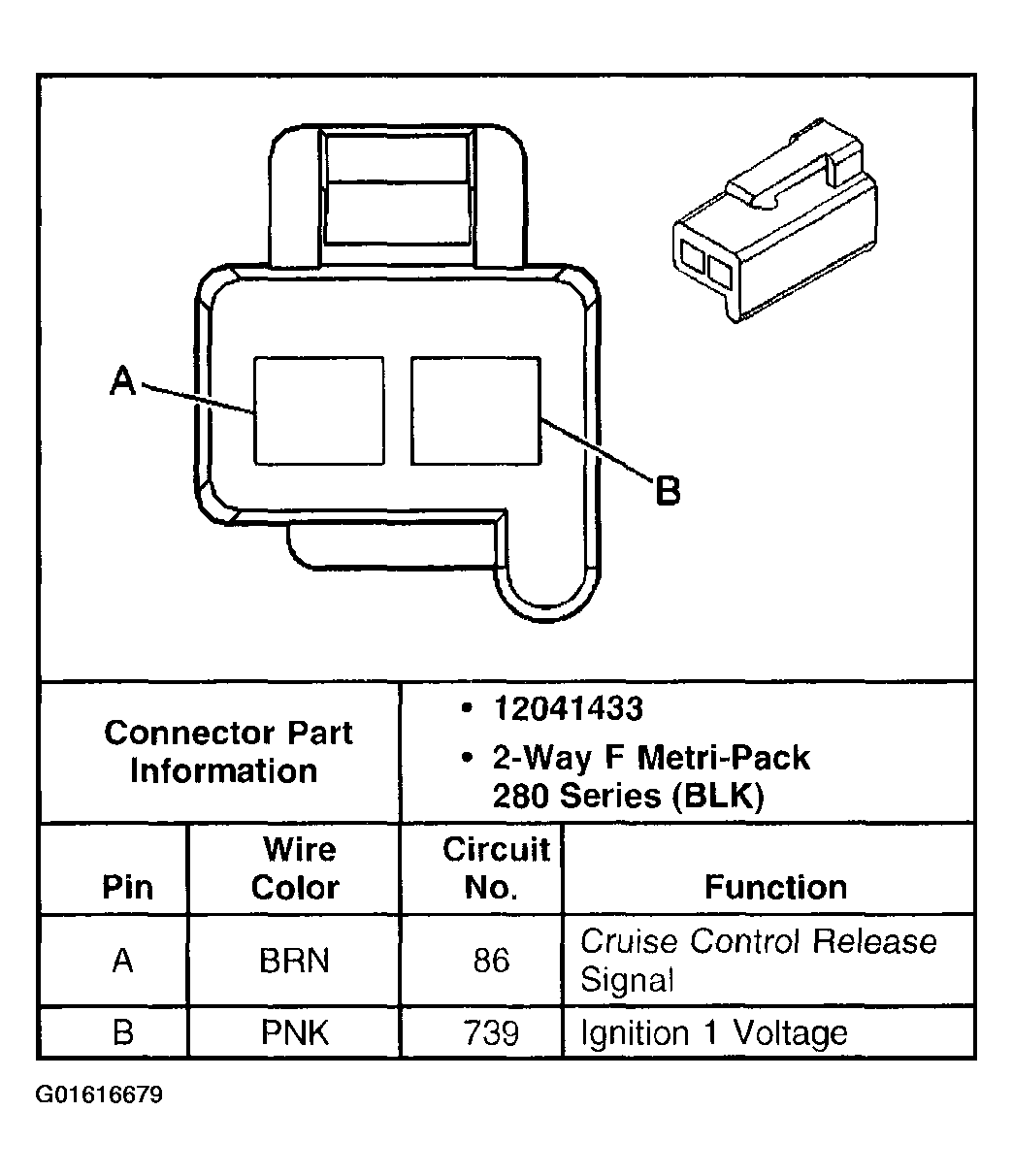

Fig 2: Cruise Control Release Switch
Courtesy of GENERAL MOTORS CORP.
