Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module on the mounting studs.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the cruise control module mounting nuts on the strut tower.

    Tighten

    Tighten the mounting nuts to 2 N.m (18 lb in).

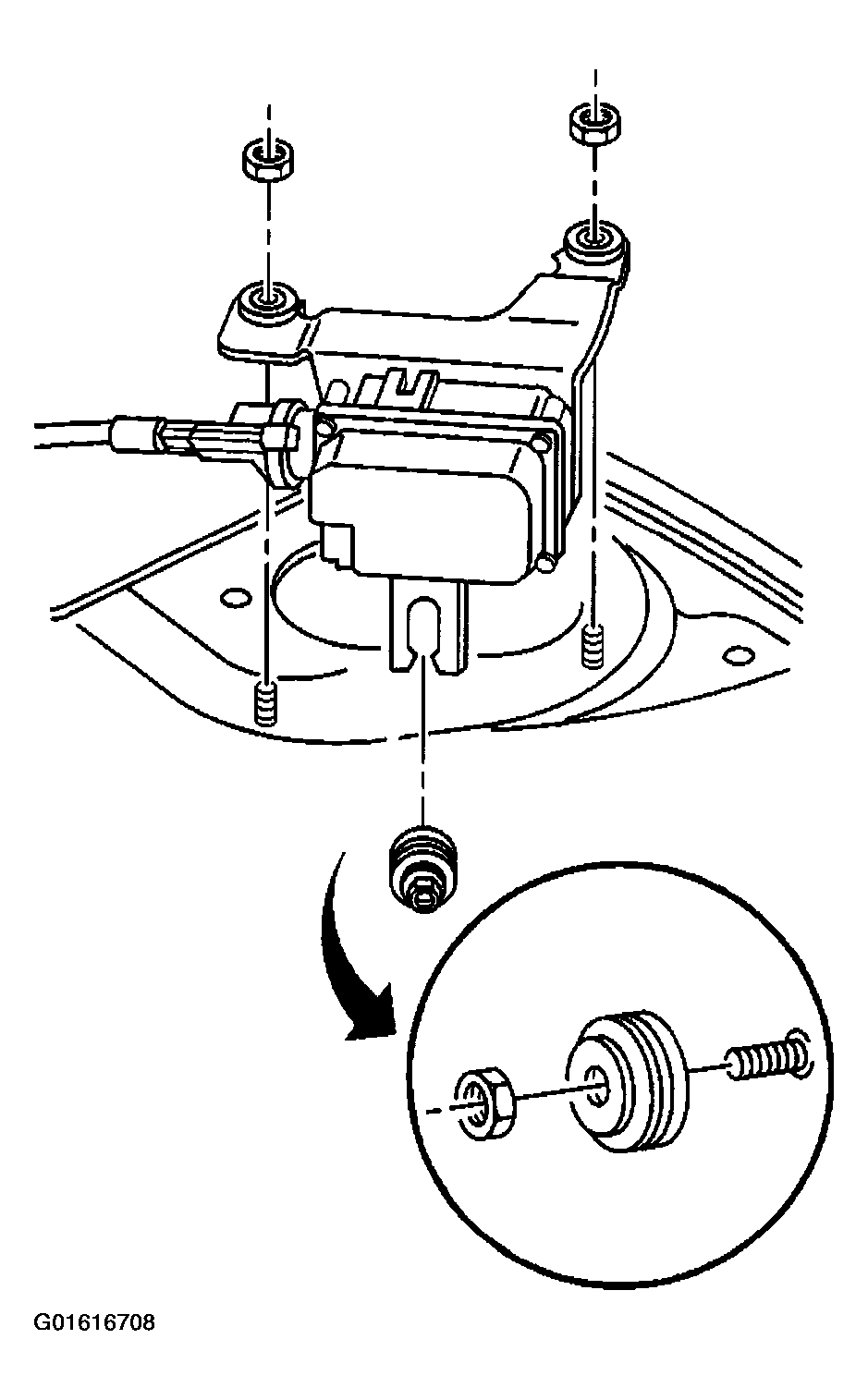

    Fig 1: Cruise Control Module & Mounting Nuts
    G01616708Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the cruise control module.
  4. Install the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement (3.1L)  or Cruise Control Cable Replacement (3.8L) .

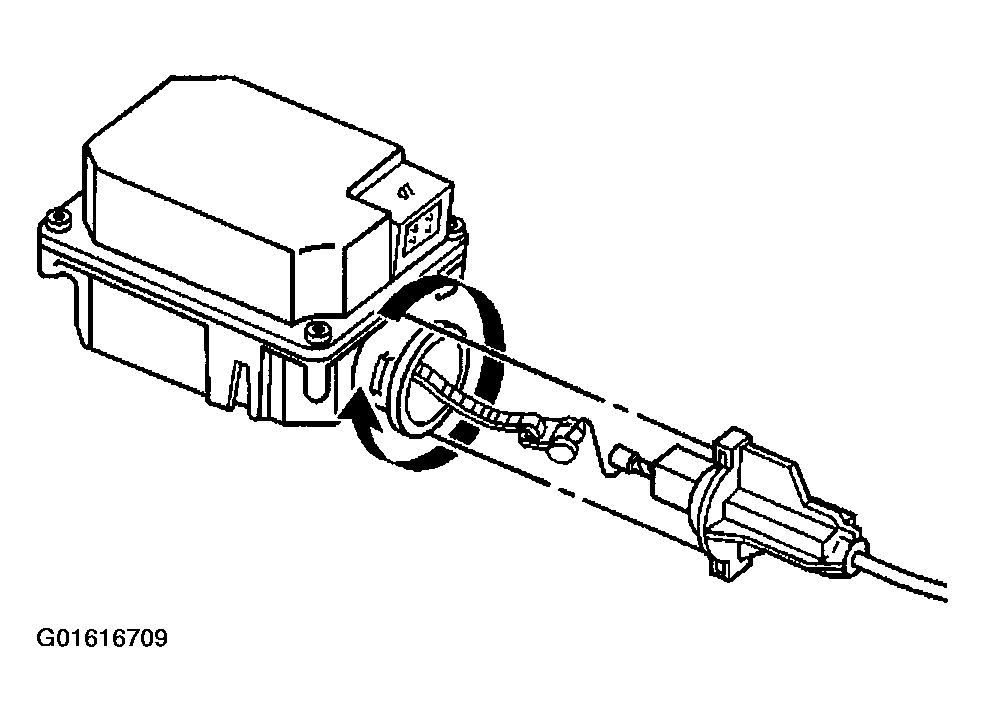

    Fig 2: Installing Cruise Control Cable To Module
    G01616709Courtesy of GENERAL MOTORS CORP.
