Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.

IMPORTANT: The cruise control module is mounted to the left strut tower. Service the cruise control module as a complete unit.

Remove the cruise control cable from the cruise control module. Refer to Cruise Control Cable Replacement (3.1L) or Cruise Control Cable Replacement (3.8L) .
Disconnect the electrical connector from the cruise control module.

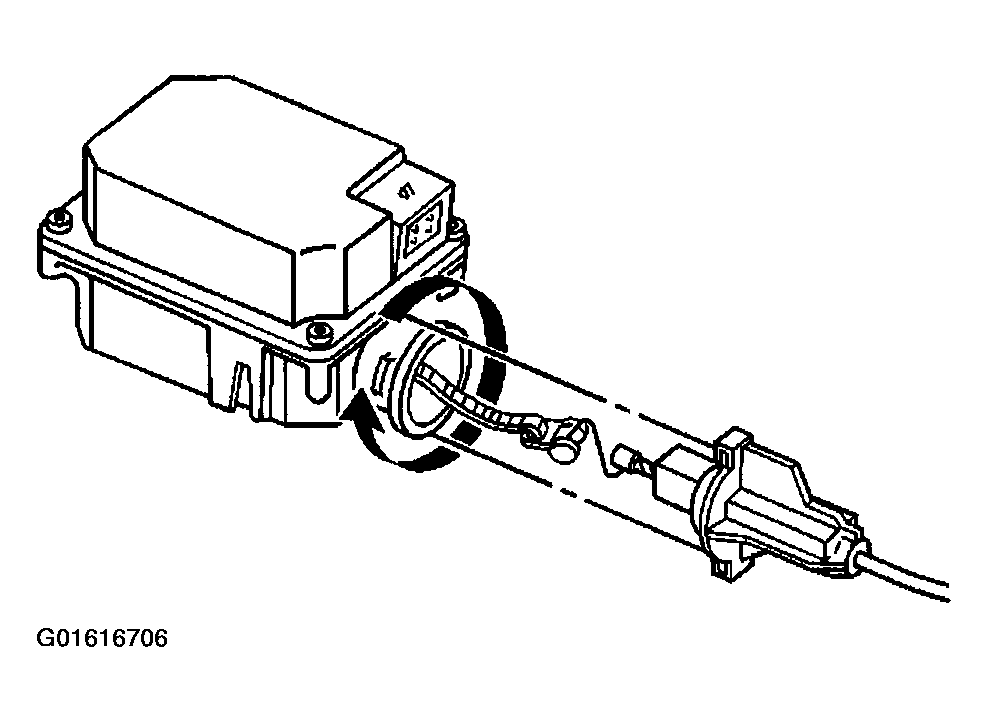

Fig 1: Removing Cruise Control Cable From Module
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module mounting nuts.

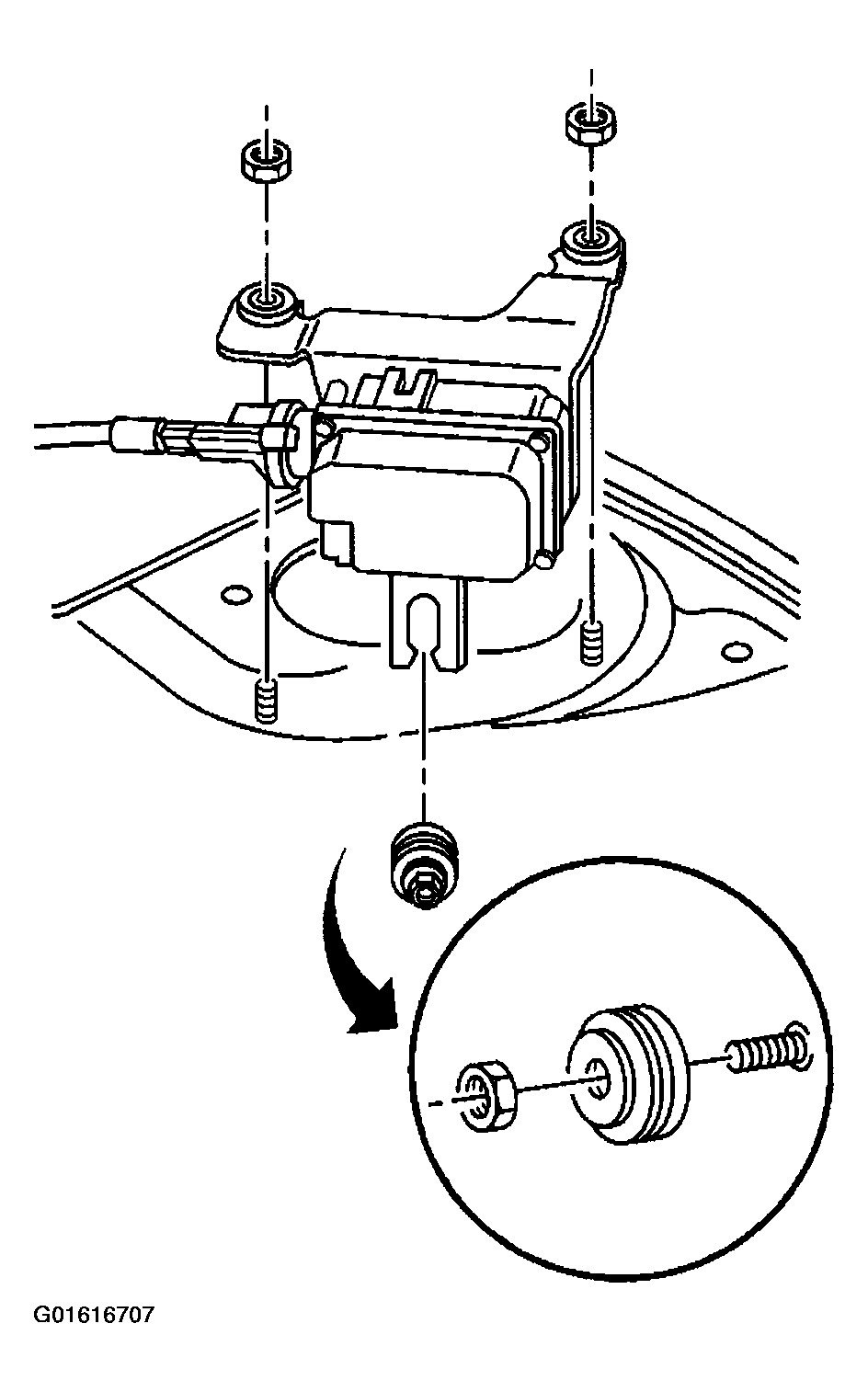

Fig 2: Cruise Control Module & Mounting Nuts
Courtesy of GENERAL MOTORS CORP.
