Data Link Communications Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunload Sensor |
| 2 |
HVAC Module Assembly |
| 3 |
Air Temperature Actuator (C60) |
| 4 |
Vacuum Control Assembly (CJ2) |
| 5 |
Blower Motor |
| 6 |
Blower Motor Control Processor |
| 7 |
Fuse Block-IP |
| 8 |
Body Control Module (BCM) |
| 9 |
Ignition Switch |
| 10 |
Air Temperature Sensor - Inside |
| 11 |
Telescoping Actuator Switch |
| 12 |
Data Link Connector (DLC) |
| 13 |
Multifunction Turn Signal Lever |
| 14 |
Ambient Light Sensor |
| 15 |
Windshield Wiper/Washer Switch |

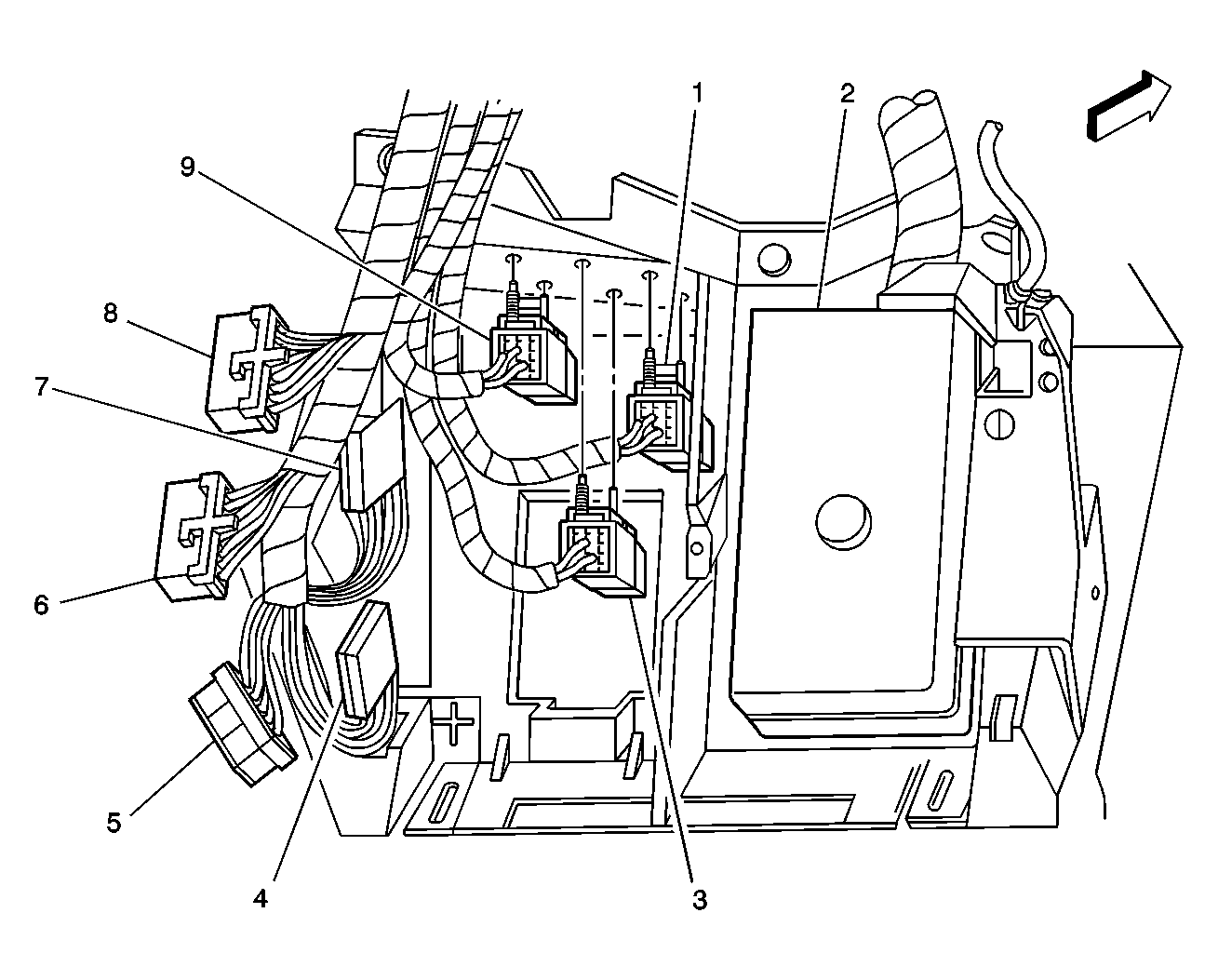

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Theft Deterrent Relay |
| 2 |
Fuse Block-IP |
| 3 |
Blower Motor Relay |
| 4 |
Star Connector #2 |
| 5 |
Body Control Module (BCM) C3 |
| 6 |
Body Control Module (BCM) C1 |
| 7 |
Star Connector #1 |
| 8 |
Body Control Module (BCM) C2 |
| 9 |
Steering Column Lock Relay |
