Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

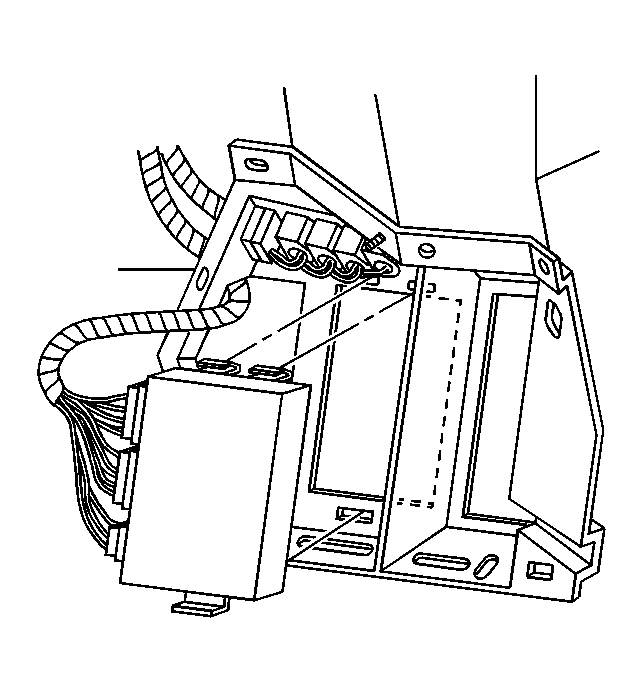

Fig 1: BCM & Harness Connectors

Courtesy of GENERAL MOTORS CORP.

NOTE: To prevent possible electrostatic discharge damage to the BCM, do not touch the connector pins or soldered components on the circuit board.

NOTE: To prevent internal BCM damage, the ignition must be OFF when disconnecting or reconnecting power to BCM (for example, battery cable, BCM connectors, BCM fuses, jumper cables, etc.).

NOTE: The BCM electrical connectors are designed with tabs and slots that allow the connectors to only fit one way. The connectors do not require excessive force if being installed correctly. Installing the connectors with the wrong mating half or upside down can cause damage to the connector, the BCM, or other vehicle components or systems.

Turn OFF the ignition switch.
Connect the harness connectors to the BCM.
Position the BCMs upper mounting tabs into the slots in the bracket.
Push the lower mounting tab into the bracket and snap the BCM into place.
Install the front floor kick-up panel (RH). Refer to Kick-Up Panel Replacement - Front Floor in Interior Trim.
If a new or replacement BCM is being installed into the vehicle, program the BCM to the current vehicle. Refer to Body Control Module (BCM) Programming/RPO Configuration .
