Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module.
  2. Connect the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement (4.3L Engine)   .
    NOTE: Refer to FASTENER NOTICE .
  3. Install the cruise control module nuts.

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

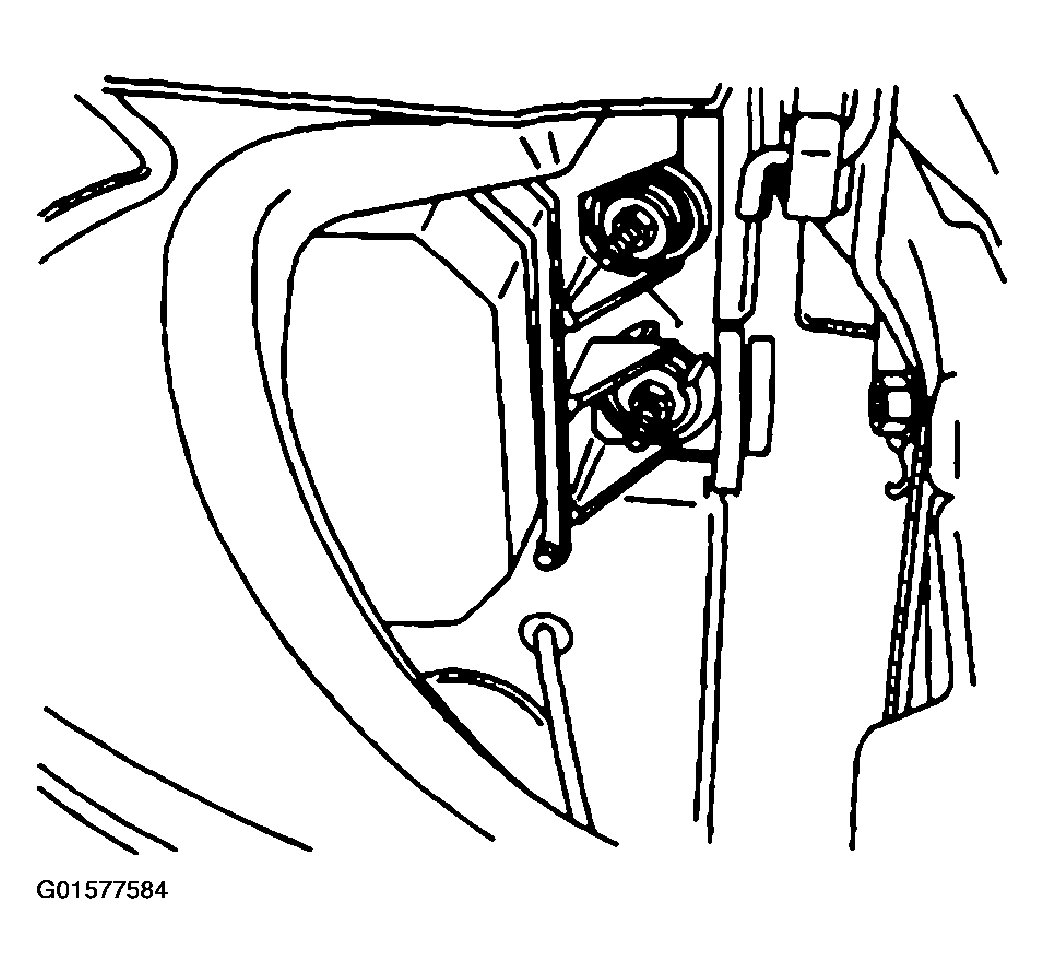

    Fig 1: Installing Cruise Control Module
    G01577584Courtesy of GENERAL MOTORS CORP.
  4. Connect the cruise control module electrical connector.

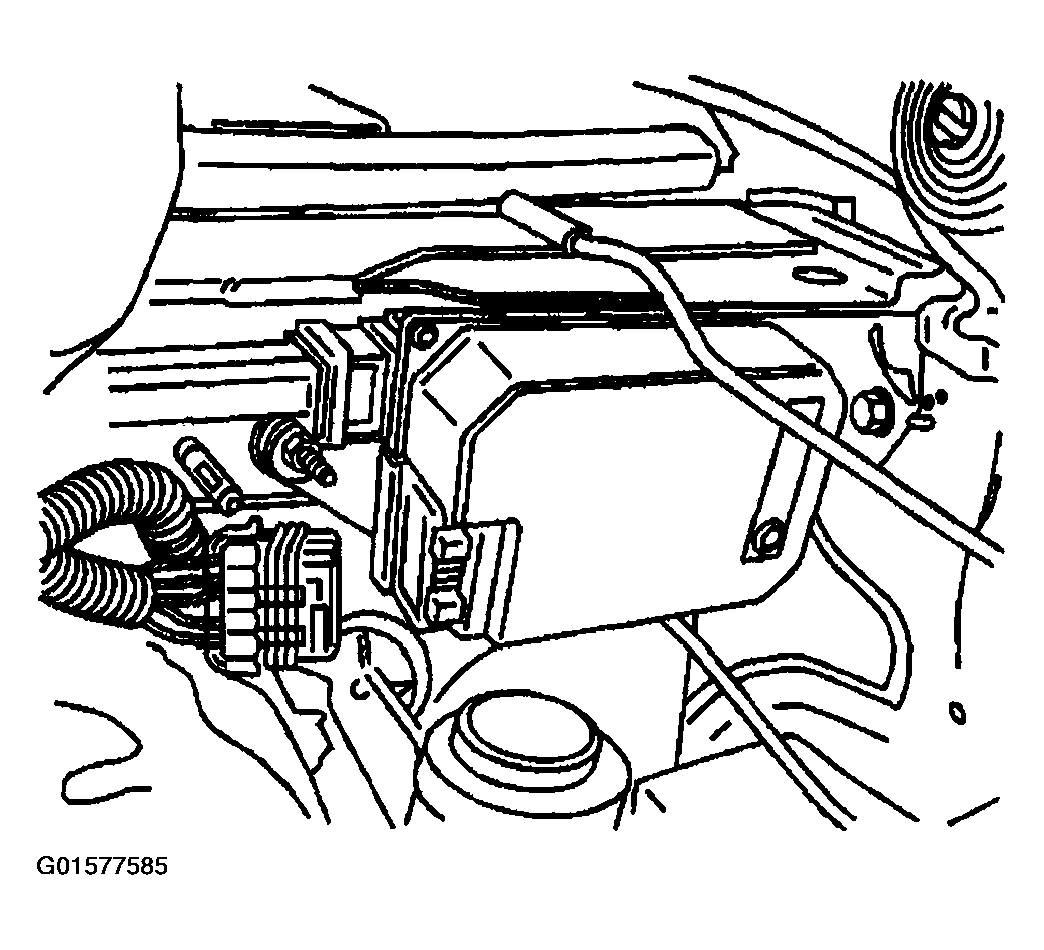

    Fig 2: Connecting Cruise Control Module Electrical Connector
    G01577585Courtesy of GENERAL MOTORS CORP.
  5. Install the upper fender brace.
  6. Install the upper fender brace bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

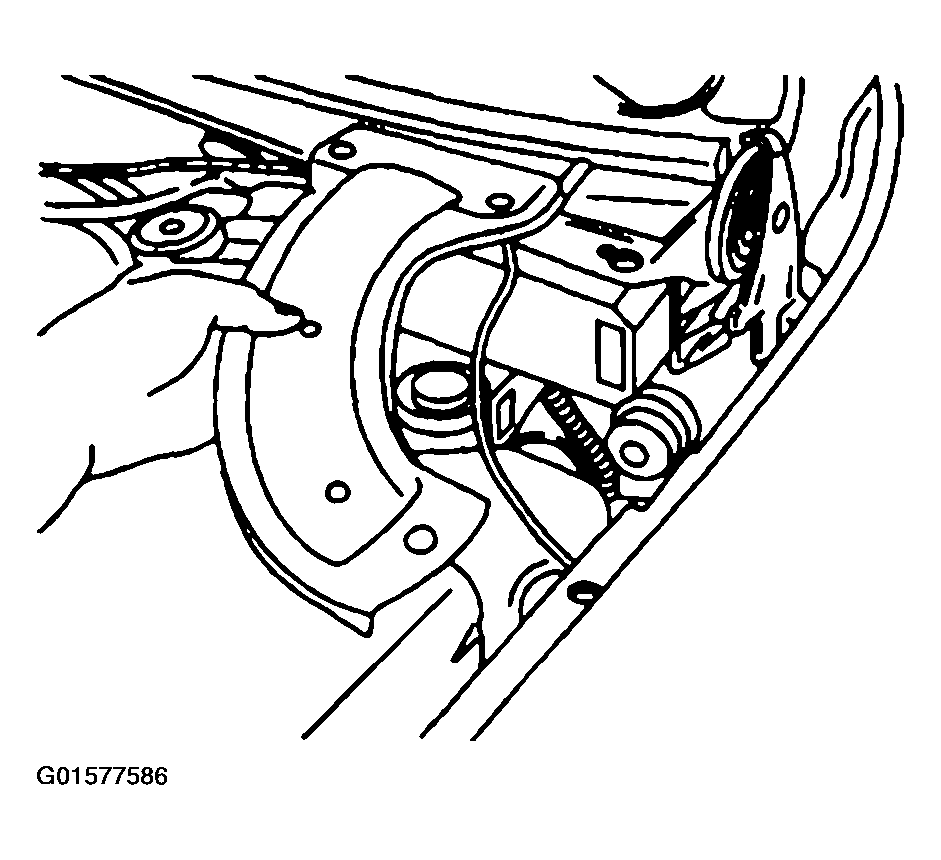

    Fig 3: Installing Upper Fender Brace
    G01577586Courtesy of GENERAL MOTORS CORP.
