Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.

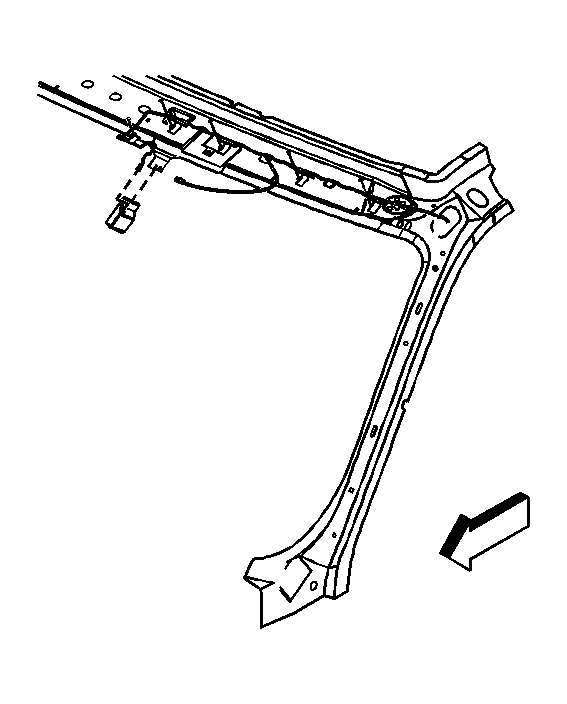

    Fig 1: Navigation Antenna
    GM813589Courtesy of GENERAL MOTORS CORP.
  1. Install the antenna to the bracket in order to connect the coaxial cable.
  2. Connect the coaxial cable to the antenna.
  3. Slide the antenna until it clicks in place.
