Enabling Air Bag System

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2001 Chevrolet Monte Carlo, and 2001 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure left side impact air bag module connector is connected, located under driver seat. See Fig 1.
  2. Ensure right instrument panel air bag module connector is connected, located at right side of instrument panel. See Fig 2.
  3. Ensure steering wheel air bag module connector is connected, located at left side of instrument panel. See Fig 3.
  4. Ensure SIR fuse is installed. Staying well away from all air bag modules, turn ignition switch to RUN position. AIR BAG indicator will flash 7 times. AIR BAG indicator will turn off. If AIR BAG indicator does not operate as described, perform air bag system diagnostic system check. See AIR BAG SYSTEM DIAGNOSTIC SYSTEM CHECK .

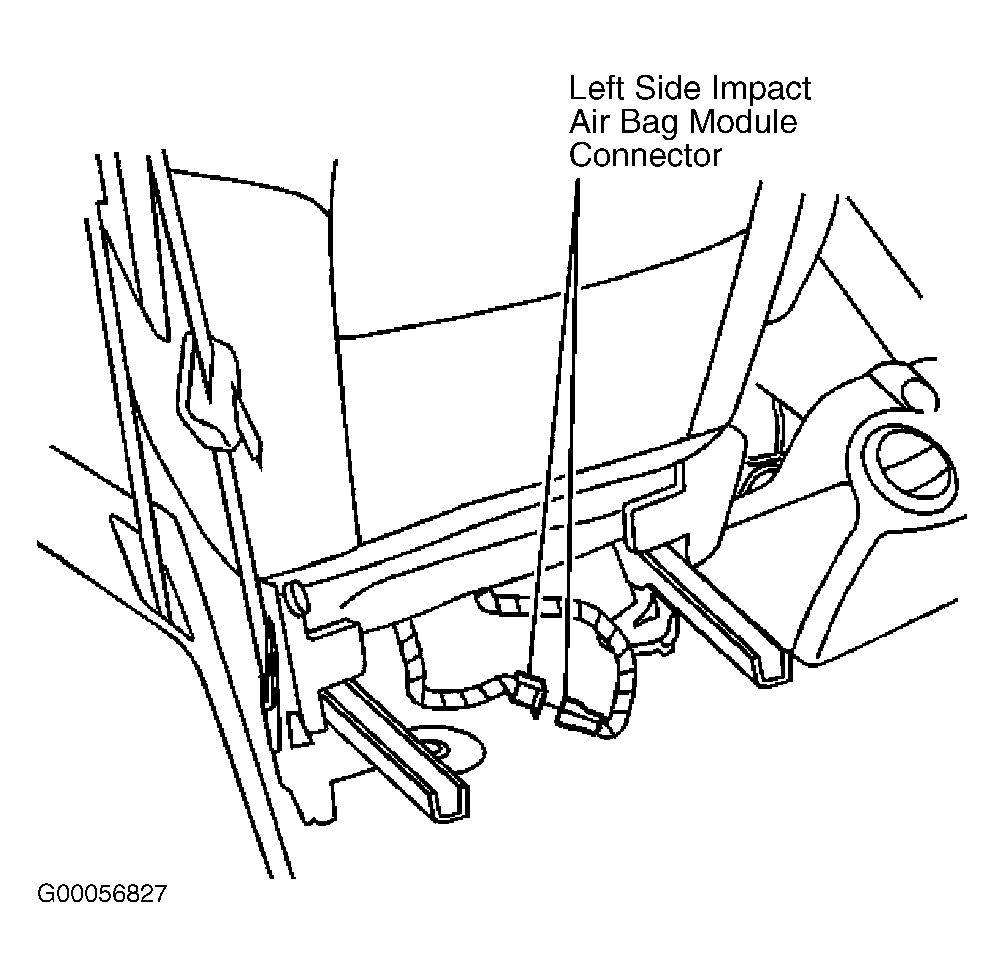

Fig 1: Identifying Left Side Impact Air Bag Module Connector
G00056827Courtesy of GENERAL MOTORS CORP.

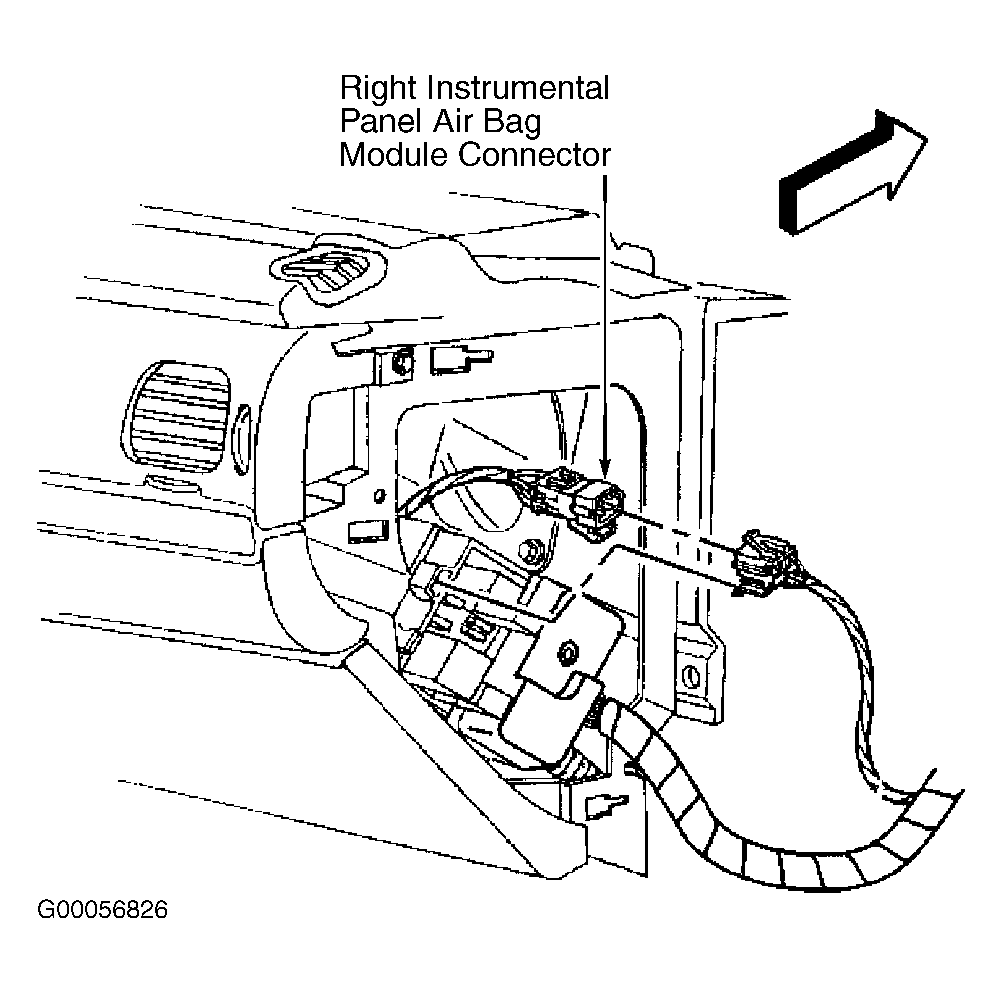

Fig 2: Identifying Right Instrument Panel Air Bag Module Connector
G00056826Courtesy of GENERAL MOTORS CORP.

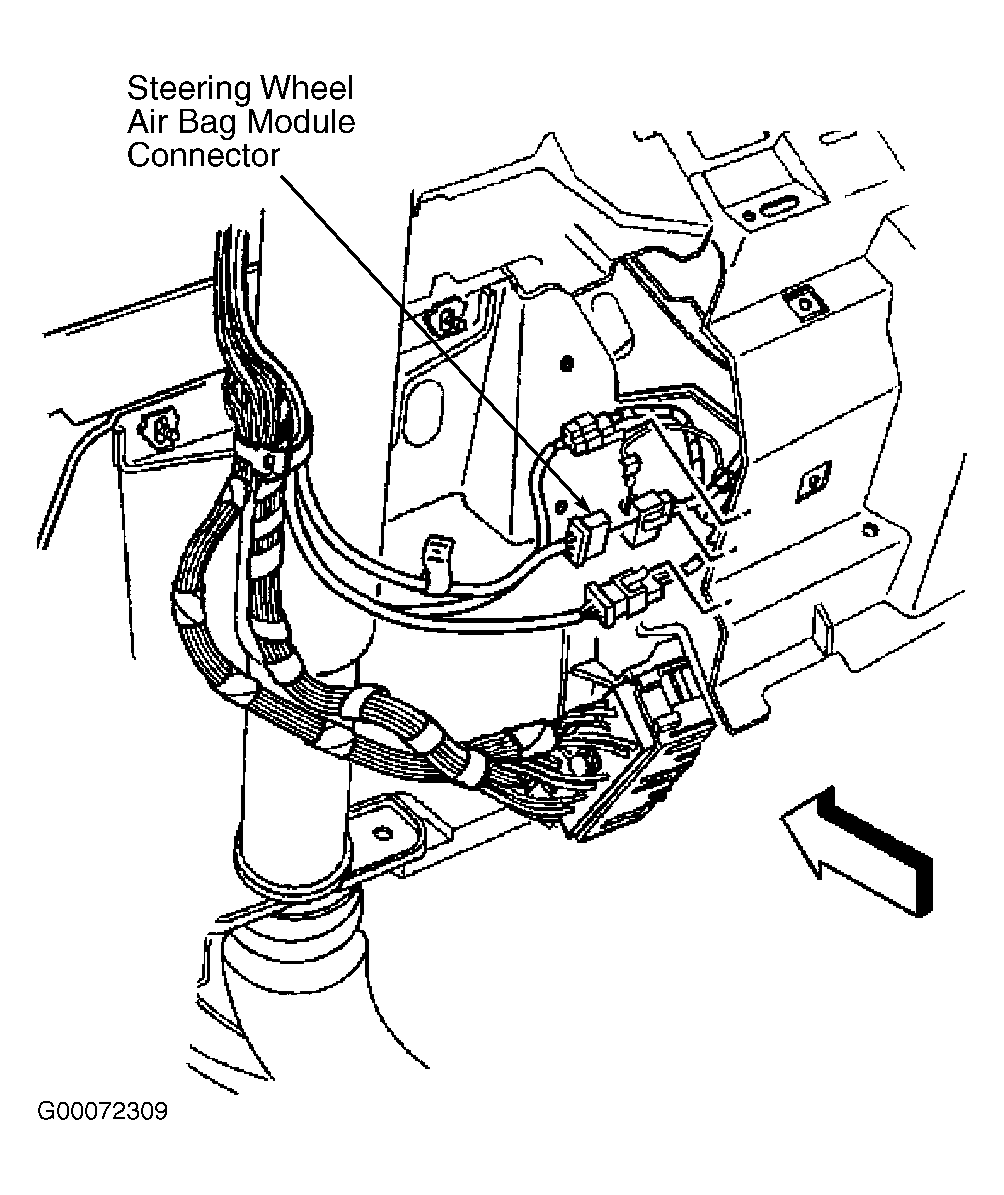

Fig 3: Identifying Steering Wheel Air Bag Module Con
G00072309Courtesy of GENERAL MOTORS CORP.
