Keyless Entry Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

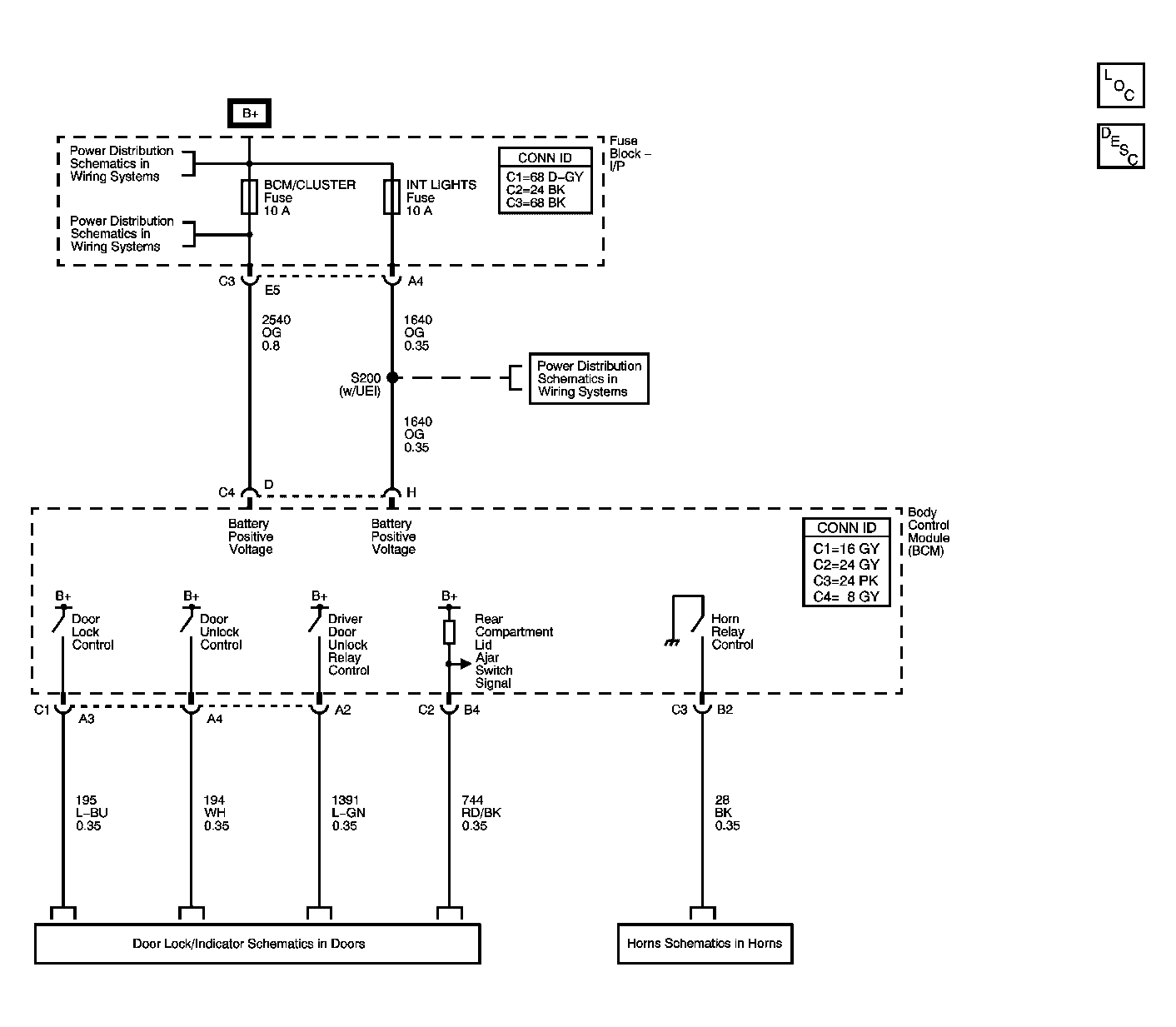

Fig 1: Keyless Entry Schematics
GM1218109Courtesy of GENERAL MOTORS CORP.
