Component Locations
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 GMC Savana, 2002 Chevrolet Chevy Express, 2001 GMC Savana Special, 2001 GMC Savana Camper Special, and 2001 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Data Link Connector | Under Left Side Of Instrument Panel, Below Steering Column |
| Electronic Brake Control Module | On Left Frame Rail, Near Center Of Vehicle |
| Inflatable Restraint Sensing & Diagnostic Module | Under Driver's Seat |
| Instrument Panel Fuse Block | In Left Lower Kick Panel |
| Passlock(tm) Module | Below Center Of Instrument Panel |
| Powertrain Control Module (Except 6.5L) | In Engine Compartment On Left Fender |
| Powertrain Control Module (6.5L) | Behind Center Of Instrument Panel |
| Remote Control Door Lock Receiver | Below Center Of Instrument Panel |

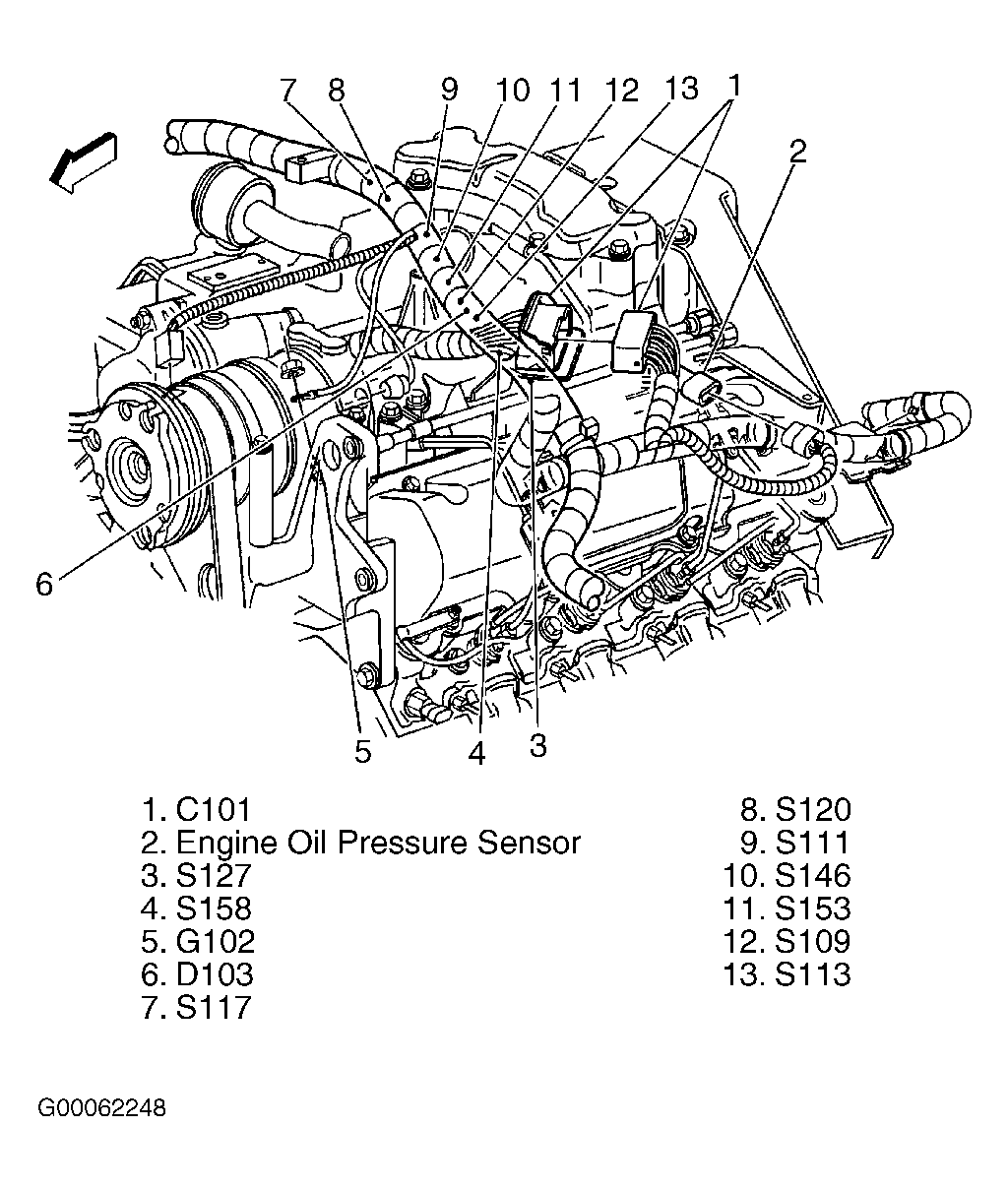

| Splice S153 (Except 6.5L) | In Engine Harness About 3 Inches From C100 Breakout Toward PCM Breakout |
| Splice S153 (6.5L) | In Engine Harness, About 10 In From A/C Compressor Clutch Breakout, Toward C100 Breakout |
| Splice S207 | Located In Instrument Panel Harness, About 2 Inches From Park Brake Warning Switch Breakout, Toward DLC Breakout |
| Underhood Fuse Block | In Engine Compartment On Left Fender |
